Using the
Display
Softkeys
Using Shift
Key Shortcuts
DSAM Product Family Quick-Start Guide Rev. 001
Display Softkeys (directly below the display screen) are
used to select screen-specific options or to select pop-up
menus associated with each key.

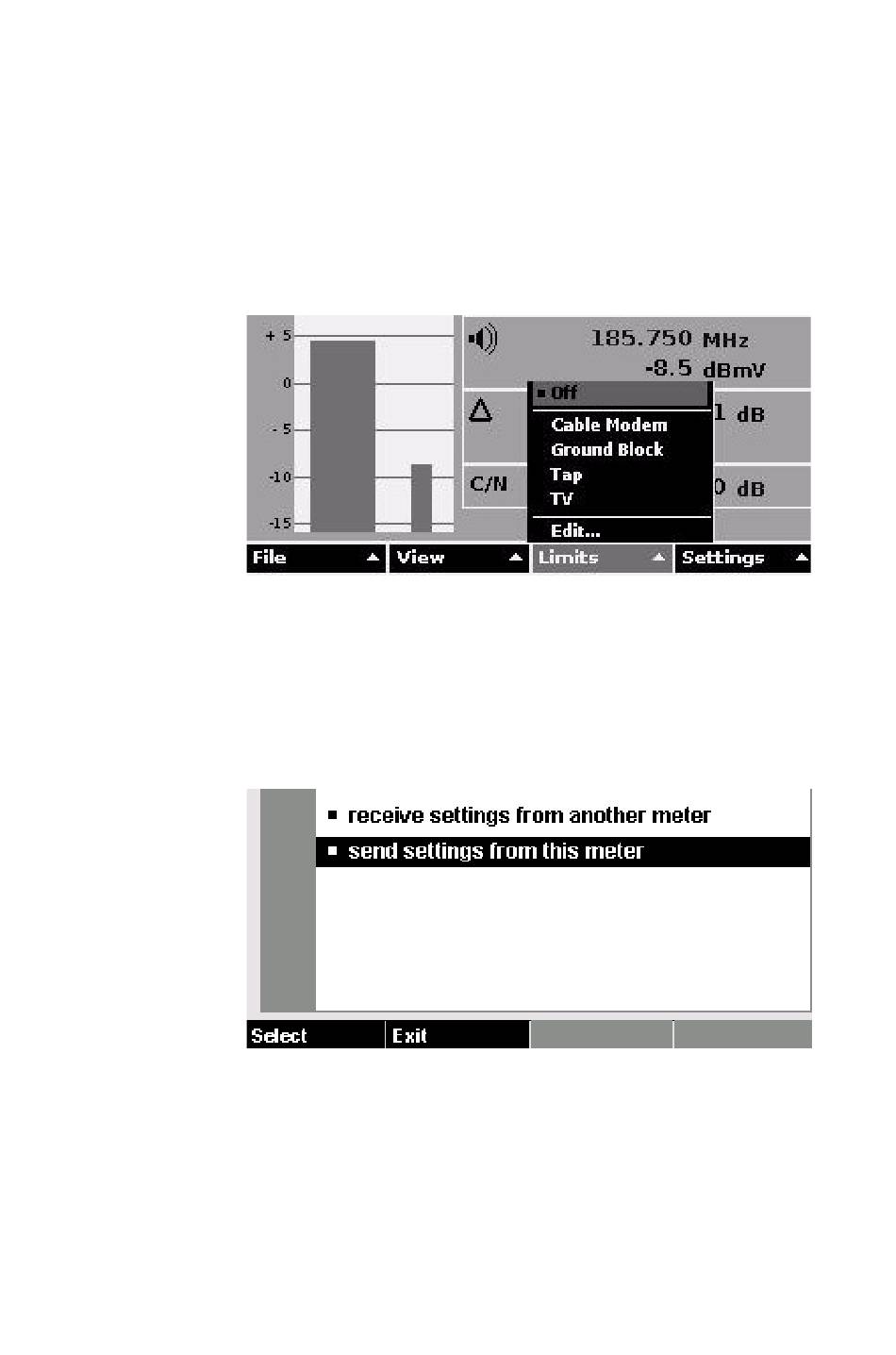

In Figure 6, the softkey below Limits was pressed to
access the Limits pop-up menu in Level Mode.
Figure 6 "Limits" Softkey Selected
In Figure 7, the softkey below Select may be pressed to
select the highlighted option; the softkey below Exit may
be pressed to exit to the previously viewed screen.
Figure 7 "Select" and "Exit" Softkey Options
Use the Shift key
with the alphanumeric keys or display softkeys for shortcut
access to specific features. Shortcut functions are indi-
cated by symbols at the bottom-right of each shortcut key.
Chapter 2 DSAM Meter Operation
(Figure 4 on page
Using the Keypad
17) in conjunction
19
