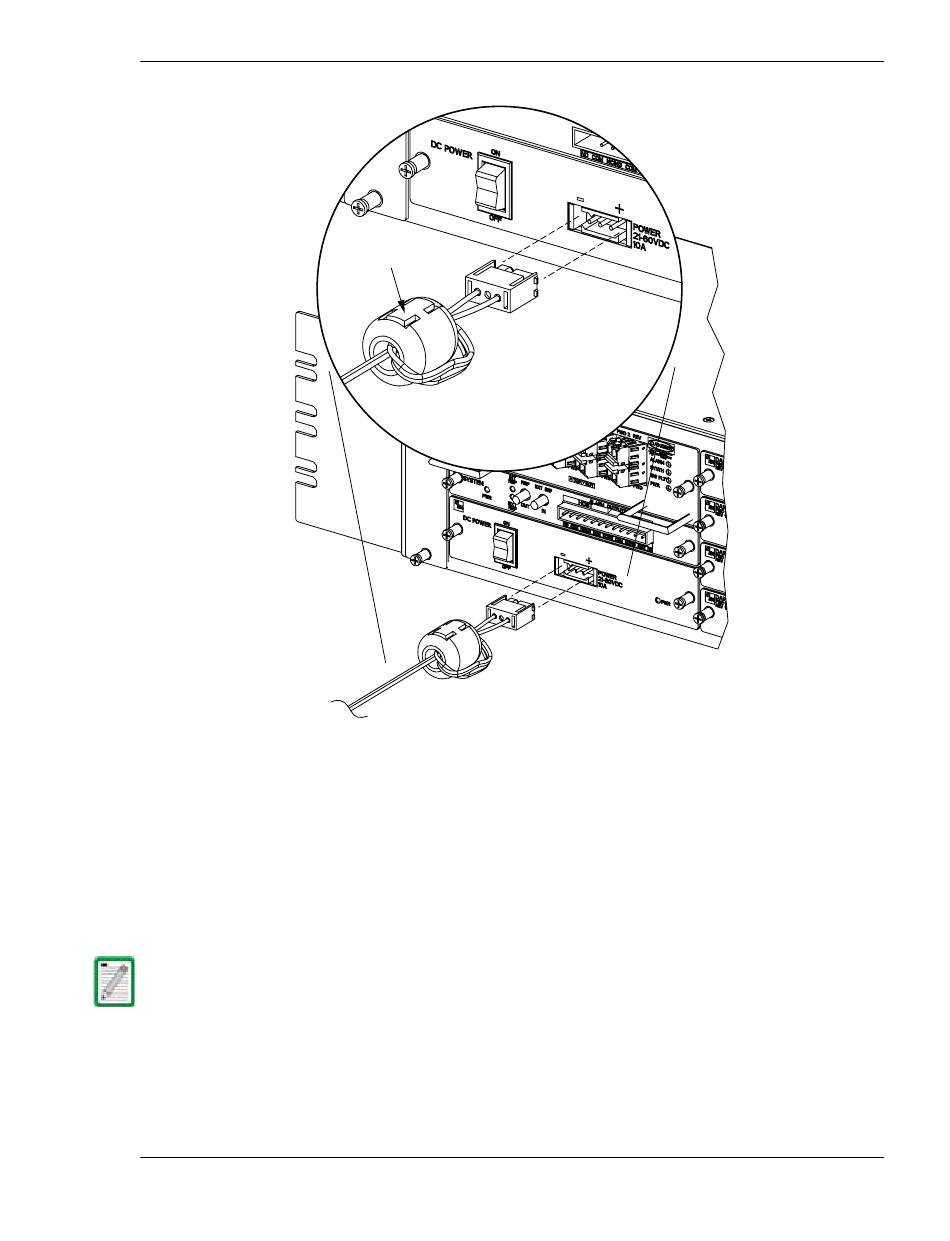

65 5 Loop both power wires around and through the Ferrite as shown above. (The
Ferrite is required for FCC radiated-emissions compliance.)
66 6 Strip 0.5 inch (1.27 cm) of insulation from the end of each wire.
67 7 Insert one end of each wire into the terminal block, one into the positive (+) and
the other into the negative (–) position.
68 8 Insert the terminal block into the 3-pin receptacle on the front of the Host Power
Supply.
69 9 Install fuses in the fuse panel. Update office records as required.
When connecting the equipment to the supply circuit, check equipment nameplate
ratings to avoid overloading circuits which may cause damage to over- current
protection devices and supply wiring.
FlexWave Prism Host, Remote and EMS 5.1 System Reference
ADCP-77-073 • Issue 2 • 11/2009
Ferrite
Install the Host
77073-070
