1 1 The WDM Host module mounting shelf is shipped with the mounting brackets
installed for 23-inch rack installations. If installing the mounting shelf in a 23-inch
rack, proceed to
to Step 2.
2 2 Remove both mounting brackets from the mounting shelf (requires Phillips
screwdriver) and save screws for reuse.

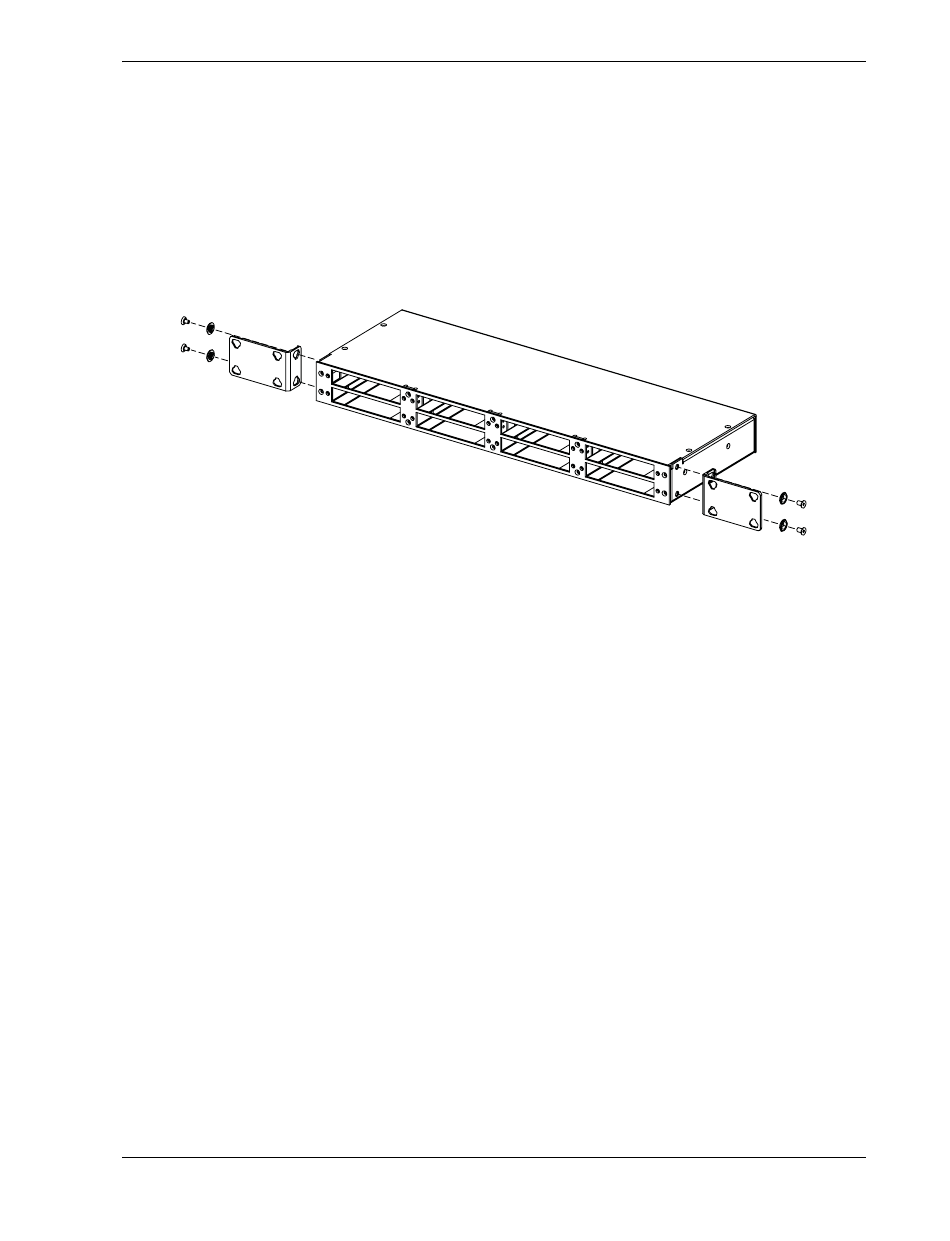

3 3 Reinstall both mounting brackets so the short side of the bracket is flush with the
front panel as shown below. Use the screws removed in
brackets to the mounting shelf.
4 4 Position the mounting shelf in the designated mounting space in the rack (per
system design plan) and then secure the mounting brackets to the rack using the
four #12-24 machine screws provided.
5 5 Install each WDM Host module in the mounting shelf. A rail on the side of the
module fits into a guide within the mounting.
6 6 Secure each Host module to the mounting shelf by twisting the handle on each
quarter-turn fastener 90º.
7 7 Carefully store the fiber patch cord leads from each Host module. At the Remote
end, the ProAx fiber used in WDM deployments is Fiber Number 1. The routing
and connection procedures for the fiber patch cords are provided in
Connections For Systems With a WDM" on page
patch cord, correctly store the slack cable.
FlexWave Prism Host, Remote and EMS 5.1 System Reference
ADCP-77-073 • Issue 2 • 11/2009
Installing the WDM Host Module Mounting Shelf and WDM Host Module
