The basic function of FlexWave Prism simulcast (point-to-multipoint) is to transport,
via fiber optic cable, RF signals from a Base Transceiver Station (BTS) to multiple
antenna interfaces allowing communication to a mobile device (see
8 simulcast Remotes are supported.
FWD RF IN
BTS 1
REV RF OUT
FWD RF IN
BTS 2
REV RF OUT
FWD RF IN
BTS 3
REV RF OUT

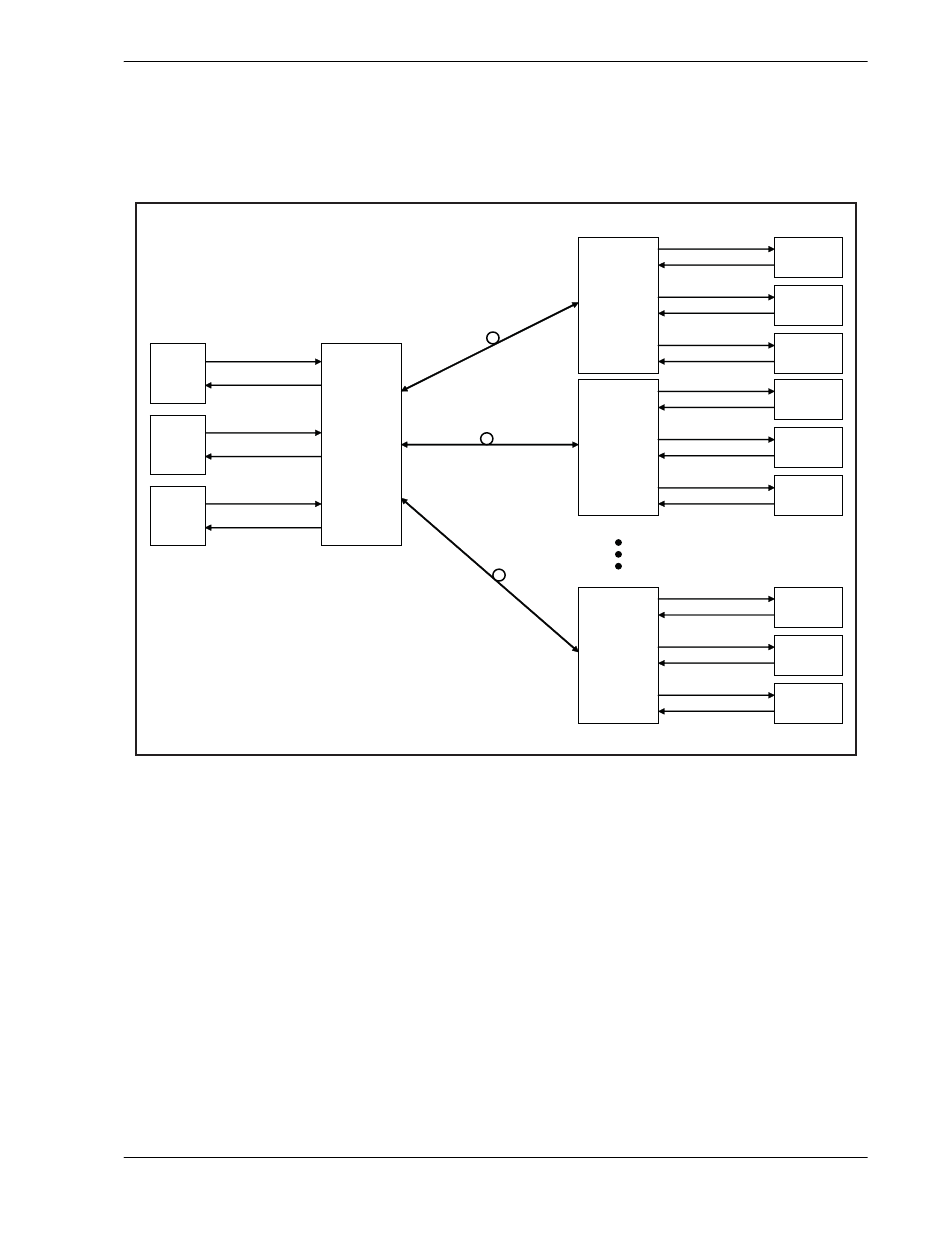

Figure 2-2. System Block Diagram for Eight-Way Simulcast
FlexWave Prism Host, Remote and EMS 5.1 System Reference
ADCP-77-073 • Issue 2 • 11/2009
FlexWave
Host
FlexWave Prism Family Overview
Figure
FWD RF OUT
REV RF IN
FWD RF OUT
FlexWave
REV RF IN
Remote 1
FWD RF OUT
REV RF IN
FWD RF OUT
REV RF IN
FlexWave FWD RF OUT
REV RF IN
Remote 2
FWD RF OUT
REV RF IN
FWD RF OUT
REV RF IN
FlexWave
FWD RF OUT
Remote 8
REV RF IN
FWD RF OUT
REV RF IN
