Installing the Host Unit
70 0 Turn the DC power switch to its ON position.
Under normal operating conditions, the Host responds as follows:
a a Immediately—PWR LED turns Green
b b Within 6 to 7 seconds—ALARM, SYNTH, and SW FLT LEDs turn Red
c c Approximately 10 seconds—ALARM LED goes out
d d Approximately 30 seconds—SYNTH LED goes out
e e Approximately 1 minute—SW FLT LED goes out
f f Approximately 2.5 minutes—Craft port assigns IP Address to Laptop,
making Telnet management through the Craft port available
g g Approximately 3 minutes—SYNTH LED turns Green
h h Approximately 5 minutes—Element Management System (EMS) available on
Craft port (1 - 2 minutes after SYNTH LED turns Green)

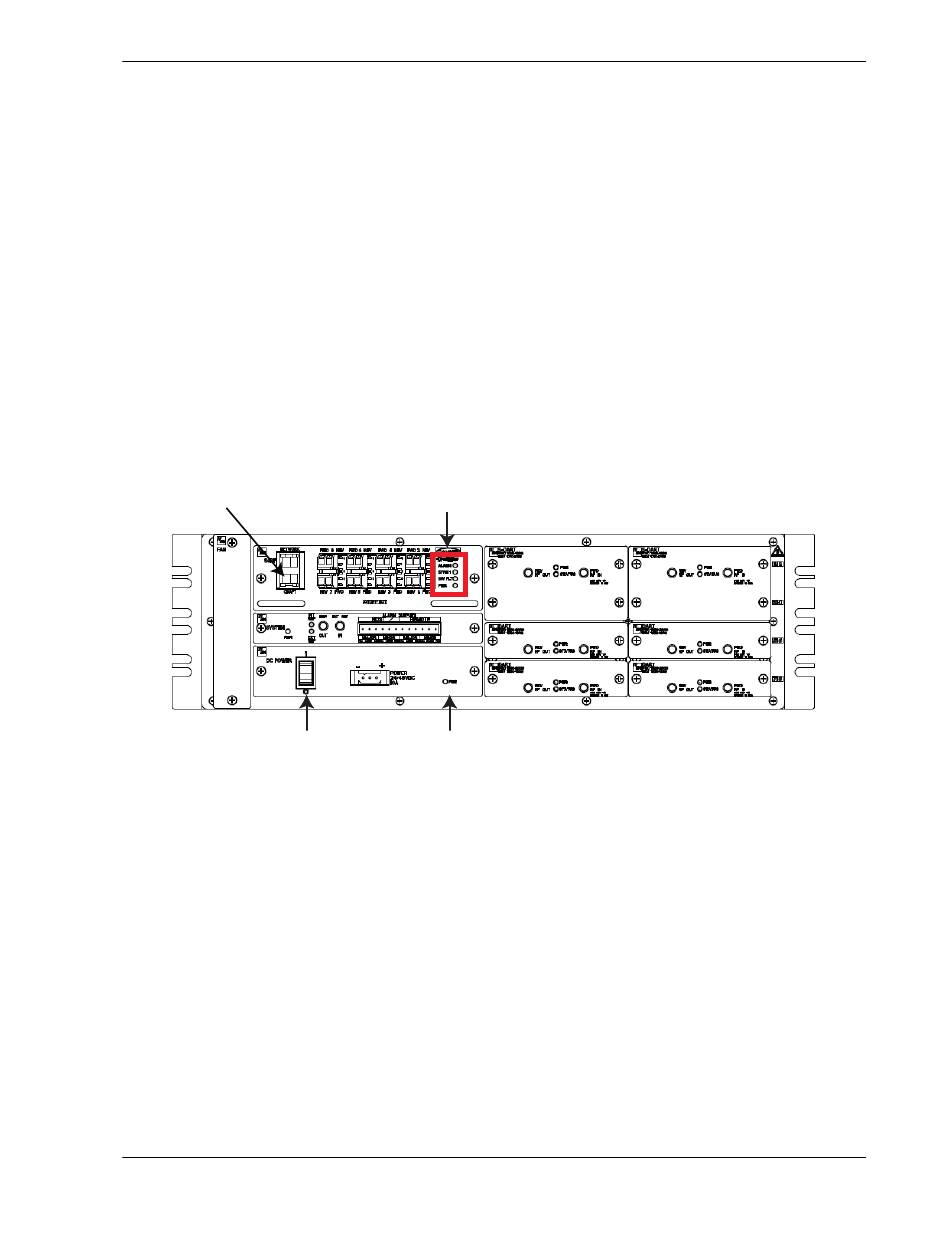

Refer to the following graphic for location of the LEDs referenced above.
Craft port
DC power switch
