Installing the Host Unit
3.3.7.2
Optical Connections For Systems With a WDM
Use the following procedure to connect the optical fibers when a WDM module is
installed with the Host.
37 7 Obtain a patch cord that is of sufficient length to reach from the WDM module to
the fiber distribution panel.
38 8 Remove the dust cap from the WDM port on the WDM module and from the patch
cord connector that will be connected to the WDM module.
WDM module ports are labeled FWD, REV, TEST, and WDM.
39 9 Clean the patch cord connector (follow patch cord supplier's recommendations).
40 0 Insert the connector into the WDM port on the WDM module.
41 1 Obtain two patch cords that are of sufficient length to reach from the WDM
module to the Host.
42 2 Designate one of the patch cords as the forward path link and the other as the
reverse path link and attach an identification label or tag next to the connector.
43 3 Remove the dust caps from the Host SeRF SFP optical ports and from the patch
cord connectors that will be connected to the SeRF SFP optical ports.
44 4 Connect the LC attenuator (see

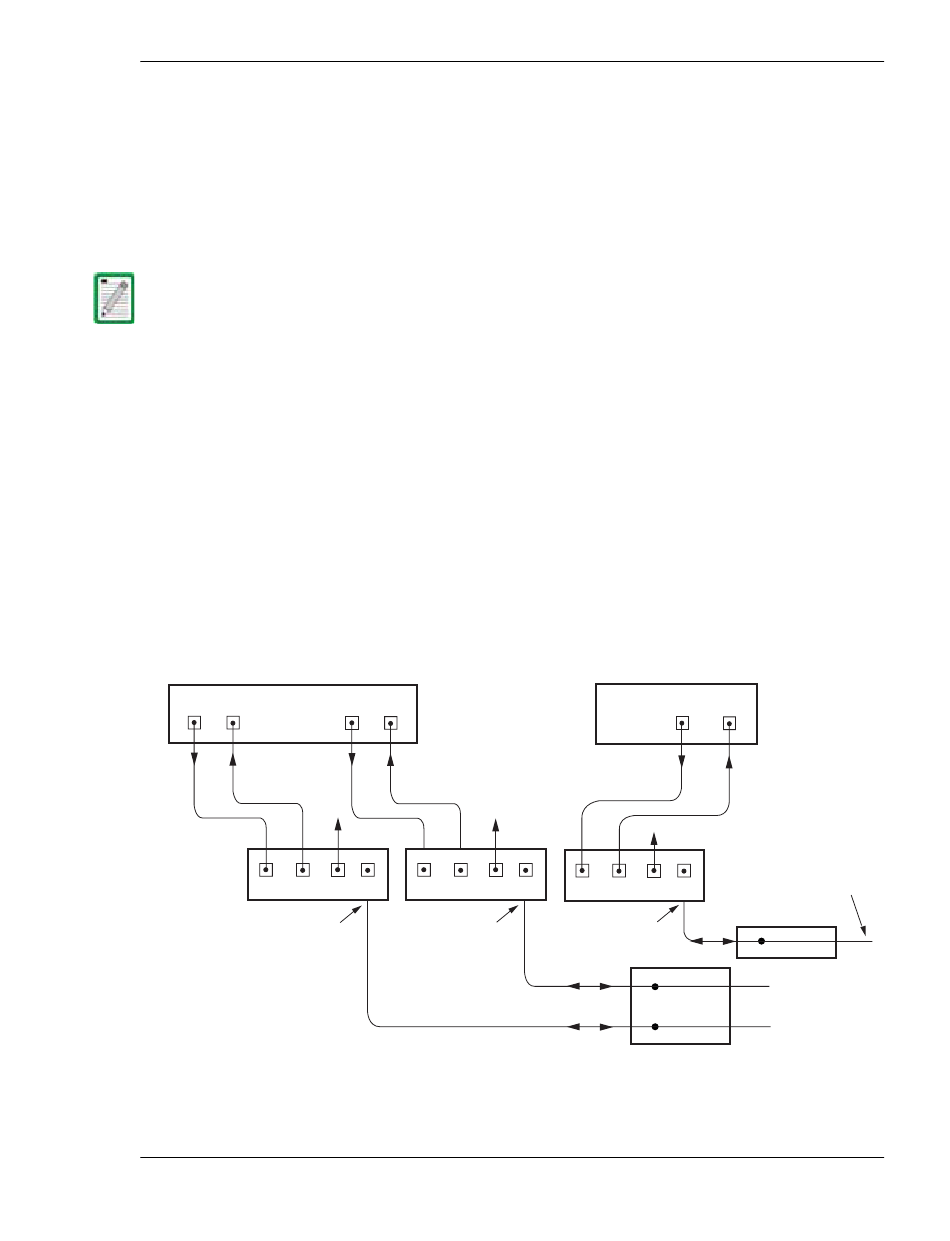

45 5 Refer to the following diagram to understand the fiber optic connections to the
WDM module.
Host Unit 1
PORT 8
PORT 8
FWD
REV
FWD
REV
FWD
path
path
path
Wavelength
Division
Multiplexers
1
2
Host Unit 1
(Bi-Directional Fiber
Link With Remote Unit)
Page 76
© 2009 ADC Telecommunications, Inc
Figure 3-2 on Page
PORT 1
PORT 1
FWD
REV
REV
path
Test
Test
3
4
1
2
3
Host Unit 1
(Bi-Directional Fiber
Link With Remote Unit)
FlexWave Prism Host, Remote and EMS 5.1 System Reference
73) to the patch cord.
Host Unit 2
PORT 1
FWD
FWD
path
Test
4
1
2
3
4
Host Unit 2
(Bi-Directional Fiber
Link With Remote Unit)
X
X
Fiber Distribution
Panel (FDP)
ADCP-77-073 • Issue 2 • 11/2009
CORNING EX1005, page 090
PORT 1
REV
REV
path
To/From
Remote Unit 2
Fiber Distribution
Panel (FDP)
X
To/From
Remote Unit 1
To/From
Remote Unit 1
77073-065
