ADC FlexWave Prism System Reference Manual page 204

Using the EMS to Manage a Prism System

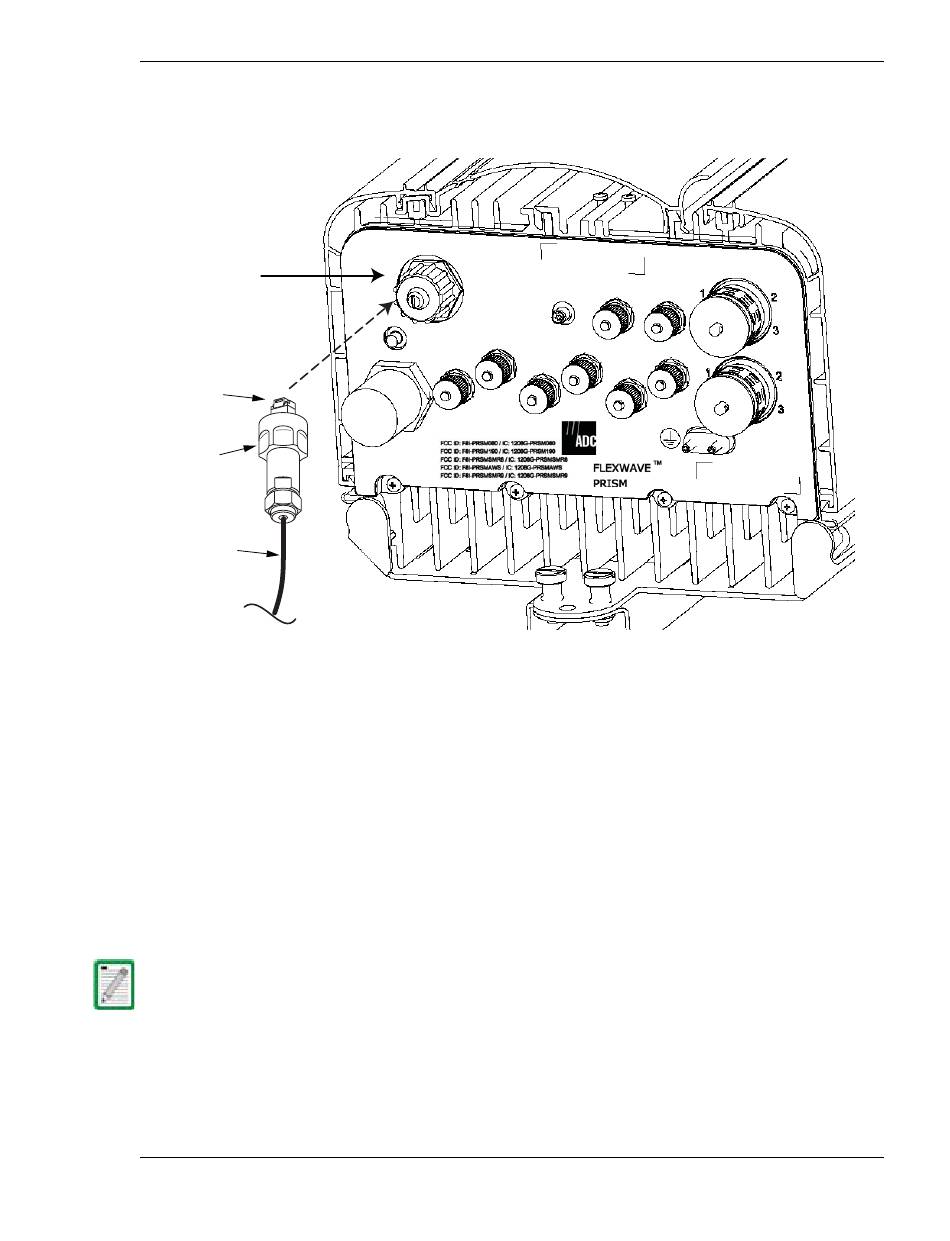

1 1 Remove the dust cap from the RJ-45 connector located at the bottom of the
Remote as shown below.
RJ-45 Network
Connector port
RJ-45 plug
Connector nut
Network cable
2 2 Route the network cable from the network connection to the underside of the
Remote.
3 3 Align the plug end of the RJ-45 cable connector with the RJ-45 port receptacle and
then insert the cable plug into the port receptacle.
4 4 Slide the connector nut up to the port until it engages the connector locking
mechanism.
5 5 Tighten the connector nut in a clockwise direction (if necessary, use a wrench or
pliers to grip the connector nut) until it snaps past the indented position and
locks into place. It may be necessary to apply 30 to 50 in-lbs (3.4 to 5.6 Nm) of
torque to the connector nut in order to turn it past the indented position.
It may be necessary to apply 30 to 50 lbs/force- inches (3.4 to 5.6 Nm) of torque to the
connector nut in order to turn it past the indented position.
