• —Summary alarm state of the Low Noise Amplifier (LNA). Red indicates that
LNA
an active alarm exists for the LNA.
• —Red indicates that the LPA has been shut down. On initial
Power Det
configuration, the
When a new dual-slot 40W RF Module is installed in a Prism system, in the
Summary of RF Groups on Remote
below where the DART appears in the GUI.

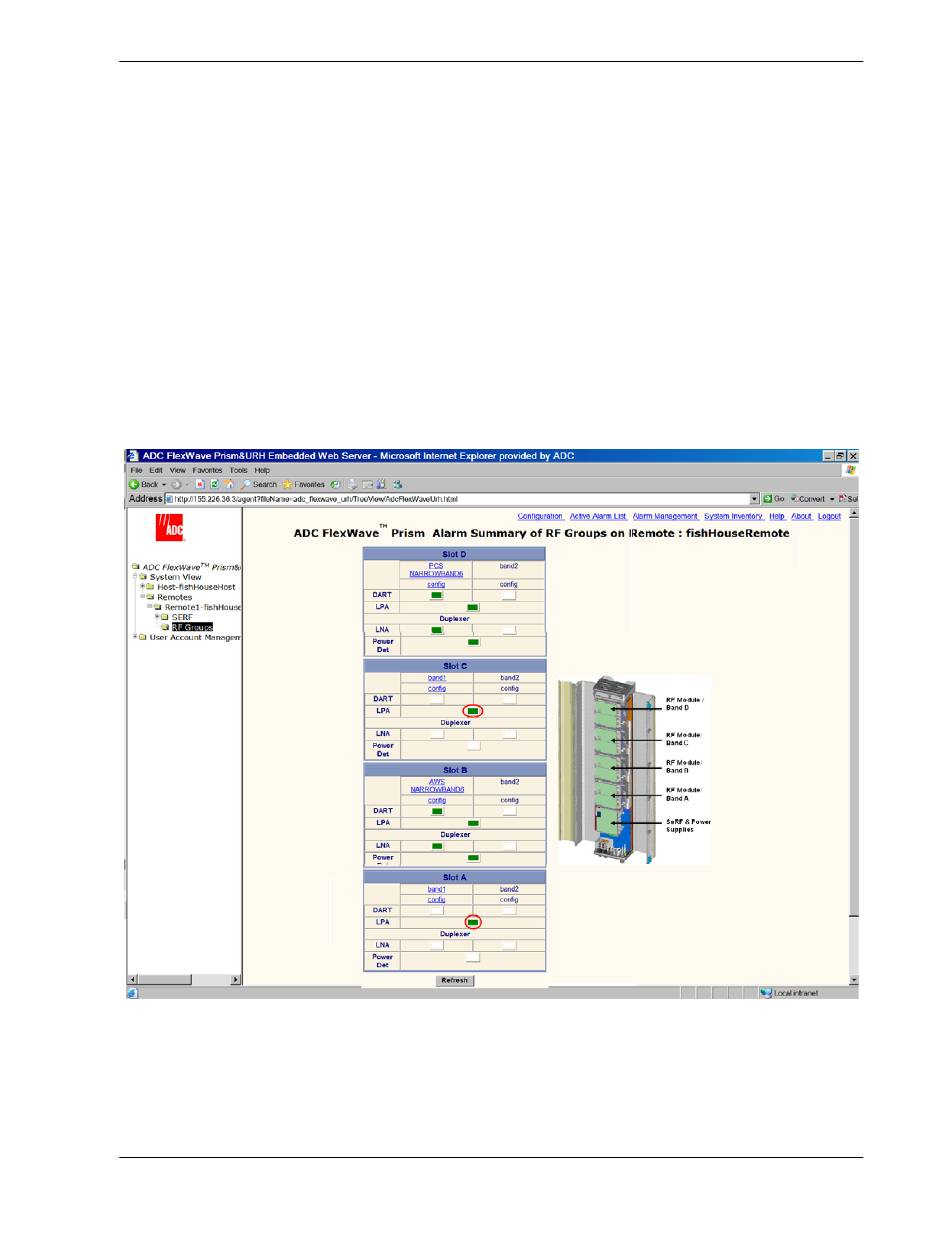

The following figure shows:
• • 40W RF Module, PCS 1900 Non-Diversity Enclosure for Prism Remote installed in
Slots D and C. The second LPA status is shown in Slot C.
• • 40W RF Module AWS 2100 Non-Diversity Enclosure for Prism Remote installed in
Slots B and A. The second LPA status is shown in Slot A.
FlexWave Prism Host, Remote and EMS 5.1 System Reference
ADCP-77-073 • Issue 2 • 11/2009
indicator will be red until the link is created.
Power Det
window, the status of the second LPA is in the slot
Viewing an Alarm Summary of the Remote RF Groups
