5.2 EMS G
Before you start using the EMS, familiarize yourself with its components.
You use a Web browser to access the EMS Graphical User Interface (GUI). A typical
display consists of the two frames shown in
• • Function Explorer Tree—appears in the left frame. Click on a node to open the
corresponding screen.
• • EMS View Frame—appears in the right frame. A typical page contains alarm
indicators, lists of parameter values, and tools such as lists and text boxes that
allow you to set parameter values.
The EMS View Frame includes the EMS Menu bar, which provides access to EMS
configuration or summary windows. For further information on the EMS Menu
bar, see "EMS Menu Bar" on page
Page 138
© 2009 ADC Telecommunications, Inc
U
RAPHICAL SER
140.

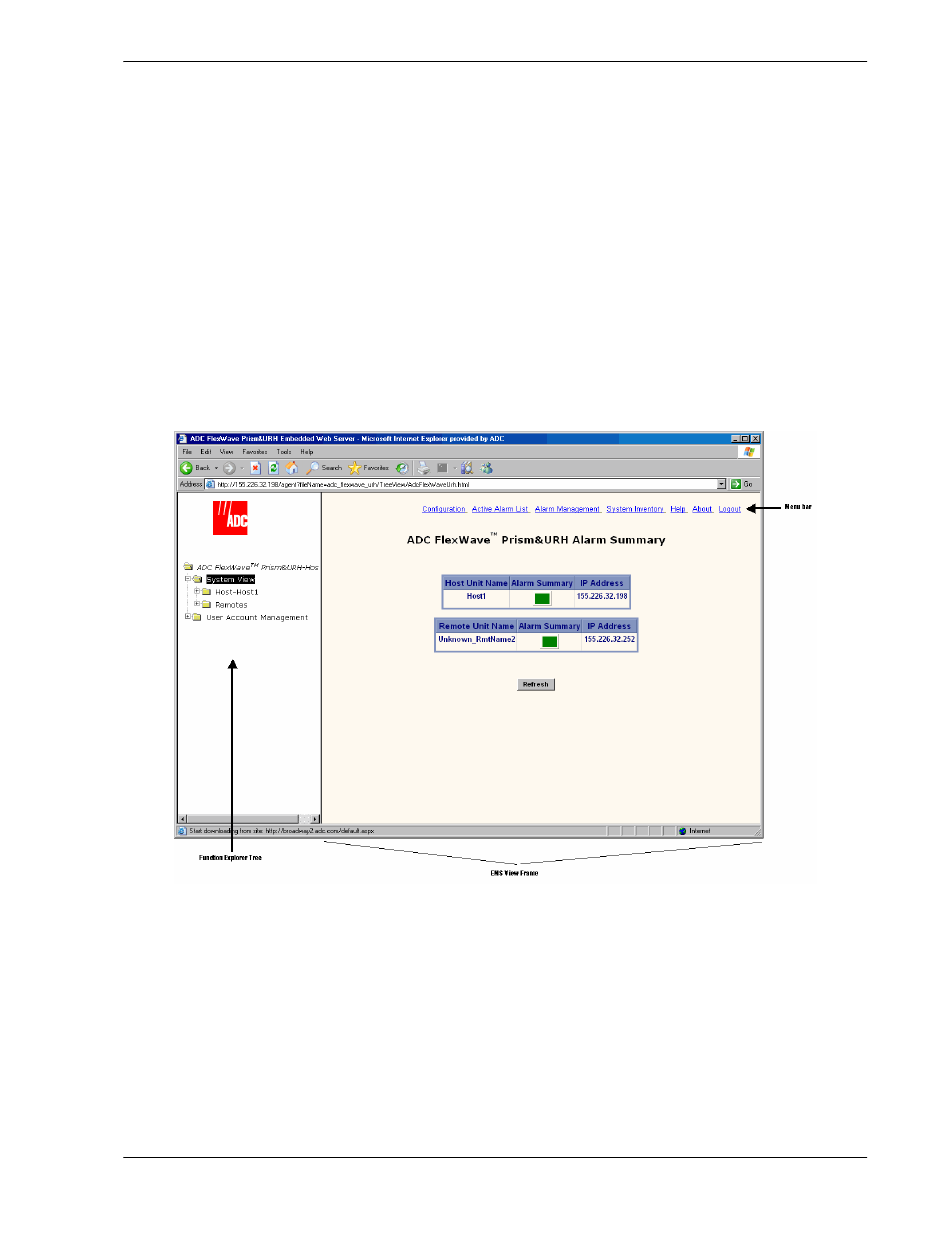

Figure 5-3. EMS Screen Example
