Each WDM module supports a single Small Form-Factor Pluggable (SFP) port on the
Host, but a WDM chassis can support up to 8 WDM modules, which allows it to be
shared among multiple Hosts depending on the SFP port counts and system
configuration. That is, the 8 modules allows a fully loaded Host with 8 SFP modules
or multiple partially-loaded Hosts (for a maximum of 8 total SFPs). The WDM Host
module mounting shelf installs in the equipment rack with the Host.
a one Host WDM system.
FlexWave Prism Host, Remote and EMS 5.1 System Reference
ADCP-77-073 • Issue 2 • 11/2009

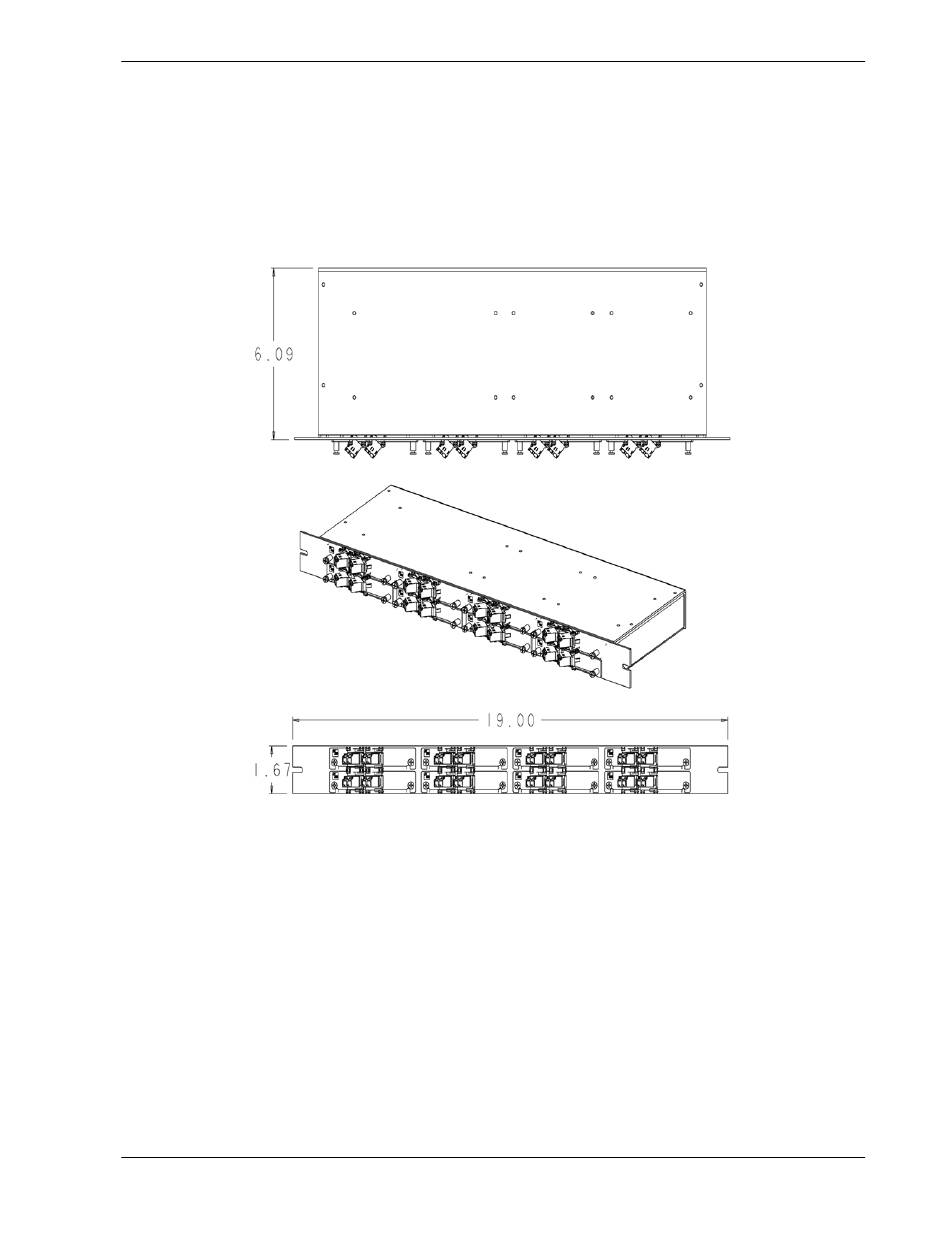

Installing the WDM Host Module Mounting Shelf and WDM Host Module
Figure 3-7. One Host WDM System
Figure 3-7
77073-061
