15-6 Model: KP-200

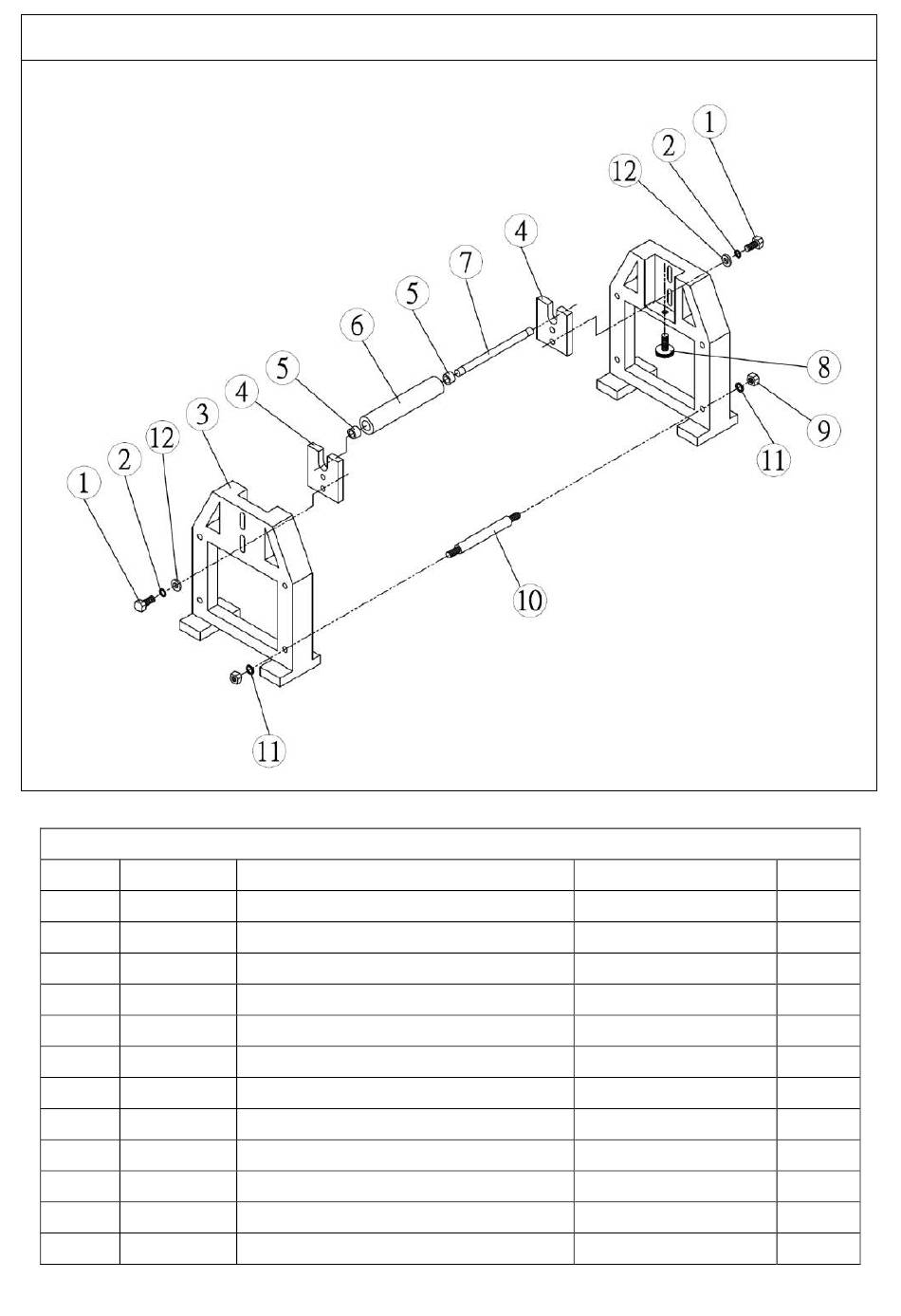

Model: KP-200 Title: MATERIALS RACK ASSEMBLY Drawing No.: M-092006
ITEM PART NO.
1 S-05-07
2 SW-30-05
3 P-20407
4 P-25406-2
5 BR-29-04
6 P-25408-1
7 P-25409-1
8 HD-80-05
9 N-10-06
10 P-20406
11 SW-30-06
12 W-20-05
Title: Materials Rack Assembly
DESCRIPTION
HEX HEAD CAP SCREW
SPRING WASHER
MATERIALS RACK
ROLLER SEAT
BALL BEARING
ROLLER
ROLLER SHAFT
ROLLER ADJUST SCREW
NUT M10*1.5
MATERIALS RACK SHAFT
SPRING WASHER
WASEHR
SPECIFICATIO
M8*1.25*40
Ø 8.5
6203ZZ
1/2"-14NC*70
M10*1.5
Ø 10.5
Ø 8.5
84
Drawing No.: M-092006
Q'TY
4
4
2
2
2
1
1
2
8
4
8
8
