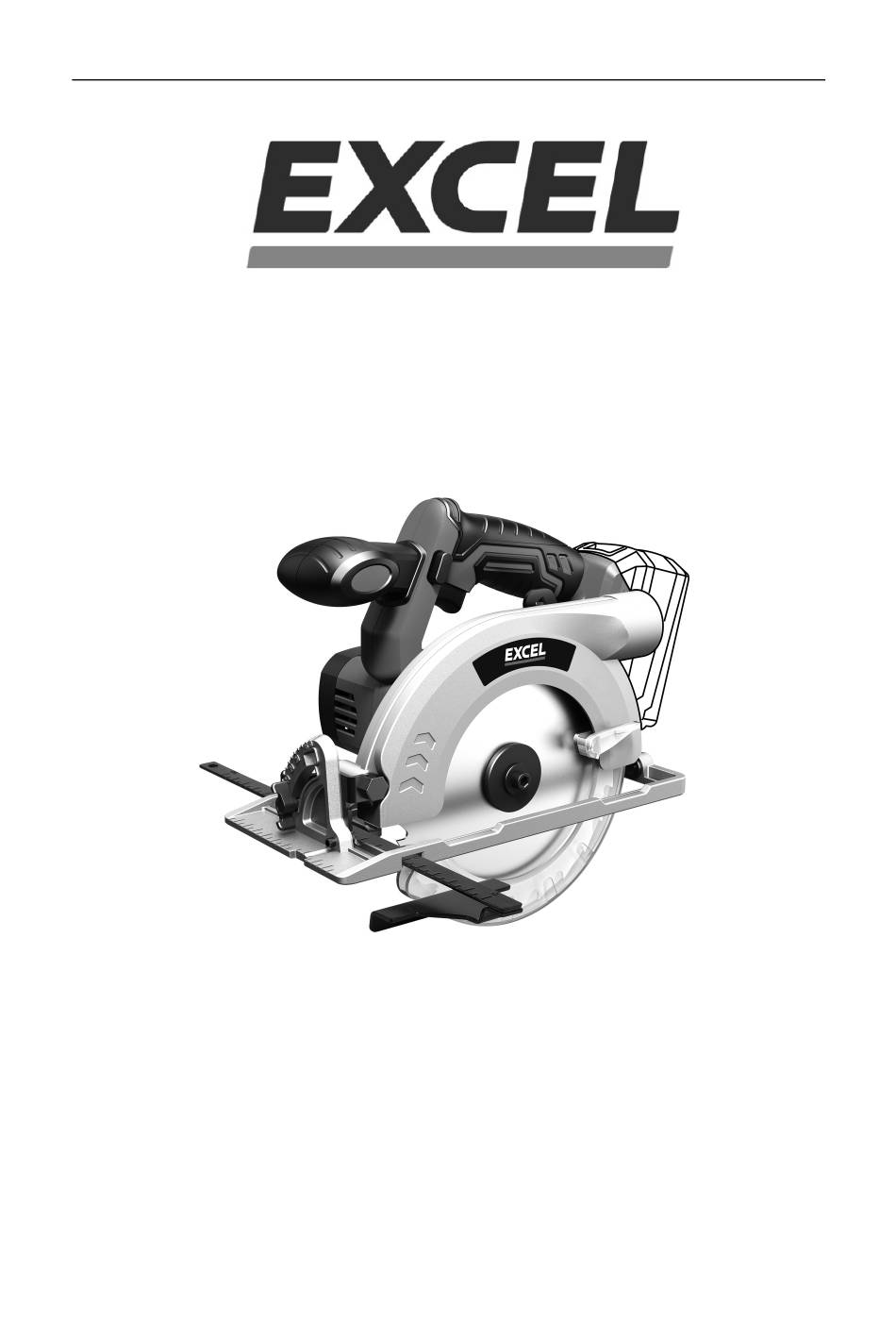

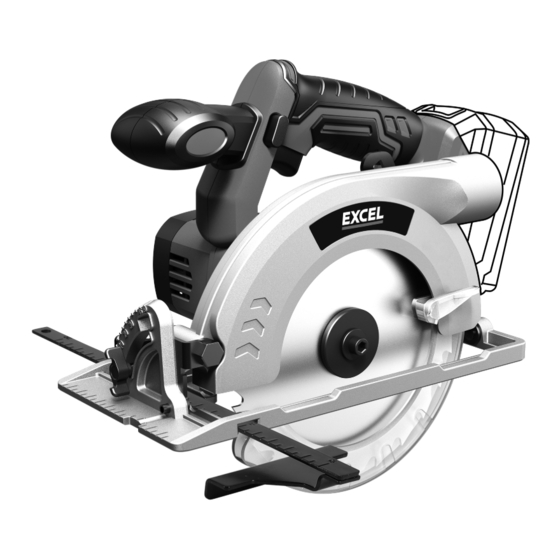

- Page 1 Original Instructions CORDLESS CIRCULAR SAW 18V 11753 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. -
Page 3: General Power Tool Safety Warnings
Original Instructions On charger Class II machine – Double insulation – You don’t need any earthed plug. Use this device indoors only. GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instruction, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. - Page 4 Original Instructions f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock. 3) Personal safety a) Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 5 Original Instructions d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. e) Maintain power tools and accessories.
- Page 6 Original Instructions 6) Service Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.
- Page 7 Original Instructions Ø if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator. Ø...
- Page 8 Original Instructions c) The lower guard may be retracted manually only for special cuts such as "plunge cuts" and "compound cuts". Raise the lower guard by the retracting handle and as soon as the blade enters the material, the lower guard must be released.
- Page 9 Original Instructions When transporting individual batteries, make sure that the battery terminals are protected and well insulated from materials that could contact them and cause a short circuit. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold.
-
Page 10: Intended Use
Original Instructions Do not use an extension cord unless it is absolutely necessary. The use of an improper extension cord could cause the risk of fire, electric shock or electrocution. Do not use the charger if it has been subjected to a heavy knock, dropped or otherwise damaged in any way. -
Page 11: List Of Main Parts
Original Instructions LIST OF MAIN PARTS... -
Page 12: Noise/Vibration Information
Original Instructions 1.Switch Trigger 2.Lock-off button 3.Inclined gauge 4.Wing-nut(cutting depth) 5.Saw Blade 6.Lower Guard 7.Bolt 8.Flange 9.Base 10.Lower guard lever 11.Saw cover 12.Handle 13.Allen wrench 14.Wing-nut(cutting angle) 15.Adjusting screw 16.Rip Guide 17.Spindle Lock 18.Battery pack (excluded) Specifications Product Description 18V Li-ion Circular saw Rated voltage of battery No-load Speed 3800rpm... - Page 13 Original Instructions Vibration total values (triax vector sum) determined according to EN 62841: The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another.
- Page 14 Original Instructions Charging the battery This lithium-ion battery pack is shipped partially charged. Before using it the first time, fully charge the battery pack. A fully discharged battery pack with a temperature between 5℃ and 35℃ will charge in about 70-140MIN(See section”Specifications”).
- Page 15 Original Instructions Warning! Always remove the battery pack before making adjustments to the equipment. Be sure to read the following information before you put the cordless equipment into operation: • Charge the battery pack with the charger. An empty battery pack requires a charging period of approximately 0.5 to 1 hour.
- Page 16 Original Instructions Removing the saw blade Before any work on the power tool, remove the battery. To remove the saw blade, press the spindle-lock button in deep and hold it in this position continuously.(Fig.1) If necessary, turn the spindle slightly with the free hand until it locks into position.
- Page 17 Original Instructions Fig.1 Fig.2 CAUTION! Always check the locking lever before working. A loose locking lever may cause serious injury. Adjusting the cutting angle CAUTION! When bevel cutting, cutting depth does not correspond with value on cutting depth scale. Always check the bevel adjustment lever before working. A loose adjustment lever may cause serious injury.
-
Page 18: Application Advice
Original Instructions Dust suction The dust extraction port to allow a dust extraction system or a household vacuum cleaner to be connected to the tool for a cleaner and safer work area. APPLICATION ADVICE Please always properly secure the workpiece before working. For board cutting, please always fix the workpiece in a support surface and make sure the blade can not touch with it. - Page 19 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
