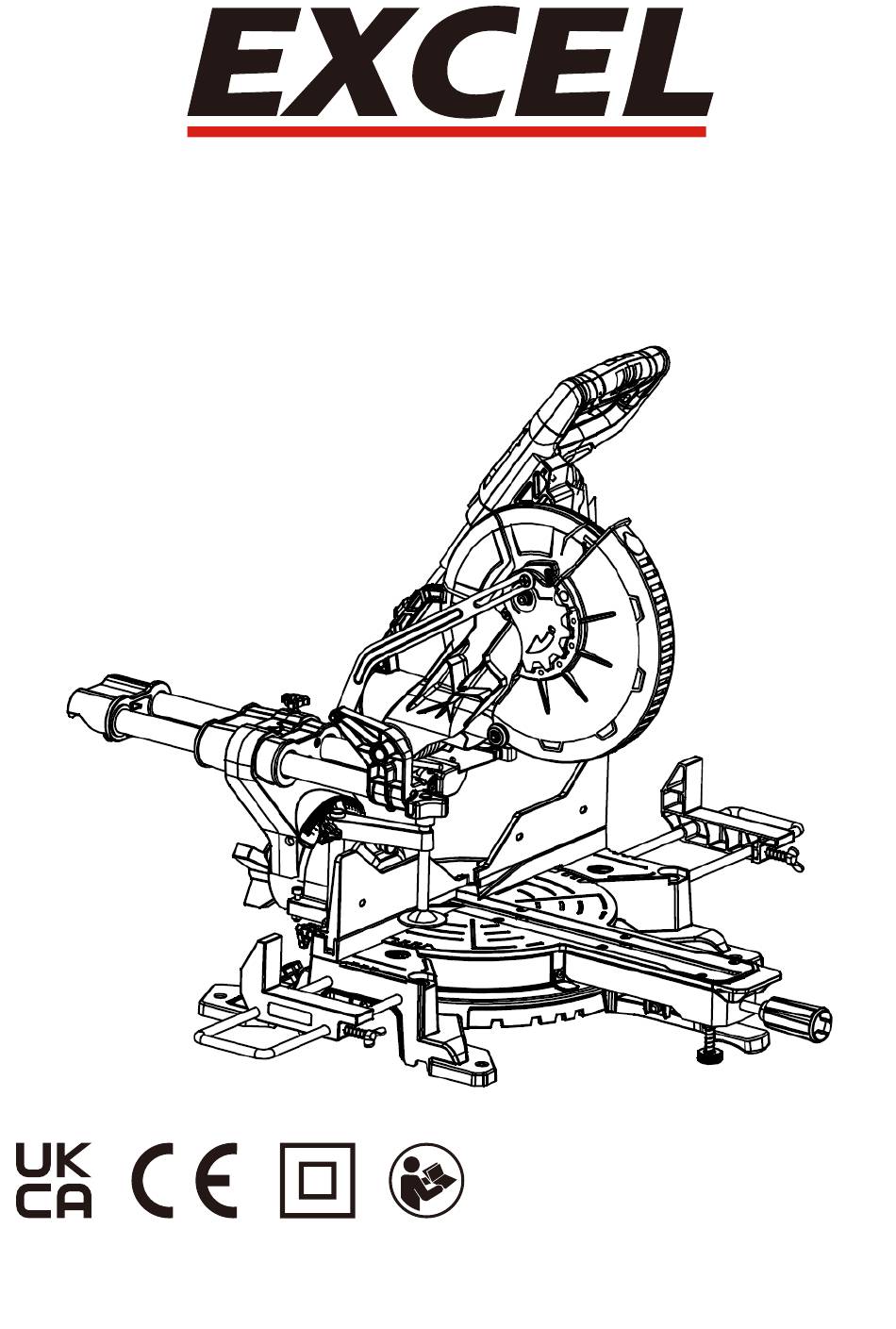

- Page 1 Original operating instructions MITRE SAW Model: 11734 2021 Danger! Read all safety regulations and instructions. Keep all safety regulations and instructions in a safe place for future use.
- Page 2 CONTENTS Know your product Description, specifications and instructions General safety instructions Additional safety rules for mitre saws Operating instructions Maintenance and servicing Guarantee Caution: Laser radiation. Read the instruction manual. Laser class 2 product! Caution! Wear ear-mu! s. The impact of noise can cause damage to hearing.
- Page 3 KNOW YOUR PRODUCT PARTS LIST 1. Switch handle Dust bag connector 2. On/Off trigger switch 18. Blade 3. Upper blade guard 19. Motor 4. Lower blade guard 20. Spindle lock 5. Base 21. Lock-down pin 6. Table insert 22. Slide carriage lock knob 7.
- Page 4 and analogue materials SPECIFICATIONS WARNING ! When using electric tools basic safety precautions should always be followed to reduce the TECHNICAL DATA risk of fire, electric shock and personal injury including the following. Voltage : 220-240V ~ 50Hz • Read all these instructions before attempting to Power rating: 2000W •...
- Page 5 and operation of the machine. Do not expose power tools to rain or wet · Use correctly sharpened blades and observe the conditions. Water entering a power tool will maximum speed marked on the blade. increase the risk of electric shock. ·...
- Page 6 Do not force the power tool. Use the correct dust causes moving parts such as the lower guard to power tool for your application. The correct power jam. Sparks from abrasive cutting will burn the lower tool will do the job better and safer at the rate for guard, the kerf insert and other plastic parts.
- Page 7 s) Hold the handle firmly when making an or braced and may bind on the blade or shift during cutting. incomplete cut or when releasing the switch before the saw head is completely in the down j) Ensure the mitre saw is mounted or placed on a position.
- Page 8 screw & Locker lever (8). • Attachments weight: 1.5kg · Turn the turntable (25) and scale pointer to the desired angular setting on the dial (26) and lock into CROSS CUT 90° AND TURNTABLE 0° place with the locking screw (7).
- Page 9 screw (A). To do so, undo the knurled nut on the screw (A). Turn the screw in or out to set the required cutting depth and then re-tighten the knurled nut on the screw (A). ·Check the setting by completing a test cut. SAW DUST BAG The saw is equipped with a saw dust bag for saw dust and chips.
- Page 10 Replace the extension cord if necessary. · Fix the saw‘s drag function with the locking screw (22) for drag guide in rear position. LUBRICATION ·Carry the equipment by the fixed saw table (11) The grease in the gearbox will require replacement after the transport handle.
