6-3. Adjustment of Sawing Angle

Adjustment of Vice Jaw Angle

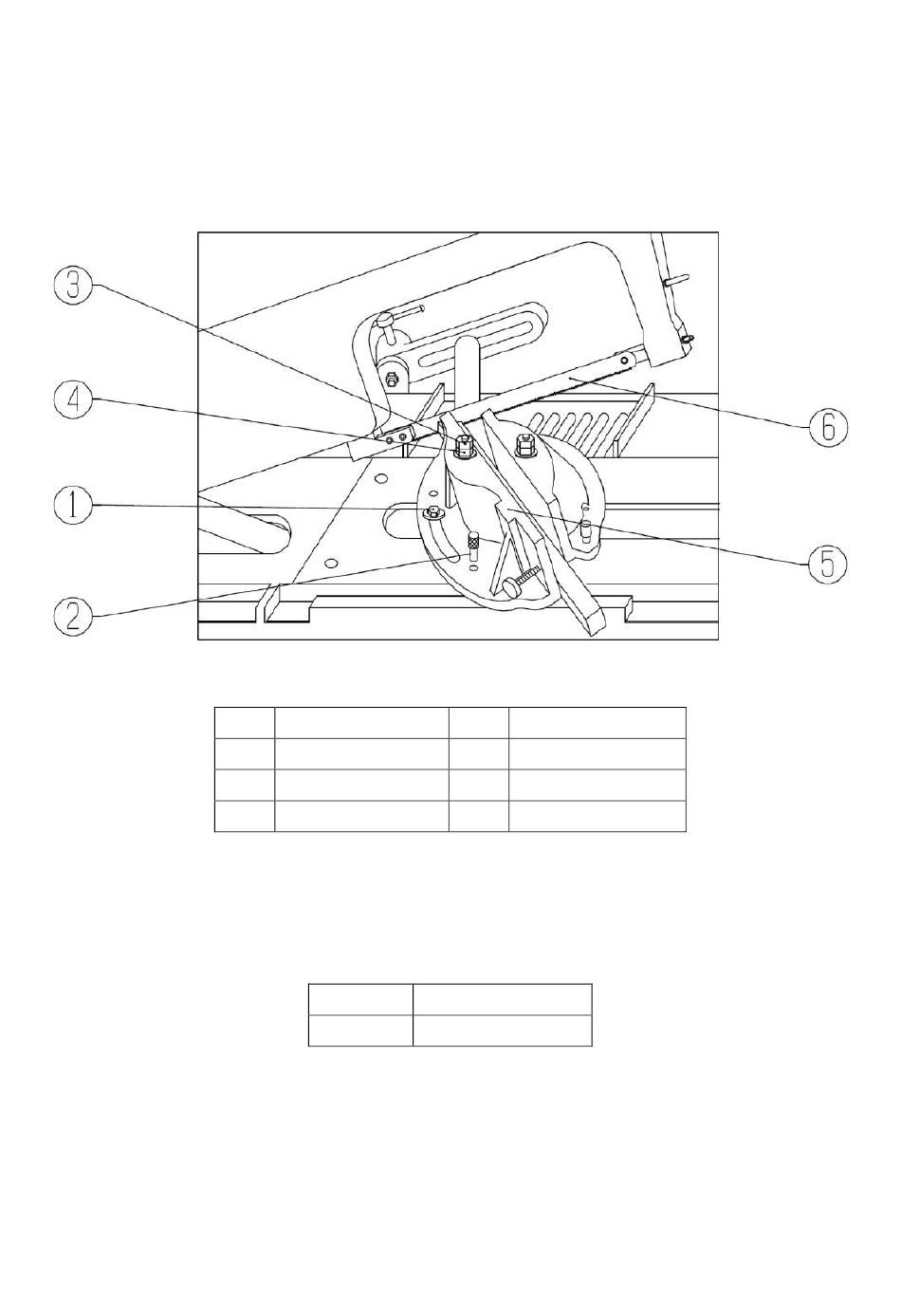

Before sawing with angles, you have to adjust the angle, just release the bolts, nuts and pin on the
platform as following drawing, get the accurate angel the job need, then screw the released bolts, nuts
and pin tightly to avoid moving the certain parts.
ITEM NAME
1 Auxiliary Fixed Bolt
2 Locating Pin
3 Fixed Nut
Maximum Sawing Diameter under Angle 45
MODEL
KP-200
ITEM NAME
4 Adjusting Nut
5 Rear Fixed Vice Jaw
6 Saw Blade
Max. Dia.(mm)
80
34
0
