Chapter 9. Lubrication Oil Maintenance

Preventing fluids (hydraulic oil/metalfluid) spillage onto the surrounding area and thus creating slipping
hazard.

9-1. Maintenance of Saw Frame and Chin Head

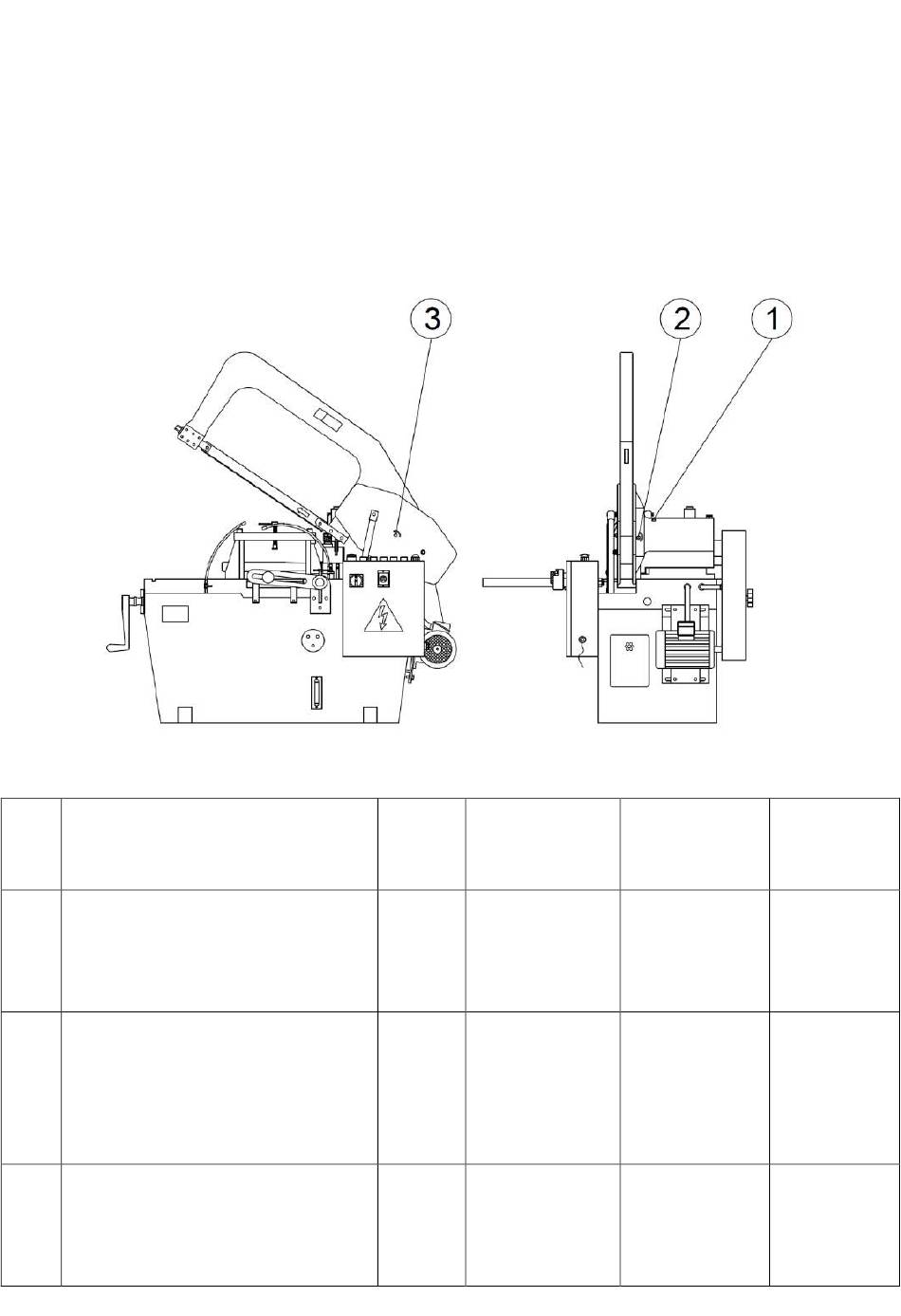

As drawing: ○ The bearing inside the chin head, ○
1
Contact section between saw frame and outer slider(the safety switch must be turned off for safety)
Following table displays maintenance methods and cycles:
ITEM Maintenance Section
1 Bearing inside the chin head
2 1. Lubrication between big gears
and small gears. 2. Lubrication
between slider and saw frame. 3.
Lubrication between big gear roller
and moving trough of saw frame
3 1. Lubrication between saw frame
and slider. 2. Lubrication between
big gear roller and moving trough of
saw frame
Contact section between big gear and saw frame, ○
2
Cycle Method
Weekly Use lubrication
gun to inject in
and replace old
oil
Every Use lubrication
two gun to inject in
days oil
Every Use lubrication
two gun to inject in
days oil
42
Oil Specification
Replenishing of Oil
Volume
2500CC(0.25L) MOBILITH
AW3
200CC(0.2L) MOBILITH
AW3
150CC(0.15L) MOBILITH
AW3
3
