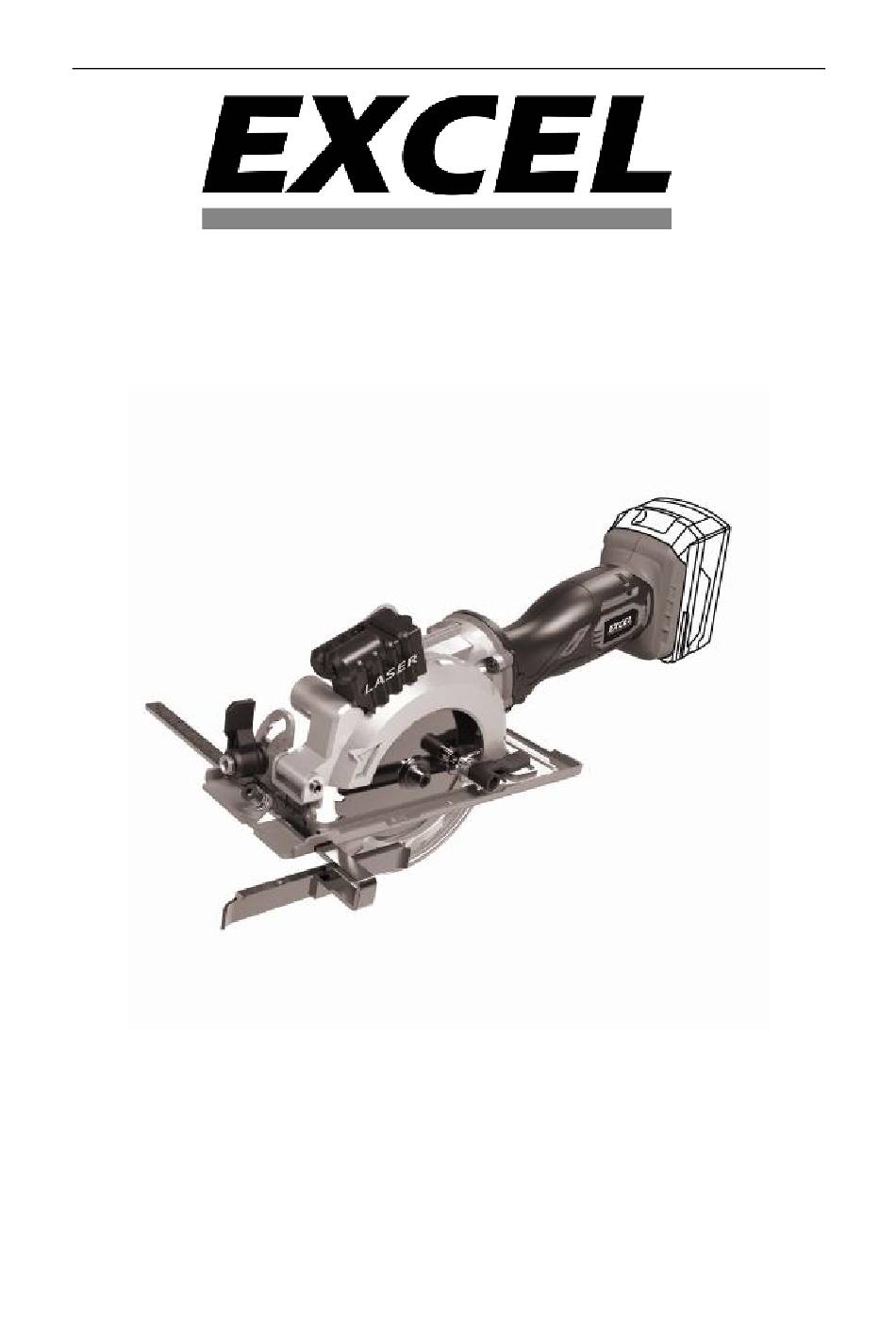

- Page 1 Original Instructions CORDLESS MINI CIRCULAR SAW 18V 12238/CS-L0118Z INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. - Page 3 Original Instructions On charger Class II machine – Double insulation – You don’t need any earthed plug. Use this device indoors only. Fuse( Ch001E-230) Fuse( CH-1802B-E)
-
Page 4: General Power Tool Safety Warnings
Original Instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instruction, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term "power tool"... - Page 5 Original Instructions b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off- position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 6 Original Instructions g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease.
- Page 7 Original Instructions ADDITIONAL WARNING CONCERNING SAW Cutting procedures DANGER: Keep hands away from cutting area and the blade. b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece. c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
- Page 8 Original Instructions b) When blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur.
- Page 9 Original Instructions EXTRA SAFETY REGULATIONS CONCERNING BATTERY To ensure the longest battery life and best battery performance, always charge the battery when the temperature is between 18-24°C. Do not charge the battery pack when the temperature is below 0°C, or above 40°C. This is important. Failure to observe this safety rule could cause serious damage to the battery pack.
- Page 10 Original Instructions EXTRA SAFETY REGULATIONS CONCERNING BATTERY CHARGER This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
-
Page 11: Intended Use
Original Instructions To reduce the risk of an electric shock, unplug the charger from the power supply before attempting to clean it. Removing the battery pack alone does not reduce the risk. The charger is designed for use from a standard household electrical supply. Do not attempt to connect the charger to a supply with a different voltage. - Page 12 Original Instructions LIST OF MAIN PARTSUPTTEILE...
-
Page 13: Specifications

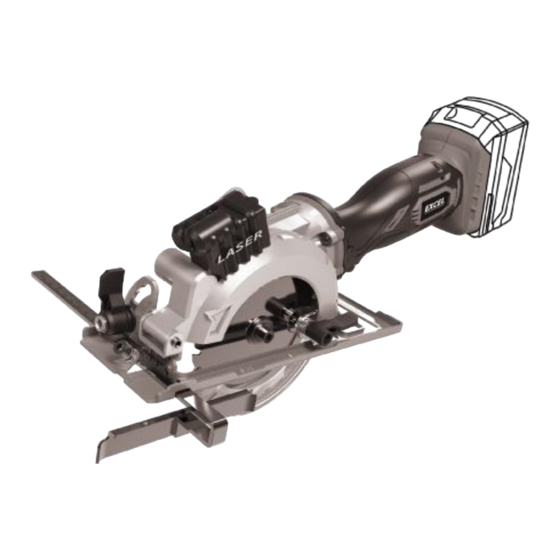

Original Instructions 1.Lock-Off / Plunge Release Button 2.ON/OFF Trigger Switch 3.Retractable Lower Blade Guard 4.Saw Blade 5.Base Plate 6.Soft Grip 7.Cutting Angle Clamp 8.Cutting Angle Scale 9.Rip Guide 10.Rip Guide Locking Screw 11.Dust Extraction Nozzle 12.Spindle Lock 13.Cutting Depth Clamp 14.Cutting Depth Scale 15.Extraction Adapter 16.Battery pack (excluded) -
Page 14: Noise/Vibration Information
Original Instructions NOISE/VIBRATION INFORMATION Measured sound values determined according to EN 62841. Wear hearing protection! Vibration total values (triax vector sum) determined according to EN 62841: The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. - Page 15 Original Instructions Fig.1 CH-1802A CH-1802B CH-1802D a. Charging the battery This lithium-ion battery pack is shipped partially charged. Before using it the first time, fully charge the battery pack. A fully discharged battery pack with a temperature between 5℃ and 35℃ will charge in about 30-140MIN(See section”Specifications”).
- Page 16 Original Instructions Fig.2 Warning! Always remove the battery pack before making adjustments to the equipment. Be sure to read the following information before you put the cordless equipment into operation: Charge the battery pack with the charger. Removal of the Saw Blade Before any work on the power tool, remove the battery.
- Page 17 Original Instructions Dust/Chip Extraction Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one’s health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders, certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative).
- Page 18 Original Instructions Laser Function WARNING: Do not stare directly at the laser beam,do not deliberately aim the beam at personnel and ensure that it is not directed towards the eye of a person for longer than 0.25s. When you make the line of the cut on the work piece,the laser can help you get better alignment.
- Page 19 Original Instructions Fig.1 Fig.2 Adjusting the Cutting Angle It is best to place the machine on the face side of the blade guard. l Loosen wing bolt. (Fig.1) l Tilt the saw side-wards. l Adjust the desired setting at the scale. (Fig.2) l Tighten wing bolt again.
- Page 20 Original Instructions Sawing performance and cutting quality depend essentially on the condition and the tooth form of the saw blade. Therefore, use only sharp saw blades that are suited for the material to be worked. Sawing Wood The correct selection of the saw blade depends on the type and quality of the wood and whether length way or crossway cuts are required.
- Page 21 Original Instructions Note: For safety reasons, the On/Off switch cannot be locked; it must remain pressed during the entire operation. CLEANING AND MAINTENANCE Danger! Always pull out the mains power plug before starting any cleaning work. Cleaning Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible.
- Page 22 Original Instructions Disposal Electronic devices are recyclable waste and must not be disposed of in the household waste. At the end of its service life, dispose of the product according to the relevant statutory regulations. Remove any rechargeable battery, if necessary, and dispose of it separately from the product.
