13-4. Motor Not Stops after Sawing Completion

ITEM 4
Malfunction
Cause
Trouble shooting
Remark
Motor not stops after sawing completion
a. Damaged prompt switch
b. Any dirt/dust, object in the prompt switch, or its connection spot moved
a. Check prompt switch, or replace it if necessary
Notice the proper connection and location, ensure to adjust the lifting

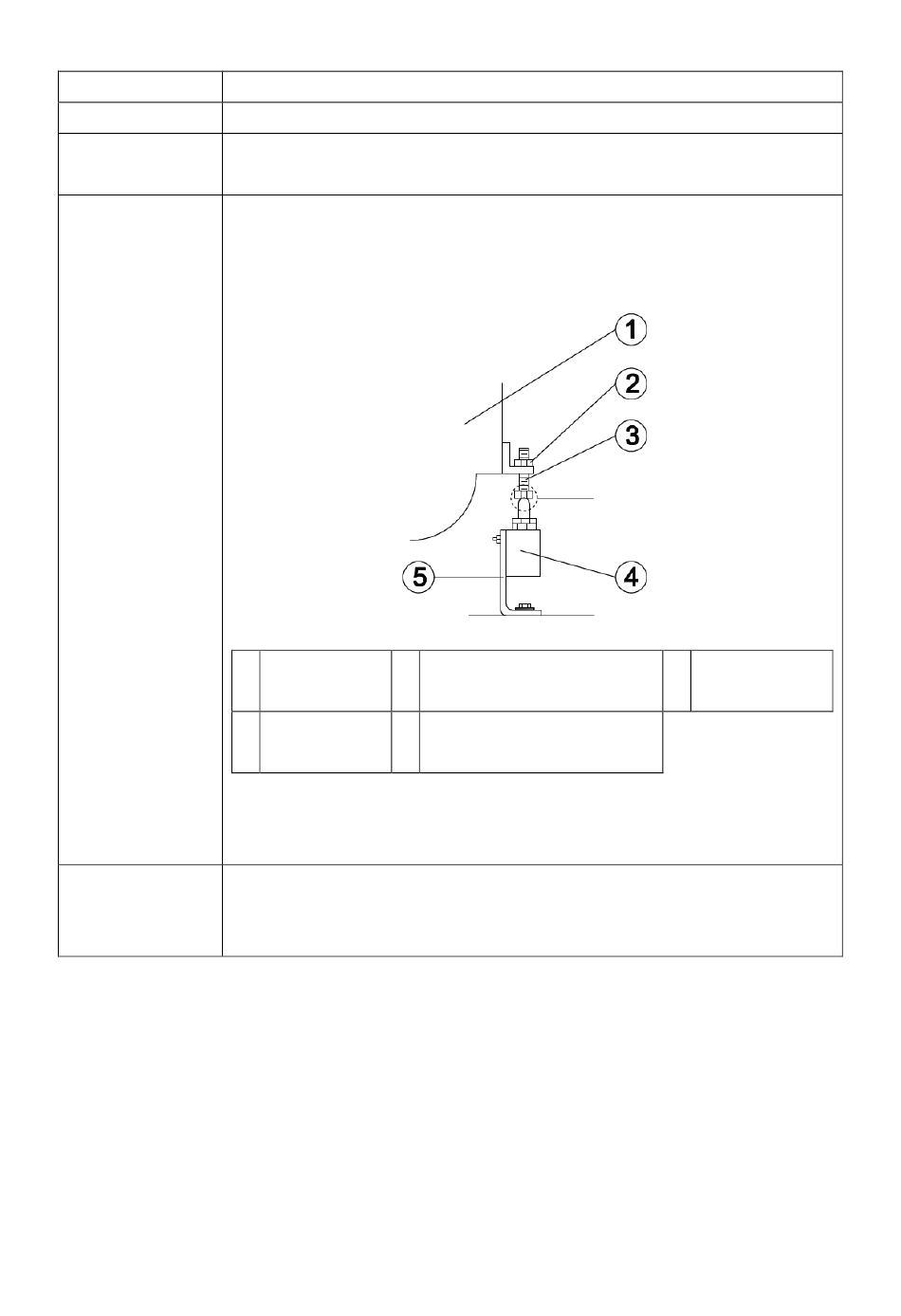

height of saw frame properly, as illustration:
1 Chin Head 2 Fixing Nut of Adjusting
4 Prompt 5 Holder of Prompt Switch
Switch
b. Clean up the dust in the surrounding of prompt switch, adjust the
connection spot between
1. Repaired by qualified technician, notice the proper connections
2. Adjustment of connection spot must be precise
3. Contact local dealer/producer for parts supply if necessary
Screw
○ ○
and
3 4
64
Adjusting spot of prompt
switch after sawing
completion
3 Adjusting
Screw
