Jumpers

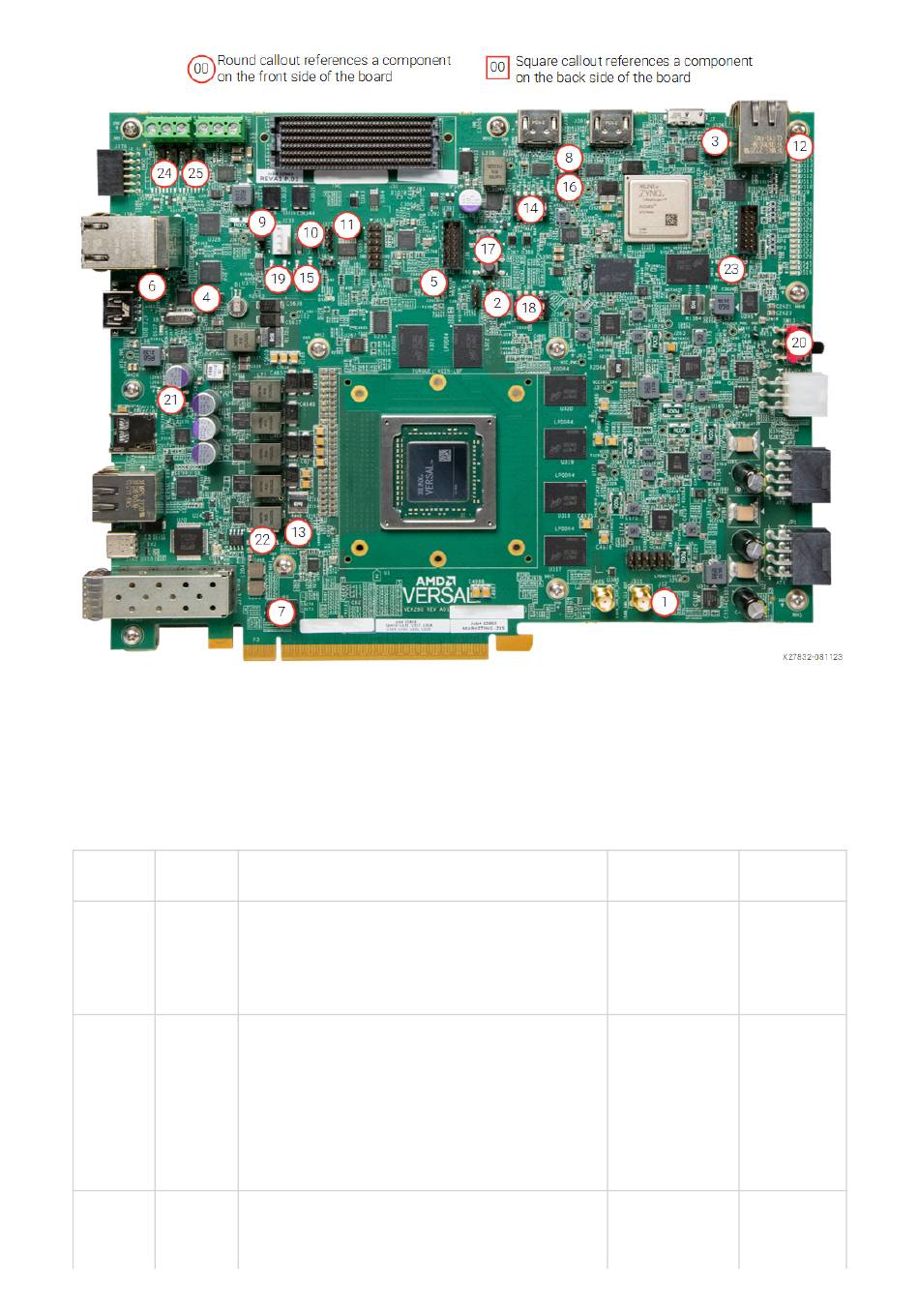

The following table lists the default jumper settings.
Table: Default Jumper Settings
Callout Number Ref. Des.
1 J12
2 J26
3 J326
https://docs.amd.com/internal/api/webapp/print/d54fa025-f5b0-4797-be6e-41b3e31f9548
Function
SYSMON VREFP SEL
1-2: External VREF
2-3: Disable external VREF
POR_B supervisor SENSE input
1-2: VCCO_MIO ramp-up sense
(1.8V)
2-3: VCCAUX_PMC ramp-up sense
(1.5V)
POR_B enable header
1-2: SYSCTLR can drive POR_B
Unofficial Document
Default
1-2, 3-4
jumpered
Schematic Page
1-2 10
2-3 13
13
18/78
