Chassis
The chassis comprises two components:
•
frame and
•
steering system.
3.5.2.1 Frame
The frame absorbs all forces which act on pedelec
from body weight, pedalling and the ground. The
frame also acts as a carrier for most components.
The frame geometry determines the pedelec's
ride performance. A frame comprises the
following elements:
2
3
4
5
6

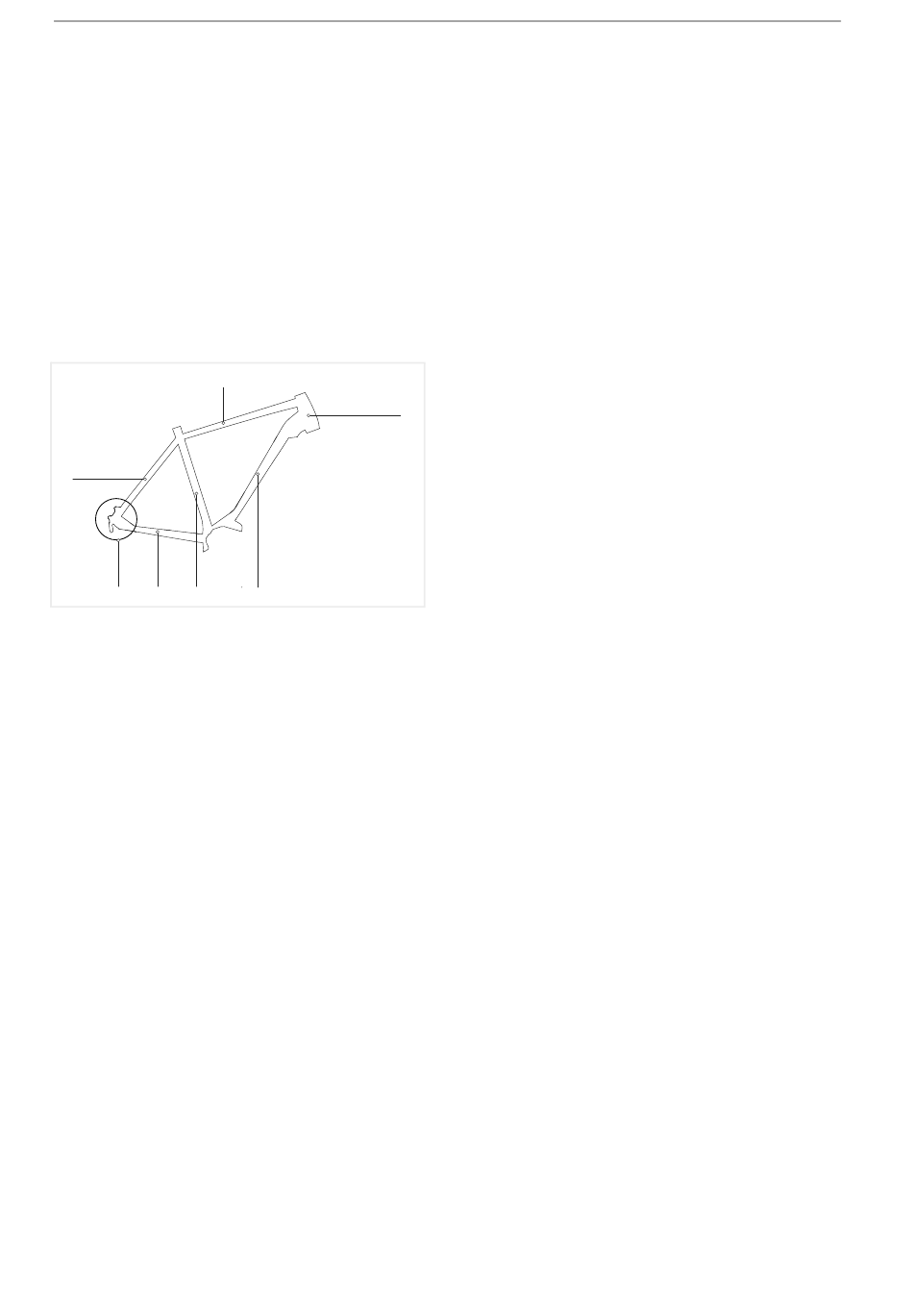

Figure 5: Elements of the frame
1
Head tube
2
Top tube
3
Rear frame seat stay
4
Rear frame fork end
5
Chain stay
6
Seat tube
7
Down tube
MY23I0a - 42_1.0_22.01.2024
1
7
3.5.2.2 Steering system
The steering system components are:
•
Steering
headset,
•
Stem,
•
Handlebars
and
•
Fork.
3.5.2.3 Steering headset
The steering headset (also known as a bike
headset or simply a headset) is the fork bearing
system in the frame. A distinction is made
between two different types:
•
Conventional steering headsets for fork steerers
with thread and
•
Steering headsets for threadless fork steerers,
what are known as headsets.
3.5.2.4 Stem
The stem connects the handlebars to the fork
steerer tube. The stem is used to adjust the
handlebars to body size. The stem is used to
adjust the handlebar height and the gap between
the handlebars and saddle (see Section 6.5.6).
Quickly adjustable stems
Quickly adjustable stems are an extension to the
fork steerer. You can change the height and angle
of quickly adjustable stems without any tools. Up
to 3 settings can be adjusted, depending on the
model:
1
Adjust handlebar height
2
Adjust twist function
3
Adjust stem angle.
Description
47
