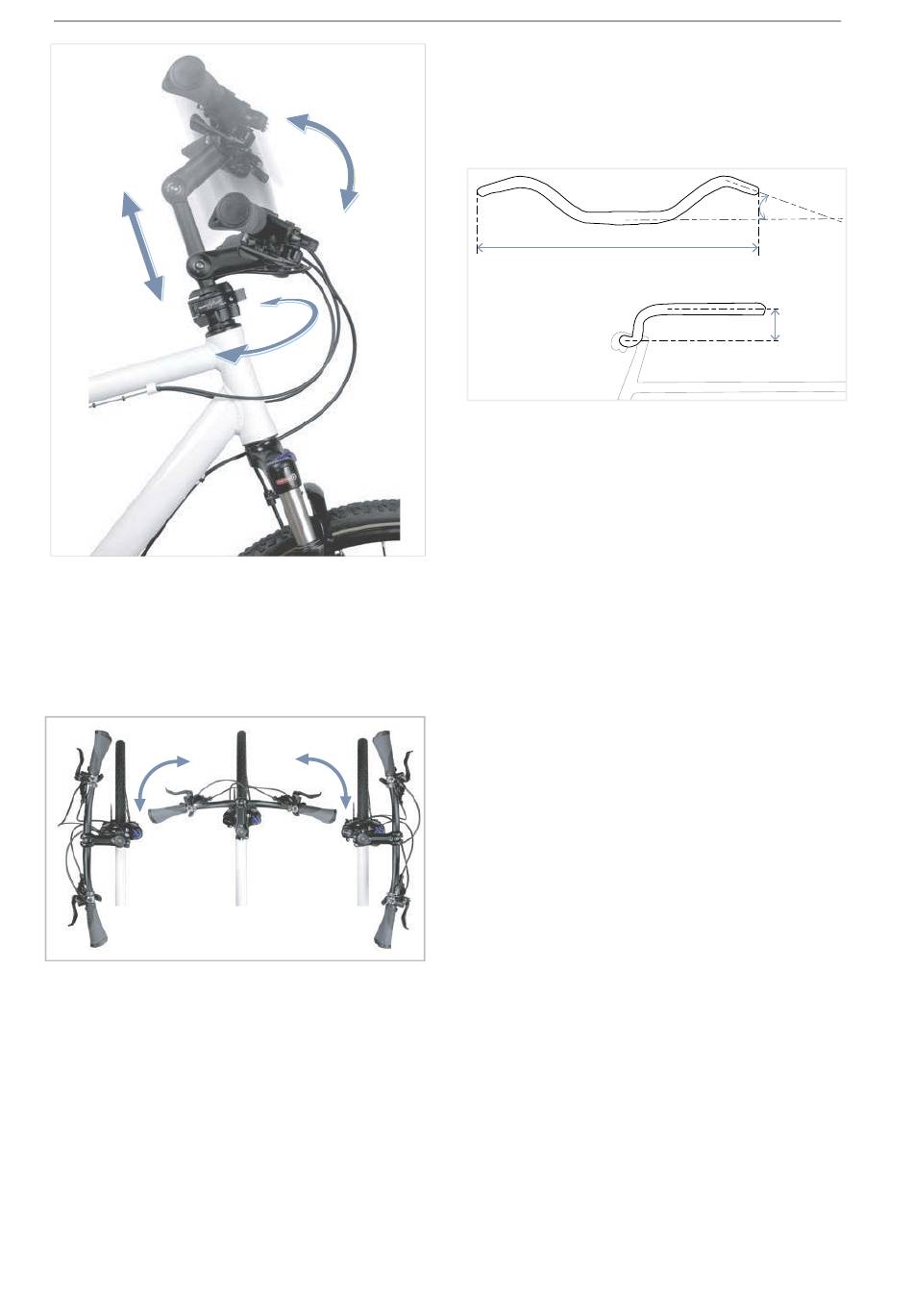

Figure 6: Example – BY.SCHULZ seat Speedlifter Twist
Pro SDS
Adjusting the height and stem angle increase
riding comfort as different riding positions can be
adopted on longer rides. The twist function saves
space when parking.
Figure 7: Twist function, using BY.SCHULZ as an example
MY23I0a - 42_1.0_22.01.2024
3
2
3.5.2.5 Handlebars
The pedelec is steered using the handlebars. The
handlebars are used to support the upper body
and is the mount for operating and display
components (see Section 3.5.1).
2
Figure 8: Handlebar dimensions
The main dimensions of handlebars are:
1 Rise (height)
2 Width
3 Backsweep
Description
3
1
