Description
3.5.8.3 Folding pedal
The rider applies physical to the mechanical drive
system with their feet, driving it forward.
The left pedal has a left-handed thread and the
right crank has a right-handed threaded to prevent
them from coming loose. The pedal has a
standard thread of 9/16" x 20.

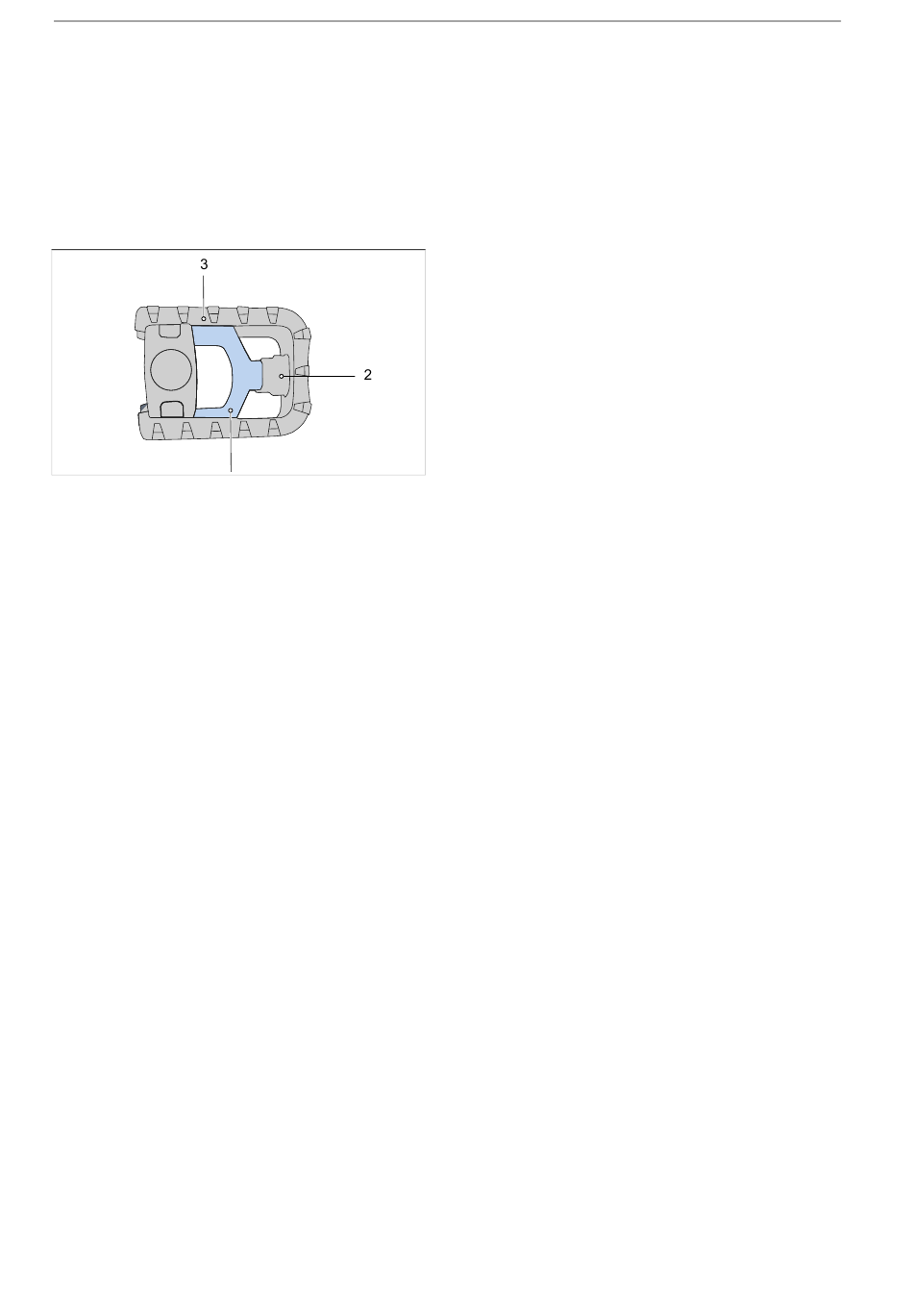

Figure 47: Pedal with fold latch (1)
The folding pedal can be folded in. As it is folded
up at the side, the folding pedal is nearer to the
crank. The pedelec can be carried more easily
with the pedals folded away and takes up less
space when parked or placed in storage.
The folding pedal has an unlocking system with a
pedal folding latch (1) and an internal spring for
folding.
72
MY23I0a - 42_1.0_22.01.2024
