3.5.2.6 Fork
The stem and handlebars are attached to the top
end of the fork steerer. The axle is fastened to the
fork ends. The wheel is fastened to the axle.
2
3

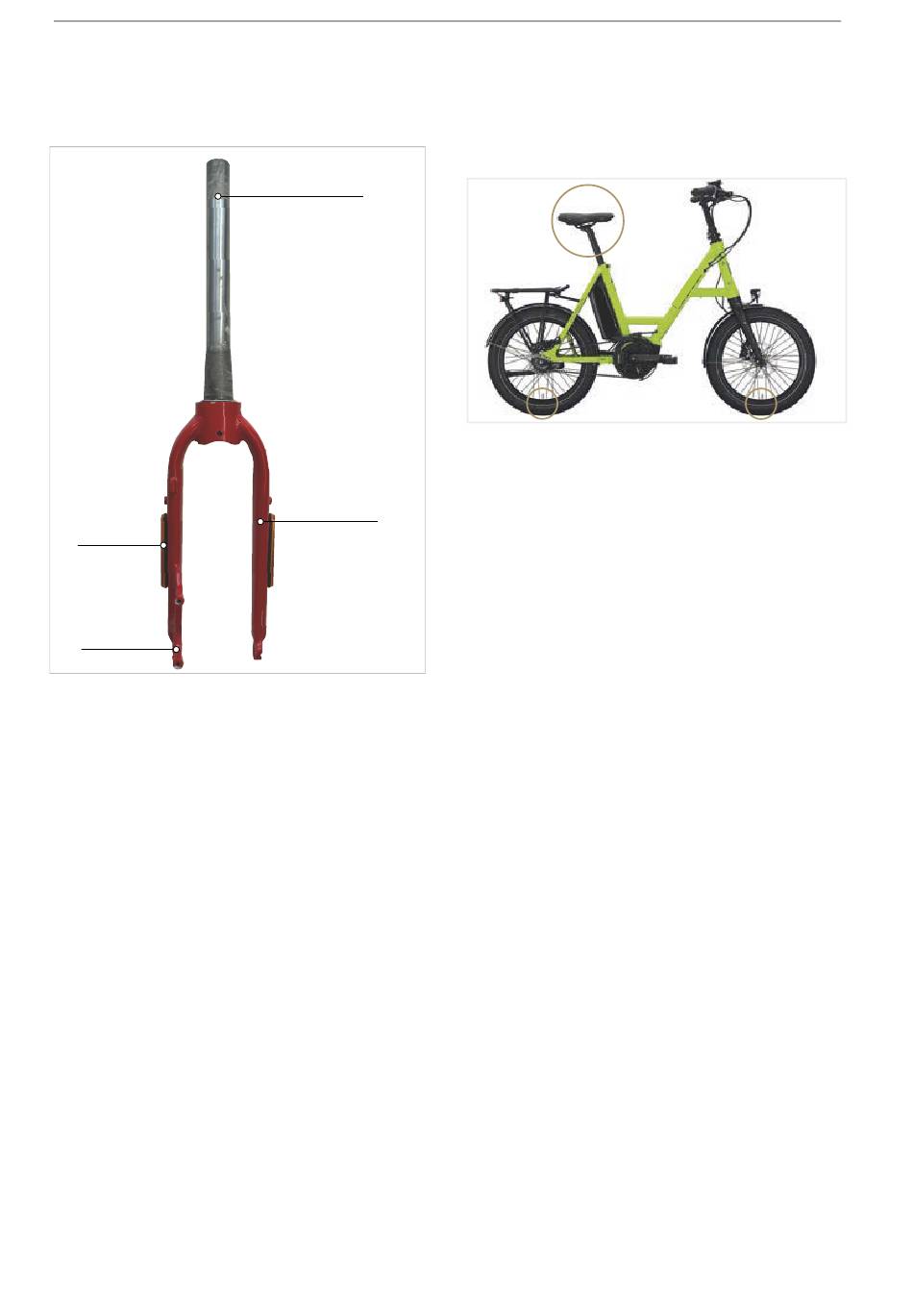

Figure 9: Overview of rigid fork
1
Fork steerer
2
Side reflectors (optional)
3
Fork end
4
Fork leg
Rigid forks are installed in this model series.
Rigid fork
Rigid forks transfer the used muscle and motor
power to the road to optimum effect. Pedelecs
with rigid forks consume less energy on steep
roads and have a greater range than pedelecs
with adjusted suspension.
MY23I0a - 42_1.0_22.01.2024
3.5.3
Suspension
The suspension system in the pedelec comprises
2 components:
•
the tyres and
•
the optional suspension seat post.
1
Figure 10: Oscillating system
1
Optional suspension seat post (see
Section 3.3.6.2)
2
Tyre suspension
4
3.5.3.1 Suspension seat post
Suspension seat posts can reduce impact after
one-time, hard impacts. Ride comfort can be
improved significantly thanks to the brief
cushioning.
See Section 3.3.6.2 for more information.
All types of suspension seat posts feature small,
heavy-duty slide bearings, guides and articulated
joints. If they are not lubricated on a regular basis,
the sensitive response behaviour diminishes
considerably, causing excessive wear.
Clean and service suspension seat posts on a
regular basis (see Section
Section 7.4.9.1).
1
2
2
7.2.6
and
Description
49
