5 Check the position and clamping force of the
quick release lever. The quick release lever
must be flush with the shock absorber.

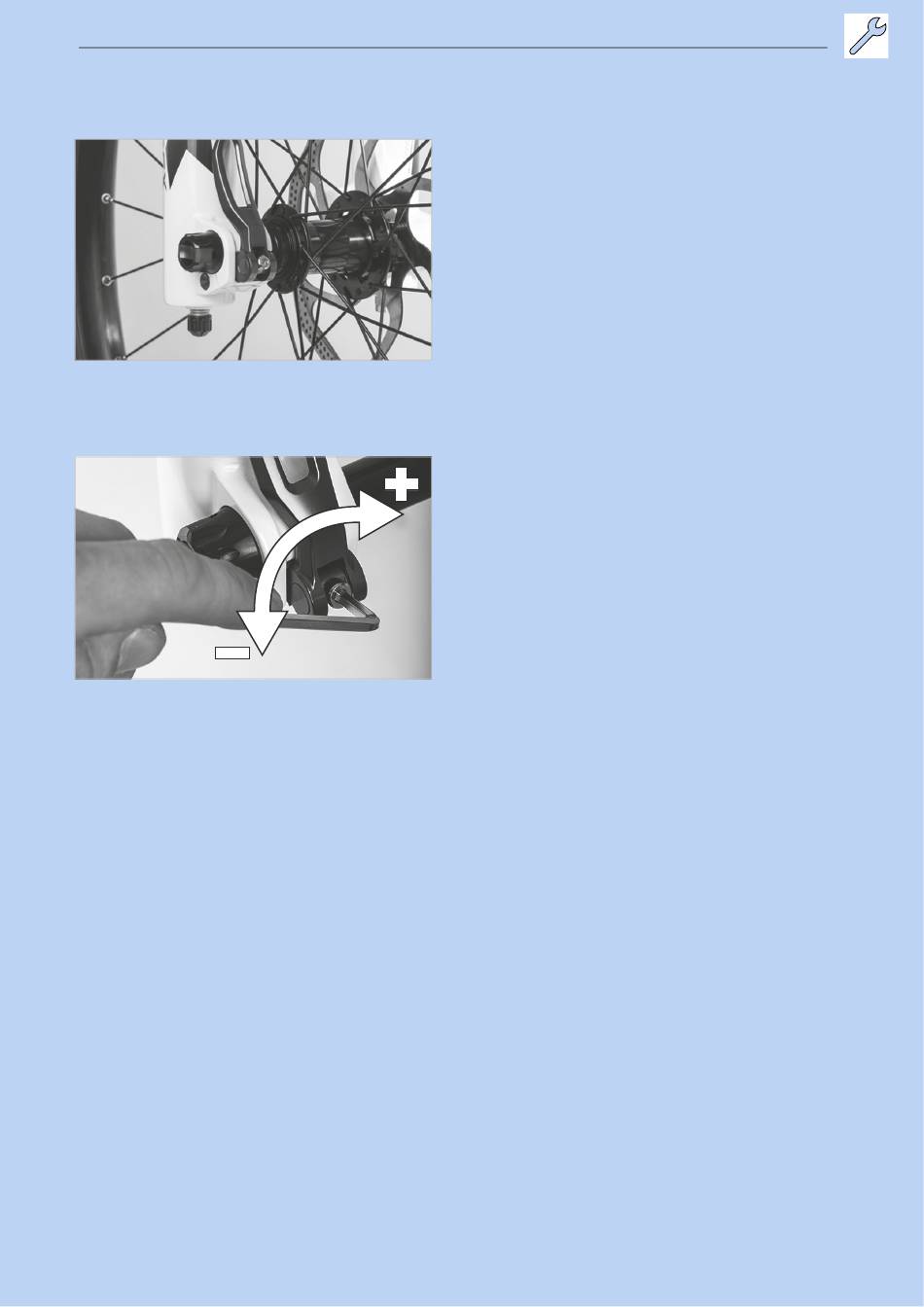

Figure 85: Perfect position for the clamping lever
6 Use 4 mm hexagon socket spanner to adjust
the clamping lever clamping force if required.
Figure 86: Adjusting the quick release clamping force
7 Check the quick release lever position and
clamping force.
The wheel is now fitted.
MY23I0a - 42_1.0_22.01.2024
Assembly
104
