Bosch i:SY E5 ZR F CX Translation Of Original Operating Instructions page 75

3.5.9.5 On-board computer
The on-board computer on the handlebars is used
as a control panel. It controls the system and all
indicators on the display screen using six buttons.

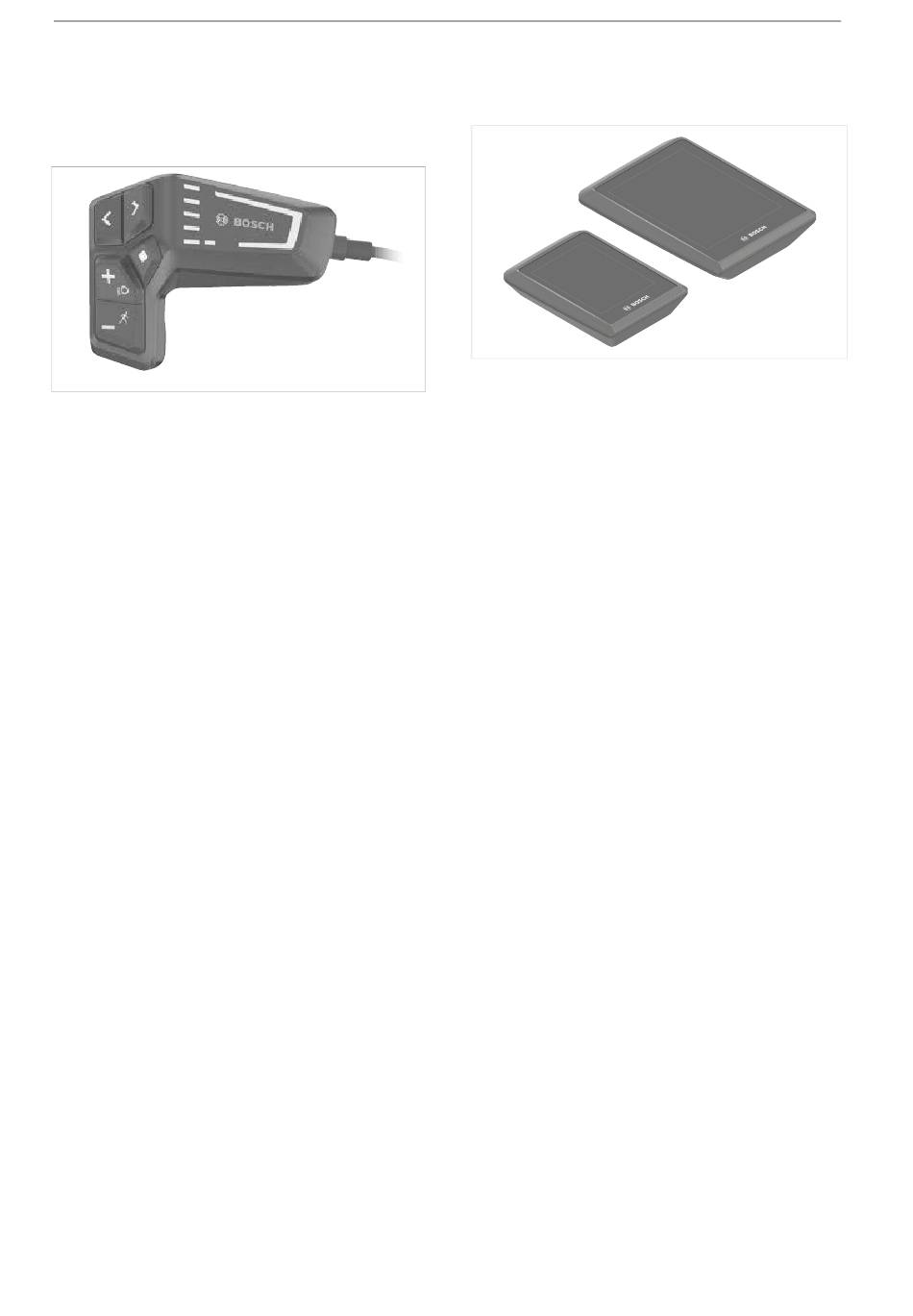

Figure 51: BOSCH LED Remote on-board computer
The eBike Flow app can be accessed via
Bluetooth®.
The control panel has an internal lithium ion
battery. The pedelec battery powers the control
panel. If a sufficiently charged battery is inserted
into the pedelec and the drive system switched
on, the internal battery is charged.
MY23I0a - 42_1.0_22.01.2024
3.5.9.6 Kiox 300 and Kiox 500 displays
The display shows the main drive system
functions and the ride data.
Figure 52: BOSCH Kiox 300 and Kiox 500 displays
The display switches off automatically if it is
removed from its mount.
Description
75
