6.4.9.7 MAGURA handbrake pressure point
Only applies to pedelecs with this equipment
WARNING
!
Brake failure due to incorrect setting
If the pressure point is set with brakes where the
brake linings and brake disc have reached their
wear limit, the brakes may fail and cause an
accident with injury.
Before you adjust the pressure point, ensure
that the brake linings and brake disc have not
reached their wear limit.
1

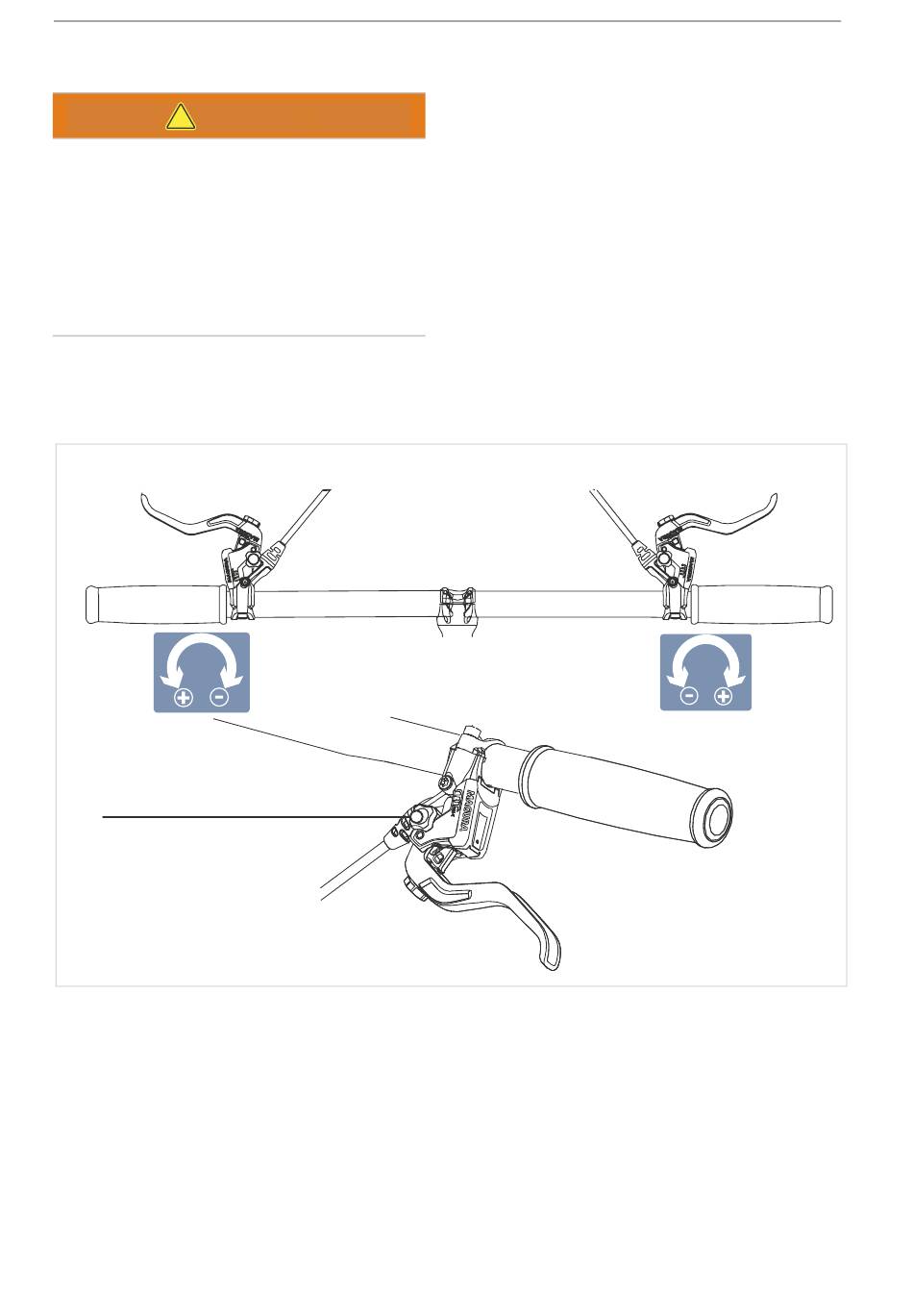

Figure 126: Using the twist knob (1) to adjust the pressure point
MY23I0a - 42_1.0_22.01.2024
The pressure point setting is adjusted using the
twist knob.
Turn the twist knob towards the plus (+)
symbol.
The handbrake moves closer to the
handlebars.
The lever pressure point activates sooner.
Re-adjust the grip distance as necessary.
Turn the twist knob towards the minus (–).
The brake lever moves further away from the
handlebars.
The lever pressure point activates later.
Re-adjust the grip distance as necessary.
Operation
132
