7.5.11.5 Adjusting the ROHLOFF hub
Only applies to pedelecs with this equipment
1 Check whether shift cable tension is set in such
a way that there is a perceptible play of around
5 mm when the shift handle is turned.
2 Adjust the shift cable tension by turning the
tension adjuster.
Unscrew the tension adjuster to increase the
shift cable tension.
Tighten the tension adjuster to decrease the
shift cable tension.

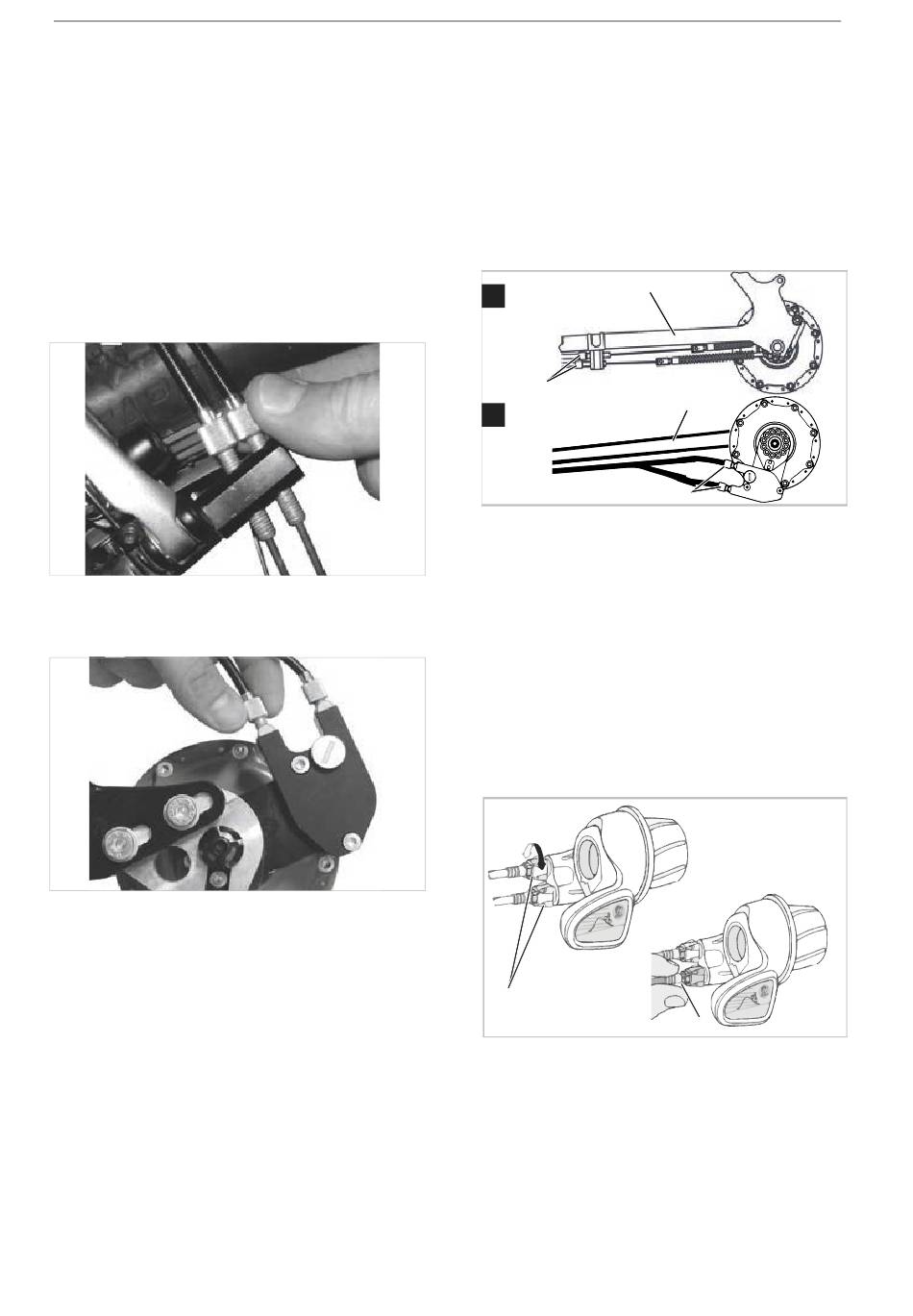

Figure 209: The tension adjuster on ROHLOFF hub
versions with internal switch control is located on the
tension counter support
Figure 210: The tension adjuster on ROHLOFF hub
versions with external switch control is located on the
cable box positioned on the left-hand side
3 If the marking and numbers on the shift handle
to no longer coincide after the gear shift is
adjusted, tighten one of the tension adjusters
and screw out the other tension adjuster to the
same extent.
MY23I0a - 42_1.0_22.01.2024
Cleaning, maintenance and inspection
7.5.11.6 Adjusting the cable-operated gear shift,
dual-cable
Only applies to pedelecs with this equipment
For a smooth gear shift, adjust the adjusting
sleeves underneath the chain stay on the
frame.
The shift cable has around 1 mm play when it
is pulled out gently.
1
1
A
2
B
Figure 211: Adjusting sleeves (2) on two alternative
versions (A and B) of a dual-cable, Bowden-cable-
operated gear shift on the chain stay (1)
7.5.11.7 Adjusting the dual-cable, Bowden-
cable-operated twist grip shifter
Only applies to pedelecs with this equipment
For a smooth gear shift, adjust the adjusting
sleeves on the shifter housing.
There is noticeable play of 2 to 5 mm (1/2 gear)
when you turn the twist grip shifter.
1
Figure 212: Twist grip shifter with adjusting sleeves (1)
with play (2)
1
2
2
211
