Fitting the laser IMPORTANT! When replacing the laser optics system, ensure that the laser optics system
optics system and the welding torch correspond in terms of the focal length.
(10)
98
2
2
2
(1) (2)
(9)
(7)
(8)

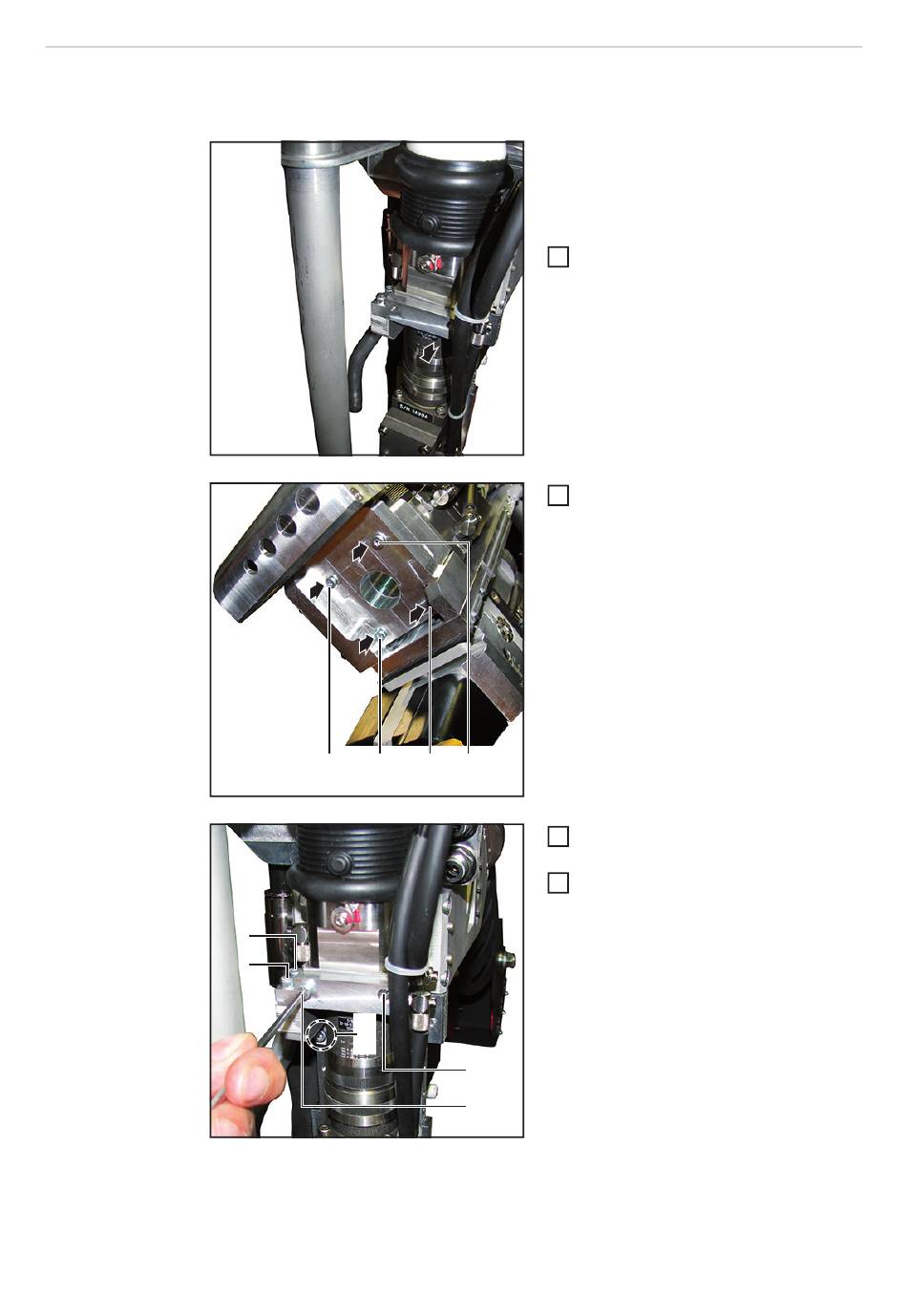

IMPORTANT! When inserting the laser op-
tics system ensure that the pins on the un-
derside of the laser optics system are
inserted into the openings provided.
Insert the laser optics system into the
1
laser welding head from above
1
Insert the four Allen screws (1) - (4) into
2
the underside of the laser welding
head and tighten them
(2.5 mm)
2
(3) (4)
Loosen the six Allen screws (5) - (10)
3
(3 mm)
Tighten the Allen screws (5) - (10) in
4
the following order:
1. (5) + (6)
2. (7) + (8)
3. (9) + (10)
(5)
(6)
