Adjusting The Y-Axis - Fronius LaserHybrid Ultracompact Operating Instructions Manual

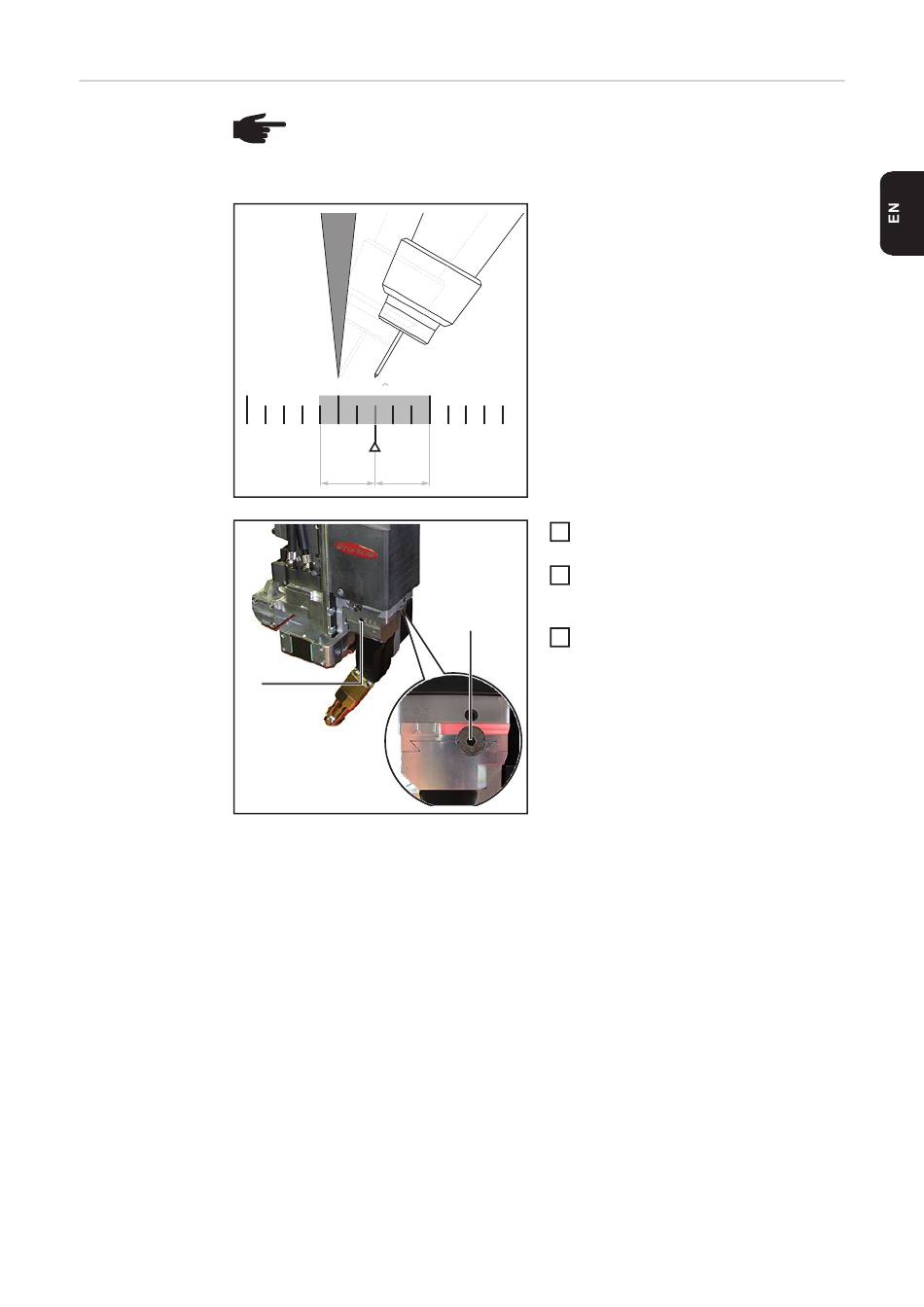

Adjusting the y-
axis
5
(1)
NOTE! The y setting range of ± 3 mm starts from the second graduation mark on
the y scale.
In position 0 both the laser and wire electrode would fall on the same exact loca-
tion.
2 0
0 5
=
- 3 mm + 3 mm
(2)
Undo grub screw (1)
1
(3 mm)
Use the adjusting screw (2) and the 3
2
mm Allen key to adjust the y-axis:
1 rotation corresponds to 1.0 mm
Once the y-axis has been adjusted, re-
3
tighten the grub screw (1)
81
