Fronius LaserHybrid Ultracompact Operating Instructions Manual page 86

84
1 4
(2) (3)
(1)
1 5
IMPORTANT! When removing the protecti-
ve glass drawer, ensure that it does not be-
come dirty, scratched or damaged in any
way.

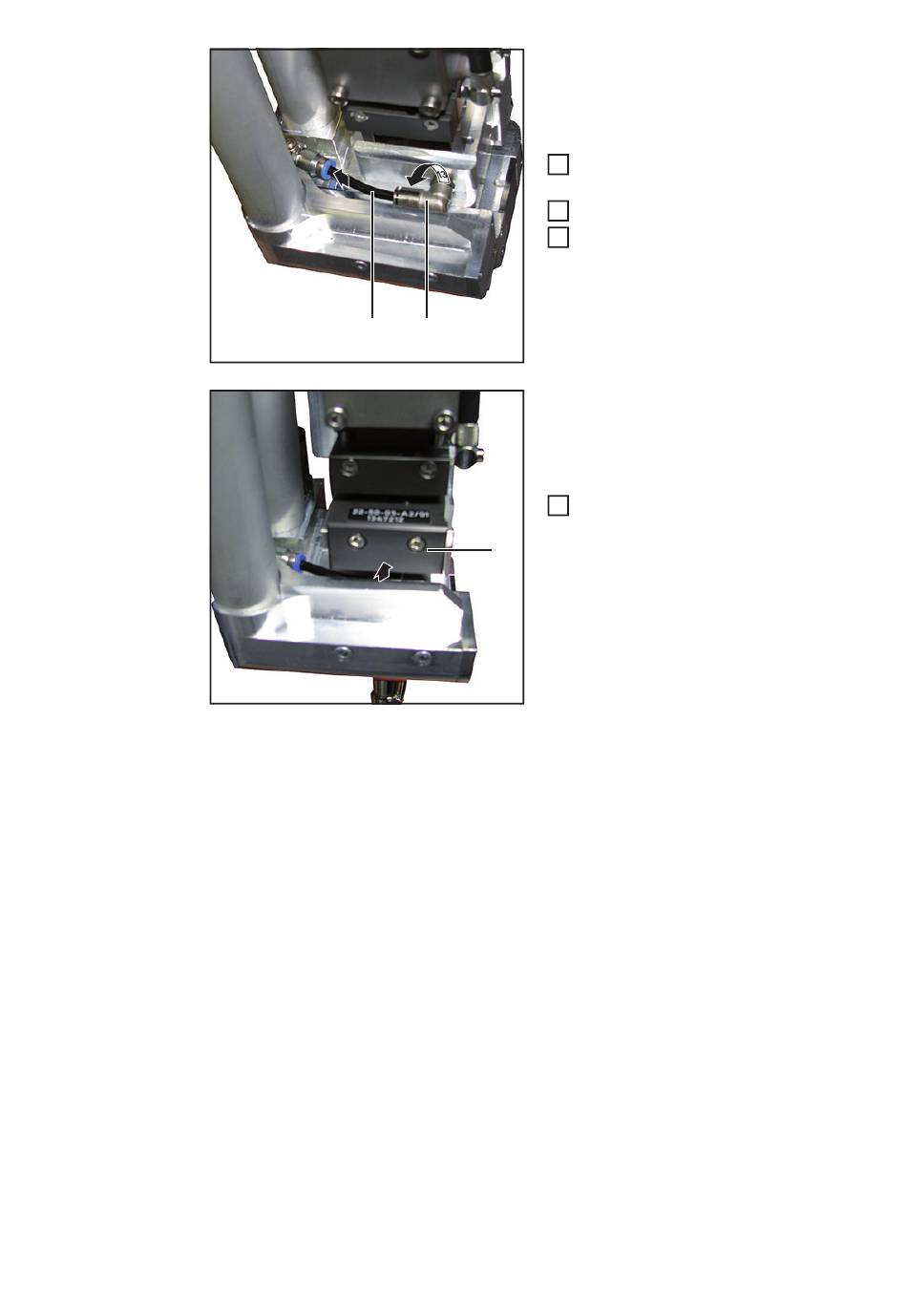

Take protective glass drawer out of the
12
laser optics system
Swivel the air connection (3) back
13
Connect air hose (2)
14
IMPORTANT! When inserting the protecti-
ve glass drawer, ensure that it does not be-
come dirty, scratched or damaged in any
way.
Insert the protective glass drawer (1)
15
