Replacing the welding torch

Safety

Replacing the
welding torch
CAUTION! A welding torch that has become very hot through use can cause se-
vere burns. The welding torch must only be cleaned and its components checked
when it is cool.
(1)
(2)
(3)
(4)
(5)

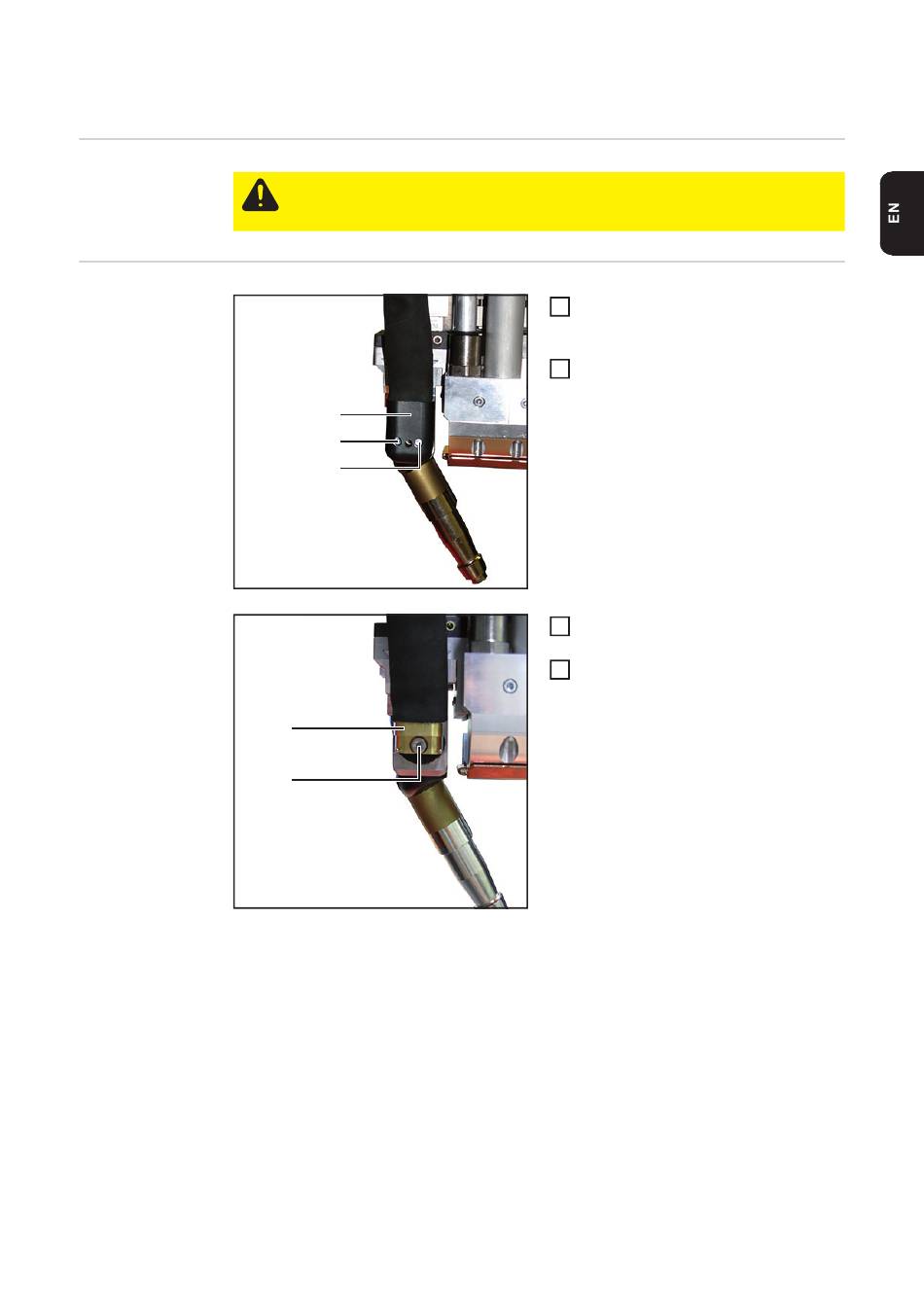

Remove the two Allen screws (2) and
1
(3)
(2.5 mm)
Remove the hosepack cover (1)
2
Remove the Allen screw (5)
3
(4 mm)
Disconnect the media coupling (4)
4
