Connecting the LaserHybrid Ultracompact hosepack
to the laser welding head

Preparations

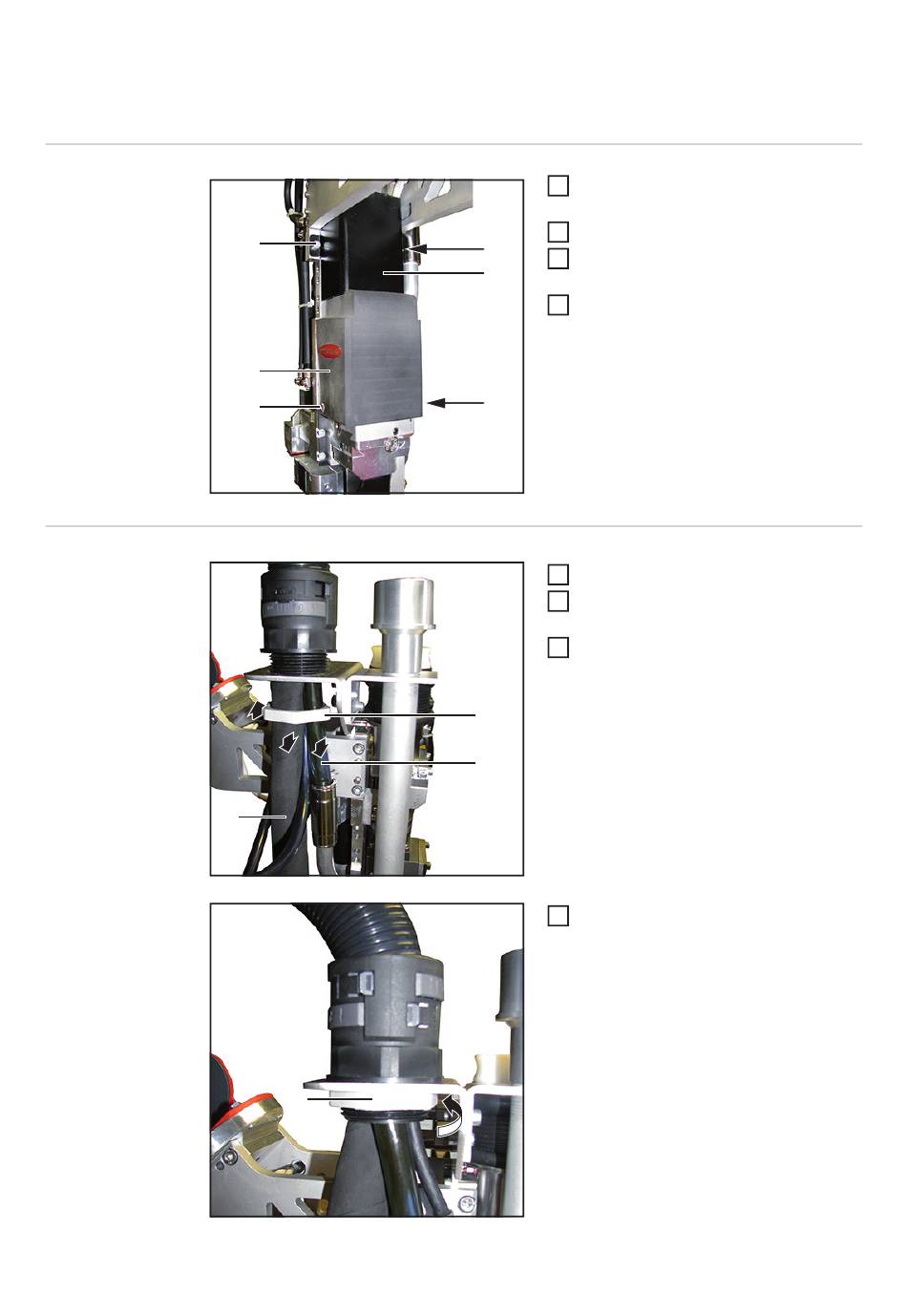

Connecting the
LaserHybrid Ul-
tracompact hose-
pack to the laser
welding head
(1)
72
(1)
(2)
(3)
2
1
3
(3)
Remove the two Allen screws (3)
1
(3 mm)
Remove the drive rollers cover (2)
2
(1)
Remove the two Allen screws (1)
3
(3 mm)
(4)
Remove the motor cover (4)
4
(3)
Feed in hosepack (1)
1
Push hexagon nut (3) over the hose-
2
pack (1)
Connect inlet air hose (2)
3
(3)
(2)
Tighten hexagon nut (3)
4
(46 mm)
