Mechanical Information; Mechanical Dimensions - Quectel RG520N-AT Hardware Design

5G Module Series
7

Mechanical Information

This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ± 0.2 mm unless otherwise specified.

7.1. Mechanical Dimensions

Pin 1

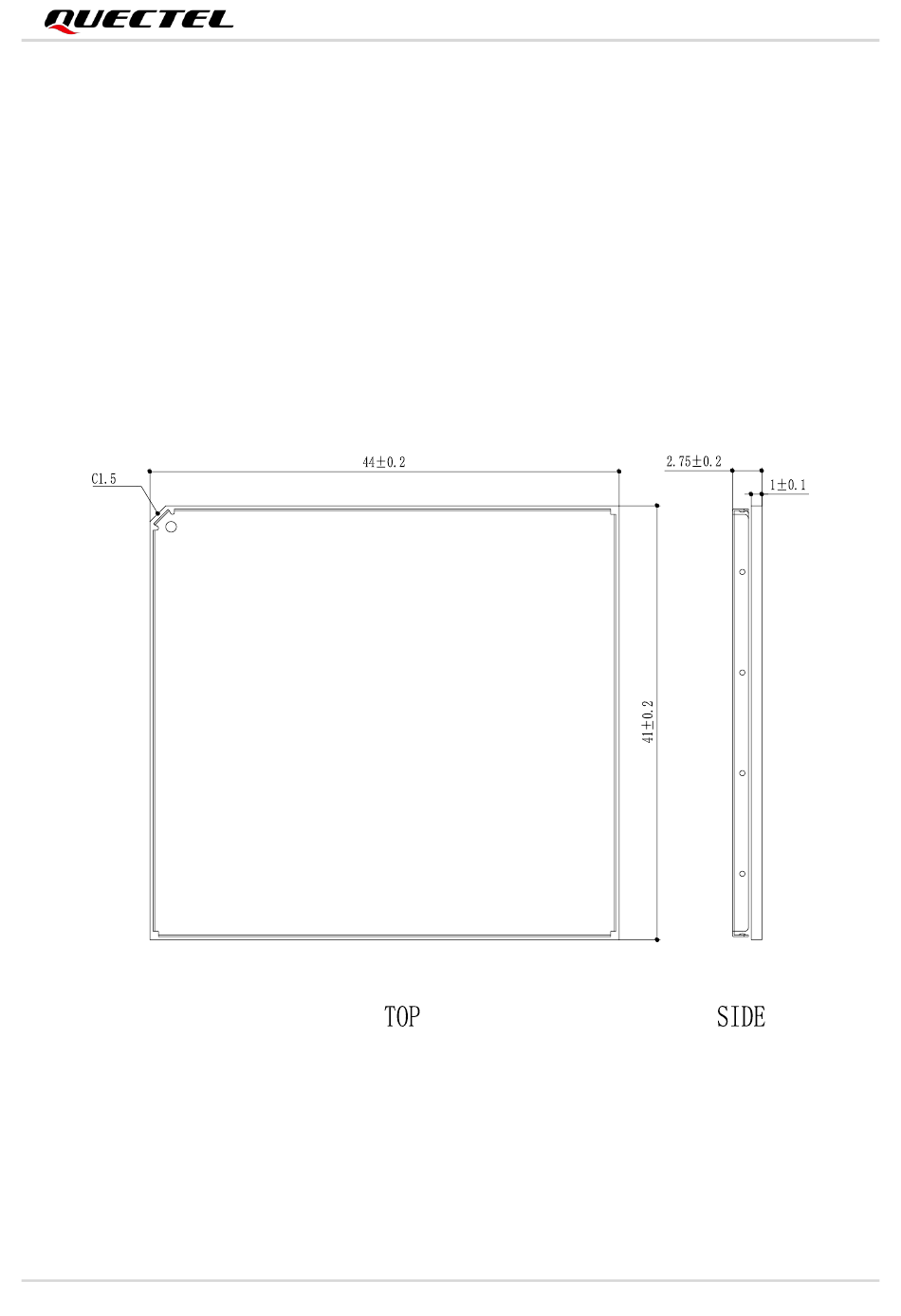

Figure 48: Module Top and Side Dimensions
