5G Module Series

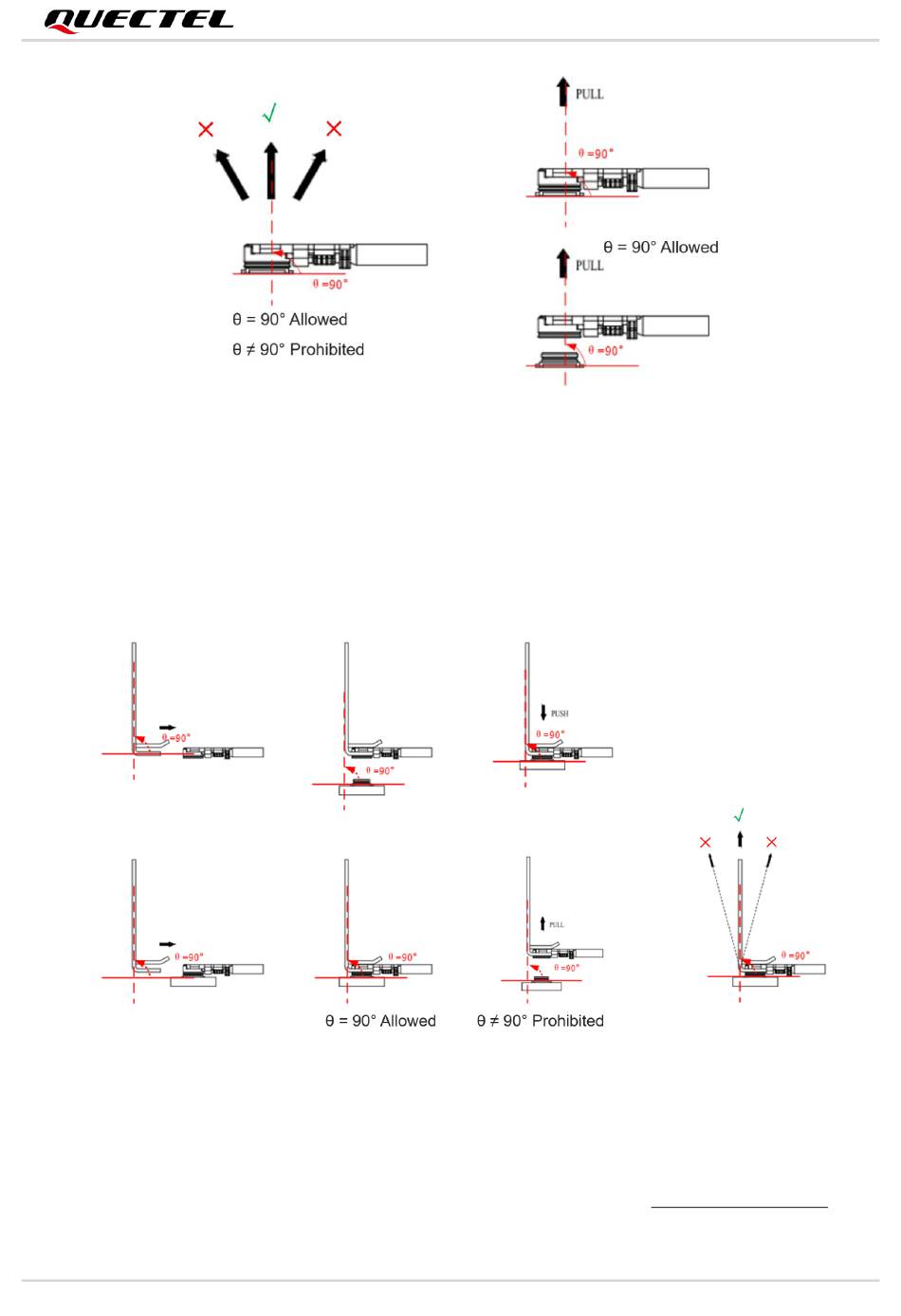

Figure 45: Pull out a Coaxial Cable Plug

5.5.1.2. Assemble Coaxial Cable Plug with Jig

The pictures of installing the coaxial cable plug with a jig is shown below, θ = 90° is acceptable, while θ ≠

90° is not.

Figure 46: Install the Coaxial Cable Plug with Jig

RF connectors and cables by I-PEX are recommended. For more details, visit https://www.i-pex.com.

RG520N-AT_Hardware_Design

82 / 109
