Smart Module Series
8
Mechanical Information
This chapter describes the mechanical dimensions of the module. All dimensions are measured in
millimeter (mm), and the dimensional tolerances are ± 0.2 mm unless otherwise specified.
8.1. Mechanical Dimensions
Pin 1
Side view
Top view

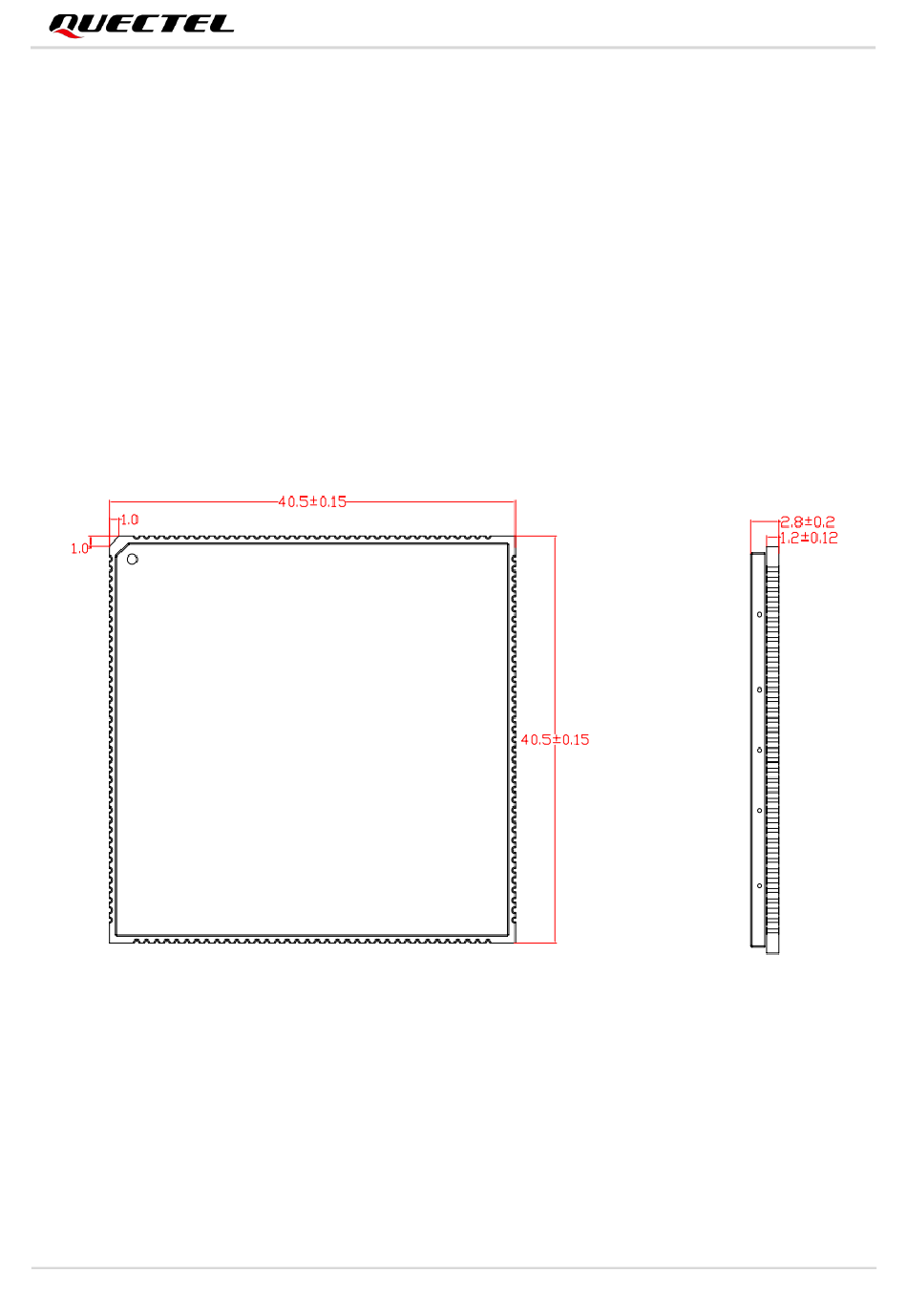

Figure 41: Top and Side Dimensions
SC262R_Series_Hardware_Design
99 / 115
