Quectel SC200L-EM Hardware Design

Hide thumbs
Table of Contents

Advertisement

Quick Links

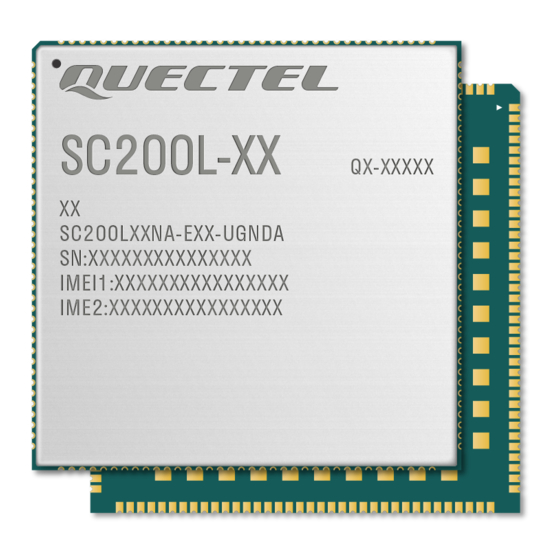

SC200L-EM
Hardware Design
Smart module series
Rev:1.0
Date: 2020-9-21
Status：Controlled Documents
www.quectel.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC200L-EM and is the answer not in the manual?

Questions and answers

Related Manuals for Quectel SC200L-EM

Summary of Contents for Quectel SC200L-EM

  • Page 1 SC200L-EM Hardware Design Smart module series Rev:1.0 Date: 2020-9-21 Status：Controlled Documents www.quectel.com...
  • Page 2 QUECTEL OFFERS THE INFORMATION AS A SERVICE TO ITS CUSTOMERS. THE INFORMATION PROVIDED IS BASED UPON CUSTOMERS’ REQUIREMENTS. QUECTEL MAKES EVERY EFFORT TO ENSURE THE QUALITY OF THE INFORMATION IT MAKES AVAILABLE. QUECTEL DOES NOT MAKE ANY WARRANTY AS TO THE INFORMATION CONTAINED HEREIN, AND DOES NOT ACCEPT ANY LIABILITY FOR ANY INJURY, LOSS OR DAMAGE OF ANY KIND INCURRED BY USE OF OR RELIANCE UPON THE INFORMATION.

  • Page 3: About The Document

    SC200L Hardware Design About the Document Revision History Revision Date Author Description 2020-9-21 Jeffrey/Andy Initial SC200L_Hardware_Design 3 / 103...

  • Page 4: Table Of Contents

    SC200L Hardware Design Contents About the Document ..........................3  Contents ..............................4  1  Introduction ............................6  1.1.  Safety Information ........................6  2  Product Concept ..........................8  2.1.  General Description ........................8  2.2.  Evaluation Board ........................9  3  Application Interfaces ........................10 ...
  • Page 5 SC200L Hardware Design 4  Wi-Fi and BT ........................... 55  4.1.  Wi-Fi Overview ........................55  4.1.1  Wi-Fi Performance ....................... 55  4.2  BT Overview ........................... 56  4.2.1  BT Performance ......................57  5  GNSS ..............................58  5.1  GNSS Performance ........................ 58  5.2  GNSS RF Design Guidelines ....................59 ...

  • Page 6: Introduction

    SC200L module. Manufacturers of the cellular terminal should send the following safety information to users and operating personnel, and incorporate these guidelines into all manuals supplied with the product. If not so, Quectel assumes no liability for customers’ failure to comply with these precautions.
  • Page 7 SC200L Hardware Design The cellular terminal or mobile contains a transmitter and receiver. When it is ON, it receives and transmits radio frequency signals. RF interference can occur if it is used close to TV set, radio, computer or other electric equipment. In locations with potentially explosive atmospheres, obey all posted signs to turn off wireless devices such as your phone or other cellular terminals.

  • Page 8: Product Concept

    Built-in high performance Mail-T820 graphics processing unit.   Provide multiple audio and video input/output interfaces as well as abundant GPIO interfaces. SC200L module is available in three variants: SC200L-CE, SC200L-EM, SC200L-WF. Table 1：SC200L-EM frequency bands Mode Frequency band LTE-FDD...

  • Page 9: Evaluation Board

    SC200L Hardware Design 2.2. Evaluation Board To help customers design and test applications with Quectel SC200L modules, Quectel supplies an evaluation kit, which includes an evaluation board, a USB to RS232 converter cable, a USB T data cable, a power adapter, an earphone and antennas. For details, please refer the document [1]...

  • Page 10: Application Interfaces

    SC200L Hardware Design Application Interfaces 3.1. General Description SC200L is an SMD type module with 146 LCC pins and 128 LGA pins. The following chapters provide the detailed description of pins/interfaces listed below.  Power supply  USB interface  UART interfaces (U)SIM interfaces ...

  • Page 11: Pin Assignment

    SC200L Hardware Design 3.2. Pin Assignment The following figure shows the pin assignment of SC200Lmodule. Figure 1: Pin Assignment (Top View) SC200L_Hardware_Design 11 / 103...

  • Page 12: Pin Description

    SC200L Hardware Design 3.3. Pin Description The following tables show the SC200L’s pin definition. Table 4: I/O Parameters Definition Type Description Analog input Analog output Digital input Digital output Bidirectional Open drain Power input Power output The following tables show the SC200L’s pin definition and electrical characteristics. Table 5: Pin Description Power supply Pin Name...
  • Page 13 SC200L Hardware Design Power supply for sensors, cameras, 1.8V output power Vnorm = 1.80 V LDO2_1V8 and I2C pull-up supply max = 500 mA circuits. Power supply 2.80V output power Vnorm = 2.80 V LDO4_2V8 LCD, touch screen supply max = 200 mA and sensors Power supply...
  • Page 14 SC200L Hardware Design Headphone left HPH_L channel output Headset insertion HS_DET The default is high. detection Headphone HPMIC_DET microphone detection Microphone bias1 = 2.20~3.00 V MIC_BIAS1 voltage Vnorm = 2.50 V Microphone input for MIC3_P secondary microphone (+) Microphone input for MIC3_N secondary microphone (-)
  • Page 15 SC200L Hardware Design max = It cannot be (U)SIM2 card reset 0.1 × USIM2_VDD USIM2_RST multiplexed into a signal min = Generic GPIOs. 0.9 × USIM2_VDD max = It cannot be (U)SIM2 card clock 0.1 × USIM2_VDD USIM2_CLK multiplexed into a signal min = Generic GPIOs.
  • Page 16 SC200L Hardware Design max = 0.3 × USIM1_VDD min = It cannot be (U)SIM1 card data 0.7 × USIM1_VDD USIM1_DATA multiplexed into a signal max = Generic GPIOs. 0.1 × USIM1_VDD min = 0.9 × USIM1_VDD 1.80 V (U)SIM: Vmax = 1.85 V Either 1.8V or 2.95V (U)SIM1 card power Vmin = 1.75 V...
  • Page 17 SC200L Hardware Design 1.8 V SD card： max = 0.53 V min = 1.30 V max = 0.19 V Command signal of min = 1.58 V SD_CMD SD card 3.0 V SD card： max = 0.87 V min = 2.17 V max = 0.31 V min = 2.61 V 1.8 V SD card：...
  • Page 18 SC200L Hardware Design Adjust the backlight 1.85V power domain. max = 0.20 V brightness. Can be used as min = 1.46 V PWM control signal. ordinary GPIO. 1.85V power domain. max = 0.20 V LCD_RST LCD reset signal Can be used as min = 1.46 V ordinary GPIO.
  • Page 19 SC200L Hardware Design CAMERA MIPI data CSI1_LN1_P 1 signal (+) CAMERA MIPI CSI0_CLK_N clock signal (-) CAMERA MIPI clock CSI0_CLK_P signal (+) CAMERA MIPI data CSI0_LN0_N 0 signal (-) CAMERA MIPI data CSI0_LN0_P 0 signal (+) Clock signal of max = 0.20 V MCAM_MCLK 1.85V power domain camera...
  • Page 20 SC200L Hardware Design RGB LED light interface Connect to the LED control negative pole of LED, RGB_B negative the maximum current is 27.7 mA. Connect to the LED control negative pole of LED, RGB_R negative the maximum current is 27.7 mA. Connect to the LED control negative pole of LED,...
  • Page 21 SC200L Hardware Design Connect the fuel Fuel gauge CS_P gauge to ground detection positive when not in use. 10 kΩ NTC is supported by default, and a 10 kΩ NTC resistor must be Battery temperature connected to ground. BAT_THERM detection If it is not used, an external 10 kΩ...
  • Page 22 SC200L Hardware Design GPIO_134 GPIO GPIO_11 GPIO GPIO_10 GPIO GPIO_138 GPIO Can be reused as GPIO_121 GPIO EXTINT11 GPIO_52 GPIO GPIO_53 GPIO GPIO_54 GPIO GPIO_55 GPIO Can be reused as GPIO_122 GPIO EXTINT12 GPIO_33 GPIO Can be reused as GPIO_130 GPIO EXTINT13 Can be reused as...

  • Page 23: Power Supply

    SC200L Hardware Design Pin Name Pin No. Description Comment Characteristics Pull down Force the module to USB_BOOT to GND max = 0.48 V USB_BOOT enter emergency will force the module min = 1.39 V download mode enter emergency download mode. Connected to the = 1.80~3.30 V VIB_DRV_P...
  • Page 24 SC200L Hardware Design Figure 2: Voltage Drop Sample To decrease voltage drop, a bypass capacitor of about 100µF with low ESR (ESR=0.7Ω) should be used, and a multi-layer ceramic chip capacitor (MLCC) should also be reserved due to its ultra-low ESR. It is recommended to use three ceramic capacitors (100nF, 33pF, 10pF) for composing the MLCC array and place these capacitors close to VBAT_BB/RF pins.

  • Page 25: Reference Design For Power Supply

    SC200L Hardware Design 3.4.3. Reference Design for Power Supply The power design for the module is very important, as the performance of the module largely depends on the power source. The power supply of SC200L should be able to provide sufficient current up to 3A at least.

  • Page 26: Turn On And Off Scenarios

    SC200L Hardware Design 3.5. Turn on and off Scenarios 3.5.1. Turn on Module Using the PWRKEY The module can be turned on by driving the PWRKEY pin to a low level for at least 2.5s. PWRKEY pin is pulled to VBAT internally. It is recommended to use an open drain/collector driver to control the PWRKEY. A simple reference circuit is illustrated in the following figure.
  • Page 27 SC200L Hardware Design The turning on the scenario is illustrated in the following figure. Figure 7: Timing of Turning on Module NOTES When the module is powered on for the first time, its timing of turning on may be different from that shown above.

  • Page 28: Turn Off Module

    SC200L Hardware Design 3.5.2. Turn off Module Set the PWRKEY pin low for at least 1s, and then choose to turn off the module when the prompt window comes up. It can also be forced to restart by pulling down the PWRKEY key for a long time (more than 7 seconds). The restart sequence diagram is as follows: Figure 8: Restart timing diagram 3.6.

  • Page 29: Battery Charge And Management

    SC200L Hardware Design 3.7. Battery Charge and Management SC200L module can recharge batteries. The battery charger in the SC200L module supports trickle charging, constant current charging and constant voltage charging modes. There are two steps in this mode. When the battery voltage is between 1.1V ...

  • Page 30: Usb Interface

    SC200L Hardware Design A reference design for the battery charging circuit is shown below. Figure 9: Reference Design for Battery Charging Circuit Mobile devices such as mobile phones and handheld POS systems are powered by batteries. When different batteries are utilized, the charging and discharging curve has to be modified correspondingly so as to achieve the best effect.
  • Page 31 SC200L Hardware Design Table 8: Pin Definition of USB Interface Pin Name Pin No. Description Comment Vmax = 9.20 V USB_VBUS 141、142 USB power supply Vmin = 4.50 V Vnorm = 5.00 V USB 2.0 differential data USB_DM AI/AO bus (-) USB 2.0 standard compliant.
  • Page 32 SC200L Hardware Design Figure 11: USB OTG Interface Reference Design In order to ensure USB performance, please comply with the following principles while designing a USB interface.  It is important to route the USB signal traces as differential pairs with total grounding. The impedance of USB differential trace is 90Ω.

  • Page 33: Uart Interfaces

    SC200L Hardware Design 3.9. UART Interfaces SC200L provides two UART interfaces:  UART0: 4-wire UART interface, hardware flow control supported.  UART1（DEBUG）: 2-wire UART interface; used for debugging by default. The UART interface pin definition is as follows: Table 10: Pin Definition of UART Interfaces Pin Name Pin No Description...

  • Page 34: U)Sim Interface

    SC200L Hardware Design following figure shows the reference design. Figure 13: RS-232 Level Match Circuit (for UART0) NOTE Please note that the CTS and RTS pins of the serial port hardware flow control are directly connected, and pay attention to the input and output directions. 3.10.
  • Page 35 SC200L Hardware Design (U)SIM2 card power Either 1.8V or 2.95V (U)SIM card is USIM2_VDD supply supported. Active Low. If it is not used, keep it (U)SIM1 card plug open.Enabled default USIM1_DET detection software.It can be multiplexed into a generic GPIO. (U)SIM1 card reset It cannot be multiplexed into a USIM1_RST...

  • Page 36: Sd Card Interface

    SC200L Hardware Design Figure 15: Reference Circuit for (U)SIM Interface with a 6-pin (U)SIM Card Connector In order to ensure good performance and avoid damage of (U)SIM cards, please follow the criteria listed below during (U)SIM circuit design:  Keep placement of (U)SIM card connector as close to the module as possible. Keep the trace length of (U)SIM card signals as less than 200 mm as possible.
  • Page 37 SC200L Hardware Design High-speed digital clock SD_CLK signal of SD card SD_CMD Command signal of SD card SD_DATA0 50Ω characteristic impedance High-speed bidirectional SD_DATA1 digital signal lines of SD SD_DATA2 card SD_DATA3 SD_DET SD card insertion detection Active low SD_VDD 3V output power supply Power supply for SD card A reference circuit for the SD card interface is shown below.

  • Page 38: Gpio Interfaces

    SC200L Hardware Design recommended to route the trace on the inner layer of PCB and keep the same trace length for CLK, CMD, DATA0, DATA1, DATA2 and DATA3. CLK needs separate ground shielding. Layout guidelines:  Control impedance to 50Ω ±10% and ground shielding is required. ...
  • Page 39 SC200L Hardware Design GPIO_135 GPIO_135 IN/PU GPIO_134 GPIO_134 IN/PD GPIO_11 GPIO_11 IN/PD GPIO_10 GPIO_10 IN/PD GPIO_138 GPIO_138 IN/PU Can be reused as GPIO_121 GPIO_121 OUT/L EXTINT11 GPIO_52 GPIO_52 IN/PU GPIO_53 GPIO_53 IN/PD GPIO_54 GPIO_54 IN/PD GPIO_55 GPIO_55 IN/PD Can be reused as GPIO_122 GPIO_122 IN/PD...

  • Page 40: I2C Interfaces

    SC200L Hardware Design For the EN pin of flash, switch charging, DC/DC and other chips, please select the PD's GPIO control by default. When ordinary GPIO is used as an input interrupt, edge wakeup is not supported when the system sleeps, only level wakeup is supported.

  • Page 41: Adc Interface

    SC200L Hardware Design Table 16: Pin Definition of SPI Interfaces Pin Name Pin No Description Comment GPIO_52 SPI2 chip select signal Multiplexed as SPI2_CSN GPIO_53 SPI2 data output Multiplexed as SPI2_DO GPIO_54 SPI2 data input Multiplexed as SPI2_DI GPIO_55 SPI2 clock signal Multiplexed as SPI2_CLK GPIO_93 SPI0 clock signal...

  • Page 42: Lcm Interface

    SC200L Hardware Design 3.16. LCM Interface SC200L provides an LCM interface, which is MIPI_DSI standard compliant. The interface supports high-speed differential data transmission and supports HD+ display (1440x720 @60fps). The pin definition of the LCM interface is shown below. Table 18: Pin Definition of LCM Interface Pin Name Pin No Description...
  • Page 43 SC200L Hardware Design A reference circuit for the LCM interface is shown below. Figure 17: Reference Circuit Design for LCM Interface MIPI is high-speed signal lines. It is recommended that common-mode filters should be added in series near the LCM connector, so as to improve protection against electromagnetic radiation interference. It is recommended to read the LCM ID register through MIPI when compatible design with other displays is required.

  • Page 44: Touch Panel Interface

    SC200L Hardware Design Figure 18: Reference Design for External Backlight Driving Circuit 3.17. Touch Panel Interface SC200L provides one I2C interface for connection with Touch Panel (TP), and also provides the corresponding power supply and interrupt pins. The definitions of TP interface pins are illustrated below. Table 19: Pin Definition of Touch Panel Interface Pin Name Pin No...

  • Page 45: Camera Interface

    SC200L Hardware Design Figure 19: Reference Circuit Design for TP Interface NOTE The touch screen uses LDO4_2V8 power supply by default (normally open). LDO4_2V8 can output 200 mA current。 3.18. Camera Interface Based on the standard MIPI CSI video input interface, the SC200L module supports two cameras (2-lane + 1-lane), Front-camera 1-lane MIPI, can support up to 2 MP photography;...
  • Page 46 SC200L Hardware Design CSI1_LN0_P CAMERA MIPI data0 signal (+) CSI1_LN1_N CAMERA MIPI data1 signal (-) CSI1_LN1_P CAMERA MIPI data1 signal (+) CSI0_CLK_N CAMERA MIPI clock signal (-) CSI0_CLK_P CAMERA MIPI clock signal (+) CSI0_LN0_N CAMERA MIPI data0 signal (-) CSI0_LN0_P CAMERA MIPI data0 signal (+) 1.85 V voltage domain MCAM_MCLK...
  • Page 47 SC200L Hardware Design Figure 20: Reference Circuit Design for Cameras NOTE CSI1 is used for the rear camera, and CSI0 is used for the front camera. Design considerations: SC200L_Hardware_Design 47 / 103...
  • Page 48 SC200L Hardware Design  Special attention should be paid to the pin definition of LCM/camera connectors. Assure the SC200L and the connectors are correctly connected . MIPI is high speed signal lines, supporting maximum data rate up to 1.5Gbps. The differential ...

  • Page 49: Sensor Interfaces

    SC200L Hardware Design CSI1_LN1_N 17.46 0.37 CSI1_LN1_P 17.83 CSI0_CLK_N 18.24 -0.44 CSI0_CLK_P 17.80 CSI0_LN0_N 18.64 0.15 CSI0_LN0_P 18.79 3.19. Sensor Interfaces SC200L module supports communication with sensors via I2C interfaces, and it supports ALS/PS, compass, G-sensor, and gyroscopic sensors. Table 22: Pin Definition of Sensor Interfaces Pin Name Pin No Description...

  • Page 50: Audio Interface

    SC200L Hardware Design 3.20. Audio Interface SC200L module provides three analog input channels and three analog output channels. The following table shows the pin definition. Table 23: Pin Definition of Audio Interfaces Pin Name Pin No Description Comment MIC1_P Main microphone input (+) MIC1_N MIC reference ground Headphone microphone...

  • Page 51: Microphone Interface Reference Circuit

    SC200L Hardware Design maximum output current is 2mA.  The earpiece interface uses differential output. The loudspeaker interface uses the differential output as well. The output channel is available with a  Class-D amplifier whose output power is 0.8W when load is 8Ω. ...

  • Page 52: Handset Interface Reference Circuit

    SC200L Hardware Design 3.20.2 Handset interface reference circuit 33 pF EAR_P 100 pF EAR_N 33 pF Module Figure 23: Earpiece output interface reference circuit 3.20.3 Headphone interface reference circuit Figure 24: Headphone interface reference circuit SC200L_Hardware_Design 52 / 103...

  • Page 53: Speaker Interface Reference Circuit

    SC200L Hardware Design 3.20.4 Speaker interface reference circuit Figure 25: Speaker interface reference circuit 3.20.5 Audio signal design considerations It is recommended to use the electret microphone with dual built-in capacitors (e.g. 10pF and 33pF) for filtering out RF interference, thus reducing TDD noise. The 33pF capacitor is applied for filtering out RF interference when the module is transmitting at EGSM900.

  • Page 54: Emergency Download Interface

    SC200L Hardware Design 3.21. Emergency Download Interface USB_BOOT is an emergency download interface. Pull the pin to ground during power-up will force the module to enter emergency download mode.There is an emergency option when failures such as abnormal start-up or running occur. For the convenient firmware upgrade and debugging in the future, please reverse this pin.

  • Page 55: Wi-Fi And Bt

    SC200L Hardware Design Wi-Fi and BT SC200L provides a shared antenna interface ANT_WIFI/BT for Wi-Fi and Bluetooth (BT) functions. The interface impedance is 50Ω. External antennas such as PCB antenna, sucker antenna, and ceramic antenna can be connected to the module via the interface, so as to achieve Wi-Fi and BT functions. 4.1.

  • Page 56: Bt Overview

    SC200L Hardware Design Table 3: Wi-Fi Receiving Performance Standard Rate Sensitivity 802.11b 1 Mbps 802.11b 11 Mbps 802.11g 6 Mbps 2.4 GHz 802.11g 54 Mbps 802.11n HT20 MCS0 802.11n HT20 MCS7 Referenced specifications are listed below:： IEEE 802.11n WLAN MAC and PHY, October 2009 + IEEE 802.11-2007 WLAN MAC and PHY, ...

  • Page 57: Bt Performance

    SC200L Hardware Design 3.0+HS 24 Mbit/s Reference 3.0 + HS 24 Mbit/s Reference 4.0 LE Referenced specifications are listed below:：  Bluetooth Radio Frequency TSS and TP Specification 1.2/2.0/2.0 + EDR/2.1/2.1+ EDR/3.0/3.0 + HS, August 6, 2009 Bluetooth Low Energy RF PHY Test Specification, RF-PHY.TS/4.0.0, December 15, 2009 ...

  • Page 58: Gnss

    SC200L Hardware Design 5 GNSS SC200L integrates a Unisoc GNSS engine (GEN 8C) which supports multiple positioning and navigation systems including GPS, GLONASS, and BeiDou. With an embedded LNA, the module provides greatly improved positioning accuracy. 5.1 GNSS Performance The following table lists the GNSS performance of the SC200L module in conduction mode. Table 29: GNSS Performance Parameter Description...

  • Page 59: Gnss Rf Design Guidelines

    SC200L Hardware Design 5.2 GNSS RF Design Guidelines Bad design of antenna and layout may cause reduced GPS receiving sensitivity, longer GPS positioning time, or reduced positioning accuracy. In order to avoid this, please follow the reference design rules as below: Maximize the distance between the GNSS RF part and the GPRS RF part (including trace routing and antenna layout) to avoid mutual interference.

  • Page 60: Antenna Interfaces

    SC200L Hardware Design 6 Antenna Interfaces SC200L provides four antenna interfaces for the main antenna, Rx-diversity/MIMO antenna, GNSS antenna and Wi-Fi/BT antenna, respectively. The antenna ports have an impedance of 50Ω. Main/Rx-diversity Antenna Interfaces The pin definition of main/Rx-diversity antenna interfaces is shown below. : Table30: Pin Definition of Main/Rx-diversity Antenna Interfaces Pin Name Pin No.
  • Page 61 LTE-TDD B34 2010~2025 2010~2025 LTE-TDD B38 2570~2620 2570~2620 LTE-TDD B39 1880~1920 1880~1920 LTE-TDD B40 2300~2400 2300~2400 LTE-TDD B41 2535~2675 2535~2675 Table32: SC200L-EM* Operating Frequencies 3GPP Band Receive Transmit Unit GSM850 869~894 824~849 EGSM900 925~960 880~915 DCS1800 1805~1880 1710~1785 PCS1900 1930~1990...

  • Page 62: Main And Rx-Diversity Antenna Interfaces Reference Design

    SC200L Hardware Design LTE-TDD B38 2570~2620 2570~2620 LTE-TDD B39 1880~1920 1880~1920 LTE-TDD B40 2300~2400 2300~2400 LTE-TDD B41 2496~2690 2496~2690 NOTE “*” means under development. 6.1.1 Main and Rx-diversity Antenna Interfaces Reference Design A reference circuit design for main and Rx-diversity antenna interfaces is shown as below. A π-type matching circuit should be reserved for better RF performance.
  • Page 63 SC200L Hardware Design height from the reference ground to the signal layer (H), and the clearance between RF traces and grounds (S). Microstrip or coplanar waveguide is typically used in RF layout to control characteristic impedance. The following are reference designs of microstrip line or coplanar waveguide with different PCB structures.

  • Page 64: Wi-Fi/Bt Antenna Interface

    SC200L Hardware Design Figure 29: Coplanar Waveguide Design on a 4-layer PCB (Layer 3 as Reference Ground) Figure 30: Coplanar Waveguide Design on a 4-layer PCB (Layer 4 as Reference Ground) In order to ensure RF performance and reliability, the following principles should be complied with in RF layout design: ...

  • Page 65: Gnss Antenna Interface

    SC200L Hardware Design ANT_WIFI/BT Wi-Fi/BT antenna interface 50Ω impedance Table 5: Wi-Fi/BT Frequency Type Frequency Unit CE: 2412-2472 MHz Wi-Fi (2.4GHz) FCC: 2412-2462 MHz BT4.2 LE 2402~2480 A reference circuit design for Wi-Fi/BT antenna interface is shown as below. C1 and C2 are not mounted and a 0Ω...

  • Page 66: Recommended Circuit For Passive Antenna

    SC200L Hardware Design 1575.42 ±1.023 GLONASS 1597.5~1605.8 BeiDou 1561.098 ±2.046 NOTE SC200L-WFnot support GNSS。 6.3.1 Recommended Circuit for Passive Antenna GNSS antenna interface supports passive ceramic antennas and other types of passive antennas. A reference circuit design is given below. Figure 29: Reference Circuit Design for GNSS Passive Antenna NOTE When the passive antenna is placed far away from the module (that is, the antenna trace is long), it is...

  • Page 67: Antenna Installation

    SC200L Hardware Design Figure 30: Reference Circuit Design for GNSS Active Antenna 6.4 Antenna Installation 6.4.1 Antenna Requirements The following table shows the requirement on the main antenna, RX-diversity antenna, Wi-Fi/BT antenna and a GNSS antenna. Table 37: Antenna Requirements Type Requirements VSWR:>...

  • Page 68: Recommended Rf Connector For Antenna Installation

    SC200L Hardware Design Polarization Type: Vertical Insertion Loss: < 1dB Frequency range: 1559MHz~1609MHz Polarization: RHCP or linear VSWR: < 2 (Typ.) GNSS Passive Antenna Gain: > 0dBi Active Antenna Noise Figure: < 1.5dB Active Antenna Total Gain: < 17dBi (Typ.) 6.4.2 Recommended RF Connector for Antenna Installation If an RF connector is used for antenna connection, it is recommended to use the U.FL-R-SMT connector provided by HIROSE.
  • Page 69 SC200L Hardware Design Figure 32: Mechanicals of U.FL-LP Connectors The following figure describes the space factor of mated connector. Figure 33: Space Factor of Mated Connectors (Unit: mm) For more details, please visit http://www.hirose.com。 SC200L_Hardware_Design 69 / 103...

  • Page 70: Electrical, Reliability And Radio Characteristics

    SC200L Hardware Design 6 Electrical, Reliability and Radio Characteristics 7.1 Absolute Maximum Ratings The following table lists the maximum withstand voltage/current of some pins of the module: Table 6: Absolute Maximum Ratings Parameter Min. Max. Unit VBAT -0.3 USB_VBUS -0.3 16.0 Peak Current of VBAT Voltage on Digital Pins...

  • Page 71: Operation And Storage Temperatures

    SC200L Hardware Design transmission slot) USB_VBUS 4.50 9.20 7.3 Operation and Storage Temperatures The operating temperature is listed in the following table. Table 8: Operation and Storage Temperatures Parameter Min. Typ. Max. Unit Operating temperature range ºC Storage Temperature Range -40 ºC NOTE Within the operation temperature range, the module is 3GPP compliant.
  • Page 72 SC200L Hardware Design current Sleep (USB disconnected) @DRX=7 Sleep (USB disconnected) @DRX=8 Sleep (USB disconnected) @DRX=9 Sleep (USB disconnected) @DRX=5 Sleep (USB disconnected) @DRX=6 LTE-FDD supply current Sleep (USB disconnected) @DRX=7 Sleep (USB disconnected) @DRX=9 Sleep (USB disconnected) @DRX=5 Sleep (USB disconnected) @DRX=6 LTE-TDD supply current Sleep (USB disconnected) @DRX=7...
  • Page 73 SC200L Hardware Design DCS1800 (3UL/2DL) @ PCL 0 DCS1800 (4UL/1DL) @ PCL 0 EGSM900 (1UL/4DL) @ PCL 8 EGSM900 (2UL/3DL) @ PCL 8 EGSM900 (3UL/2DL) @ PCL 8 EGSM900 (4UL/1DL) @ PCL 8 EDGE data transfer DCS1800 (1UL/4DL) @ PCL 2 DCS1800 (2UL/3DL) @ PCL 2 DCS1800 (3UL/2DL) @ PCL 2 DCS1800 (4UL/1DL) @ PCL 2...

  • Page 74: Rf Output Power

    SC200L Hardware Design Table 10: SC200L-EM Current Consumption Paramete Description Conditions Typ. OFF state Power down μA VBAT 7.5 RF Output Power The following table shows the RF output power of SC200L module. Table 41: SC200L-CE RF Output Power Frequency Max.
  • Page 75 SC200L Hardware Design Table 42: SC200L-EM RF Output Power Frequency Max. Min. GSM850 33 dBm ±2 dB 5 dBm ±5 dB EGSM900 33 dBm ±2 dB 5 dBm ±5 dB DCS1800 30 dBm ±2 dB 0 dBm ±5 dB PCS1900 30 dBm ±2 dB...

  • Page 76: Rf Receiving Sensitivity

    SC200L Hardware Design “*” means under development. 7.6 RF Receiving Sensitivity The following table shows the RF receiving sensitivity of SC200L module. Table 44: SC200L-EM RF Receiving Sensitivity Frequency Primary Diversity SIMO 3GPP (SIMO) GSM850 -108 -102.4 dBm EGSM900 -108 -102.4 dBm...

  • Page 77: Electrostatic Discharge

    SC200L Hardware Design LTE-TDD B40 (10 MHz) -97.4 -98.9 -100.9 -96.3 dBm LTE-TDD B41 (10 MHz) -96.2 -97.5 -100.2 -94.3 dBm NOTE “*” means under development. 7.7 Electrostatic Discharge The module is not protected against electrostatic discharge (ESD) in general. Consequently, it should be subject to ESD handling precautions that are typically applied to ESD sensitive components.

  • Page 78: Mechanical Dimensions

    SC200L Hardware Design 7 Mechanical Dimensions This chapter describes the mechanical dimensions of the module. All dimensions are measured in millimeter (mm), and the tolerances for dimensions without tolerance values are ±0.05 mm. 8.1 Mechanical Dimensions of the Module Pin 1 Side view Top view Figure 34: SC200L Module Top and Side Dimensions...
  • Page 79 SC200L Hardware Design Pin 1 Figure 35: SC200L Module Bottom Dimensions (Top View) SC200L_Hardware_Design 79 / 103...

  • Page 80: Recommended Footprint

    SC200L Hardware Design 8.2 Recommended Footprint Figure36: Recommended Footprint (Top View) NOTES 1. For easy maintenance of the module, keep about 5 mm between the module and other components on the host PCB. 2. All RESERVED pins should be kept open and MUST NOT be connected to ground.。 SC200L_Hardware_Design 80 / 103...

  • Page 81: Top And Bottom Views Of The Module

    8.3 Top and Bottom Views of the Module Figure37: Top View of the Module Figure 38: Bottom View of the Module NOTE These are renderings of SC200L module. For authentic dimension and appearance, please refer to the module that you receive from Quectel. SC200L_Hardware_Design 81 / 103...

  • Page 82: Storage, Manufacturing And Packaging

    SC200L Hardware Design 8 Storage, Manufacturing and Packaging 8.1 Storage SC200L is stored in a vacuum-sealed bag. It is rated at MSL 3, and its storage restrictions are shown as below. Recommended storage conditions: temperature 23 ± 5 °C, and relative humidity 35% ~ 60%.储 Under the recommended storage conditions, the module can be stored in a vacuum sealed bag for 12 months.
  • Page 83 SC200L Hardware Design Push the squeegee to apply the solder paste on the surface of stencil, thus making the paste fill the stencil openings and then penetrate to the PCB. The force on the squeegee should be adjusted properly so as to produce a clean stencil surface on a single pass. To ensure the module soldering quality, the thickness of stencil for the module is recommended to be 0.18 mm~0.20 mm.

  • Page 84: Packaging

    SC200L Hardware Design Max slope 2~3 °C/s Reflow time (D: over 220 °C) 45~70 s Max temperature 238 °C ~ 246 °C Cooling down slope -1.5 ~ -3 °C/s Reflow Cycle Max reflow cycle 9.3 Packaging SC200L is packaged in tape and reel carriers, and sealed in the vacuum-sealed bag. It is not recommended to open the vacuum package before using the module for actual production.
  • Page 85 SC200L Hardware Design Figure 41: Reel Dimensions (Unit: mm) Table 13: Reel Packaging Model MOQ for MP Minimum Package: 200pcs Minimum Package × 4=800pcs Name Size: 405 mm × 390 mm × 83 mm Size: 425 mm × 358 mm × 410 mm SC200L N.W: TBD N.W: TBD...

  • Page 86: Appendix A References

    SC200L Hardware Design 9 Appendix A References Table 14: Related Documents Document Name Remark Quectel_Smart_EVB_G2_User_Guide Smart EVB G2 user guide Quectel_SC200L_Reference_Design SC200L reference design Quectel_SC200L_GPIO_Configuration SC200L GPIO Configuration Quectel_RF_Layout_Application_Note RF layout application note Quectel_Module_Secondary_SMT_User_Guide Module secondary SMT user guide Table 15: Terms and Abbreviations Abbreviation Description Analog-to-Digital Converter...
  • Page 87 SC200L Hardware Design Digital Signal Processor EDGE Enhanced Data Rate for GSM Evolution Enhanced Full Rate EGSM Enhanced GSM Electrostatic Discharge Equivalent Series Resistance Frequency Division Duplex Full Rate GMSK Gaussian Minimum Shift Keying GNSS Global Navigation Satellite System GPIO General Purpose Input/Output GPRS General Packet Radio Service...
  • Page 88 SC200L Hardware Design Inorm Normal Current Leadless Chip Carrier Liquid Crystal Display LCD Module Low Dropout Regulator Low Energy Light Emitting Diode Land Grid Array Low Noise Amplifier Long-Term Evolution MIPI Mobile Industry Processor Interface Near Field Communication Negative Temperature Coefficient One Time Programable Printed Circuit Board Protocol Data Unit...
  • Page 89 SC200L Hardware Design SD Card Secure Digital Card Short Message Service Serial Peripheral Interface Time-Division Duplex Touch Panel Transient Voltage Suppressor Transmit UART Universal Asynchronous Receiver & Transmitter UMTS Universal Mobile Teleco mmunications System Universal Serial Bus (U)SIM (Universal) Subscriber Identity Module VBAT Voltage at Battery (Pin) Vmax...
  • Page 90 SC200L Hardware Design Maximum Output Low Level Voltage Value Minimum Output Low Level Voltage Value WCDMA Wideband Code Division Multiple Access WLAN Wireless Local Area Network SC200L_Hardware_Design 90 / 103...

  • Page 91: Appendix B Gprs Coding Schemes

    SC200L Hardware Design 10 Appendix B GPRS Coding Schemes Table 16: Description of Different Coding Schemes CS-1 CS-2 CS-3 CS-4 Scheme Code Rate Pre-coded USF Radio Block excl. USF and BCS – Tail Coded Bits – Punctured Bits 9.05 13.4 15.6 21.4 Data Rate Kb/s...

  • Page 92: Appendix C Gprs Multi-Slot Classes

    SC200L Hardware Design 11 Appendix C GPRS Multi-slot Classes Twenty-nine classes of GPRS multi-slot modes are defined for MS in GPRS specification. Multi-slot classes are product dependent, and determine the maximum achievable data rates in both the uplink and downlink directions. Written as 3+1 or 2+2, the first number indicates the amount of downlink timeslots, while the second number indicates the amount of uplink timeslots.
  • Page 93 SC200L Hardware Design SC200L_Hardware_Design 93 / 103...

  • Page 94: Appendix D Edge Modulation And Coding Schemes

    SC200L Hardware Design 12 Appendix D EDGE Modulation and Coding Schemes Table 18: EDGE Modulation and Coding Schemes Coding Scheme Modulation Coding Family 1 Timeslot 2 Timeslot 4 Timeslot MCS-1 GMSK 8.80 kbps 17.60 kbps 35.20 kbps MCS-2 GMSK 11.2 kbps 22.4 kbps 44.8 kbps MCS-3...
  • Page 95 SC200L Hardware Design FCC Certification Requirements. According to the definition of mobile and fixed device is described in Part 2.1091(b), this device is a mobile device. And the following conditions must be met: 1. This Modular Approval is limited to OEM installation for mobile and fixed applications only. The antenna installation and operating configurations of this transmitter, including any applicable source-based time- averaging duty factor, antenna gain and cable loss must satisfy MPE categorical Exclusion Requirements of 2.1091.
  • Page 96 SC200L Hardware Design If the device is used for other equipment that separate approval is required for all other operating configurations, including portable configurations with respect to 2.1093 and different antenna configurations. For this device, OEM integrators must be provided with labeling instructions of finished products. Please refer to KDB784748 D01 v07, section 8.
  • Page 97 SC200L Hardware Design (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
