Accuracy (GNSS)
.
NOTE
1. Tracking sensitivity: the minimum GNSS signal power at which the module can maintain lock (keep
positioning for at least 3 minutes continuously).
2. Reacquisition sensitivity: the minimum GNSS signal power required for the module to maintain lock
within 3 minutes after loss of lock.
3. Acquisition sensitivity: the minimum GNSS signal power at which the module can fix position
successfully within 3 minutes after executing cold start command.
5.2.3. Reference Design
The following is the reference circuit of GNSS antenna.
.
NOTE
1. An external LDO can be selected when supplying power according to the active antenna
RG520N-AT_Hardware_Design
Warm start
Autonomous
@ open sky
XTRA enabled
Hot start
Autonomous
@ open sky
XTRA enabled
Autonomous
CEP-50
@ open sky
ANT_GNSS
NM

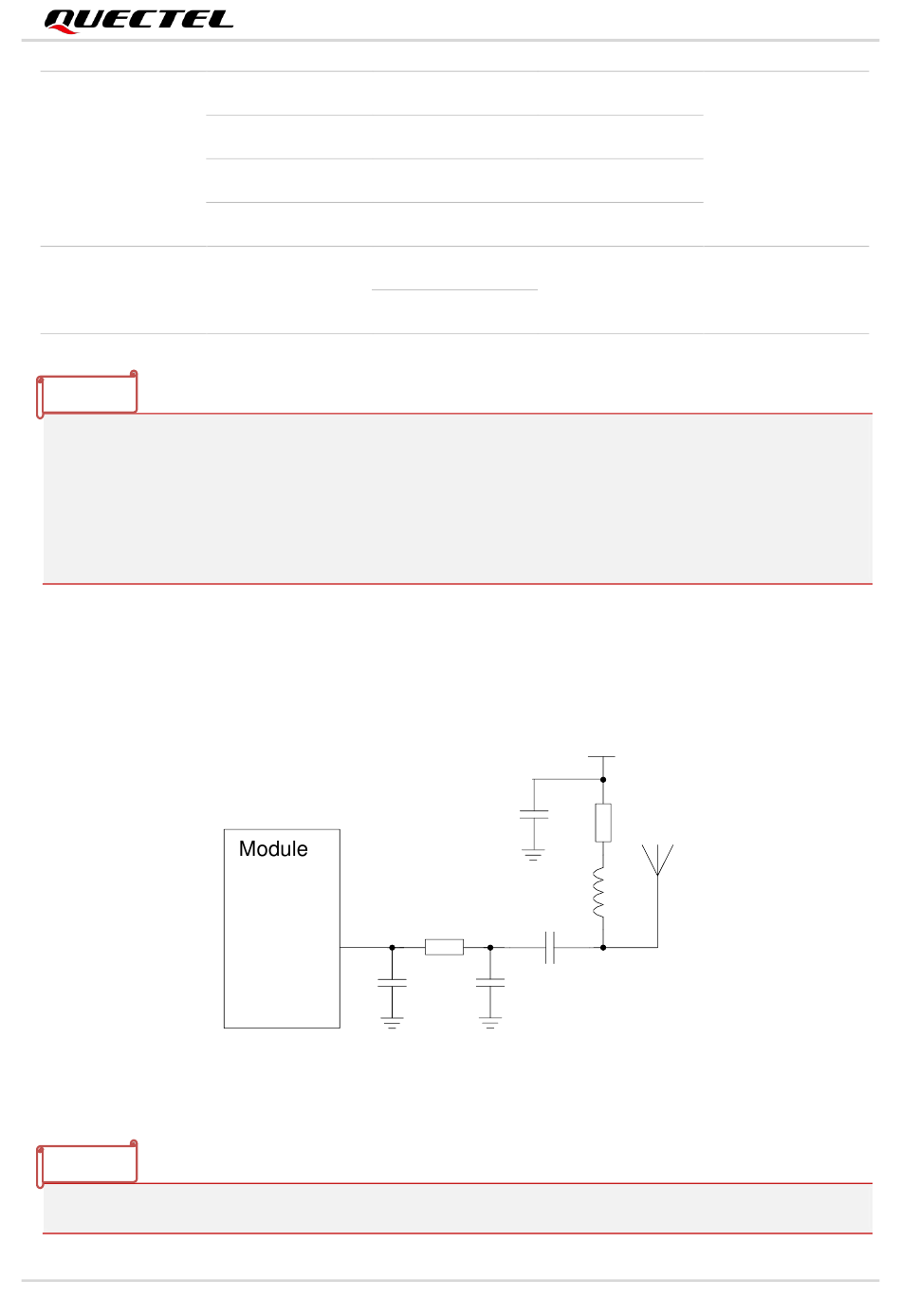

Figure 37: Reference Circuit of GNSS Antenna
TBD
TBD
TBD
TBD
TBD
VDD
0.1 μF
10R
47 nH
100 pF
0R
NM
5G Module Series
m
GNSS
Antenna
76 / 109
