3 Components and Power Supply

Chapter 3 Components and Power Supply
The following chapter provides detailed information on the chassis of the RS123 router family and its components.
This information includes:

• Components.

• Information on assembly.
• Installing and uninstalling modules.
• Power supply.
• RST button.
• Data connection.
• SIM card installation.
3.1 Components

3.1.1 Front panel

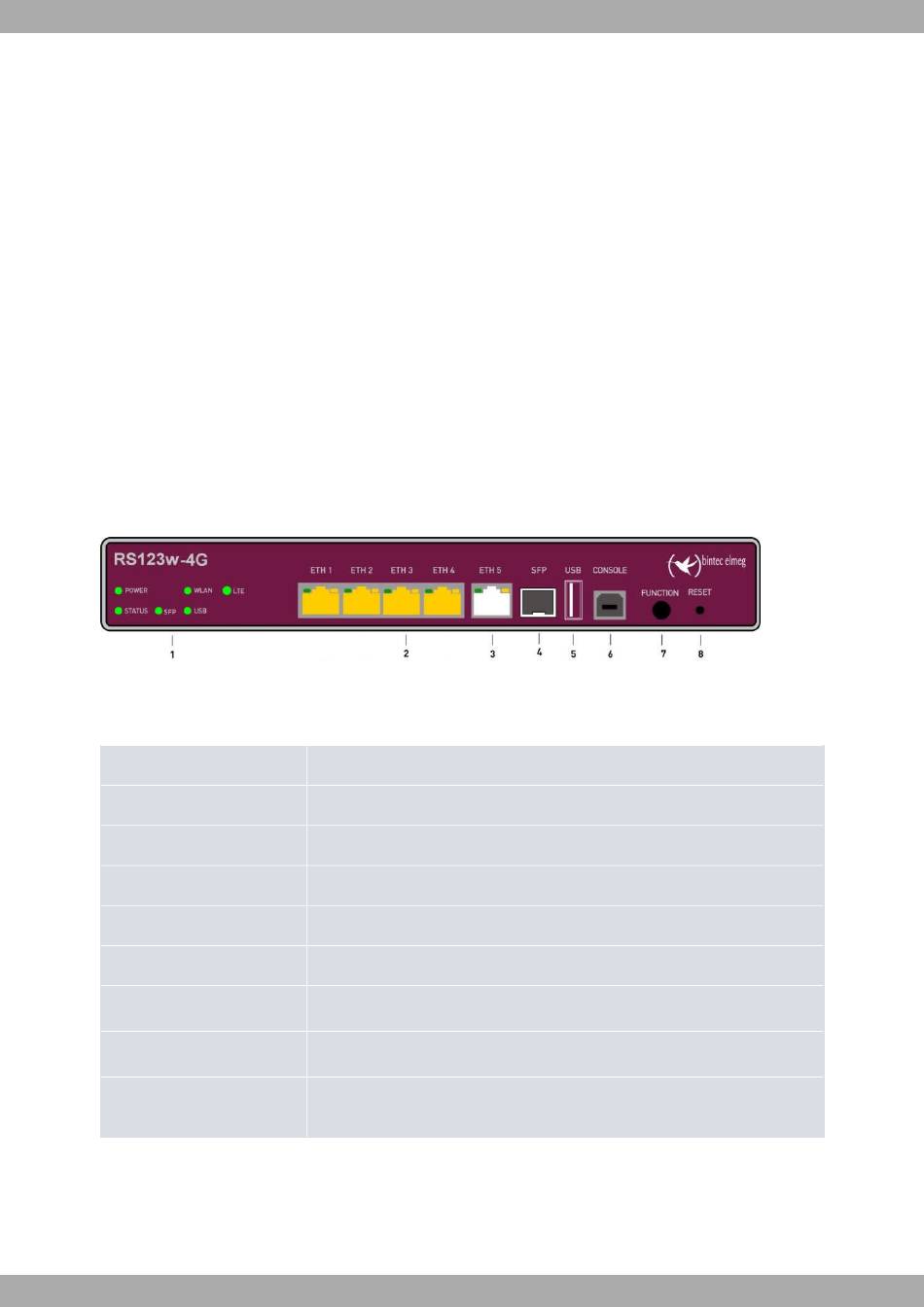

The following figure shows the front panel:
Frontal Panel
Fig. 2:
The front panel components are as follows:
Front panel components
Item
1
2
3
4
5
6
7
8
The LED panel provides information on the status of the components (whether they are active or not) and on the net-
work activity.
6
Description
LED panel.
ETH1 to ETH4. 4-port Gigabit Ethernet Switch.
ETH5. WAN Gigabit Ethernet. RJ45 connector.
ETH5. WAN Gigabit Ethernet. SFP connector.
USB. Slot where you can insert a 3G USB modem.
Console. USB connector providing access to the device's local console for config-
uration and monitoring purposes.
FUNCTION. WPS (Wireless Protected Setup) button. This allows Wi-Fi network
parameters to be configured easily and securely.
RESET. Reset button. For further information on how the reset button works,
please see RESET button on page 12.
