Dahua L Series User Manual

page of 453

/ 453
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

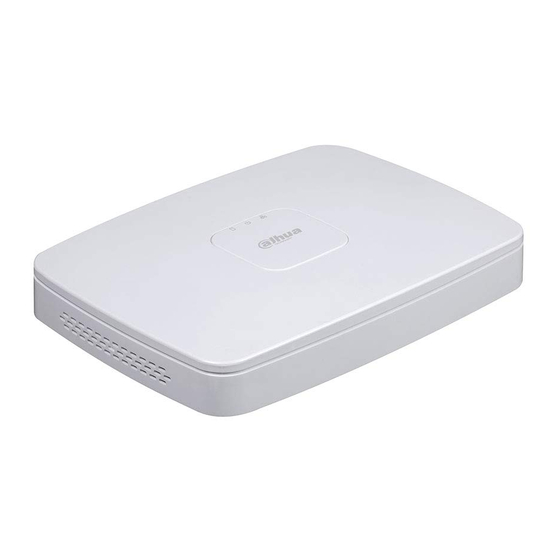

Dahua Network Video Recorder

User's Manual

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

V1.2.0

Table of Contents

Need help?

Do you have a question about the L Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dahua L Series

Page 1 Dahua Network Video Recorder User's Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.2.0...
Page 2: Foreword
User's Manual Foreword General This user’s manual (hereinafter referred to be "the Manual") introduces the installation, functions and operations of the Network Video Recorder (NVR) devices (hereinafter referred to be "the Device"). Safety Instructions The following categorized signal words with defined meaning might appear in the manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result...
Page 3 User's Manual Version Revision Content Release Time Added "4.3.9 Split Tracking", "4.7.2.11 Main- sub Tracking", "4.7.1.11 Analytics List", V1.0.5 May 2020 "4.7.2.12 Video Quality Analytics", "4.12.11 Setting iSCSI" and "5.4 Cluster Service". ● Added 16 models. ● Added "4.2.8 Checking PoE Status" and April 2020 V1.0.4 "4.11.16 Setting Switch".
Page 4 User's Manual ● If there is any uncertainty or controversy, please refer to our final explanation.
Page 5: Important Safeguards And Warnings
User's Manual Important Safeguards and Warnings The following description is the correct application method of the device. Read the manual carefully before use to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement ●...
Page 6: Table Of Contents
2.1.6 NVR21-I/NVR21-I2/NVR21-P-I/NVR21-P-I2/NVR21-8P-I/NVR21-8P-I2 Series ........9 2.1.7 NVR22-I/NVR22-I2/NVR22-P-I/NVR22-P-I2/NVR22-8P-I/NVR22-8P-I2/NVR22-16P-I/NVR22- 16P-I2 Series ..................................10 2.1.8 NVR21HS-I/NVR21HS-I2/NVR21HS-P-I/NVR21HS-P-I2/NVR21HS-8P-I/NVR21HS-8P- I2/NVR44-4KS2/I/NVR44-16P-4KS2/I Series ......................11 2.1.9 NVR48-I/NVR58-I/NVR58-I/L Series ........................12 2.1.10 NVR42-I/NVR44-I/NVR54-I/NVR54-I/L/NVR52-I/NVR52-I/L Series ............. 12 2.1.11 NVR48-4KS2/I/NVR48-16P-4KS2/I Series ....................... 13 2.1.12 NVR608-4KS2 Series ..............................14 2.1.13 NVR616-4KS2 Series ..............................15 2.2 Rear Panel ....................................
Page 7 User's Manual 2.2.5 NVR54-4KS2/NVR58-4KS2/NVR54-16P-4KS2/NVR58-16P-4KS2/NVR54-24P-4KS2/NVR58- 16P-4KS2E Series ................................23 2.2.6 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41-4KS2/L/NVR41-P-4KS2/L/NVR41-8P- 4KS2/L ..................................... 26 2.2.7 NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/NVR42-16P-4KS2/NVR42-4KS2/L/NVR42-P- 4KS2/L/NVR42-8P-4KS2/L/NVR42-16P-4KS2/L Series ..................27 2.2.8 NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/NVR44-16P-4KS2/L/NVR44-4KS2/I/NVR44- 16P-4KS2/I Series ................................29 2.2.9 NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/NVR48-16P-4KS2/L/NVR48-4KS2/I/NVR48- 16P-4KS2/I Series ................................31 2.2.10 NVR21-W-4KS2 Series .............................. 33 2.2.11 NVR21HS-W-4KS2Series ............................35 2.2.12 NVR21-I/NVR21-I2 Series ............................
Page 8 4KS2/L/NVR41HS-8P-4KS2/L/NVR21HS-4KS2/NVR21HS-P-4KS2/NVR21HS-8P-4KS2/NVR21HS- W-4KS2/NVR11HS-S3H/NVR11HS-P-S3H/NVR11HS-8P-S3H/NVR21HS-I/NVR21HS- I2/NVR21HS-P-I/NVR21HS-P-I2/NVR21HS-8P-I/NVR21HS-8P-I2 Series ..........70 3.4.3 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR22-8P-S2/NVR42-4KS2/NVR42-P- 4KS2/NVR42-8P-4KS2/NVR42-16P-4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P- 4KS2/L/NVR42-16P-4KS2/L/NVR52-24P-4KS2/NVR22-4KS2/NVR22-P-4KS2/NVR22-8P- 4KS2/NVR52-8P-4KS2E/NVR22-I/NVR22-I2/NVR22-P-I/NVR22-P-I2/NVR22-8P-I/NVR22-8P- I2/NVR22-16P-I/NVR22-16P-I2/NVR42-I/NVR42-8P-I/NVR42-16P-I/NVR52-16P-I/NVR52-16P- I/L/NVR52-8P-I/NVR52-8P-I/L Series ........................72 3.4.4 NVR54-4KS2/NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/NVR44-16P- 4KS2/L/NVR54-24P-4KS2/NVR54-16P-4KS2E/NVR58-I/NVR58-I/L/NVR54-I/NVR54-I/L/NVR52- I/NVR52-I/L/NVR42-I/NVR42-8P-I/NVR44-I/NVR48-I/NVR608-4KS2/NVR44-4KS2/I/NVR44-16P- 4KS2/I/NVR48-4KS2/I/NVR48-16P-4KS2/I Series ....................75 3.4.5 NVR616-4KS2 Series ..............................80 3.5 CD-ROM Installation ................................82 3.6 Connection Sample ................................. 87 3.6.1 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41-4KS2/L/NVR41-P-4KS2/L/NVR41-8P- 4KS2/L/NVR21-4KS2/NVR21-P-4KS2/NVR21-8P-4KS2/NVR21-I/NVR21-I2/NVR21-P-I/NVR21-P- I2/NVR21-8P-I/NVR21-8P-I2 Series ...........................
Page 9 User's Manual 3.6.10 NVR58-I/NVR58-I/L/NVR48-I Series ........................96 3.6.11 NVR54-I/NVR54-I/L/NVR44-I ..........................97 3.6.12 NVR52-16P-I/NVR52-16P-I/L/NVR52-8P-I/NVR52-8P-I/L/NVR42-8P-I/NVR42-16P-I Series .. 97 3.6.13 NVR4216-I Series ................................ 98 3.6.14 NVR608-4KS2 Series ..............................98 3.6.15 NVR616-4KS2 Series ..............................99 4 Local Basic Operation ..................................100 4.1 Getting Started ..................................100 4.1.1 Booting up ..................................
Page 10 User's Manual 4.2.4 Image ....................................148 4.2.5 Video Overlay ................................150 4.2.5.1 Overlay ................................. 150 4.2.5.2 Privacy Masking ............................... 151 4.2.6 Encode ..................................... 152 4.2.6.1 Encode .................................. 153 4.2.6.2 Snapshot ................................155 4.2.7 Channel Name ................................157 4.2.8 Checking PoE Status ..............................157 4.2.9 Remote Update ................................
Page 11 User's Manual 4.4.1 PTZ Settings .................................. 190 4.4.2 PTZ Control ................................... 192 4.4.3 Configuring PTZ Functions ........................... 194 4.4.3.1 Configuring Presets ............................194 4.4.3.2 Configuring Tours ............................194 4.4.3.3 Configuring Patterns ............................ 195 4.4.3.4 Configuring AutoScan ..........................196 4.4.4 Calling PTZ Functions .............................. 197 4.4.4.1 Calling Presets ..............................
Page 12 User's Manual 4.7.1.3 IVS ................................... 218 4.7.1.4 Stereo Analysis ..............................219 4.7.1.4.1 People Approach Detection ......................219 4.7.1.4.2 Fall Detection ............................220 4.7.1.4.3 People No. Exception Detection ....................220 4.7.1.4.4 People Stay Detection ........................221 4.7.1.4.5 Violence Detection ..........................221 4.7.1.5 Human Detection ............................
Page 13 User's Manual 4.7.2.9 ANPR ..................................265 4.7.2.10 SMD ..................................267 4.7.2.11 Main-sub Tracking ............................269 4.7.2.12 Video Quality Analytics ..........................271 4.7.3 Database ..................................274 4.7.3.1 Creating Face Database ..........................274 4.7.3.1.1 Adding Face Pictures .......................... 275 4.7.3.1.2 Adding One Face Picture ........................275 4.7.3.1.3 Adding Face Pictures in Batches ....................
Page 14 User's Manual 4.9.2.2 Connection Mode ............................311 4.10 Operation and Maintenance ............................312 4.10.1 Log ....................................312 4.10.2 System ..................................313 4.10.2.1 System Version .............................. 313 4.10.2.2 AI Algorithm Version ..........................313 4.10.2.3 HDD Info ................................313 4.10.2.4 BPS ..................................314 4.10.2.5 Device Status ..............................
Page 15 User's Manual 4.11.12 SNMP ..................................346 4.11.13 Multicast ................................... 348 4.11.14 Alarm Center ................................349 4.11.15 Register ..................................350 4.11.16 Setting Switch ................................ 351 4.11.17 P2P ....................................352 4.11.17.1 Mobile APP Operation ..........................353 4.12 Storage ....................................354 4.12.1 Basic ....................................354 4.12.2 Schedule ..................................
Page 16 User's Manual 4.14.3.1 Firewall ................................378 4.14.3.2 Account Lockout ............................380 4.14.3.3 Anti-Dos Attack ............................. 380 4.14.3.4 Sync Time-Allowlist ............................. 381 4.14.4 CA Certificate ................................383 4.14.4.1 Device Certificate ............................383 4.14.4.2 Trusted CA Certificate ..........................384 4.14.5 Audio/Video Encryption ............................385 4.14.6 Security Warning ..............................
Page 17 User's Manual 5.4.5 Cluster Control ................................419 5.4.5.1 Cluster Control ..............................419 5.4.5.2 Arbitrage IP ................................ 419 5.4.6 Cluster Log ..................................420 6 Glossary ........................................ 421 7 FAQ ......................................... 422 Appendix 1 Cybersecurity Recommendations ........................426 Appendix 2 HDD Capacity Calculation ............................. 429 Appendix 3 Compatible Network Camera List ........................
Page 18: Features
User's Manual 1 Features 1.1 Overview This series NVR is a high performance network video recorder. This series product supports local live view, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function. This series product supports center storage, front-end storage and client-end storage.
Page 19 User's Manual bodies. ● Smart search. It includes smart functions such as searching by attribute and searching by image to enable users to get target records quickly. Cloud Upgrade For the NVR connected to the Internet, it supports application online upgrade. Real-Time Surveillance ●...
Page 20 User's Manual Window Split Adopt video compression and digital processing to display several windows in one monitor. Support 1/4/8/9/16/25/36 window split in preview and 1/4/9/16 window split in playback. Record Support regular record, motion record, alarm record and smart record. Save the recorded files in the HDD, USB device, client-end PC or network storage server and you can search or playback the saved files at the local-end or via the Web/USB devices.
Page 21: Front Panel And Rear Panel
User's Manual 2 Front Panel and Rear Panel The following front panel and rear panel figures are for reference only. The actual product shall prevail. 2.1 Front Panel 2.1.1 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41- 4KS2/L/NVR41-P-4KS2/L/NVR41-8P-4KS2/L/NVR21-4KS2/NVR21-P- 4KS2/NVR21-8P-4KS2 Series The figure is for reference only. The actual product shall prevail. TheNVR41-4KS2/NVR41-4KS2/L/NVR41-P-4KS2/NVR41-P-4KS2/L/NVR21-4KS2/NVRNVR21-P-4KS2 front panel is shown as below.
Page 22: Nvr11Hs-S3H/Nvr11Hs-P-S3H/Nvr11Hs-8P-S3H/Nvr41Hs-4Ks2/Nvr41Hs-P- 4Ks2/Nvr41Hs-8P-4Ks2/Nvr41Hs-4Ks2/L/Nvr41Hs-P-4Ks2/L/Nvr41Hs-8P- 4Ks2/L/Nvr21Hs-4Ks2/Nvr21Hs-P-4Ks2/Nvr21Hs-8P-4Ks2 Series
User's Manual Figure 2-2 Front panel Table 2-1 Icons Name Function The red light becomes on when HDD is HDD status indicator light abnormal. The red light becomes on when the power Power indicator light connection is OK. The red light becomes on when the network Network status indicator light connection is abnormal.
Page 23: Nvr52-4Ks2/Nvr52-8P-4Ks2/Nvr52-16P-4Ks2/Nvr42-4Ks2/Nvr42-P-4Ks2/Nvr42-8P
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-3 Front panel Table 2-2 Icons Icon Name Function The blue light is on when the HDD is HDD status indicator light malfunction. Network status indicator The blue light is on when the network light connection is abnormal.
Page 24: Nvr21-W-4Ks2 Series
User's Manual Figure 2-4 Front panel The NVR54-4KS2/NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/NVR44-16P- 4KS2/L/NVR54-24P-4KS2/NVR54-16P-4KS2E series front panel is shown as below. Figure 2-5 Front panel The NVR58-4KS2/NVR58-16P-4KS2/NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/NVR48-16P- 4KS2/L/NVR58-16P-4KS2E series front panel is shown as below Figure 2-6 Front panel Table 2-3 Icons Icon Name Function The blue light is on when the STATUS Status indicator light...
Page 25: Nvr21Hs-W-4Ks2 Series
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-7 Front panel Table 2-4 Icons Icon Name Function The blue light is on when the HDD is HDD status indicator light malfunction. The blue light is on when the network Network status indicator light connection is abnormal.
Page 26: Nvr21-I/Nvr21-I2/Nvr21-P-I/Nvr21-P-I2/Nvr21-8P-I/Nvr21-8P-I2 Series
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-8 Front panel Table 2-5 Icons Icon Name Function The blue light is on when the HDD is HDD status indicator light malfunction. The blue light is on when the network Network status indicator light connection is abnormal.
Page 27: Nvr22-I/Nvr22-I2/Nvr22-P-I/Nvr22-P-I2/Nvr22-8P-I/Nvr22-8P-I2/Nvr22-16P-I/Nvr22- 16P-I2 Series
User's Manual Figure 2-9 Front panel The NVR21-P-I/NVR21-P-I2 front panel is shown as below. Figure 2-10 Front panel The NVR21-8P-I/NVR21-8P-I2 front panel is shown as below. Figure 2-11 Front panel 2.1.7 NVR22-I/NVR22-I2/NVR22-P-I/NVR22-P-I2/NVR22-8P-I/NVR22- 8P-I2/NVR22-16P-I/NVR22-16P-I2 Series The figure is for reference only. The actual product shall prevail. The NVR22-I/NVR22-I2 front panel is shown as below.
Page 28: Nvr21Hs-I/Nvr21Hs-I2/Nvr21Hs-P-I/Nvr21Hs-P-I2/Nvr21Hs-8P-I/Nvr21Hs-8P- I2/Nvr44-4Ks2/I/Nvr44-16P-4Ks2/I Series
User's Manual Figure 2-14 Front panel The NVR22-16P-I/NVR22-16P-I2 front panel is shown as below. Figure 2-15 Front panel Table 2-6 Icons Icon Name Function HDD status indicator The blue light is on when the HDD malfunctions. light The blue light is on when the Network status indicator light network connection is abnormal.
Page 29: Nvr48-I/Nvr58-I/Nvr58-I/L Series
Connect to peripheral USB 2.0 USB 2.0 port storage device, mouse, burner and etc. 2.1.9 NVR48-I/NVR58-I/NVR58-I/L Series The section takes NVR4832-I/NVR5864-I/NVR5864-I/L/NVR5832-I/NVR5832-I/L series as examples. The figure is for reference only. The actual product shall prevail. Figure 2-17 Front panel Table 2-8 Icons Port Name...
Page 30: Nvr48-4Ks2/I/Nvr48-16P-4Ks2/I Series
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-18 Front panel Table 2-9 Icons Port Name Function Connects to the external devices such as keyboard, USB port mouse, and USB storage device. IR indicator Receive signals from the remote control.
Page 31: Nvr608-4Ks2 Series
User's Manual 2.1.12 NVR608-4KS2 Series The following figures are for reference only. The actual product shall prevail. The NVR608-32-4KS2 front panel is shown as below. Figure 2-20 Front panel Table 2-11 Icons Icon Name Function The blue light is on when the device STATUS Status indicator light is working properly.
Page 32: Nvr616-4Ks2 Series
User's Manual Icon Name Power on-off button ALARM Alarm indicator light 2.1.13 NVR616-4KS2 Series The following figures are for reference only. The actual product shall prevail. For the product of LCD, the front panel of NVR616-4KS2 is shown as below. Figure 2-22 Front panel Table 2-13 Icons Name...
Page 33 User's Manual Figure 2-23 Front panel Table 2-14 Icons Name Function Press it once to turn on the device. Press it for a long time to turn off the device (Usually we Power button do not recommend). Press power button for a long time or pull out the power cable might result in device auto restart.
Page 34: Rear Panel
User's Manual Figure 2-24 Front panel 2.2 Rear Panel 2.2.1 NVR21-4KS2/NVR21-P-4KS2/NVR21-8P-4KS2 Series The NVR21-4KS2 is shown as below. Figure 2-25 Rear panel The NVR21-P-4KS2 is shown as below. Figure 2-26 Rear panel The NVR21-8P-4KS2 is shown as below.
Page 35: Nvr11Hs-S3H/Nvr11Hs-P-S3H/Nvr11Hs-8P-S3H/Nvr21Hs-4Ks2/Nvr21Hs-P- 4Ks2/Nvr21Hs-8P-4Ks2/Nvr41Hs-4Ks2/Nvr41Hs-P-4Ks2/Nvr41Hs-8P-4Ks2/Nvr41Hs
User's Manual Figure 2-27 Rear panel Table 2-15 Ports Port Name Connection Function Power socket ● For NVR21-S2/21-4KS2, input DC 12V/2A. ● For NVR21-P-S2/21-P-4KS2, input DC Power input port 48V/1.25A. ● For NVR21-8P-S2/21-8P-4KS2, input DC 48V/2A. 10M/100Mbps self-adaptive Ethernet port. Network port Connect to the network cable.
Page 36 User's Manual 4KS2/L/NVR41HS-P-4KS2/L/NVR41HS-8P-4KS2/L Series The NVR11HS-S3H/NVR21HS-4KS2/NVR41HS-4KS2/NVR41HS-4KS2/L series rear panel is shown as below. Figure 2-28 Rear panel The NVR11HS-P-S3H/NVR21HS-P-4KS2/NVR41HS-P-4KS2/NVR41HS-P-4KS2/L series rear panel is shown as below. Figure 2-29 Rear panel The NVR11HS-8P-S3H/NVR21HS-8P-4KS2/NVR41HS-8P-4KS2/NVR41HS-8P-4KS2/L series rear panel is shown as below. Figure 2-30 Rear panel...
Page 37: Nvr22-4Ks2/Nvr22-P-4Ks2/Nvr22-8P-4Ks2 Series
User's Manual Port Name Connection Function VGA video output VGA video output port. Output analog video signal. It port can connect to the monitor to view analog video. Bidirectional talk input port. It is to receive the analog MIC IN Audio input port audio signal output from the devices such as microphone, pickup.
Page 38: Nvr52-4Ks2/Nvr52-8P-4Ks2/Nvr52-16P-4Ks2/Nvr52-24P-4Ks2/Nvr52-8P-4Ks2E/Nvr52- 16P-4Ks2E Series
User's Manual Port Name Connection Function 10M/100Mbps self-adaptive Ethernet port. Connect Network port to the network cable. USB port. Connect to mouse, USB storage device USB port and etc. High definition audio and video signal output port. High Definition It transmits uncompressed high definition video HDMI Media Interface and multiple-channel data to the HDMI port of the...
Page 39 User's Manual Figure 2-36 Rear panel The NVR52-24P-4KS2 series rear panel is shown as below. Figure 2-37 Rear panel The NVR52-8P-4KS2E/52-16P-4KS2E series rear panel is shown as below. The following figure takes NVR52-16P-4KS2E series as an example. NVR52-8P-4KS2E has 8 ePoE ports only.
Page 40: Nvr54-4Ks2/Nvr58-4Ks2/Nvr54-16P-4Ks2/Nvr58-16P-4Ks2/Nvr54-24P-4Ks2/Nvr58- 16P-4Ks2E Series
User's Manual Icon Port Name Function ● There are two groups. The first group is from port 1 to port 4; the second group is from port 5 to port 8. They are to receive the signal from the Alarm input port external alarm source.
Page 41 User's Manual Figure 2-40 Rear panel The NVR54-24P-4KS2 series rear panel is shown as below. Figure 2-41 Rear panel The NVR54-16P-4KS2E series rear panel is shown as below. Figure 2-42 Rear panel The NVR58-16P-4KS2E series rear panel is shown as below. Figure 2-43 Rear panel Table 2-19 Name...
Page 42 User's Manual Name Function USB port. Connect to mouse, USB storage device, USB port USB burner and etc. High definition audio and video signal output High Definition Media port. It transmits uncompressed high definition HDMI Interface video and multiple-channel data to the HDMI port of the display device.
Page 43: Nvr41-4Ks2/Nvr41-P-4Ks2/Nvr41-8P-4Ks2/Nvr41-4Ks2/L/Nvr41-P-4Ks2/L/Nvr41-8P- 4Ks2/L
16 are general PoE ports. The 16 PoE series supports total 150W. 2.2.6 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41- 4KS2/L/NVR41-P-4KS2/L/NVR41-8P-4KS2/L The NVR41-4KS2/NVR41-4KS2/L series rear panel is shown as below. Figure 2-44 Rear panel The NVR41-P-4KS2/NVR41-P-4KS2/L series rear panel is shown as below. Figure 2-45 Rear panel...
Page 44: Nvr42-4Ks2/Nvr42-P-4Ks2/Nvr42-8P-4Ks2/Nvr42-16P-4Ks2/Nvr42-4Ks2/L/Nvr42-P- 4Ks2/L/Nvr42-8P-4Ks2/L/Nvr42-16P-4Ks2/L Series
● Audio output on 1-window video playback. Built-in switch. Support PoE function. PoE PORTS PoE port For PoE series product, you can use this port to provide power to the network camera. 2.2.7 NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/NVR42-16P- 4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/NVR42- 16P-4KS2/L Series The NVR42-4KS2/NVR42-4KS2/L series rear panel is shown as below.
Page 45 User's Manual Figure 2-47 Rear panel The NVR42-P-4KS2/NVR42-P-4KS2/L series rear panel is shown as below. Figure 2-48 Rear panel The NVR42-8P-4KS2/NVR42-8P-4KS2/L series rear panel is shown as below. Figure 2-49 Rear panel The NVR42-16P-4KS2/NVR42-16P-4KS2/L series rear panel is shown as below.
Page 46: Nvr44-4Ks2/Nvr44-16P-4Ks2/Nvr44-4Ks2/L/Nvr44-16P-4Ks2/L/Nvr44-4Ks2/I/Nvr44- 16P-4Ks2/I Series
User's Manual Name Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ● Audio output on 1-window video playback.
Page 47 User's Manual Figure 2-51 Rear panel The NVR44-16P-4KS2/NVR44-16P-4KS2/L/NVR44-16P-4KS2/I series rear panel is shown as below. Figure 2-52 Rear panel Table 2-21 Ports Name Function Power switch — Power on-off button Power input port — AC90V~264V-12V12.5A/-53V2.83A Bidirectional talk input port. It is to receive the MIC IN Audio input port analog audio signal output from the devices such as...
Page 48: Nvr48-4Ks2/Nvr48-16P-4Ks2/Nvr48-4Ks2/L/Nvr48-16P-4Ks2/L/Nvr48-4Ks2/I/Nvr48- 16P-4Ks2/I Series
User's Manual Name Function NO3–C3, Group 4:port NO4–C4, Group 5: port NO5, C5, NC5). Output alarm signal to the alarm device. Please make sure there is power to the external alarm device. ● NO: Normal open alarm output port. ● C: Alarm output public end. ●...
Page 49 User's Manual Figure 2-53 Rear panel The NVR48-16P-4KS2/NVR48-16P-4KS2/L/NVR48-16P-4KS2/I series rear panel is shown as below. Figure 2-54 Rear panel Table 2-22 Ports Name Function Power switch — Power on-off button. Power input port — AC90V~264V-12V12.5A/-53V2.83A. Bidirectional talk input port. It is to receive the MIC IN Audio input port analog audio signal output from the devices such...
Page 50: Nvr21-W-4Ks2 Series
User's Manual Name Function NO3–C3, Group 4:port NO4–C4, Group 5: port NO5, C5, NC5). Output alarm signal to the alarm device. Please make sure there is power to the external alarm device. ● NO: Normal open alarm output port. ● C: Alarm output public end. ●...
Page 51 User's Manual Figure 2-55 Rear panel Table 2-23 Ports Port Name Connection Function USB2.0 port. Connect to mouse, USB storage USB2.0 port device, USB burner and etc. 10M/100Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port.
Page 52: Nvr21Hs-W-4Ks2Series
User's Manual 2.2.11 NVR21HS-W-4KS2Series Figure 2-56 Rear panel Table 2-24 Ports Icon Name Function Power input socket. Power socket. Input DC12V/2A. 10M/100Mbps self-adaptive Ethernet port. Connect Network port to the network cable. USB2.0 port. Connect to mouse, USB storage USB2.0 port device, and etc.
Page 53: Nvr21-I/Nvr21-I2 Series
User's Manual 2.2.12 NVR21-I/NVR21-I2 Series The rear panel is shown as below. The figure is for reference only. The actual product shall prevail. Figure 2-57 Rear panel Table 2-25 Ports Port Name Connection Function USB port. Connect to mouse, USB storage device USB port and etc.
Page 54: Nvr21-P-I/Nvr21-P-I2 Series
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-58 Rear panel Table 2-26 Ports Port Name Connection Function Ground end USB port. Connect to mouse, USB storage device USB port and etc. High definition audio and video signal output High Definition port.
Page 55: Nvr22-P-I/Nvr22-P-I2 Series
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-59 Rear Panel Table 2-27 Ports Port Name Connection Function USB port. Connect to mouse, USB storage device USB port and etc. High definition audio and video signal output High Definition port.
Page 56: Nvr21-8P-I/Nvr21-8P-I2 Series
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-60 Rear panel Table 2-28 Ports Port Name Connection Function Ground end USB port. Connect to mouse, USB storage device USB port and etc. High definition audio and video signal output High Definition port.
Page 57: Nvr22-8P-I/Nvr22-8P-I2 Series
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-61 Rear panel Table 2-29 Ports Port Name Connection Function USB port. Connect to mouse, USB storage device USB port and etc. High definition audio and video signal output High Definition port.
Page 58: Nvr22-16P-I/Nvr22-8P-I2 Series
User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-62 Rear panel Table 2-30 Ports Port Name Connection Function Ground end USB port. Connect to mouse, USB storage device USB port and etc. High definition audio and video signal output High Definition port.
Page 59 User's Manual The figure is for reference only. The actual product shall prevail. Figure 2-63 Rear panel Table 2-31 Ports Port Name Connection Function Ground end. Bidirectional talk input port. It is to receive the MIC IN Audio input port analog audio signal output from the devices such as microphone, pickup.
Page 60: Nvr21Hs-I/Nvr21Hs-I2 Series
User's Manual Port Name Connection Function Power output port. It can provide power to some peripheral devices such as camera and alarm — device. Make sure the power supply of peripheral device shall be below 1A. Built-in switch. Support PoE function. PoE PORTS PoE port For PoE series product, you can use this port to...
Page 61: Nvr21Hs-P-I/Nvr21Hs-P-I2 Series
User's Manual Port Name Connection Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ●...
Page 62: Nvr21Hs-8P-I/Nvr21Hs-8P-I2 Series
User's Manual Port Name Connection Function Bidirectional talk input port. It is to receive the MIC IN Audio input port analog audio signal output from the devices such as microphone, pickup. Audio output port. It is to output the analog audio signal to the devices such as the sound box.
Page 63: Nvr4208-8P-I Series
User's Manual Port Name Connection Function VGA video output port. Output analog video VGA video output signal. It can connect to the monitor to view port analog video. 10M/100Mbps self-adaptive Ethernet port. Network port Connect to the network cable. Built-in switch. Support PoE function. PoE PORTS PoE port For PoE series product, you can use this port to...
Page 64: Nvr4216-I Series
User's Manual Port Name Function Audio output port. It is to output analog audio signal to devices such as sound box. ● Bidirectional talk output. MIC OUT ● Audio output on 1-window video monitor. ● Audio output on 1-window video playback. VGA video output port.
Page 65 User's Manual Port Name Function Audio output port. It is to output analog audio signal to devices such as sound box. ● Bidirectional talk output. MIC OUT ● Audio output on 1-window video monitor. ● Audio output on 1-window video playback. ●...
Page 66: Nvr58-I/Nvr58-I/L/Nvr48-I Series
User's Manual 2.2.24 NVR58-I/NVR58-I/L/NVR48-I Series ● The figure takes NVR58-I/NVR58-I/L/NVR4832-I series as examples. ● The figure is for reference only. The actual product shall prevail. Figure 2-69 Rear panel Table 2-37 Ports Port Name Function Power button Turns on/off the NVR. External SATA port.
Page 67 User's Manual Port Name Function ● RS485_A port. Control cable A of the 485 device. It connects external devices such as speed dome and PTZ. RS485 port (A, B) ● RS485_B port. Control cable B of the 485 device. It connects external devices such as speed dome and PTZ.
Page 68: Nvr54-I/Nvr54-I/L/Nvr44-I Series
User's Manual 2.2.25 NVR54-I/NVR54-I/L/NVR44-I Series ● The following figure takes NVR5432-16P-I and NVR5432-16P-I/L series as examples. ● The figure is for reference only. The actual product shall prevail. Figure 2-70 Rear panel Port Name Function Power button Turns on/off the NVR.
Page 69: Nvr52-16P-I/Nvr52-16P-I/L/Nvr52-8P-I/Nvr52-8P-I/L/Nvr42-16P-I Series
Network port to the network cable. Power input port Input power of 100V-240V and 50Hz-60Hz. GND. 2.2.26 NVR52-16P-I/NVR52-16P-I/L/NVR52-8P-I/NVR52-8P- I/L/NVR42-16P-I Series These figures are for reference only. The actual product shall prevail. The NVR52-16P-I/NVR52-16P-I/L series rear panel is shown as below.
Page 70 User's Manual Figure 2-71 Rear panel The NVR52-8P-I/NVR52-8P-I/L series rear panel is shown as below. Figure 2-72 Rear panel The NVR4216-16P-I series rear panel is shown as below. Figure 2-73 Rear panel Port Name Function Power input port Input power of 100V-240V and 50Hz-60Hz.
Page 71 User's Manual Port Name Function ● Two groups of alarm output ports (Group 1: NO1-C1, Group 2: NO2-C2). Output alarm signal to the external Alarm output alarm device. Make sure power supply port (NO1- is available for the external alarm NO2, C1-C2) device.
Page 72: Nvr608-4Ks2 Series
User's Manual Port Name Function USB3.0 port. Connect to devices such as mouse, USB storage USB port device and USB burner. 10M/100M/1000Mbps self-adaptive Ethernet port. Connect Network port to the network cable. Bidirectional talk input port. It is to receive analog audio MIC IN signal from devices such as microphone, sound pickup.
Page 73: Nvr616-4Ks2 Series
User's Manual Figure 2-76 Rear panel Table 2-38 Ports Function Function Alarm input/alarm output/RS485 Power socket port RS-232 port Audio output Audio input VGA port Network port HDMI port ● NVR608-4K: USB 2.0 port. USB 3.0 port ● NVR608-4KS2: USB 3.0 port eSATA port 2.2.28 NVR616-4KS2 Series The general series rear panel of NVR616-4KS2 is shown as below.
Page 74: Alarm Connection
User's Manual Figure 2-78 Rear panel Table 2-39 Ports Name Name Power on-off button Power socket 1000M fiber port Network port HDMI port RS232 port Video VGA output Audio output Audio input USB3.0 port USB3.0 port eSATA port SAS extension port Alarm input/output/RS485 port HDMI port High-definition decoding card is not...
Page 75: Alarm Input Port
User's Manual Figure 2-79 Alarm Port Table 2-40 Icon Function 1–16 ALARM1–ALARM16. The alarm becomes activated in the low level. NO1 C1, NO2 C2, NO3 Four NO activation output groups. (On-off button). C3, NO4 C4 NO5 C5 NC5 One NO/NC activation output group. (On-off button). Control power output.
Page 76 User's Manual Figure 2-80 Alarm input port Figure 2-81 Alarm input port...
Page 77: Alarm Output Port
User's Manual ● There are two alarm input types: NO/NC. ● When connect the ground port of the alarm device to the NVR, you can use any of the GND ports ( ). ● Connect the NC port of the alarm device to the alarm input port (ALARM) of the NVR. ●...
Page 78: Two-Way Talk
User's Manual 2.4 Two-way Talk 2.4.1 Device-end to PC-end Device Connection Please connect the speaker or the pickup to the first audio input port on the device rear panel. Then connect the earphone or the sound box to the audio output port in the PC. Log in to the web and then enable the corresponding channel real-time monitor.
Page 79: Mouse Operation
User's Manual Figure 2-84 PC to device 2.5 Mouse Operation Refer to the following sheet for mouse operation instruction. Table 2-42 Operation Description When you have selected one menu item, left click mouse to view menu content. Modify checkbox or motion detection status. Click combo box to pop up drop-down list In input box, you can select input methods.
Page 80: Remote Control
User's Manual Operation Description Switch the items in the check box. Page up or page down. Move mouse Select current control or move control. Select motion detection zone. Drag mouse Select privacy mask zone. 2.6 Remote Control The remote control interface is shown as in Figure 2-85. Note that remote control is not our standard accessory and it is not included in the accessory bag.
Page 81 User's Manual Name Function Press this button to input device serial number, so that Address you can control the Device. Forward Multi-step forward speed and normal speed playback. Slow motion Multi-step slow motion speed or normal playback. In playback state, press this button to play back the Next record next video.
Page 82 User's Manual Name Function ● In single-channel monitoring mode, press this button to display the PTZ control and color setting functions. ● Switch the PTZ control menu in PTZ control interface. ● In motion detection interface, press this button with direction keys to complete setup. ●...
Page 83: Device Installation
User's Manual 3 Device Installation All the installation and operations here should conform to your local electric safety rules. 3.1 Device Installation Diagrams Please refer to the following diagrams to install the NVR.
Page 84: Check Unpacked Nvr
User's Manual Figure 3-1 Installation flowchart 3.2 Check Unpacked NVR When you receive the NVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the NVR can protect most accidental clashes during transportation.
Page 85: Hdd Installation
User's Manual your purchase order. The label in the rear panel is very important too. Usually we need you to represent the serial number when we provide the service after sales. 3.4 HDD Installation For the first time installation, make sure whether the HDD has been installed or not. We recommend to use HDD of enterprise level or surveillance level.
Page 86 User's Manual Figure 3-3 Step 3 Turn the device upside down and then secure the screws firmly. Figure 3-4 Step 4 Connect the HDD cable and power cable to the HDD and the mainboard respectively.
Page 87: W-4Ks2/Nvr11Hs-S3H/Nvr11Hs-P-S3H/Nvr11Hs-8P-S3H/Nvr21Hs-I/Nvr21Hs- I2/Nvr21Hs-P-I/Nvr21Hs-P-I2/Nvr21Hs-8P-I/Nvr21Hs-8P-I2 Series
User's Manual Figure 3-5 Step 5 Put the cover back and then fix the screws of the rear panel. The installation is complete. Figure 3-6 3.4.2 NVR41HS-4KS2/NVR41HS-P-4KS2/NVR41HS-8P- 4KS2/NVR41HS-4KS2/L/NVR41HS-P-4KS2/L/NVR41HS-8P- 4KS2/L/NVR21HS-4KS2/NVR21HS-P-4KS2/NVR21HS-8P- 4KS2/NVR21HS-W-4KS2/NVR11HS-S3H/NVR11HS-P-S3H/NVR11HS- 8P-S3H/NVR21HS-I/NVR21HS-I2/NVR21HS-P-I/NVR21HS-P-...
Page 88 User's Manual I2/NVR21HS-8P-I/NVR21HS-8P-I2 Series Procedure Step 1 Loosen the screws of the upper cover and side panel. Figure 3-7 Step 2 Remove the cover in the direction of the arrow as shown in the figure below. Figure 3-8 Step 3 Turn over the device, and align the HDD to the four holes of bottom panel, and then fix the HDD with screws.
Page 89: I/L/Nvr52-8P-I/Nvr52-8P-I/L Series
Put the cover in accordance with the clip and then fix the screws on the rear panel and side panel. Figure 3-11 3.4.3 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR22-8P- S2/NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/NVR42-16P- 4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/NVR42- 16P-4KS2/L/NVR52-24P-4KS2/NVR22-4KS2/NVR22-P-4KS2/NVR22- 8P-4KS2/NVR52-8P-4KS2E/NVR22-I/NVR22-I2/NVR22-P-I/NVR22-P- I2/NVR22-8P-I/NVR22-8P-I2/NVR22-16P-I/NVR22-16P-I2/NVR42- I/NVR42-8P-I/NVR42-16P-I/NVR52-16P-I/NVR52-16P-I/L/NVR52-8P- I/NVR52-8P-I/L Series Background Information Different models have different HDD numbers. The actual product shall prevail. Procedure Step 1 Remove the four fixing screws on the rear panel.
Page 90 User's Manual Figure 3-12 Step 2 Remove the case cover along the direction shown in the following arrow. Figure 3-13 Step 3 Match the four holes on the baseboard to place the HDD.
Page 91 User's Manual Figure 3-14 Step 4 Turn the device upside down, match the screws with the holes on the HDD and then fasten them. The HDD is fixed to the baseboard. Figure 3-15 Step 5 Connect the HDD data cable and power cable to the device.
Page 92: 4Ks2/I/Nvr48-4Ks2/I/Nvr48-16P-4Ks2/I Series
User's Manual Figure 3-16 Step 6 Put back the cover and fasten the four screws on the rear panel to complete the installation. Figure 3-17 3.4.4 NVR54-4KS2/NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P- 4KS2/NVR44-4KS2/L/NVR44-16P-4KS2/L/NVR54-24P-4KS2/NVR54- 16P-4KS2E/NVR58-I/NVR58-I/L/NVR54-I/NVR54-I/L/NVR52-I/NVR52- I/L/NVR42-I/NVR42-8P-I/NVR44-I/NVR48-I/NVR608-4KS2/NVR44-...
Page 93 User's Manual 4KS2/I/NVR44-16P-4KS2/I/NVR48-4KS2/I/NVR48-16P-4KS2/I Series Background Information Different models have different HDD numbers. The actual product shall prevail. Procedure Step 1 Remove the fixing screws on the rear panel of the device. Figure 3-18 Step 2 Remove the case cover along the direction shown in the following arrow. Figure 3-19 Step 3 Remove the screws on the sides of HDD bracket to take out the bracket.
Page 94 User's Manual Figure 3-20 Figure 3-21 Step 4 Match the four screw holes on the HDD with the four holes on the bracket and then fasten the screws. The HDD is fixed to the bracket. Figure 3-22 Step 5 Refer to Step 4 to install other HDDs.
Page 95 User's Manual Figure 3-23 Step 6 Lock the two HDD brackets. This step is required for 2U devices only. Figure 3-24 Step 7 Place the bracket to the device and then fasten the screws on the sides of the bracket.
Page 96 User's Manual Figure 3-25 Step 8 Connect the HDD data cable and power cable to the device. The following figure is for reference only. The actual product shall prevail. Figure 3-26 Step 9 Put back the cover and fasten the screws on the rear panel to complete the installation.
Page 97: Nvr616-4Ks2 Series
User's Manual Figure 3-27 3.4.5 NVR616-4KS2 Series Background Information The following figures are for reference only. The actual product shall prevail. Procedure Step 1 Press the red button on the HDD box, open the handle and then pull out the HDD box. Figure 3-28 Step 2 Put the HDD into the HDD box along the direction shown in the following arrow.
Page 98 User's Manual Figure 3-29 Step 3 Fasten the screws on the sides of the HDD box. Figure 3-30 Step 4 Insert the HDD box into the HDD slot, press it to the bottom, and then close the box handle.
Page 99: Cd-Rom Installation
User's Manual If you have not pushed the HDD box to the bottom, do not close the handle to avoid any damage to the HDD slot Figure 3-31 3.5 CD-ROM Installation Procedure Step 1 Open the top cover and then remove the HDD bracket. Figure 3-32 Step 2 Take off the bottom of the HDD bracket and CD-ROM bracket.
Page 100 User's Manual Figure 3-33 Figure 3-34 Step 3 Fix the CD-ROM bracket at the HDD bracket. Figure 3-35 Step 4 Install a pair of the CD-ROM bracket. Please make sure that the reverse side is secure too.
Page 101 User's Manual Figure 3-36 Figure 3-37 Step 5 Install SATA burner. Line up the SATA burner to the hole positions. Figure 3-38 Step 6 Use screw driver to fix the screws.
Page 102 User's Manual Figure 3-39 Step 7 Put the bracket back. Please adjust the CD-ROM to the proper position so that the button of the front panel is directly facing the pop-up button of the CD-ROM. Figure 3-40 Step 8 Connect the SATA cable and power wire.
Page 103 User's Manual Figure 3-41 Step 9 Secure the HDD bracket and put the top cover back.
Page 104: Connection Sample
User's Manual Figure 3-42 3.6 Connection Sample Figure 3-43 IVD connection sample 3.6.1 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41- 4KS2/L/NVR41-P-4KS2/L/NVR41-8P-4KS2/L/NVR21-4KS2/NVR21-P- 4KS2/NVR21-8P-4KS2/NVR21-I/NVR21-I2/NVR21-P-I/NVR21-P- I2/NVR21-8P-I/NVR21-8P-I2 Series See Figure 3-44 for connection sample.
Page 105: Nvr21-W-4Ks2/Nvr21Hs-W-4Ks2 Series
User's Manual The following figure is for reference only. Figure 3-44 3.6.2 NVR21-W-4KS2/NVR21HS-W-4KS2 Series See Figure 3-45 for connection sample.
Page 106: I2/Nvr21Hs-P-I/Nvr21Hs-P-I2/Nvr21Hs-8P-I/Nvr21Hs-8P-I2 Series
User's Manual The following figure is for reference only. Figure 3-45 3.6.3 NVR11HS-S3H/NVR11HS-P-S3H/NVR11HS-8P-S3H/NVR41HS- 4KS2/NVR41HS-P-4KS2/NVR41HS-8P-4KS2/NVR41HS- 4KS2/L/NVR41HS-P-4KS2/L/NVR41HS-8P-4KS2/L/NVR21HS- 4KS2/NVR21HS-P-4KS2/NVR21HS-8P-4KS2/NVR21HS-I/NVR21HS- I2/NVR21HS-P-I/NVR21HS-P-I2/NVR21HS-8P-I/NVR21HS-8P-I2 Series See Figure 3-46 for connection sample.
Page 107: Nvr22-4Ks2/Nvr22-P-4Ks2/Nvr22-8P-4Ks2/Nvr22-I/Nvr22-I2/Nvr22-P-I/Nvr22-P- I2/Nvr22-8P-I/Nvr22-8P-I2/Nvr22-16P-I/Nvr22-16P-I2 Series
User's Manual The following figure is for reference only. Figure 3-46 3.6.4 NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2/NVR22-I/NVR22- I2/NVR22-P-I/NVR22-P-I2/NVR22-8P-I/NVR22-8P-I2/NVR22-16P- I/NVR22-16P-I2 Series See Figure 3-47 for connection sample.
Page 108: Nvr52-4Ks2/Nvr52-8P-4Ks2/Nvr52-16P-4Ks2/Nvr52-24P-4Ks2/Nvr52-8P-4Ks2E/Nvr52- 16P-4Ks2E Series
User's Manual The following figure is for reference only. Figure 3-47 Connection sample 3.6.5 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR52-24P- 4KS2/NVR52-8P-4KS2E/NVR52-16P-4KS2E Series See Figure 3-48for connection sample.
Page 109: Nvr42-4Ks2/Nvr42-P-4Ks2/Nvr42-8P-4Ks2/Nvr42-16P-4Ks2/Nvr42-4Ks2/L/Nvr42-P- 4Ks2/L/Nvr42-8P-4Ks2/L/Nvr42-16P-4Ks2/L Series
User's Manual The following figure is for reference only. Figure 3-48 3.6.6 NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/NVR42-16P- 4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/NVR42- 16P-4KS2/L Series See Figure 3-49 for connection sample.
Page 110: Nvr54-4Ks2/Nvr54-16P-4Ks2/Nvr58-4Ks2/Nvr58-16P-4Ks2/Nvr54-24P-4Ks2/Nvr54- 16P-4Ks2E/Nvr58-16P-4Ks2E Series
User's Manual The following figure is for reference only. Figure 3-49 3.6.7 NVR54-4KS2/NVR54-16P-4KS2/NVR58-4KS2/NVR58-16P- 4KS2/NVR54-24P-4KS2/NVR54-16P-4KS2E/NVR58-16P-4KS2E Series See Figure 3-50 for connection sample.
Page 111: Nvr44-4Ks2/Nvr44-16P-4Ks2/Nvr44-4Ks2/L/Nvr44-16P-4Ks2/L/Nvr44-4Ks2/I/Nvr44- 16P-4Ks2/I Series
User's Manual The following figure is for reference only. Figure 3-50 3.6.8 NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/NVR44-16P- 4KS2/L/NVR44-4KS2/I/NVR44-16P-4KS2/I Series See Figure 3-51 for connection sample.
Page 112: Nvr48-4Ks2/Nvr48-16P-4Ks2/Nvr48-4Ks2/L/Nvr48-16P-4Ks2/L/Nvr48-4Ks2/I/Nvr48- 16P-4Ks2/I Series
User's Manual The following figure is for reference only. Figure 3-51 3.6.9 NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/NVR48-16P- 4KS2/L/NVR48-4KS2/I/NVR48-16P-4KS2/I Series See Figure 3-52 for connection sample.
Page 113: Nvr58-I/Nvr58-I/L/Nvr48-I Series
User's Manual The following figure is for reference only. Figure 3-52 3.6.10 NVR58-I/NVR58-I/L/NVR48-I Series Background Information The following figure is for reference only. The actual product shall prevail. Figure 3-53...
Page 114: Nvr54-I/Nvr54-I/L/Nvr44-I
User's Manual 3.6.11 NVR54-I/NVR54-I/L/NVR44-I The following figure is for reference only. The actual product shall prevail. Figure 3-54 3.6.12 NVR52-16P-I/NVR52-16P-I/L/NVR52-8P-I/NVR52-8P-...
Page 115: Nvr4216-I Series
User's Manual I/L/NVR42-8P-I/NVR42-16P-I Series The following figure is for reference only. The actual product shall prevail. Figure 3-55 3.6.13 NVR4216-I Series The following figure is for reference only. Figure 3-56 3.6.14 NVR608-4KS2 Series The following figure is for reference only. Figure 3-57...
Page 116: Nvr616-4Ks2 Series
User's Manual 3.6.15 NVR616-4KS2 Series The following figure is for reference only. Figure 3-58...
Page 117: Local Basic Operation
User's Manual 4 Local Basic Operation Slight difference might be found on the user interface. The following figures are for reference only. 4.1 Getting Started This chapter introduces device initial settings such as boot up, device initialization, reset password, and quick settings. 4.1.1 Booting up Background Information ●...
Page 118 User's Manual Step 2 Set region, system time zone, and time according to the actual environment, and then click Next. Click to shut down the device. It is suitable for the system integrator or the user to shut down directly after setting the time zone. Step 3 Click Next.
Page 119 User's Manual Figure 4-2 Draw unlock pattern Step 6 Set unlock pattern. After set unlock pattern, the Password Protection interface is displayed. See Figure 4-3. ● The pattern that you want to set must cross at least four grids. ● If you do not want to configure the unlock pattern, click Skip. ●...
Page 120: Resetting Password
User's Manual Table 4-2 Security question parameters Password Protection Description Mode Enter the reserved email address. In the Email Address box, enter an email address for password reset. If you forget the password, enter the security code that you Email Address will get from this reserved email address to reset the password of admin.
Page 121: Resetting Password On Local Interface
User's Manual Figure 4-4 Password reset Step 2 Check the box to enable reset function. This function is enabled by default. Step 3 Click Apply to set settings. If the password reset function is disabled, you can follow the ways listed below to reset password.
Page 122 User's Manual To log in from other user account, on the unlock pattern login interface, click Switch User, or on the password login interface, in the Switch User list, select other user to login. Figure 4-5 Unlock pattern Figure 4-6 Login...
Page 123 User's Manual Step 2 Click ● If you have set the reserved email address, the Prompt interface is displayed. See Figure 4-7. Click OK. ● If you did not set the reserved email address, the email entering interface is displayed. See Figure 4-6.
Page 124 User's Manual Figure 4-7 Reset password (1) Figure 4-8 Reset password (2) Click Next. Step 3 After clicking Next, the system will collect your information for password reset, purpose and the information includes but not limited to email address, MAC address, and device serial number.
Page 125 User's Manual Email. Figure 4-9 Reset password (3) Figure 4-10 Reset password (3) ◇ Follow the on-screen instruction to acquire the security code from email. ◇ Enter security code and click Next. ● Security question On the Password Reset interface, in the Reset Mode list, select Security Question, the Security Questions interface is displayed.
Page 126: Reset Button
User's Manual If you did not configure the security questions before, in the Reset Type list, there is no Security Question. Click Next. Step 5 In the New Password box, enter the new password and enter it again in the Confirm Step 6 Password box.
Page 127: Quick Settings
User's Manual Figure 4-12 Step 4 Restart the Device. After the Device is restarted, the settings have been restored to the factory default. You can start resetting the password. 4.1.4 Quick Settings After you successfully initialized the Device, it goes to startup wizard. Here you can quickly configure your device.
Page 128: General
User's Manual The startup wizard interface only displays when you log in to the Device for the first time or have restored default. Figure 4-13 Startup wizard ● If you select the Auto Check for Updates check box, the system will notify you automatically when updates are available.
Page 129 User's Manual Figure 4-14 Basic settings Step 2 Set parameters. See Table 4-3. Table 4-3 Basic parameters Parameter Description Device Name Enter the Device name. Device No. Enter a number for the Device. Language Select a language for the Device system. Video Standard Select PAL or NTSC as needed.
Page 130: Date And Time
User's Manual Parameter Description Adjust the speed of double-click by moving the slider. Mouse Sensitivity The bigger the value is, the faster the speed is. Step 3 Click Apply button to save settings. 4.1.4.1.2 Date and Time Background Information You can set device time. You can enable NTP (Network Time Protocol) function so that the device can sync time with the NTP server.
Page 131: Holiday
User's Manual Parameter Description In the Time Zone list, select a time zone for the system. Time Zone Date Format In the Date Format list, select a date format for the system. Date Separator In the Date Separator list, select a separator style for the date. In the Time Format list, select 12-HOUR or 24-HOUR for the time Time Format display style.
Page 132 User's Manual Figure 4-16 Holiday Step 2 Click Add Holidays, the Add Holidays interface is displayed. See Figure 4-17. Figure 4-17 Add holidays Step 3 Set holiday name, repeat mode and holiday mode. Click Add more to add new holiday information. Click Add, you can add current holiday to the list.
Page 133: Basic Networking Settings
User's Manual 4.1.4.2 Basic Networking Settings Background Information You can set device IP address, DNS (Domain Name System) information. You can also configure basic network settings by selecting Main Menu > NETWORK > TCP/IP. Make sure that the Device has properly connected to the network. Procedure Step 1 Click Next.
Page 134 User's Manual Figure 4-19 Modify IP Step 3 Set parameters. See Table 4-5...
Page 135 User's Manual Table 4-5 Network parameters (1) Parameter Description ● Multi-address: Two Ethernet ports work separately through either of which you can request the Device to provide the services such as HTTP and RTSP. You need to configure a default Ethernet port (usually the Ethernet port 1 by default) to request the services from the device end such as DHCP, email and FTP.
Page 136 User's Manual Parameter Description Enable the DHCP function. The IP address, subnet mask and default gateway are not available for configuration once DHCP is enabled. ● If DHCP is effective, the obtained information will display in the IP Address box, Subnet Mask box and Default Gateway box. If DHCP not, all values show 0.0.0.0.
Page 137: P2P
User's Manual 4.1.4.3 P2P Background Information Scan the QR code on the actual interface to download the cell phone app. Register an account and then you can use the smart phone to add the device. Before using the P2P function, make sure that the NVR has connected to the WAN. 4.1.4.3.1 Local Operation Step 1 Click Next button.
Page 138: Client Operation
User's Manual 4.1.4.3.2 Client Operation Procedure Step 1 Use your smart phone to scan the QR code under Cell Phone Client to download the application. Step 2 On your smart phone, open the application, and then tap Step 3 The menu is displayed. You can start adding the device. 1) Tap Device Manager.
Page 139 User's Manual Figure 4-22 6) Enter a name for the NVR, the username and password, scan the QR code under Device 7) Tap Start Live Preview. The Device is added and displayed on the live view interface of the cell phone. See Figure 4-23.
Page 140: Adding Camera
User's Manual Figure 4-23 Live view 4.1.4.4 Adding Camera Background Information If you do not select Smart add function during the initialization process, go to the remote Device interface to register a remote device. After adding remote device, the device can receive, store, and manage the video streams of the remote device.
Page 141 User's Manual To go to camera registration interface, you can also right-click on the live view interface, and then select Add Camera. Figure 4-24 Add camera Step 2 Register cameras. ● Search and then add...
Page 142 User's Manual 1. Click Search Device. The devices found are displayed at the upper pane. Devices already added do not show in the searched results. ◇ To play video of a remote device, click LIVE and then enter the username and password.
Page 143 User's Manual Figure 4-25 Search device 5. Set parameters. See Table 4-7. Table 4-7 Camera list parameters Parameter Description Enable the Uninitialized function, the uninitialized devices out of the Uninitialized searched devices are displayed in the searched device list. Select the uninitialized device from the uninitialized device list, and Initialize the click Initialize to start initializing device.
Page 144 User's Manual Parameter Description Click Search, the searched devices display in the searched device list. To adjust the display sequence, in the title line, you can click the IP address, Manufacturer, Type, MAC Address, Port, or Device Name text. For example, click the IP address text, the sequence icon Search is displayed.
Page 145: Raid Manager
User's Manual Table 4-8 Remote channel parameters Parameter Description From the Channel drop-down list, select the channel that you Channel want use on the Device to connect the remote device. From the Manufacturer drop-down list, select the manufacturer of Manufacturer the remote device.
Page 146 User's Manual RAID function is for some series product only. Slight difference might be found on the user interface. Procedure Select Main Menu > STORAGE > RAID > RAID. Step 1 The RAID interface is displayed. See Figure 4-27. Figure 4-27 Step 2 You can click Create RAID or Create Manually, and all the disks involved will be formatted.
Page 147: Schedule
User's Manual ● Balance: Resource is evenly distributed to RAID sync and business operations. 4.1.4.6 Schedule After setting record schedule and snapshot schedule, the device can automatically record video and snapshot image at the specified time. Select Main Menu > STORAGE > Schedule, you can go to the Schedule interface. 4.1.4.6.1 Recording Schedule Background Information After set schedule record, device can record video file according to the period you set here.
Page 148 User's Manual Parameter Description In the Pre-record list, enter the amount of time that you want to start Pre-record the recording in advance. If there are several HDDs installed to the Device, you can set one of the HDDs as the redundant HDD to save the recorded files into different HDDs.
Page 149 User's Manual Figure 4-29 Period Step 3 Set record type. See Figure 4-30.
Page 150 User's Manual Figure 4-30 Record type ● When the record type is Motion (motion detection), alarm, M&A, IVS and POS, enable the channel record function when corresponding alarm occurs. For example, when the alarm type is MD, select Main Menu > ALARM > Video Detection > Motion Detection, select the record channel and enable record function.
Page 151 User's Manual If you have added a holiday, you can set the record period for the holiday. Figure 4-32 Set record period ● Define the period by drawing. 1. Select a corresponding date to set. ◇ next to All, all the icon switches to Define for the whole week: Click , you can define the period for all the days simultaneously.
Page 152 User's Manual Figure 4-33 Set period by drawing The MD record and alarm record function are both null if you enabled MD&Alarm function. ● Define the period by editing. 1. Select a date and then click The Period interface is displayed. Figure 4-34 Set period by editing 2.
Page 153: Snapshot Schedule
User's Manual Click Apply to complete the settings. Step 5 Enable auto record function so that the record plan can become activated. Refer to "4.1.4.6.3 Record Control" for detailed information. 4.1.4.6.2 Snapshot Schedule Background Information You can set schedule snapshot period. After set schedule snapshot, device can snapshot image according to the period you set here.
Page 154: Record Control
User's Manual Figure 4-36 Alarm type ● When the record type is Motion (motion detection), alarm, M&A, IVS and POS, enable the channel record function when corresponding alarm occurs. For example, when the alarm type is MD, select Main Menu > ALARM > Video Detection > Motion Detection, select the record channel and enable record function.
Page 155 User's Manual You need to have storage authorities to implement the Manual record operation. Make sure the HDD has been properly installed. Procedure Step 1 Right-click on the live view interface, and then select Main Menu > STORAGE > Record. Figure 4-38 Record mode Step 2 Configure parameters.
Page 156: Camera
User's Manual 4.2 Camera 4.2.1 Connection Select Main Menu > Camera > Camera List > Camera List, you can add remote devices. After adding remote devices to the NVR, you can view the video on the NVR, and manage and storage the video file.
Page 157: Ip Export
User's Manual Figure 4-39 H.265 auto switch 4.2.1.3 IP Export Background Information Device can export the added device list to your local USB device.
Page 158: Ip Import
User's Manual Procedure Insert the USB device and then click the Export. Step 1 The Browse interface is displayed. See Figure 4-40. Figure 4-40 Browse Step 2 Select Address to save export file. Step 3 Click OK. Step 4 Device pops up a dialogue box to remind you successfully exported. When exporting IP address, the Backup Encryption check box is checked by default.
Page 159: Remote Device Initialization
User's Manual Figure 4-41 Step 2 Go to Address to select the import file and then click OK. System pops up a dialogue box to remind you successfully imported. If the imported IP has conflicted with current added device, system pops up a dialogue box to remind you.
Page 160 User's Manual Select a camera to be initialized and then click Initialize. Step 4 The Enter Password interface is displayed. Figure 4-42 Enter password Table 4-11 Parameters Parameter Description User The default is admin. Password The password should consist of 8 to 32 non-blank characters and contain at least two types of characters among uppercase, lowercase, number, and special character (excluding ' "...
Page 161 User's Manual Figure 4-43 2) Configure parameters. Table 4-12 Parameter Description User The default is admin. Password The password should consist of 8 to 32 non-blank characters and contain at least two types of characters among uppercase, lowercase, number, and special character (excluding ' " ; : &). Confirm Password Enter a strong password according to the password strength bar indication.
Page 162 User's Manual Figure 4-44 Step 7 Set email information. Input an email address for reset password purpose. Cancel the box and then click Next or Skip if you do not want to input email information here. Step 8 Click Next. The Network interface is displayed.
Page 163 User's Manual Figure 4-45 Step 9 Set camera IP address. ● Check DHCP, there is no need to input IP address, subnet mask, and default gateway. Device automatically allocates the IP address to the camera. ● Check Static, and then input IP address, subnet mask, default gateway and incremental value.
Page 164: Shortcut Menu To Add Camera
User's Manual Figure 4-46 Step 11 Click Finished to complete the setup. 4.2.3 Shortcut Menu to Add Camera Background Information If you have not registered a remote device to a channel, go to the live view interface to add. Procedure Step 1 On the live view interface, move your mouse to window.
Page 165: Image
User's Manual 4.2.4 Image Background Information You can set network camera parameters according to different environments. It is to get the best video effect. Procedure Step 1 Select Main Menu > Camera > Image. The Image interface is displayed. See Figure 4-48. Figure 4-48 Image Step 2 Configure parameters.
Page 166 User's Manual Parameter Description There are three config files for you. System has configured the Profile corresponding parameters for each file, you can select according to your actual situation. Adjusts the image brightness. The bigger the value is, the brighter the Brightness image will become.
Page 167: Video Overlay
User's Manual Parameter Description You can set camera Backlight mode. ● SSA: In the backlight environment, the system can automatically adjust image brightness to clearly display the object. ● BLC: ◇ Default: The device auto exposures according to the environments situation so that the darkest area of the video is cleared.
Page 168: Privacy Masking
User's Manual Procedure Select Main Menu > CAMERA > Overlay > Overlay. Step 1 Step 2 Configure parameters. Table 4-14 Video overlay parameters Parameter Description Channel Select a channel. Select Time Title, and the time tile will be displayed in live view and playback.
Page 169: Encode
User's Manual Figure 4-49 Privacy masking Step 2 Configure parameters. Table 4-15 Privacy masking parameters Parameter Description Channel Select a channel. Select Enable to enable privacy masking. The number represents the number of masking areas. You can select a number and drag masking areas to the screen, and you can also change the size of 1, 2, 3, 4 areas or drag an area to other place.
Page 170: Encode
User's Manual 4.2.6.1 Encode Background Information You can set video bit stream parameters such as bit stream type, compression, resolution. Some series products support three streams: main stream, sub stream 1, sub stream 2. The sub stream maximally supports 1080p. Procedure Step 1 Select Main Menu >...
Page 171 User's Manual Parameter Description ● Main Stream: In the Type list, select General, MD (Motion Detect), Type or Alarm. ● Sub Stream: This setting is not configurable. In the Compression list, select the encode mode. ● H.265: Main profile encoding. This setting is recommended. ●...
Page 172: Snapshot
User's Manual Figure 4-51 Step 4 Configure parameters. See Table 4-17. Table 4-17 Parameter Description This function is enabled by default for main stream. You need to manually Audio enable it for sub stream 1. Once this function is enabled, the recorded video file is composite audio and video stream.
Page 173 User's Manual Figure 4-52 Step 2 Configure parameters. See Table 4-18. Table 4-18 Parameter Description In the Manual Snapshot list, select how many snapshots you want to Manual Snapshot take each time. In the Channel list, select the channel that you want to configure the Channel settings for.
Page 174: Channel Name
User's Manual 4.2.7 Channel Name Background Information You can customize channel name. Procedure Step 1 Select Main Menu > Camera > Camera Name. The Camera Name interface is displayed. See Figure 4-53. Figure 4-53 Step 2 Modify a channel name. ●...
Page 175: Remote Update
User's Manual Figure 4-54 Step 2 (Optional) Set Enhancement Mode to On or Off. When On is selected, the transmission distance of PoE port will be extended. 4.2.9 Remote Update Background Information You can upgrade the connected network camera firmware. It includes online upgrade and file upgrade.
Page 176: Remote Device Info
User's Manual Figure 4-55 Step 2 Update the firmware of the connected remote device. ● Online Upgrade 1. Select a remote device and then click Manual Check. System detects the new version on the cloud. 2. Select a remote device that has new version and then click Online Update. After successful operation, system prompts update successful dialogue box.
Page 177: Firmware
User's Manual Figure 4-56 Table 4-19 Icon Description Icon Description IPC works properly. IPC does not support. There is an alarm. Video loss occurs. 4.2.10.2 Firmware You can view IP address, manufacturer, type, system version of the connected remote device. Select Main Menu >...
Page 178: Live View
User's Manual Figure 4-57 4.3 Live View After you logged in, the system goes to multiple-channel live view mode by default. You can view the monitor video of each channel. The displayed window amount might vary. The actual product shall prevail. 4.3.1 Live View On the live view interface, you can view the monitor video of each channel.
Page 179: Navigation Bar
User's Manual Icon Description When the device connects to the network camera remotely, system displays this icon. This function is for some series products only. 4.3.2 Navigation bar Background Information You can quickly perform operation through the icon on the navigation bar. ●...
Page 180: Channel Info
User's Manual Icon Function Open the Voice Broadcast interface. For detail, see"4.17.3 Broadcast". Open the Alarm Status interface to view the device alarm status. For details, see "4.8.2 Alarm Status". Open the Channel Info interface to display the information of each channel.
Page 181: Usb Management
User's Manual Figure 4-59 4.3.2.2 USB Management After connecting the USB device, you can copy log, config file to USB device or update NVR system. , system goes to USB Management interface. You can view and manage USB information. Click See Figure 4-60.
Page 182: Live View Control Interface
User's Manual Figure 4-60 4.3.3 Live View Control Interface Move your mouse to the top center of the video of current channel; you can see system pops up the live view control interface. See Figure 4-61. If your mouse stays in this area for more than 6 seconds and has no operation, the control bar automatically hides.
Page 183: Instant Replay
User's Manual ● Disable the navigation bar if it is displayed on the interface before using this function. ● The live view control interface is different depending on the model, and the actual interface shall prevail. Figure 4-61 4.3.3.1 Instant Replay You can play back the previous 5-60 minutes record of current channel.
Page 184 User's Manual Figure 4-62 Instant replay is to playback the previous 5 minutes to 60 minutes record of current channel. ● Move the slider to choose the time you want to start playing. ● Play, pause and close playback. ● The information such as channel name and recording status icon are shielded during instant playback and will not display until exited.
Page 185: Digital Zoom
User's Manual Go to the Main Menu > SYSTEM > General > Basic to set Instant Replay time. See Figure 4-63. System might pop up a dialogue box if there is no such record in current channel. Figure 4-63 4.3.3.2 Digital Zoom You can zoom in specified zone of current channel so that you can view the details.
Page 186: Instant Backup
User's Manual Figure 4-64 4.3.3.3 Instant Backup You can record the video of any channel and save the clip into a USB storage device. By clicking , the recording is started. To stop recording, click this icon again. The clip is automatically saved into the connected USB storage device.
Page 187: Shortcut Menu
User's Manual ● S: Sub stream. Some series products support two sub streams (S1, S2). Refer to "4.2.6.1 Encode" for detailed information. 4.3.3.7 Shortcut Menu By right-clicking on the live view interface, you can quickly access the corresponding functional interface and perform relevant operations, including entering the main menu, searching records and selecting screen split mode.
Page 188 User's Manual The shortcut menu is different for different models. The actual interface shall prevail. Figure 4-65 Figure 4-66...
Page 189 User's Manual Figure 4-67 Table 4-22 Function Description Open Main Menu interface. Main Menu Open the SEARCH interface where you can search and play back record Search files. For details, see "4.6 Playback and Search". PTZ Control Open the PTZ interface. For details, see "4.4 PTZ".
Page 190: Picture Search
User's Manual Function Description View Configure the live view screen as a single-channel layout or multi-channel 1/4/8/9/16/25/36 layout. Set customized screen split mode and channels. For details, see "4.3.5 Sequence Sequence". Add Camera Open the Add Camera interface. For details, see "4.1.4.4 Adding Camera". Right-click Wireless Paring to quickly add IPCs.
Page 191 User's Manual Figure 4-68 Draw a searching range Step 3 Select the target face that you want to search for related videos and configure parameters. You can select maximum 8 target faces. Step 4 Click Search. The search results are displayed. Figure 4-69 Picture search results ●...
Page 192: Wireless Paring
User's Manual Backup interface is displayed. Then you can set save path, backup type, and file type, and then export to the external storage device. 4.3.4 Wireless Paring Right-click on the screen and select Wireless Paring. The Wireless Pairing interface is displayed. See Figure 4-70.
Page 193 User's Manual ● Enter edit view interface, device automatically switches to the max split amount mode. ● The channel list on the edit view interface displays the added camera channel number and channel name. means camera is online. means camera is offline. ●...
Page 194 User's Manual Figure 4-72 Click Apply to save current channel sequence. Step 3 After you change the channel sequence, click Cancel or right-click the live view interface, device pops up the dialogue box. See Figure 4-73. ● Click OK to save current settings. ●...
Page 195: Fisheye (Optional)
User's Manual Figure 4-73 4.3.6 Fisheye (Optional) This function is for some series products only. 4.3.6.1 Fisheye De-warp on Live View Interface The fisheye camera (panoramic camera) has wide video of angle but its video is seriously distorted. The de-warp function can present the proper and vivid video suitable for human eyes. On the live view interface, select fisheye channel and then right click, you can select fish eye.
Page 196 User's Manual ● For the non-fish eye channel, system pops up dialogue box to remind you it is not a fish eye channel and does not support de-warp function. ● If system resources are insufficient, system pops up the corresponding dialogue box too. Figure 4-74 Now you can see an interface shown as in Figure 4-75.
Page 197 User's Manual ● The different installations modes have different de-warp modes. ● Some series products support 180°de-warp. 180°de-warp fisheye supports wall mount de-warp only. The actual product shall prevail. Figure 4-75 Refer to the following sheet for detailed information. See Table 4-23. Table 4-23 Installation modes Icon...
Page 198: Fisheye De-Warp During Playback
User's Manual Figure 4-76 In Figure 4-76, you can adjust the color pane on the left pane or use your mouse to change the position of the small images on the right pane to realize fish eye de-warp. Operation: Use mouse to zoom in/zoom out, move, and rotate the image (Not for wall mount mode.) 4.3.6.2 Fisheye De-warp During Playback Background Information When playing back the fisheye record file, you can use de-warp function to adjust video.
Page 199: Ai Live View Mode
User's Manual Figure 4-77 4.3.8 AI Live View Mode Background Information When you select AI mode, the system displays information of human face, personnel, vehicle and non-motor vehicle on the right side of the preview interface, and it supports to play back records and display feature attributes.
Page 200 User's Manual Figure 4-78 AI live view Step 2 (Optional) Double-click the image on the right to play the corresponding video. Step 3 Click The Properties interface is displayed. See Figure 4-79. Figure 4-79 Face vehicle properties Step 4 (Optional) Click Show Face List and select attributes to display, including age, gender, expression, glasses, beard and mask.
Page 201 User's Manual (Optional) Click Human Body Detection and select attributes to display, including top, Step 5 pants, hat, bag, bag style, umbrella, age and gender. See Figure 4-80. Figure 4-80 Human properties Step 6 (Optional) Click Vehicle Display and select attributes to display, including vehicle logo, vehicle color, vehicle model, plate recognition, plate color, seatbelt, call, vehicle decorations and countries &...
Page 202: Split Tracking
User's Manual Figure 4-82 Non-motor vehicle properties Step 8 Click OK to complete the setting. The system can display four attributes at most. 4.3.9 Split Tracking You can track window split for a certain channel. This function is for select models only. Procedure Step 1 Right-click on the live view screen, and select Split Track.
Page 203 User's Manual Figure 4-83 Step 2 Select a split mode. Figure 4-84 Split mode includes full screen, 1 main screen + 3 split screens and 1 main screen + 5 split screens. ● You can move the rectangles with color to adjust the videos displayed on split screens. ●...
Page 204: Quick Operation Bar
User's Manual Figure 4-85 4.3.10 Quick Operation Bar You can quickly access to the function modules on function tiles and setting menu through shortcut icons on quick operation bar. This topic uses ALARM and CAMERA as examples to show you how to quickly access other modules. Shortcut Icons on Function Titles Click ALARM to enter the ALARM interface.
Page 205 User's Manual Figure 4-86 Table 4-24 Icon Description Click to jump to SEARCH interface. Click to jump to ALARM interface. Click to jump to AI interface. Click to jump to POS interface. Click to jump to NETWORK interface. Click to jump to MAINTAIN interface. Click to jump to BACKUP interface.
Page 206: Ptz
User's Manual Figure 4-87 Table 4-25 Icon Description Click to jump to CAMERA interface. Click to jump to NETWORK interface. Click to jump to STORAGE interface. Click to jump to SYSTEM interface. Click to jump to SECURITY interface. Click to jump to ACCOUNT interface. 4.4 PTZ PTZ is a mechanical platform that carries a camera and a protective cover and performs overall control remotely.
Page 207: Ptz Settings
User's Manual Before you control the PTZ, make sure the PTZ decoder and the NVR network connection is OK. 4.4.1 PTZ Settings Background Information You can set different PTZ parameters for local type and remote type. Before you use local PTZ, make sure you have set PTZ protocol;...
Page 208 User's Manual The PTZ interface is displayed. See Figure 4-88 or Figure 4-89.Figure 4-88 Figure 4-89 Step 2 Configure parameters. See Table 4-26. Table 4-26 Parameter Description In the Channel list, select the channel that you want to connect the PTZ Channel camera to.
Page 209: Ptz Control
User's Manual Parameter Description ● Local: Connect through RS-485 port. Type ● Remote: Connect through network by adding IP address of PTZ camera to the Device. Protocol In the Protocol list, select the protocol for the PTZ camera such as PELCOD. In the Address box, enter the address for PTZ camera.
Page 210 User's Manual Parameter Description : Focus far. Focus : Focus near. : Image darker. Iris : Image brighter. PTZ movement Supports eight directions. Fast positioning button. ● Positioning: Click to enter the fast positioning screen, and then click anywhere on the live view screen, the PTZ will turn to this point and move it to the middle of the screen.
Page 211: Configuring Ptz Functions
User's Manual Icon Function Icon Function Click the Enter Menu icon to open AUX Switch the PTZ Menu interface. 4.4.3 Configuring PTZ Functions 4.4.3.1 Configuring Presets Procedure Step 1 On the expanded PTZ control panel, click The Preset interface is displayed. See Figure 4-92. Figure 4-92 Step 2 Click the direction arrows to the required position.
Page 212: Configuring Patterns
User's Manual Figure 4-93 Step 3 In the Tour No. box, enter the value for the tour route. Step 4 In the Preset box, enter the preset value. Step 5 Click Add Preset. A preset will be added for this tour. ●...
Page 213: Configuring Autoscan
User's Manual Figure 4-94 Step 3 In the Pattern box, enter the value for pattern. Step 4 Click Start to perform the directions operations. You can also go to the PTZ Control Panel to perform the operations of adjusting zoom, focus, iris, and directions. On the PTZ interface, click End to complete the settings.
Page 214: Calling Ptz Functions
User's Manual Figure 4-95 Step 3 Click the direction arrows to position the left and right limits. 4.4.4 Calling PTZ Functions After you have configured the PTZ settings, you can call the PTZ functions for monitoring from the Expanded PTZ Control Panel. See Figure 4-96. Figure 4-96 4.4.4.1 Calling Presets Procedure...
Page 215: Calling Patterns
User's Manual Step 3 Click again to stop calling the tour. 4.4.4.3 Calling Patterns Procedure Step 1 On the expanded PTZ control panel, in the No. box, enter the value of the pattern that you want to call. Step 2 Call to call the pattern.
Page 216: Record File
User's Manual Figure 4-97 4.5 Record File Device adopts 24-hour continuous record by default. It supports customized record period and record type. Refer to "4.1.4.6 Schedule" for detailed information. 4.6 Playback and Search 4.6.1 Instant Playback You can view the record file of previous 5 to 60 minutes. Refer to "4.3.2 Navigation bar" for instant playback information.
Page 217 User's Manual The following figure is for reference only. Figure 4-98 Table 4-28 Function Description Display the searched recorded video or picture. It supports playing in single-channel, 4-channel, 9-channel, and 16- channel simultaneously. When playing back in a single channel mode, hold down Display Window the left mouse button to select the area that you want to enlarge.
Page 218 User's Manual Function Description Display the type and time period of the current recorded video. ● In the 4-channel layout, there are four time bars are displayed; in the other view layouts, only one time bar is displayed. ● Click on the colored area to start playback from a certain time.
Page 219: Playback Control
User's Manual Function Description ● In the Camera Name list, select the channel(s) that you want to play back. ● The window split is decided by how you select the channel(s). For example, if you select one channel, the View Layout and playback is displayed in the single-channel view;...
Page 220 User's Manual Icon Function Backward play In normal play mode, left click the button, the file begins backward play. Click it again to pause current play. In backward play mode, click to restore normal play. Display previous frame/next frame. When pause the normal playback file, click to playback frame by frame.
Page 221: Search Type
User's Manual Icon Function In 1-channel playback mode, click it to enable/disable display IVS rule information on the video. This function is for some series only. Picture search. For details, see "4.6.4 Picture Search Playback" 4.6.2.2 Search Type You can search the recorded videos, splice, or snapshots from Disk or external storage device. ●...
Page 222: Record Backup
User's Manual Figure 4-102 4.6.2.4 Record Backup Background Information This function is to backup files you checked in the file list, or the file you just clip. Procedure Step 1 Select the recorded video file that you want to back up. You can select the following two types of files: ●...
Page 223: Picture Search Playback
User's Manual This function is for channel that already enabled motion detect function (Main Menu > ALARM > Video Detection > Motion Detection). Procedure Step 1 Select a channel to playback video and then click . You can view the grids on the playback video.
Page 224: Tag Playback
User's Manual Figure 4-104 Picture search playback 4.6.5 Tag Playback When you are playing back a video record, you can tag the record as needed. After playback, you can use time or the tag keywords to search corresponding record and then play. It is very easy for you to get the important video information.
Page 225 User's Manual Usually, system can play back previous N seconds record if there is such kind of record file. Otherwise, system playbacks from the previous X seconds when there is such as kind of record. Tag Manager Click the mark manager button on the Search interface (Figure 492);...
Page 226: Playback Image
User's Manual ● After you go to the tag management interface, system needs to pause current playback. System resume playback after you exit tag management interface. ● If the tag file you want to playback has been removed, system begins playback from the first file in the list.
Page 227: File List
User's Manual Double-click anywhere on the time bar, the playback starts from where you click. Figure 4-108 4.6.8 File List Click , system displays file list. It displays the first channel of the record. See Figure 4-109. Figure 4-109 ● Check a file name, double-click the file or click to play.
Page 228: Other Aux Functions
User's Manual See Figure 4-110. Figure 4-110 4.6.9 Other Aux Functions 4.6.9.1 Digital Zoom In 1-window playback mode, left click mouse to select any zone on the screen, you can zoom in current zone. Right click mouse to exit. 4.6.9.2 Switch Channel ●...
Page 229: Face Detection
User's Manual This series NVR products support playback the AI by camera file only. AI by camera means the connected camera does all the AI analytics, and then gives the results to the NVR. 4.7.1.1 Face Detection Background Information You can search the detected faces and play back recordings. Procedure Step 1 Select Main Menu >...
Page 230 User's Manual For privacy reason, the human face in the image is pixelated. The actual image is clear. Figure 4-112 Step 3 Select the face that you want to play back. The picture with registered information is displayed. You can also do the following operations to the recorded files. ●...
Page 231: Face Recognition
User's Manual Lock. ● To add a tag to the file, select the files and then click Add Tag. ● Click Add to Face Database and enter corresponding information in the displayed interface, and then add the picture to the face database. Figure 4-114 Add face pictures to database 4.7.1.2 Face Recognition System can search and compare the human face on the video with the face image on the database,...
Page 232 User's Manual Figure 4-115 Step 2 Select the channel and set the parameters such as start time, end time, gender, age, glasses, beard, mask, and similarity according to your requirement. Step 3 Click Search. The search result is displayed. See Figure 4-116.
Page 233: Search By Image
User's Manual The human face in the image is pixelated. The actual image is clear. Figure 4-116 Step 4 Click the picture that you want to play back. The picture with registered information is displayed. You can also do the following operations to the recorded files. ●...
Page 234 User's Manual Figure 4-117 Step 2 Select the channel and set the parameters such as start time, end time, gender, age, glasses, beard, mask, and similarity according to your requirement. Click Search. Step 3 The search result is displayed. See Figure 4-118.
Page 235: Ivs
User's Manual The human face in the image is pixelated. The actual image is clear. Figure 4-118 Step 4 Click the picture that you want to play back. The picture with registered information is displayed. You can also do the following operations to the recorded files. ●...
Page 236: Stereo Analysis
User's Manual Figure 4-119 Step 2 Select a channel, start time, end time, event type, and then click Search. The search result is displayed. Step 3 Click the picture that you want to play back. You can also do the following operations to the recorded files. ●...
Page 237: Fall Detection
User's Manual between two people reaches the parameter setting, an alarm will be triggered. Procedure Select Main Menu > AI > Parameters > Stereo Analysis. Step 1 Step 2 Select a channel and click Add. Step 3 Select Enable and set Type to People Approach Detection. Step 4 Click , and then click and hold left mouse key to draw an area on the screen.
Page 238: People Stay Detection
User's Manual Step 2 Select a channel and click Add. Select Enable and set Type to People No. Exception Detection. Step 3 Step 4 Click , and then click and hold left mouse key to draw an area on the screen. Step 5 Configure parameters.
Page 239: Human Detection
User's Manual Step 5 Set alarm sensitivity. Step 6 Click OK. 4.7.1.5 Human Detection Background Information You can search the human body in videos and search the alarm record during the specified period. Procedure Step 1 Select Main Menu > AI > AI Search > Human Detection. The Human Detection interface is displayed.
Page 240: Motor Vehicle Detection
User's Manual For privacy reason, the human face in the image is pixelated. Figure 4-121 Step 4 Select one or multiple results, and do the following operations as needed. ● Click Export to export results in Excel format. ● To back up the recorded files to the external storage device, select files, click Backup, select the save path and file type, and then click Start.
Page 241: Non-Motor Vehicle Detection
User's Manual Figure 4-122 Step 2 Select a channel and set parameters. ● System supports plate fuzzy search. ● System searches all plate numbers by default if you have not set a plate number. Step 3 Click Search. The search result is displayed. Step 4 Select one or multiple results, and then you can do the following operations as needed.
Page 242 User's Manual Figure 4-123 Step 2 Select the channel and the time, and then select one or multiple features from Type, Color, Occupancy, or Helmet. Click Search. Step 3 The search result is displayed. See Figure 4-124. Figure 4-124 Step 4 Select one or multiple results, and then you can do the following operations as needed.
Page 243: People Counting
User's Manual ● To add a tag to the file, select the files and then click Add Tag. ● Click Add to Face Database to add the detected face picture to a face database. 4.7.1.8 People Counting Background Information You can detect the people amount in the specified zone, and display the statistics image. Procedure Select Main Menu >...
Page 244: Heat Map
User's Manual 4.7.1.9 Heat map You can detect the active objects distribution in the monitor zone during the specified period, and use different colors to display on the heat map report. 4.7.1.9.1 General Procedure Step 1 Select Main Menu > AI > AI Search > Heat Map > General. The General interface is displayed.
Page 245: Smd
User's Manual Figure 4-127 Step 2 Set Channel, Type, Start Time, End time. Step 3 Click Search. Step 4 System displays heat map report. Click Export and then select saved path, click Save to save the heat map report to the USB device.
Page 246: Parameters
User's Manual Set the values of Start Time and End Time and select channel(s). Step 2 Figure 4-128 Step 3 Click Search 4.7.2 Parameters 4.7.2.1 Smart Plan Background Information The smart plan is for the smart network camera. It includes IVS, human face detection, human face recognition, human body detection, people counting, heat map.
Page 247 User's Manual Figure 4-129 Step 2 Select a channel number. System displays different smart plan interfaces since the remote device might supports different functions. ● The interface is shown as Figure 4-130, if the remote device supports preset function. Figure 4-130 1.
Page 248: Face Detection
User's Manual 2. Select a preset. 3. Click the smart plan icon at the bottom left. The icon becomes highlighted. 4. Click Apply. ◇ Click to delete the preset. ◇ Click Add to add a preset. ● Once the remote device does not support preset function, the interface is shown as in Figure 4-131.
Page 249 User's Manual Figure 4-132 Face detection Step 2 In the Channel list, select a channel that you want to configure face detection function. Step 3 In the Type list, select AI by Reorder or AI by Camera as needed. When AI by Camera is selected, you can enable Face Enhancement function to improve face detection efficiency.
Page 250 User's Manual Parameter Description Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). Report Alarm ● This function is for some series products only. ● You need to set the alarm center first. For details, see "4.11.14 Alarm Center".
Page 251: Face Recognition
User's Manual Parameter Description Click More to configure remote alarm output. When alarm event is triggered, the Device links the alarm output ports on camera to trigger an action, such as triggering an access controller to unlock door. ● Enable: Select the check box to enable the remote alarm output.
Page 252 User's Manual Figure 4-133 General alarm (AI by recorder) Step 3 Click Setting next to Schedule to configure arming periods. The corresponding alarm actions are linked by the alarm events triggered during armed period. Step 4 Arm target face database. ●...
Page 253: Configuring Ai By Camera
User's Manual Figure 4-134 Stranger alarm (AI by recorder) Step 5 Click Apply. 4.7.2.3.2 Configuring AI by Camera Background Information You can use the connected camera to realize AI function. Make sure the connected camera supports human face detection function. Procedure Step 1 Select Main Menu >...
Page 254: Ivs (General Behavior Analytics)
User's Manual target is smaller than the minimum size or larger than the maximum size, no alarms will be activated. The maximum size should be larger than the minimum size. Click to drag the four angles to adjust the size, and you can also press and move the filtering frame to the required position.
Page 255 User's Manual Figure 4-136 Step 2 Select a channel from the dropdown list. Click Add and then set corresponding rule. See Figure 4-137.
Page 256: Tripwire
User's Manual Click to delete the selected rule. Figure 4-137 Step 3 Set corresponding parameters. Step 4 Click Apply. 4.7.2.4.1 Tripwire Background Information When the detection target crosses the warning line along the set direction, the system performs an alarm linkage action. Procedure Select Main Menu >...
Page 257 User's Manual Figure 4-138 Step 2 Draw the detection rule. 1) Click to draw the rule on the surveillance video, the system displays as Figure 4- 139. Figure 4-139 2) Configure the parameters. See Table 4-36.
Page 258 User's Manual Table 4-36 Parameter Description Name Customize the rule name. Direction Set the tripwire direction, including A → B, B → A and A↔B. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse. Filter target Each rule can set 2 target filters (maximum size and minimum size), that is, when the passing target is smaller than the minimum target or larger...
Page 259 User's Manual Table 4-37 Parameter Description Enable Click to enable or disable the face detection. Click Setting to draw areas to filter the target. You can configure two filtering targets (maximum size and minimum size). When the target is smaller than the minimum size Rule or larger than the maximum size, no alarms will be activated.
Page 260: Intrusion
User's Manual Parameter Description Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen. Tour ● You need to set the time interval and mode for tour first, see "4.16.2 Tour".
Page 261 User's Manual Figure 4-142 2) Configure the parameters. See Table 4-36. Table 4-38 Parameter Description Name Customize the rule name. Action Set the intrusion action, including appear and crossing area. Direction Set the direction to cross the area, including enter, exit and both. Click to filter the target.
Page 262: Abandoned Object Detection
User's Manual 4.7.2.4.3 Abandoned Object Detection Background Information System generates an alarm when there is abandoned object in the specified zone. Procedure Step 1 In the Type drop-down list, select Abandoned Object. The interface is shown as Figure 4-143. Figure 4-143 Step 2 Draw the detection rule.
Page 263: Fast Moving
User's Manual Figure 4-144 2) Set parameters. See Table 4-39. Table 4-39 Parameter Description Preset Select a preset you want to use IVS. Name Input customized rule name System can generate an alarm once the object is in the zone for the Duration specified period.
Page 264 User's Manual Procedure In the Type drop-down list, select Fast Moving. Step 1 The interface is shown as below. See Figure 4-145. Figure 4-145 Step 2 Draw the detection rule. 1) Click to draw the rule on the surveillance video. See Figure 4-146. Figure 4-146 2) Set parameters.
Page 265: Crowd Gathering
User's Manual Table 4-40 Parameter Description Preset Select a preset you want to use IVS Name Input customized rule name You can set alarm sensitivity. The value ranges from 1 to 10. The default Sensitivity setup is 5. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse.
Page 266 User's Manual Figure 4-147 Step 2 Draw the detection rule. 1) Click to draw the rule on the surveillance video. See Figure 4-148. Figure 4-148 2) Set parameters. See Table 4-41. Table 4-41 Parameter Description Preset Select a preset you want to use IVS.
Page 267: Parking
User's Manual Parameter Description Name Input customized rule name Duration Set the minimum time that the object stays until the alarm is triggered. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse. Each rule can set 2 target filters (maximum size and minimum size), that is, Filter target when the passing target is smaller than the minimum target or larger than...
Page 268 User's Manual Figure 4-149 Step 2 Draw the detection rule. 1) Click to draw the rule on the surveillance video. See Figure 4-150. Figure 4-150 2) Set parameters. See Table 4-42.
Page 269: Missing Object Detection
User's Manual Table 4-42 Parameter Description Preset Set the preset point for IVS detection according to the actual needs. Name Customize the rule name. Duration Set the minimum time that the object stays until the alarm is triggered. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse.
Page 270 User's Manual Figure 4-151 Step 2 Draw the detection rule. 1) Click to draw the rule on the surveillance video. See Figure 4-152. Figure 4-152 2) Set parameters. See Table 4-43. Table 4-43 Parameter Description Preset Set the preset point for IVS detection according to the actual needs.
Page 271: Loitering Detection
User's Manual Parameter Description Name Customize the rule name. Duration Set the minimum time that the object stays until the alarm is triggered. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse. Filter target Each rule can set 2 target filters (maximum size and minimum size), that is, when the passing target is smaller than the minimum target or...
Page 272: Video Metadata
User's Manual 1) Click to draw the rule on the surveillance video. See Figure 4-154. Figure 4-154 2) Set parameters. See Table 4-44. Table 4-44 Parameter Description Preset Set the preset point for IVS detection according to the actual needs. Name Customize the rule name.
Page 273: Crowd Distribution
User's Manual these features. Background Information After enable the video structuring function, the corresponding smart plan can become valid. Make sure the connected camera supports video metadata function. Procedure Select Main Menu > AI > Parameters > Video Metadata. Step 1 The Video Metadata interface is displayed.
Page 274 User's Manual Procedure Select Main Menu > AI > Parameters > Crowd Distribution. Step 1 The Crowd Distribution interface is displayed. See Figure 4-156. Figure 4-156 Crowd distribution Step 2 Configure parameters. See Table 4-46. Table 4-46 Parameter Description Channel Select a channel from the dropdown list.
Page 275: People Counting
User's Manual Parameter Description Select the check box. When an alarm occurs, the NVR device sends an email to the set mailbox to notify the user. Send Email You need to set the email first. For details, see "4.11.11 Email". Select the check box and select the needed recording channel (support multiple choices).
Page 276: People Counting
User's Manual 4.7.2.7.1 People Counting Procedure Step 1 Select Main Menu > AI > Parameters > People Counting > People Counting. The People Counting interface is displayed. See Figure 4-157. Figure 4-157 Step 2 Draw people counting rule. 1) Click to draw people counting rule.
Page 277 User's Manual Parameter Description Enable Check the box to enable the function. Rule Type Select a people counting rule type. Rule Click RULE to set statistics region, name, direction. Click Setting to set alarm parameters. OSD Overlay: Check the box here; you can view the people amount on the surveillance video.
Page 278: Queuing
User's Manual Parameter Description At the end of the alarm, the recording extends for a period of time. The Delay time range is from 10 seconds to 300 seconds. Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen.
Page 279 User's Manual Figure 4-158 Select Channel, and then click Add. Step 3 Select the Enable check box. Step 4 Step 5 Click to draw queuing rule and area. Step 6 Click under the Parameters column, and then select alarm type to Queue People No. Alarm or Queue Time Alarm.
Page 280: Heat Map
User's Manual Parameter Description Select the check box and select the needed recording channel (support multiple choices). When an alarm occurs, the NVR device activates the channel for recording. Record Channel You need to enable intelligent recording and auto recording first. For details, see"4.1.4.6 Schedule".
Page 281 User's Manual Figure 4-159 Step 2 Select a channel number and then check the box to enable the function. Step 3 Click Setting. The Setting interface is displayed. See Figure 4-160. Figure 4-160 Step 4 Set arm/disarm period. There are two modes for you to set the period so that the system can detect the specified zone.
Page 282: Anpr
User's Manual interface. Click OK to save. ◇ There are six periods for you to set for each day. ◇ Under Copy, select All to apply the settings to all the days of a week, or select specific day(s) that you want to apply the settings to. 2.
Page 283 User's Manual Before activate blocklist alarm or allowlist alarm, you need to add the corresponding plate information. Refer to "4.7.3.3 Block/Allow List" for detailed information. ● Regular: Device triggers an alarm when it detects any plate number. ● Blocklist: Device triggers an alarm when it detects plate number in the blocklist. ●...
Page 284: Smd
User's Manual Parameter Description Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen. Tour ● You need to set the time interval and mode for tour first, see "4.16.2 Tour".
Page 285 User's Manual Figure 4-162 Step 2 Select and enable a channel, and then configure parameters. Table 4-51 Parameter Description The higher the value is, the easier it is to trigger an alarm. But at the Sensitivity same time, the false alarm might occur. The default value is recommended.
Page 286: Main-Sub Tracking
User's Manual Parameter Description Select the check box. When an alarm occurs, the NVR device sends an email to the set mailbox to notify the user. Send Email You need to set the email first. For details, see "4.11.11 Email". Select the check box and select the needed recording channel (support multiple choices).
Page 287 User's Manual serve as the main camera and captures panoramic videos; and the speed dome serves as the sub camera and captures details of the video. Prerequisites ● The monitoring areas of fisheye camera and speed dome should be the same area. ●...
Page 288: Video Quality Analytics
User's Manual speed dome identical to the of fisheye camera. on the speed dome screen is the center of speed dome. Table 4-53 Icon Description Zoom in/zoom out. Adjust resolution. Adjust height. Electronic mouse. You can use this icon to move the mouse to control PTZ direction.
Page 289 User's Manual Figure 4-163 Click Setting next to Rule. Step 3 Step 4 Select items and set thresholds as needed Figure 4-164 The value range of threshold is 0–100, ant the default value is 30. When the value exceeds the set threshold, an alarm will be triggered. Parameter Description Stripes refer to the striped interferences in the video which might be...
Page 290 User's Manual Parameter Description An image in the video is generally a colorful image that contains color Color Cast information, such as RGB. When these three components appear at some unusual scale in an image, the image is biased. An image with high resolution contains more details, but image blur is a common problem of image quality decrease which is caused by Defocus many factors in the process of image acquisition, transmission and...
Page 291: Database
User's Manual 4.7.3 Database After you successfully set the face library, the detected human face can compare with the image on the face library. The face library settings include create face library, add human face and human face modeling. For privacy reason, the human face is pixelated. 4.7.3.1 Creating Face Database Procedure Step 1...
Page 292: Adding Face Pictures
User's Manual Figure 4-166 Step 3 Enter human face database name and then click OK. System successfully saves the face library. 4.7.3.1.1 Adding Face Pictures You can add face pictures to the existing libraries one by one or by batch, or add from the detected faces.
Page 293 User's Manual Figure 4-167 Step 3 Click Register. The Register interface is displayed. See Figure 4-168. Figure 4-168 Step 4 Click to add a face picture. The Browse interface is displayed. See Figure 4-169.
Page 294 User's Manual Figure 4-169 Step 5 Select a face picture and enter the registration information. See Figure 4-170. Figure 4-170 Click OK. Step 6 The system prompts the registration is successful. Step 7 On the Details interface, click Search. The system prompts modeling is successful. See Figure 4-171.
Page 295: Adding Face Pictures In Batches
User's Manual If the system prompts the message indicating modeling is in process, wait a while and then click Search again. If modeling is failed, the registered face picture cannot be used for face recognition. Figure 4-171 4.7.3.1.3 Adding Face Pictures in Batches Background Information System supports batch add if you want to import several human face image at the same time.
Page 296: Exporting/Importing Face Database
User's Manual Step 3 Click of the library that you want to configure. The Details interface is displayed. See Figure 4-167. Step 4 On the Details interface, click Batch Register. The Batch register interface is displayed. See Figure 4-172. Figure 4-172 Step 5 Click Select pictures, maximum 256 each time or Select a Folder to import face pictures.
Page 297: Importing Face Database
User's Manual ● Password is required; otherwise the imported database cannot be saved. ● The address switches to /NVR/Facelib/ automatically if this directory is not changed. Figure 4-173 Export Step 4 Click OK to start exporting face database, and you can view the progress on the exporting interface.
Page 298: Block/Allow List
User's Manual ● Password is required and must be the same with password for export; otherwise the imported database cannot be saved. ● The address switches to /NVR/Facelib/ automatically if this directory is not changed. Step 4 Click OK to start importing face database, and you can view the progress on the importing interface.
Page 299: Deleting List
User's Manual 4.7.3.3.2 Deleting List Set type as Allowlist, Blocklist, or All, and then click Search. System displays block/allowlist information. See Figure 4-176. ● On the searched results list, check the box before the plate number and then click Delete, or click of the corresponding plate number, you can delete the plate information on the block/allowlist.
Page 300: Event Manager
User's Manual 4.8 Event Manager 4.8.1 Alarm Info Background Information You can search, view and back up the alarm information. Procedure Step 1 Select Main Menu > ALARM > Alarm Info. The Alarm Info interface is displayed. See Figure 4-177. Figure 4-177 Step 2 In the Type list, select the event type;...
Page 301: Alarm Status
User's Manual ● Select an alarm event log and then click Backup to back up it to peripheral USB device. ● Select an alarm event log, click to play the recorded video of alarm event. Double- click a log or click Details to view the detailed information of the event. 4.8.2 Alarm Status You can view NVR alarm event, and remote channel alarm event.
Page 302 User's Manual ● IPC external alarm: When the network camera connected peripheral device has triggered an alarm, it can upload the alarm signal to the NVR via the network transmission. The system can trigger the corresponding alarm operations. ● IPC offline alarm: When the network connection between the NVR and the network camera is off, the system can trigger the corresponding alarm operations.
Page 303 User's Manual Parameter Description Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). Report Alarm ● This function is for some series products only. ● You need to set the alarm center first. For details, see "4.11.14 Alarm Center".
Page 304: Alarm Control
User's Manual Parameter Description Check the box and then select the corresponding audio file from the drop- down list. System plays the audio file when the alarm occurs. Alarm Tone Refer to "4.17.1 File Management" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs.
Page 305: Video Detection
User's Manual ● Click OK in 1Alarm Reset area, you can clear all alarm output statuses. ● View the alarm output status on the Status column. Click Apply. Step 3 4.8.5 Video Detection The video detection adopts the computer image and graphics process technology. It can analyze the video and check there is considerable changing or not.
Page 306 User's Manual Figure 4-181 Step 2 Configure the settings for the motion detection parameters. See Table 4-57. Table 4-57 Parameter Description Channel In the Channel list, select a channel to set the motion detection. Region Click Setting to define the motion detection region. Enable or disable the motion detection function.
Page 307 User's Manual Parameter Description Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). ● This function is for some series products only. Report Alarm ● You need to set the alarm center first. For details, see "4.11.14 Alarm Center".
Page 308: Setting The Motion Detection Region
User's Manual Parameter Description Select the Snapshot check box to take a snapshot of the selected channel. Picture Storage To use this function, select Main Menu > CAMERA > Encode > Snapshot, select Event in Type list. Buzzer Select the check box to activate the buzzer when an alarm occurs. Check the box and then select the corresponding audio file from the drop- down list.
Page 309: Setting Schedule
User's Manual Table 4-58 Parameter Description Name Enter a name for the region. Every region of every channel has an individual sensitivity value. Sensitivity The bigger the value is, the easier the alarms can be activated. Adjust the threshold for motion detect. Every region of every channel has Threshold an individual threshold.
Page 310: Video Tampering
User's Manual active periods, all the days with will take the same settings. ◇ Define for all days of a week: Click All, all switches to . On the timeline of any day, click the half-hour blocks to select the active periods, all the days will take the same settings.
Page 311: Video Loss
User's Manual Figure 4-185 Step 2 To configure the settings for the tampering detection parameters, see "4.8.5.1 Motion Detection". The Tampering function does not have region and sensitivity items. Step 3 Click Apply to complete the settings. ● Click Default to restore the default setting. ●...
Page 312: Scene Change
User's Manual Figure 4-186 Step 2 To configure the settings for the video loss detection parameters, see "4.8.5.1 Motion Detection". The video loss function does not have region and sensitivity items. Click Apply to complete the settings. Step 3 ● Click Default to restore the default setting. ●...
Page 313: Pir Alarm
User's Manual Figure 4-187 Step 2 To configure the settings for the scene change parameters, see "4.8.5.1 Motion Detection". Step 3 The scene change function does not have region and sensitivity items. Step 4 Click Apply to complete the settings. ●...
Page 314: Audio Detection
User's Manual Figure 4-188 Step 2 To configure the settings for the PIR alarm parameters, see "4.8.5.1 Motion Detection". Step 3 Click Apply to complete the settings. ● Click Default to restore the default setting. ● Click Copy to, in the Copy to dialog box, select the additional channel(s) that you want to copy the motion detection settings to, and then click Apply.
Page 315 User's Manual Parameter Description Check the box here, system can generate an alarm once the audio volume Intensity change becomes strong. Period Define a period during which the function is active. The higher the value is, the easier it is to trigger an alarm. But at the same Sensitivity time, the false alarm might occur.
Page 316: Thermal Alarm
User's Manual Parameter Description Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen. ● You need to set the time interval and mode for tour first, see "4.16.2 Tour Tour".
Page 317 User's Manual Figure 4-189 Step 2 Select a channel and alarm type, enable the thermal alarm function. Step 3 Select fire mode and then enable this function (If the alarm type is Fire Alarm). System supports preset mode and zone excluded mode. ●...
Page 318 User's Manual Parameter Description Select the check box. When an alarm occurs, the NVR device sends an email to the set mailbox to notify the user. Send Email You need to set the email first. For details, see "4.11.11 Email". Select the check box and select the needed recording channel (support multiple choices).
Page 319: Exception
User's Manual 4.8.8 Exception Procedure Select Main Menu > ALARM > Exception. Step 1...
Page 320 User's Manual The Exception interface is displayed. See Figure 4-190.Figure 4-190 Figure 4-191 Figure 4-192...
Page 321 User's Manual Step 2 Configure parameters. See Table 4-61. Table 4-61 Parameter Description ● Disk: Sets process method when there is a HDD event such as HDD error, no HDD, no space. ● Network: Sets process method when there is a network event such as disconnection, IP conflict, MAC conflict.
Page 322 User's Manual Parameter Description Select the check box. When an alarm occurs, the NVR device sends an email to the set mailbox to notify the user. Send Email You need to set the email first. For details, see "4.11.11 Email". Select the check box and select the needed recording channel (support multiple choices).
Page 323: Disarming
User's Manual 4.8.9 Disarming You can disarm all alarm linkage actions as needed by just one click. Procedure Step 1 Select Main Menu > Alarm > Disarming. Step 2 Select On for Disarming to enable disarming. Figure 4-193 Disarming Step 3 (Optional) To enable disarming as scheduled, click Setting next to Duration of Disarm by Period, and then set periods.
Page 324: Pos
User's Manual Scheduled disarming is only effective when Disarming is Off. Figure 4-194 Scheduled disarming ● Drag your mouse to select time blocks. ● Green blocks indicates that disarming is enabled. ● You can also click to set time periods. One day can have 6 periods at most. Step 4 Select the alarm linkage actions to disarm, such as Buzzer, Show Message, Send Email, or Report Alarm.
Page 325: Search
User's Manual Playing POS information in the local playback and viewing the POS information in the live view screen support single-channel mode and four-channel mode. Displaying monitoring screen and playing back in the web support multi-channel mode. 4.9.1 Search Background Information The system supports fuzzy search.
Page 326: Settings
User's Manual 4.9.2 Settings Procedure Select Main Menu > POS > POS Setting. Step 1 The POS Setting interface is displayed. See Figure 4-195. Figure 4-196 POS setting Step 2 Configure the settings for the POS parameters. See Table 4-62. Table 4-62 POS parameters Parameter Description...
Page 327: Privacy Setup
User's Manual Parameter Description In the Overlay Mode list, Select Turn or ROLL. ● Turn: Once the information is at 16 lines, system displays the next page. ● ROLL: Once the information is at 16 lines, system rolls one line after another to delete the first line.
Page 328: Connection Mode
User's Manual Figure 4-197 Step 2 Set privacy information. Step 3 Click OK. 4.9.2.2 Connection Mode Background Information Connection type is UDP or TCP. Procedure Step 1 Select Connection Mode as UDP, TCP_CLINET or TCP. Step 2 Click The IP Address interface is displayed. See Figure 4-198. Figure 4-198 IP address Step 3 Enter Source IP and Port.
Page 329: Operation And Maintenance
User's Manual 4.10 Operation and Maintenance 4.10.1 Log Background Information You can view and search the log information, or backup log to the USB device. Procedure Step 1 Select Main Menu > MAINTAIN > Log. The Log interface is displayed. See Figure 4-199. Figure 4-199 Step 2 In the Type list, select the log type that you want to view (System, Config, Storage,...
Page 330: System
User's Manual Figure 4-200 ● Click Details or double-click the log that you want to view, the Detailed Information interface is displayed. Click Next or Previous to view more log information. ● Click Backup to back up the logs into the USB storage device. ●...
Page 331: Bps
User's Manual 201. Refer to Table 4-63 for detailed information. Figure 4-201 Table 4-63 Parameter Description Indicates the number of the currently connected HDD. The asterisk (*) means the current working HDD. Device Name Indicates name of HDD. Physical Position Indicates installation position of HDD.
Page 332: Device Status
User's Manual Figure 4-202 4.10.2.5 Device Status You can view fan running status such as speed, CPU temperature, and memory. Select Main Menu > MAINTAIN > System Info > Device Status, the Device Status interface is displayed. See Figure 4-203.
Page 333: Network
User's Manual Figure 4-203 4.10.3 Network 4.10.3.1 Online User You can view the online user information or block any user for a period of time. To block an online user, click and then enter the time that you want to block this user. The maximum value you can set is 65535.
Page 334: Network Load
User's Manual Figure 4-204 4.10.3.2 Network Load Background Information Network load means the data flow which measures the transmission capability. You can view the information such as data receiving speed and sending speed. Procedure Step 1 Select Main Menu > MAINTAIN > Network > Network Load. The Network Load interface is displayed.
Page 335: Network Test
User's Manual Figure 4-205 Step 2 Click the LAN name that you want to view, for example, LAN1. The system displays the information of data sending speed and receiving speed. ● System displays LAN1 load by default. ● Only one LAN load can be displayed at one time. 4.10.3.3 Network Test Background Information You can test the network connection status between the Device and other devices.
Page 336: Maintenance And Management
User's Manual Figure 4-206 Step 2 In the Destination IP box, enter the IP address. Click Test. Step 3 After testing is completed, the test result is displayed. You can check the evaluation for average delay, packet loss, and network status. 4.10.4 Maintenance and Management 4.10.4.1 Device Maintenance Background Information...
Page 337: Exporting System Settings
User's Manual Figure 4-207 Step 2 Configure the settings for the system maintenance parameters. See Table 4-64. Table 4-64 Parameter Description In the Auto Reboot list, select the reboot time. Auto Reboot In the Case Fan Mode list, you can select Always run or Auto. If you select Auto, the case fan will stop or start according to the external conditions such as the Device temperature.
Page 338 User's Manual ● The Import/Export interface cannot be opened if the backup operation is ongoing on the other interfaces. ● When you open the Import/Export interface, the system refreshes the devices and sets the current directory as the first root directory. ●...
Page 339: Default
User's Manual Figure 4-209 Step 4 Click Export. There is a folder under the name style of "Config_[YYYYMMDDhhmmss]". Double-click this folder to view the backup files. 4.10.4.3 Default Background Information This function is for admin account only. You can select the settings that you want to restore to the factory default. Procedure Step 1 Select Main Menu >...
Page 340: System Update
User's Manual Figure 4-210 Step 2 Restore the settings. ● Click Default, and then click OK in the prompted dialog box. The system starts restoring the selected settings. ● Click Factory Default, and then click OK in the prompted dialog box. 1.
Page 341 User's Manual Figure 4-211 Step 3 Click Update. The Update interface is displayed. See Figure 4-212. Figure 4-212 Step 4 Click the file that you want to upgrade. Step 5 The selected file is displayed in the Update File box. Step 6 Click Start.
Page 342: Online Upgrade
User's Manual 4.10.4.4.2 Online Upgrade Background Information When the Device is connected to Internet, you can use online upgrade function to upgrade the system. Before using this function, you need to check whether there is any new version by auto check or manual check.
Page 343: Uboot Upgrading
User's Manual 4.10.4.4.3 Uboot Upgrading ● Under the root directory in the USB storage device, there must be "u-boot.bin.img" file and "update.img" file saved, and the USB storage device must be in FAT32 format. ● Make sure the USB storage device is inserted; otherwise the upgrading cannot be performed. When starting the Device, the system automatically checkswhether there is a USB storage device connected and any upgrade file, and if yes and the check result of the upgrade file is correct, the system will upgrade automatically.
Page 344 User's Manual Figure 4-214 TCP/IP Table 4-65 Parameter Description ● Multi-address: Two Ethernet ports work separately through either of which you can request the Device to provide the services such as HTTP and RTSP. You need to configure a default Ethernet port (usually the Ethernet port 1 by default) to request the services from the device end such as DHCP, Email and FTP.
Page 345: Port
User's Manual Parameter Description In the Ethernet Card list, select an Ethernet port as a default port. Default Ethernet This setting is available only when the Multi-address is selected in the Port Net Mode list. In the IP Version list, you can select IPv4 or IPv6. Both versions are IP Version supported for access.
Page 346 User's Manual The Port interface is displayed. See Figure 4-215. Figure 4-215 Step 2 Configure the settings for the connection parameters. See Table 4-66. The connection parameters except Max Connection cannot take effects until the Device has been restarted. Table 4-66 Parameter Description The allowable maximum clients accessing the Device at the same time,...
Page 347: External Wi-Fi
User's Manual 4.11.3 External Wi-Fi The device can be connected via wireless network with an external Wi-Fi module, and it can reduce the difficulty of device connection without a network cable. Prerequisites Make sure that external Wi-Fi module is installed on the device. Background Information This function is supported on select models.
Page 348: Wi-Fi Ap
User's Manual Parameter Description Disconnect Disconnect the current connection. Select the available sites that you want to connect to. When the NVR is Connect connected to a site and then select another site to connect, the current site will be disconnected before the new site is connected. Step 3 Click Apply.
Page 349: Advanced Settings
User's Manual Figure 4-217 Step 2 Select Wi-Fi to enable Wi-Fi. Step 3 Configure parameters. For details, see Table 4-68. Table 4-68 Parameter Description SSID Wi-Fi name for the device. Hide SSID You can hide the Wi-Fi name when select this option. Encryption Type Select an encryption mode.
Page 350 User's Manual Procedure Select Main Menu > NETWORK > Wi-Fi AP > Advanced. Step 1 The Advanced interface is displayed. See Figure 4-218. Figure 4-218 Step 2 Configure parameters. For details, see Table 4-69. Table 4-69 Parameter Description IP Address Set IP address, subnet mask and default gateway for the Wi-Fi parameters of NVR.
Page 351 User's Manual 4.11.5 3G/4G Prerequisites Make sure that 3G/4G module is installed on the device. Background Information This function is supported on select models. Procedure Select Main Menu > NETWORK > 3G/4G Step 1 Figure 4-219 The interface is divided into three main areas: ●...
Page 352: Cellular Network
User's Manual Parameter Description Select a 3G/4G network type to distinguish between 3G/4G modules Network Type. from different vendors. APN, Dial-up No. Main parameters of PPP dial. Select PAP, CHAP or NO_AUTH. NO_AUTH represents no Authentication Type authentication for 3G/4G. 4.11.6 Cellular Network Cellular network makes it convenient to allocate an NVR in a place without fixed line broadband.
Page 353 User's Manual Parameter Description Password The password for dial-up connection. Step 3 Click Apply. Related Operations Network Status In Status tab, you can check cellular network status such as IP address, SIM card status and dial-up status. Figure 4-221 Network status Data Traffic In Data Traffic tab, you can find daily and monthly data usage.
Page 354: Repeater
User's Manual Figure 4-222 Cellular data usage 4.11.7 Repeater The device supports relay settings for the wireless relay IPC to extend video transmission distance and range. Prerequisites ● The device has the built-in Wi-Fi module. ● The IPC has wireless relay module. This function is supported on select models.
Page 355 User's Manual ● Green connection line represents the successful connection between channel and wireless IPC. ● Auto cascade：After selecting auto cascade, the IPC can cascade to NVR automatically. Figure 4-223 Step 3 Select Manual Cascade. The Manual Cascade interface is displayed. See Figure 4-224.
Page 356 User's Manual Manual cascade: You can use manual cascade when there are 2 IPCs in the network at least. Figure 4-224 Step 4 Click and select the channel to be added. The following interface is displayed after successful adding. See Figure 4-225.
Page 357: Pppoe
User's Manual Figure 4-225 4.11.8 PPPoE Background Information PPPoE is another way for the Device to access the network. You can establish network connection by configuring PPPoE settings to give the Device a dynamic IP address in the WAN. To use this function, firstly you need to obtain the user name and password from the Internet Service Provider.
Page 358: Ddns
User's Manual When the PPPoE function is enabled, the IP address on the TCP/IP interface cannot be modified. 4.11.9 DDNS When the IP address of the Device changes frequently, the DDNS function can dynamically refresh the correspondence between the domain on DNS and the IP address, ensuring you access the Device by using the domain.
Page 359: Upnp
User's Manual Parameter Description ● Type: Dyndns DDNS; address: members.dyndns.org ● Type: NO-IP DDNS; address: dynupdate.no-ip.com Server Address ● Type: CN99 DDNS; address: members.3322.org The domain name for registering on the website of DDNS service Domain Name provider. User Name Enter the user name and password obtained from DDNS service provider.
Page 360 User's Manual The UPnP interface is displayed. See Figure 4-228.Figure 4-228 Figure 4-229 Step 2 Configure the settings for the UPnP parameters. See Table 4-73. Table 4-73 Parameter Description Port Mapping Enable the UPnP function. Indicates the status of UPnP function. ●...
Page 361: Email
User's Manual Parameter Description Enter IP address of router on the WAN. WAN IP After mapping succeeded, the system obtains IP address automatically without performing any configurations. The settings in port mapping list correspond to the UPnP port mapping list on the router.
Page 362 User's Manual Figure 4-230 Step 2 Configure the settings for the email parameters. See Table 4-74. Table 4-74 Parameter Description Enable Enable the email function. SMTP Server Enter the address of SMTP server of sender’s email account. Enter the port value of SMTP server. The default value setting is 25. You Port can enter the value according to your actual situation.
Page 363: Snmp
User's Manual Parameter Description This is the interval that the system sends an email for the same type of alarm event, which means, the system does not send emails caused by Interval (Sec.) frequent alarm events. The value ranges from 0 to 3600. 0 means that there is no interval. Enable the health test function.
Page 364 User's Manual Figure 4-231 Step 2 Configure the settings for the SNMP parameters. See Table 4-75. Table 4-75 Parameter Description Enable Enable the SNMP function. Select the check box of SNMP version(s) that you are using. Version The default version is V3. There is a risk of select V1 or V2. SNMP Port Indicates the monitoring port on the agent program.
Page 365: Multicast
User's Manual Parameter Description In the Encryption Type list, select an encryption type. The default setting Encryption Type is CBC-DES. Step 3 Compile the two MIB files by MIB Builder. Step 4 Run MG-SOFT MIB Browser to load in the module from compilation. Step 5 On the MG-SOFT MIB Browser, enter the Device IP that you want to manage, and then select the version number to query.
Page 366: Alarm Center
User's Manual Parameter Description Enter the IP address that you want to use as the multicast IP. IP Address The IP address ranges from 224.0.0.0 through 239.255.255.255. Enter the port for the multicast. The port ranges from 1025 through Port 65000.
Page 367: Register
User's Manual Table 4-77 Parameter Description Enable Enable the alarm center function. In the Protocol Type list, select protocol type. The default is Alarm Protocol Type Center. Host IP The IP address and communication port of the PC installed with alarm client.
Page 368: Setting Switch
User's Manual Table 4-78 Function Description Enable Enable the register function. Enter the server IP address or the server domain that you want to Server IP Address register to. Port Enter the port of the server. Sub Service ID This ID is allocated by the server and used for the Device. Click Apply to complete the settings.
Page 369: P2P
User's Manual recommend that you use the default setting. Step 3 Click Apply. PoE Port Description Table 4-79 PoE Status Description When an IPC is connected to the PoE port, the system automatically assigns the IP address to the IPC according to the set IP segment. The NVR will try the method of arp ping to assign the IP address.
Page 370: Mobile App Operation
User's Manual Figure 4-236 Step 2 Enable the P2P function. After the P2P function is enabled and connected to the Internet, the system will collects your information for remote access, and the information includes but not limited to email address, MAC address, and device serial number. You can start adding the device.
Page 371: Storage
User's Manual Figure 4-237 2) Click and enter the Add Device interface. Mobile App supports device initialization. 3) Select Wired Device > P2P to enter the P2P interface. 4) Click the QR code icon behind the SN to enter the QR code scan interface. 5) Scan the device label or scan the SN QR code got by selecting Main Menu >...
Page 372: Schedule
User's Manual Figure 4-238 Step 2 Set parameters. See Table 4-80. Table 4-80 Parameter Description Configure the settings for the situation all the read/write discs are full, and there is no more free disc. ● Select Stop Record to stop recording Disk Full ●...
Page 373: Record Control
User's Manual Figure 4-239 Step 2 Select a HDD and then select a time from the drop-down list. Step 3 (Optional) Format a HDD. 1) Select a HDD and then click Format. 2) Click OK. 3) Enter the admin password and click OK. ●...
Page 374: Disk Quota
User's Manual If Disk Quota is selected is shown on the interface, click Switch to Disk Group mode. Procedure Step 1 Select Main Menu > STORAGE > Disk Group. The Disk Group interface is displayed. See Figure 4-240. Figure 4-240 Step 2 Select the group for each HDD group, and then click Apply to save the settings.
Page 375: Disk Check
User's Manual Figure 4-241 Step 2 Select a channel and set the values of record duration, bit rate and storage capacity of picture. Step 3 Click Apply. 4.12.7 Disk Check The HDD detect function is to detect HDD current status so that you can clearly understand the HDD performance and replace the malfunction HDD.
Page 376: Detect Report
User's Manual Figure 4-242 In the Type list, select Key Area Detect or Global Check; and in the Disk list, select the Step 2 HDD that you want to detect. Step 3 Click Start Check. The system starts detecting the HDD and displays the detection information. When system is detecting HDD, click Stop Check to stop current detection.
Page 377 User's Manual Figure 4-243 Step 2 Click The Details interface is displayed. You can view detecting results and S.M.A.R.T reports. See Figure 4-244 and...
Page 378: Disk Health Monitoring
User's Manual Figure 4-245.Figure 4-244 Figure 4-245 4.12.7.3 Disk Health Monitoring Monitor health status of disks, and repair if any exceptions are found so as to avoid data loss. Select Main Menu > STORAGE > Disk Check > Health Monitoring Click to show disk details interface.
Page 379: Raid
User's Manual Figure 4-246 Disk details 4.12.8 RAID RAID (redundant array of independent disks) is a data storage virtualization technology that combines multiple physical HDD components into a single logical unit for the purposes of data redundancy, performance improvement, or both. ●...
Page 380 User's Manual availability, and performance grade. Background Information You can manually create RAID or just one click one button to create RAID. For creating RAID function, you can select the physical HDD that does not included in the RAID group or the created disk array to create a RAID5.
Page 381: Raid Info
User's Manual ◇ If there is no existing RAID and no hot spare disk, the system will create RAID5 and a hot spare disk automatically. ◇ If there is no existing RAID, but existing hot spare disk, the system will only create RAID5 and use the existing hot spare disk automatically.
Page 382: Hot Spare Disk
User's Manual Figure 4-248 4.12.8.3 Hot Spare Disk Background Information You can add a hot spare disk to a specific disk in the RAID or to the entire RAID, and the hot spare disk is switched into operation if any disk fails. Procedure Select Main Menu >...
Page 383: Record Estimate
User's Manual Figure 4-250 Figure 4-251 Step 4 You can select Local Hotspare or Global Hotspare. ● Local Hotspare: Select the target disk, and the new disk will serve as the hot spare disk of the selected disk. ● Global Hotspare: the new disk will serve as the hot spare disk of the entire RAID. Step 5 Click OK.
Page 384 User's Manual Figure 4-252 Step 2 Click The Edit dialogue box is displayed. See Figure 4-253.You can configure the Resolution, Frame Rate, Bit Rate and Record Time for the selected channel. Figure 4-253 Step 3 Click Apply to save the settings. Then the system will calculate the time period that can be used for storage according to the channels settings and HDD capacity.
Page 385: Calculating Recording Time
User's Manual Click Copy to to copy the settings to other channels. 4.12.9.1 Calculating Recording Time Procedure Step 1 On the Rec Estimate interface, click the By Space tab. The By Space interface is displayed. See Figure 4-254. Figure 4-254 Step 2 Click Select.
Page 386: Ftp
User's Manual 4.12.10 FTP You can store and view the recorded videos and snapshots on the FTP server. Background Information Purchase or download a FTP (File Transfer Protocol) server and install it on your PC. For the created FTP user, you need to set the write permission; otherwise the upload of recorded videos and snapshots will be failed.
Page 387 User's Manual Parameter Description ● Select FTP type. ● FTP: Plaintext transmission. FTP type ● SFTP: Encrypted transmission (recommended) Server Address IP address of FTP server. ● FTP: The default is 21. Port ● SFTP: The default is 22. Anonymous Enter the user name and password to log in to the FTP server.
Page 388: Setting Iscsi
User's Manual 4.12.11 Setting iSCSI Background Information Internet Small Computer Systems Interface (iSCSI) is a transport layer protocol that works on top of the Transport Control Protocol (TCP), and enables block-level SCSI data transport between the iSCSI initiator and the storage target over TCP/IP networks. After the network disk is mapped to the NVR device through iSCSI, the data can be stored on the network disk.
Page 389: System
User's Manual Parameter Description Enter the username and password of iSCSI server. Username, Password If anonymous login is supported by iSCSI server, you can enable Anonymous to log in as an anonymous user. Step 3 Click Apply. 4.13 System 4.13.1 General You can set device general information.
Page 390: Security
User's Manual Table 4-84 Parameter Description Select serial port control protocol. ● Console: Upgrade the program and debug with the console and mini terminal software. ● Keyboard: Control this Device with special keyboard. ● Adapter: Connect with PC directly for transparent transmission of data.
Page 391 User's Manual Figure 4-260 Figure 4-261 ● Configuration Security: When there’s a risk in the device configuration, the icon will be in orange to warn risk. You can click Details to see the detailed risk description. See Figure 4-262.
Page 392: System Service
User's Manual Figure 4-262 Scanning Security Modules This area shows the running status of security modules. For details about the security modules, move mouse pointer on the icon to see the on-screen instructions. Scanning Security Status You can click Rescan to scan security status. 4.14.2 System Service You can set NVR basic information such as basic services, 802.1x and HTTPS.
Page 393 User's Manual Figure 4-263 Select Basic Services and configure parameters. Step 2 There might be safety risk when Mobile Push Notifications, CGI, ONVIF, SSH and NTP Server is enabled. Table 4-85 Basic service parameters Parameter Description After enabling this function, the alarm triggered by the NVR can be Mobile Push Notifications pushed to a mobile phone.
Page 394: 377
User's Manual 4.14.2.2 802.1x The device needs to pass 802.1x certification to enter the LAN. Procedure Step 1 Select Main Menu > SECURITY > System Service > 802.1x. The 802.1x interface is displayed. See Figure 4-264 Figure 4-264 Step 2 Select the Ethernet card you want to certify.
Page 395: Https
User's Manual 4.14.2.3 HTTPS Background Information We recommend that you enable HTTPS function to enhance system security. Procedure Step 1 Select Main Menu > SECURITY > System Service > HTTPS. The HTTPS interface is displayed. See Figure 4-265. Figure 4-265 Step 2 Enable HTTPS function.
Page 396 User's Manual Figure 4-266 Firewall Select Enable to enable firewall. Step 2 Step 3 Configure the parameters. See Table 4-87. Table 4-87 Parameters Parameter Description Mode can be configured when Type is Network Access. ● If Trusted Sites is enabled, you can visit device port successfully with Mode IP/MAC hosts in Trusted Sites.
Page 397: Account Lockout
User's Manual Parameter Description Enter Start Address and End Address of IP Segment. Start Address When Type is IP Segment, they can be configured. Enter MAC Address that is allowed or forbidden MAC Address When Type is MAC Address, they can be configured. Click Apply to complete the settings.
Page 398: Sync Time-Allowlist
User's Manual Figure 4-268 Anti-Dos Attack 4.14.3.4 Sync Time-Allowlist The synchronization is only allowed with hosts in the trusted list. Procedure Select Main Menu > SECURITY > Attack Defense > Sync Time-Allowlist. Step 1 The Sync Time-Allowlist interface is displayed. See Figure 4-269.
Page 399 User's Manual Figure 4-269 Sync Time-Allowlist Select Enable to enable Sync Time-Allowlist function. Step 2 Step 3 Configure the parameters. See Table 4-89. Table 4-89 Sync Time-Allowlist parameters Parameter Description You can add trusted hosts for time synchronization. Type Select IP address or IP segment for hosts to be added. Input the IP address of a trusted host.
Page 400: Ca Certificate
User's Manual 4.14.4 CA Certificate 4.14.4.1 Device Certificate Create Certificate 1. Select Main Menu > SECURITY > CA Certificate > Device Certificate. The Device Certificate interface is displayed. See Figure 4-270. Figure 4-270 Device Certificate 2. Configure parameters. See Table 4-90. Table 4-90 Creating certificate Parameter Description...
Page 401: Trusted Ca Certificate
User's Manual Figure 4-271 CA application and import Import Third-Party Certificate 1. Configure Parameters. See Table 4-91. Table 4-91 Importing third-party certificate Parameter Description Click Browse to find the third-party certificate path on the USB drive. Path Click Browse to find the third-party certificate private key on the USB Private Key drive.
Page 402: Audio/Video Encryption
User's Manual Figure 4-272 Creating certificate Step 3 Click Browse to select the certificate that you want to install. Step 4 Click Import. 4.14.5 Audio/Video Encryption Background Information The device supports audio and video encryption during data transmission. Procedure Step 1 Select Main Menu >...
Page 403: Security Warning
User's Manual Figure 4-273 Audio and video transmission Step 2 Configure parameters. See Table 4-92. Table 4-92 Audio and video transmission parameters Area Parameter Description Enables stream frame encryption by using private protocol. Enable There might be safety risk if this service is disabled. Encryption Private Use the default setting.
Page 404 User's Manual The Security Exception interface is displayed. See Figure 4-274. Figure 4-274 Security Exception Step 2 Select Enable and configure parameters. See Table 4-93. Table 4-93 Security exception parameters Parameter Description The alarm device (such as lights, sirens, etc.) is connected to the alarm Alarm-out Port output port.
Page 405: Illegal Login
User's Manual 4.14.6.2 Illegal Login Step 1 Select Main Menu > SECURITY > Security Warning > Illegal Login. The Illegal Login interface is displayed. See Figure 4-275. Figure 4-275 Illegal Login Select Enable and configure parameters. See Table 4-94. Step 2 Table 4-94 Illegal login parameters Parameter Description...
Page 406: Account
User's Manual Parameter Description Select the check box. When an alarm occurs, the NVR device sends an email to the set mailbox to notify the user. Send Email You need to set the email first. For details, see "4.11.11 Email". 4.15 Account You can manage users, user group and ONVIF user, set admin security questions.
Page 407 User's Manual Figure 4-276 Step 2 Click Add. The Add interface is displayed. See Figure 4-277. Figure 4-277 Step 3 Input the user name, password, select the group it belongs to from the drop-down list. Then you can check the corresponding rights for current user. See Table 4-95. Table 4-95 Parameter Description...
Page 408: Modify Password
User's Manual Parameter Description Password Confirm Password Re-enter the password. Optional. Remarks Enter a description of the account. User MAC Enter user MAC address Select a group for the account. Group The user rights must be within the group permission. Click Setting to display Setting interface.
Page 409 User's Manual Figure 4-278 Check the box to enable Modify Password function. Enter old password and then enter Step 2 new password twice. ● Password/confirm password: The password ranges from 8 to 32 digitals. It can contain letters, numbers and special characters (excluding“'”,“"”,“;”,“:”,“&”). The password shall contain at least two categories.
Page 410: Group
User's Manual Figure 4-279 Step 4 Click Back. 4.15.2 Group Procedure Step 1 Select Main Menu > ACCOUNT > Group. The Group interface is displayed. See Figure 4-280.
Page 411 User's Manual Figure 4-280 Step 2 Click Add. The Add interface is displayed. See Figure 4-281. Step 3 Enter group name and then input some memo information if necessary. Check the box to select authorities. Figure 4-281 Step 4 Click OK.
Page 412: Reset Password
User's Manual Click to modify the corresponding group information, click to delete the group. 4.15.3 Reset Password Background Information You can set security questions and answers. After you successfully answered security questions, you can reset admin account password. This function is for admin user only. Procedure Select Main Menu >...
Page 413: Onvif User
User's Manual 4.15.4 ONVIF User Background Information When the camera from the third party is connected with the NVR via the ONVIF user, use the verified ONVIF account to connect to the NVR. Here you can add/delete/modify user. ● The default ONVIF user is admin. It is created after you initialize the NVR. ●...
Page 414: Output And Display
User's Manual Figure 4-284 Step 3 Set user name, password and then select group from the drop-down list. Step 4 Click OK to complete setup. Click to modify the corresponding user information, click to delete current user. 4.16 Output and Display 4.16.1 Display Background Information You can configure the display effect such as displaying time title and channel title, adjusting image...
Page 415 User's Manual Figure 4-285 Step 2 Configure the settings for the display parameters. Table 4-96 Parameter Description Configure the output port format of both screens. ● When sub screen is disabled, the format of main screen is HDMI/VGA simultaneous output. ●...
Page 416: Tour
User's Manual Parameter Description Configure audio input on live view. You can select Audio 1, Audio 2, and Mixing. For example, if you select Audio 1 for D1 channel, the sound of Live Audio audio input port 1 of camera is playing. If you select Mixing, the sound of all audio input ports are playing.
Page 417: Custom Layout
User's Manual Table 4-97 Parameter Description Enable Tour Enable tour function. Enter the amount of time that you want each channel group displays on Interval the screen. The value ranges from 5 seconds to 120 seconds, and the default value is 5 seconds. Motion Tour, Alarm Select the View 1 or View 8 for Motion Tour and Alarm Tour (system Tour...
Page 418 User's Manual Figure 4-287 Step 2 Click and then click to select basic mode. System adopts the basic window mode as the new window name. For example, if you select the 8 display mode, the default name is Split8.In regular mode, drag the mouse in the preview frame;...
Page 419 User's Manual ● After merge the window, system adopts the remaining window amount as the new name such as Split6. ● Select the window you want to merge (red highlighted), click to cancel the merge to restore the basic mode. ●...
Page 420: Audio
User's Manual Figure 4-289 4.17 Audio The audio function is to manage audio files and set schedule play function. It is to realize audio broadcast activation function. This function is for some series product only. 4.17.1 File Management Background Information You can add audio files, listen to audio files, rename and delete audio files, and configure the audio volume.
Page 421 User's Manual Figure 4-290 File management Step 2 Click Add. The Add interface is displayed. See Figure 4-291.
Page 422: Audio Play
User's Manual NVR supports USB port to import audio file only. Figure 4-291 Add file Step 3 Select the audio file and then click Import. System supports MP3 and PCM audio format. Step 4 Click OK to start importing audio files from the USB storage device. If the importing is successful, the audio files will display in the File Management interface.
Page 423: Broadcast
User's Manual Figure 4-292 Schedule Step 2 Configure the settings for the schedule parameters. See Table 4-98. Table 4-98 Schedule parameters Parameter Description In the Period box, enter the time. Select the check box to enable the Period settings. You can configure up to six periods. In the File Name list, select the audio file that you want to play for this File Name configured period.
Page 424 User's Manual Figure 4-293 Broadcast Step 2 Click Add Group. The Add Group interface is displayed. See Figure 4-294. Figure 4-294 Add group (1) Step 3 Input group name and select one or more channels. Step 4 Click Save to complete broadcast group setup.
Page 425: Usb Device Auto Pop-Up
User's Manual ● On the broadcast interface, click to change group setup, click to delete group. ● After complete broadcast setup, on the preview interface and then click on the navigation bar, device pops up broadcast dialogue box. Select a group name and then click to begin broadcast.
Page 426: Shutdown
User's Manual You can add a USB keyboard through USB port, and it can input characters limited to soft keyboard. Figure 4-296 USB device prompt 4.19 Shutdown ● When you see corresponding dialogue box "System is shutting down…" Do not click power on- off button directly.
Page 427 User's Manual Figure 4-297 Shutdown (1) 2. Select Shutdown. Draw the unlock pattern or input password first if you have no authority to shut down. See Figure 4-298 or Figure 4-299...
Page 428 User's Manual Figure 4-298 Shutdown (2) Figure 4-299 Shutdown (3) ● Remote Control Press the power button on the remote for at least 3 seconds.
Page 429 User's Manual ● Press the power button at the rear panel of the device. Auto Resume after Power Failure The system can automatically backup video file and resume previous working status after power failure.
Page 430: Web Operation
User's Manual 5 Web Operation ● The interfaces in the Manual are used for introducing the operations and only for reference. The actual interface might be different dependent on the model you purchased. If there is inconsistency between the Manual and the actual product, the actual product shall govern. ●...
Page 431: Web Main Menu
User's Manual Figure 5-1 Login page Step 2 Enter the user name and password. ● The default administrator account is admin. The password is the one that was configured during initial settings. To security your account, it is recommended to keep the password properly and change it regularly.
Page 432 User's Manual Figure 5-2 Main menu Table 5-1 Main menu symbols Icon Description Includes configuration menu through which you can configure camera settings, network settings, storage settings, system settings, account settings, and view information. None Displays system date and time. When you point to , the current user account is displayed.
Page 433: Cluster Service
User's Manual Icon Description Includes eight function tiles: LIVE, PLAYBACK, AI, ALARM, POS, OPERATION, BACKUP, DISPLAY, and AUDIO. Click each tile to open the configuration interface of the tile. ● LIVE: You can perform the operations such as viewing real- time video, configuring channel layout, setting PTZ controls, and using smart talk and instant record functions if needed.
Page 434: Main Device
User's Manual record loss. Once the main device becomes properly, the sub can still work until you use the web to fix manually. During the whole process (the main device is working properly > main device is in malfunction > main device becomes working properly again), you can use this virtual IP to access the device all the time.
Page 435: Sub Device
User's Manual Figure 5-3 Step 2 Configure parameters. Table 5-2 Parameter Description Device Name This parameter is user defined. IP Address Enter the IP address of the NVR. Set the TCP port number of the server. The default value is 37777. Port You can view the current TCP port number in SETTING >...
Page 436: Cluster Control
User's Manual transfers video records from sub device when the main device is working normally. You can also manually transfer video records from sub device to the main device. Prerequisites The main device works normally. Procedure Step 1 Select SETTING > Cluster Service > Transfer Recorder. Step 2 Click Add Task.
Page 437: Cluster Log
User's Manual Figure 5-5 5.4.6 Cluster Log Background Information From SETTING > Cluster Service > Cluster Log, you can go to the Cluster Log interface. The Cluster log interface is shown as in Figure 5-6. Figure 5-6 Here you can search and view the Cluster log.
Page 438: Glossary
User's Manual 6 Glossary ● DHCP: DHCP (Dynamic Host Configuration Protocol) is a network protocol. It is one of the TCP/IP protocol cluster. It is principally used to assign temporary IP addresses to computers on a network. ● DDNS: DDNS (Dynamic Domain Name Server) is a service that maps Internet domain names to IP addresses.
Page 439: Faq
User's Manual 7 FAQ Questions Solutions ● Input power is not correct. ● Power connection is not correct. ● Power switch button is damaged. ● Program upgrade is wrong. ● HDD malfunction or something wrong with HDD ribbon. NVR cannot boot up properly. ●...
Page 440 User's Manual Questions Solutions ● Front panel PTZ error ● PTZ decoder setup, connection or installation is not correct. ● Cable connection is not correct. ● PTZ setup is not correct. ● PTZ decoder and NVR protocol is not compatible. NVR cannot control PTZ.
Page 441 User's Manual Questions Solutions ● Alarm setup is not correct. ● Alarm output has been open manually. Alarm signal cannot be ● Input device error or connection is not correct. disarmed. ● Some program versions might have this problem. Upgrade your system.
Page 442 User's Manual Questions Solutions ● Make sure that the IPC has booted up. ● IPC network connection is right and it is online ● IPC IP is in the blocklist. ● The device has connected to the too many IPC. It cannot I cannot connect to the IPC transmit the video.
Page 443: Appendix 1 Cybersecurity Recommendations
User's Manual Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
Page 444 User's Manual 5. Change Default HTTP and Other Service Ports We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you are using. 6.
Page 445 User's Manual ● The network should be partitioned and isolated according to the actual network needs. If there are no communication requirements between two sub networks, it is suggested to use VLAN, network GAP and other technologies to partition the network, so as to achieve the network isolation effect.
Page 446: Appendix 2 Hdd Capacity Calculation
User's Manual Appendix 2 HDD Capacity Calculation Calculate total capacity needed by each device according to video recording (video recording type and video file storage time). 1. According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.
Page 447: Appendix 3 Compatible Network Camera List
User's Manual Appendix 3 Compatible Network Camera List Please note all the models in the following list for reference only. For those products not included in the list, please contact your local retailer or technical supporting engineer for detailed information. Appendix Table 3-1 Video Manufacturer...
Page 448 User's Manual Video Manufacturer Model Version Audio/Video Protocol Encode NBN-921-P H264 √ ONVIF － NBC-455- H264 √ ONVIF － VG5-825 9500453 H264 √ ONVIF Bosch NBN-832 66500500 H264 √ ONVIF VEZ-211- H264 √ ONVIF － IWTEIVA NBC-255-P 15500152 H264 √ ONVIF VIP-X1XF H264...
Page 449 User's Manual Video Manufacturer Model Version Audio/Video Protocol Encode CP-RNP- cp20120821 H264 √ Private 1820 CP-RNC- cp20120821 H264 √ Private TP20FL3C CP-RNP- cp20120828 H264 √ Private CP-RNC- cp20120821 H264 √ Private DV10 CP-RNC- cp20120821 H264 √ Private DP20FL2C d20120214N ONVIF/Privat ICS-13 H264 √...
Page 450 User's Manual Video Manufacturer Model Version Audio/Video Protocol Encode ONVIF/Privat WV-SP102H 1.41 H264 √ ONVIF/Privat WV-SP105H H264 √ － ONVIF/Privat WV-SP302H 1.41 H264, MPEG4 √ ONVIF/Privat WV-SP306H H264, MPEG4 √ ONVIF/Privat WV-SP508H H264, MPEG4 √ － ONVIF/Privat WV-SP509H H264, MPEG4 √...
Page 451 User's Manual Video Manufacturer Model Version Audio/Video Protocol Encode ONVIF/Privat 1.08 H264, MPEG4 √ SC385H ONVIF/Privat 1.08 H264, MPEG4 √ SC386H WV-SP539 1.66 H264, MPEG4 √ ONVIF DG-SC385 1.66 H264, MPEG4 √ ONVIF 1.8.1- 20110912- IXSOLW H264 √ Private 1.9082- A1.6617 1.7.41.9111- IDE20DN...
Page 452 User's Manual Video Manufacturer Model Version Audio/Video Protocol Encode ONVIF/Privat SNC-CH135 1.73.01 H264 √ ONVIF/Privat SNC-CH140 1.50.00 H264 √ ONVIF/Privat SNC-CH210 1.73.00 H264 √ ONVIF/Privat SNC-DH210 1.73.00 H264 √ ONVIF/Privat SNC-DH240 1.50.00 H264 √ SNC- ONVIF/Privat 1.73.01 H264 √ DH240-T ONVIF/Privat SNC-CH260 1.74.01...
Page 453 User's Manual...

This manual is also suitable for:

Nvr41-p-4ks2 series Nvr41-8p-4ks2 series Nvr41-4ks2 series Nvr21-4ks2 series Nvr21-p4ks2 series Nvr21-8p-4ks2 series ... Show all

Dahua L Series User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua L Series

Summary of Contents for Dahua L Series
