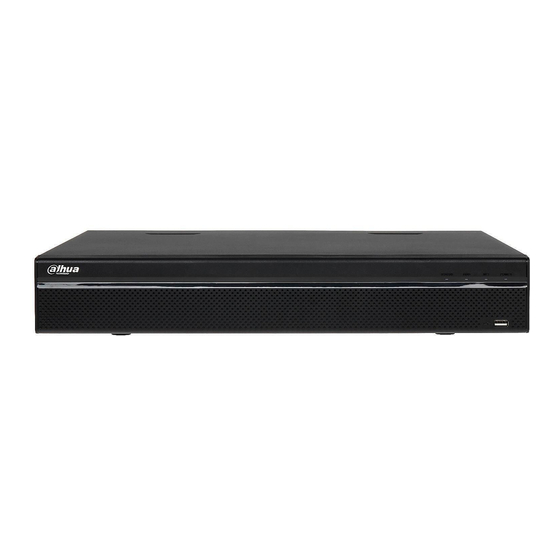

Dahua NVR5464-4KS2-V2 User Manual

page of 485

/ 485
Contents
Table of Contents
Bookmarks

Table of Contents

Quick Links

Download this manual

Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per

NVR5464-4KS2-V2

Network Video Recorder

User's Manual

ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

o cerca il tuo prodotto tra le

migliori offerte di Videosorveglianza

Dahua Pro

V2.3.5

Table of Contents

Need help?

Do you have a question about the NVR5464-4KS2-V2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dahua NVR5464-4KS2-V2

Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Dahua Pro NVR5464-4KS2-V2 o cerca il tuo prodotto tra le migliori offerte di Videosorveglianza Network Video Recorder User's Manual ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V2.3.5...
Page 2: Foreword
User's Manual Foreword General This user’s manual (hereinafter referred to be "the Manual") introduces the installation, functions and operations of the Network Video Recorder (NVR) devices (hereinafter referred to be "the Device"). Read carefully before using the Device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual.
Page 3 User's Manual Version Revision Content Release Time ● Added smart object detection. ● Added smart sound detection. ● Added AcuPick function. ● Added EPTZ linkage. ● Updated live view control bar. V2.3.3 June 2023 ● Updated modifying channel name. ● Updated playback. ●...
Page 4 User's Manual Version Revision Content Release Time ● Added picture search, picture search playback, disk health monitoring, and exporting and importing face database. May 2020 V1.0.6 ● Updated AI search, human detection, configuration of face recognition, and display settings. Added split tracking, main-sub tracking, V1.0.5 analytics list, configuring video quality May 2020...
Page 5 User's Manual ● Please visit our website, contact the supplier or customer service if there is any problem occurred when using the device. ● If there is any uncertainty or controversy, please see our final explanation.
Page 6: Important Safeguards And Warnings
User's Manual Important Safeguards and Warnings This section introduces content covering the proper handling of the Device, hazard prevention, and prevention of property damage. Read carefully before using the Device, and comply with the guidelines when using it. Transportation Requirements Transport the Device under allowed humidity and temperature conditions.
Page 7 User's Manual ● Install the Device on a stable surface to prevent it from falling. ● The power supply must conform to the requirements of ES1 in IEC 62368-1 standard and be no higher than PS2. Please note that the power supply requirements are subject to the device label. ●...
Page 8: Table Of Contents
User's Manual Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................. V 1 Introduction ......................................1 1.1 Overview ......................................1 1.2 Features ......................................1 2 Front Panel and Rear Panel ................................4 2.1 Front Panel ....................................4 2.1.1 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41-4KS2/L/NVR41-P-4KS2/L/NVR41-8P- 4KS2/L/NVR21-4KS2/NVR21-P-4KS2/NVR21-8P-4KS2/NVR21-S3/NVR21-P-S3/NVR21-8P- S3/NVR21-4KS3/NVR21-P-4KS3/NVR21-8P-4KS3/NVR41-EI/NVR41-P-EI/NVR41-8P-EI/NVR41- 4KS3/NVR41-P-4KS3/NVR41-8P-4KS3 Series ......................
Page 9 User's Manual 2.2 Rear Panel ....................................20 2.2.1 NVR21-4KS2/NVR21-P-4KS2/NVR21-8P-4KS2/NVR21-4KS3/NVR21-P-4KS3/NVR21-8P- 4KS3/NVR41-EI/NVR41-8P-EI/NVR41-P-EI/NVR41-4KS3/NVR41-P-4KS3/NVR41-8P-4KS3 Series ........................................20 2.2.2 NVR11HS-S3H/NVR11HS-P-S3H/NVR11HS-8P-S3H/NVR21HS-4KS2/NVR21HS-P- 4KS2/NVR21HS-8P-4KS2/NVR41HS-4KS2/NVR41HS-P-4KS2/NVR41HS-8P-4KS2/NVR41HS- 4KS2/L/NVR41HS-P-4KS2/L/NVR41HS-8P-4KS2/L/NVR21HS-S3/NVR21HS-P-S3/NVR21HS-8P- S3/NVR21HS-4KS3/NVR21HS-P-4KS3/NVR21HS-8P-4KS3/NVR41HS-EI/NVR41HS-P- EI/NVR41HS-8P-EI/NVR41HS-4KS3/NVR41HS-P-4KS3/NVR41HS-8P-4KS3 Series ......23 2.2.3 NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2//NVR22-4KS3/NVR22-P-4KS3/NVR22-8P- 4KS3/NVR22-16P-4KS3 Series ............................. 25 2.2.4 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR52-24P-4KS2/NVR52-8P-4KS2E/NVR52- 16P-4KS2E/NVR52-EI/NVR52-8P-EI/NVR52-16P-EI/NVR42-16P-EI/NVR52-XI/NVR52-8P-XI/NVR- 52-16P-XI Series ................................. 27 2.2.5 NVR54-4KS2/NVR58-4KS2/NVR54-16P-4KS2/NVR58-16P-4KS2/NVR54-24P-4KS2/NVR58- 16P-4KS2E Series ................................30 2.2.6 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41-4KS2/L/NVR41-P-4KS2/L/NVR41-8P- 4KS2/L/NVR21-S3/NVR21-P-S3/NVR21-8P-S3 Series ..................
Page 10 User's Manual 2.2.27 NVR608-4KS2/NVR608H-XI/NVR608RH-XI Series ..................65 2.2.28 NVR616-4KS2/NVR616-XI Series ........................67 2.2.29 NVR624-XI Series ................................ 69 2.2.30 NVR11HS-W-S2-CE/NVR11HS-W-S2-FCC Series ..................71 2.2.31 NVR54-EI/NVR54-16P-EI/NVR58-EI/NVR58-16P-EI/NVR54-XI/NVR-58-XI Series ......72 2.2.32 NVR50-EI Series ................................75 2.3 Alarm Connection ..................................76 2.3.1 Alarm Port ..................................76 2.3.2 Alarm Input Port ................................
Page 11: Nvr11Hs-S3H/Nvr11Hs-P-S3H/Nvr11Hs-8P-S3H/Nvr41Hs-4Ks2/Nvr41Hs-P- 4Ks2/Nvr41Hs-8P-4Ks2/Nvr41Hs-4Ks2/L/Nvr41Hs-P-4Ks2/L/Nvr41Hs-8P
User's Manual 3.5 Connection Sample ................................102 3.5.1 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41-4KS2/L/NVR41-P-4KS2/L/NVR41-8P- 4KS2/L/NVR21-4KS2/NVR21-P-4KS2/NVR21-8P-4KS2/NVR21-I/NVR21-I2/NVR21-P-I/NVR21-P- I2/NVR21-8P-I/NVR21-8P-I2/NVR21-S3/NVR21-P-S3/NVR21-8P-S3/NVR41-EI/NVR41-P- EI/NVR41-8P-EI ................................102 3.5.2 NVR21-W-4KS2/NVR21HS-W-4KS22 ........................ 104 3.5.3 NVR11HS-S3H/NVR11HS-P-S3H/NVR11HS-8P-S3H/NVR41HS-4KS2/NVR41HS-P- 4KS2/NVR41HS-8P-4KS2/NVR41HS-4KS2/L/NVR41HS-P-4KS2/L/NVR41HS-8P- 4KS2/L/NVR21HS-4KS2/NVR21HS-P-4KS2/NVR21HS-8P-4KS2/NVR21HS-I/NVR21HS- I2/NVR21HS-P-I/NVR21HS-P-I2/NVR21HS-8P-I/NVR21HS-8P-I2/NVR21HS-S3/NVR21HS-P- S3/NVR21HS-8P-S3/NVR41HS-EI/NVR41HS-P-EI/NVR41HS-8P-EI ............104 3.5.4 NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2/NVR22-I/NVR22-I2/NVR22-P-I/NVR22-P- I2/NVR22-8P-I/NVR22-8P-I2/NVR22-16P-I/NVR22-16P-I2 Series ............105 3.5.5 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR52-24P-4KS2/NVR52-8P-4KS2E/NVR52- 16P-4KS2E Series ................................106 3.5.6 NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/NVR42-16P-4KS2/NVR42-4KS2/L/NVR42-P- 4KS2/L/NVR42-8P-4KS2/L/NVR42-16P-4KS2/L/NVR42-EI/NVR42-P-EI/NVR42-8P-EI/NVR42- 16P-EI ....................................
Page 12 User's Manual 5.6.3.2 Digital Zoom ..............................130 5.6.3.3 Instant Backup ..............................130 5.6.3.4 Manual Snapshot ............................130 5.6.3.5 Two-way Talk ..............................131 5.6.3.6 Stream Switch ..............................131 5.6.3.7 Picture Search ..............................131 5.6.3.8 Quick Pick ................................133 5.6.3.9 AcuPick ................................. 135 5.6.4 Shortcut Menu ................................
Page 13 User's Manual 5.7 Camera ....................................... 165 5.7.1 Initializing Remote Devices ..........................165 5.7.2 Adding Remote Devices ............................170 5.7.2.1 Adding Cameras from Search ........................170 5.7.2.2 Adding Cameras Manually ......................... 172 5.7.2.3 Importing Cameras ............................174 5.7.3 Changing IP Address of Remote Device ......................175 5.7.3.1 Changing IP Address of Connected Remote Device ..............
Page 14 User's Manual 5.8.2.8 File List ................................. 215 5.8.2.9 Tag Playback ..............................215 5.8.3 Recording Information ............................217 5.9 AI ........................................217 5.9.1 Overview ..................................217 5.9.2 AI Search ..................................218 5.9.3 Smart Plan ..................................219 5.9.3.1 Configuring Smart Plan ..........................219 5.9.3.2 Configuring AcuPick Mode ........................
Page 15 User's Manual 5.9.7.2.2 Intrusion ..............................243 5.9.7.2.3 Abandoned Object Detection ......................246 5.9.7.2.4 Fast Moving ............................249 5.9.7.2.5 Parking ..............................252 5.9.7.2.6 Crowd Gathering ..........................255 5.9.7.2.7 Missing Object Detection ......................... 258 5.9.7.2.8 Loitering Detection ..........................261 5.9.7.3 AI Search (IVS) ..............................264 5.9.8 Stereo Analysis ................................
Page 16 User's Manual 5.9.12.4 Configuring Queuing ..........................287 5.9.12.5 Configuring Abnormal Detection ......................288 5.9.12.6 Report Query ..............................290 5.9.13 Heat Map ..................................291 5.9.13.1 Enabling Smart Plan ........................... 291 5.9.13.2 Configuring Heat map ..........................292 5.9.13.3 Report Query ..............................293 5.9.13.3.1 General ..............................
Page 17 User's Manual 5.10.5.2 Video Loss ................................ 319 5.10.5.3 Video Tampering ............................320 5.10.5.4 Scene Change ..............................321 5.10.5.5 PIR Alarm ................................322 5.10.6 Audio Detection ............................... 324 5.10.7 Thermal Alarm ................................324 5.10.8 Exception ..................................325 5.10.9 Disarming ..................................326 5.11 Network ....................................
Page 18 User's Manual 5.12.3.3 Creating Hot Spare Disk ..........................360 5.12.4 Disk Group .................................. 361 5.12.5 Disk Quota .................................. 362 5.12.6 Disk Check .................................. 363 5.12.6.1 Manual Check ..............................363 5.12.6.2 Detection Report ............................364 5.12.6.3 Disk Health Monitoring ..........................366 5.12.7 Record Estimate ...............................
Page 19 User's Manual 5.14.6.1 Security Exception ............................399 5.14.6.2 Illegal Login ..............................399 5.15 System ..................................... 400 5.15.1 General Settings ..............................400 5.15.1.1 General ................................400 5.15.1.2 Date and Time ..............................402 5.15.1.3 Holiday ................................403 5.15.2 Serial Port ..................................405 5.16 Output and Display ................................
Page 20 User's Manual 5.19.4.3.1 Restoring Defaults on the Local Page ..................430 5.19.4.3.2 Resetting Device through the Reset Button ................ 431 5.19.4.4 System Update .............................. 432 5.19.4.4.1 Upgrading File ............................ 432 5.19.4.4.2 Online Upgrade ..........................433 5.19.4.4.3 Uboot Upgrading ..........................434 5.19.4.5 Intelligent Diagnosis ..........................
Page 21: Introduction
User's Manual 1 Introduction 1.1 Overview The NVR is a high performance network video recorder. This product supports local live view, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function. This product supports center storage, front-end storage and client-end storage.
Page 22 User's Manual with car plate numbers. ● Human body detection playback. It can screen out and replay the records with specific human bodies. ● Smart search. It includes smart functions such as searching by attribute and searching by image to enable users to get target records quickly. Cloud Upgrade For the NVR connected to the Internet, it supports application online upgrade.
Page 23 User's Manual ● Transmit some alarm data or alarm info by SNMP. ● Support web access in WAN/LAN. Window Split Adopt video compression and digital processing to display several windows in one monitor. Support 1/4/8/9/16/25/36 window split in preview and 1/4/9/16 window split in playback. Record Support regular record, motion record, alarm record and smart record.
Page 24: Front Panel And Rear Panel
User's Manual 2 Front Panel and Rear Panel The following front panel and rear panel figures are for reference only. 2.1 Front Panel 2.1.1 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41- 4KS2/L/NVR41-P-4KS2/L/NVR41-8P-4KS2/L/NVR21-4KS2/NVR21-P- 4KS2/NVR21-8P-4KS2/NVR21-S3/NVR21-P-S3/NVR21-8P-S3/NVR21- 4KS3/NVR21-P-4KS3/NVR21-8P-4KS3/NVR41-EI/NVR41-P-EI/NVR41- 8P-EI/NVR41-4KS3/NVR41-P-4KS3/NVR41-8P-4KS3 Series The figure is for reference only. The NVR41-4KS2/NVR41-4KS2/L/NVR41-P-4KS2/NVR41-P-4KS2/L/NVR21-4KS2/NVR21-P- 4KS2/NVR21-S3/NVR21-P-S3/NVR21-4KS3/NVR21-P-4KS3/NVR41-EI/NVR41-P-EI/NVR41-4KS3/NVR41- P-4KS3 front panel is shown as below. Figure 2-1 Front panel...
Page 25: 4Ks3/Nvr41Hs-P-4Ks3/Nvr41Hs-8P-4Ks3 Series
User's Manual The NVR41-8P-4KS2/NVR41-8P-4KS2/L/NVR21-8P-4KS2/NVR21-8P-S3/NVR41-8P-EI/NVR41-8P- 4KS3/NVR21-8P-4KS3 front panel is shown as below. Figure 2-2 Front panel Table 2-1 Icons Name Function The red light becomes on when HDD is HDD status indicator light abnormal. The red light becomes on when the power Power indicator light connection is normal.
Page 26: 4Ks3/Nvr42-P-4Ks3/Nvr42-8P-4Ks3/Nvr44-4Ks3/Nvr48-4Ks3/Nvr42-16P-4Ks3-Series
User's Manual Series The figure is for reference only. Figure 2-3 Front panel Table 2-2 Icons Icon Name Function The blue light is on when the HDD is HDD status indicator light malfunction. Network status indicator The blue light is on when the network light connection is abnormal.
Page 27: Nvr52-4Ks2/Nvr52-8P-4Ks2/Nvr52-16P-4Ks2/Nvr42-4Ks2/Nvr42-P-4Ks2/Nvr42-8P
User's Manual 4KS3/NVR42-16P-4KS3-Series The figures are for reference only. The NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR42-4KS2/NVR42-P-4KS2/NVR42-8P- 4KS2/NVR42-16P-4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/NVR42-16P- 4KS2/LNVR5224-24P-4KS2/NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2/NVR22-4KS3/NVR22-P- 4KS3/NVR22-8P-4KS3/NVR22-16P-4KS3/NVR52-8P-4KS2E/NVR52-16P-4KS2E/NVR42-4KS3/NVR42-P- 4KS3/NVR42-8P-4KS3/NVR42-16P-4KS3 series front panel is shown as below. Figure 2-4 Front panel The NVR54-4KS2/NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/NVR44-16P- 4KS2/L/NVR54-24P-4KS2/NVR54-16P-4KS2E/NVR44-4KS3 series front panel is shown as below. Figure 2-5 Front panel The NVR58-4KS2/NVR58-16P-4KS2/NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/NVR48-16P- 4KS2/L/NVR58-16P-4KS2E/NVR48-4KS3 series front panel is shown as below Figure 2-6 Front panel...
Page 28: Nvr21-W-4Ks2 Series
User's Manual 2.1.4 NVR21-W-4KS2 Series The front panel is shown as below. The figure is for reference only. Figure 2-7 Front panel Table 2-4 Icons Icon Name Function The blue light is on when the HDD HDD status indicator light malfunctions.
Page 29: Nvr21-I/Nvr21-I2/Nvr21-P-I/Nvr21-P-I2/Nvr21-8P-I/Nvr21-8P-I2 Series
User's Manual The figure is for reference only. Figure 2-8 Front panel Table 2-5 Icons Icon Name Function The blue light is on when the HDD is HDD status indicator light malfunction. The blue light is on when the network Network status indicator light connection is abnormal.
Page 30: Nvr21Hs-I/Nvr21Hs-I2/Nvr21Hs-P-I/Nvr21Hs-P-I2/Nvr21Hs-8P-I/Nvr21Hs-8P- I2/Nvr44-4Ks2/I/Nvr44-16P-4Ks2/I Series
User's Manual Figure 2-9 Front panel The NVR21-P-I/NVR21-P-I2 front panel is shown as below. Figure 2-10 Front panel The NVR21-8P-I/NVR21-8P-I2 front panel is shown as below. Figure 2-11 Front panel 2.1.7 NVR21HS-I/NVR21HS-I2/NVR21HS-P-I/NVR21HS-P- I2/NVR21HS-8P-I/NVR21HS-8P-I2/NVR44-4KS2/I/NVR44-16P-4KS2/I Series The figure is for reference only. The NVR21HS-I/NVR21HS-I2/NVR21HS-P-I/NVR21HS-P-I2/NVR21HS-8P-I/NVR21HS-8P-I2/NVR44- 4KS2/I/NVR44-16P-4KS2/I front panel is shown as below.
Page 31: Xi/Nvr52-16P-Xi/Nvr54-Xi/Nvr58-Xi
User's Manual Table 2-6 Icons Icon Name Function HDD status indicator The blue light is on when the HDD malfunctions. light The blue light is on when the Network status indicator light network connection is abnormal. The blue light is on when the power Power status indicator light connection is OK.
Page 32 User's Manual Figure 2-15 Front panel The NVR22-16P-I/NVR22-16P-I2 front panel is shown as below. Figure 2-16 Front panel The NVR52-EI/NVR52-8P-EI/NVR52-16P-EI/NVR54-EI/NVR54-16P-EI/NVR41HS-EI/NVR42-EI/NVR41HS- P-EI/NVR42-P-EI/NVR41HS-8P-EI/NVR42-8P-EI/NVR42-16P-EI/NVR44-EI/NVR44-16P-EI front panel is shown as below. Figure 2-17 Front panel The NVR52-XI/NVR52-8P-XI/NVR52-16P-XI front panel is shown as below. Figure 2-18 Front panel The NVR54-XI front panel is shown as below.
Page 33: Nvr48-I/Nvr58-I/Nvr58-I/L Series
User's Manual Table 2-7 Icons Icon Name Function HDD status indicator The blue light is on when the HDD malfunctions. light The blue light is on when the Network status indicator light network connection is abnormal. The blue light is on when the power Power status indicator light connection is OK.
Page 34: Nvr48-4Ks2/I/Nvr48-16P-4Ks2/I/Nvr54-Ei/Nvr54-16P-Ei/Nvr58-Ei/Nvr58-16P- Ei/Nvr48-Ei/Nvr48-16P-Ei
User's Manual The figure is for reference only. Figure 2-22 Front panel Table 2-9 Icons Port Name Function Connects to the external devices such as keyboard, USB port mouse, and USB storage device. IR indicator Receives signals from the remote control. 2.1.11 NVR48-4KS2/I/NVR48-16P-4KS2/I/NVR54-EI/NVR54-16P- EI/NVR58-EI/NVR58-16P-EI/NVR48-EI/NVR48-16P-EI The figures are for reference only.
Page 35: Nvr608-32-4Ks2 Series
User's Manual Figure 2-25 Front panel Table 2-10 Icons Icon Name Function The blue light is on when the HDD HDD status indicator light malfunctions. The blue light is on when the Network status indicator light network connection is abnormal. The blue light is on when the power Power status indicator light connection is normal.
Page 36: Nvr608-64-4Ks2/Nvr608-128-4Ks2/Nvr608H-Xi/Nvr608Rh-Xi Series
User's Manual Icon Name Function Connect to peripheral USB 2.0 USB 2.0 port storage device, mouse, burner and more. 2.1.13 NVR608-64-4KS2/NVR608-128-4KS2/NVR608H- XI/NVR608RH-XI Series The NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32-XI/NVR608H-64-XI/NVR608H-128- XI/NVR608RH-32-XI/NVR608RH-64-XI/NVR608RH-128-XI front panel is shown as below. Figure 2-27 Front panel Table 2-12 Front panel description Icon Name ALARM...
Page 37 User's Manual Figure 2-28 Front panel Table 2-13 Icons Name Function Press it once to turn on the device. Press it for a long time to turn off the device. ● We do not recommend you turn off the device in Power button this way.
Page 38 User's Manual Figure 2-29 Front panel Table 2-14 Icons Name Function Press it once to turn on the device. Press it for a long time to turn off the device. ● We do not recommend you turn off the device in this Power button way.
Page 39: Nvr624-Xi Series
User's Manual ◇ Red intermittent flashing twice: HDD is in a predicted fault state (including a HDD warning). ◇ Blue and red flashing alternately: HDD is in a positioned state. Figure 2-30 Front panel 2.1.15 NVR624-XI Series The following figures are for reference only. The front panel of NVR624-XI series is shown as follows.
Page 40: Rear Panel
User's Manual Name Function The blue light becomes on after system booted up properly. System HDD indicator In the system HDD, there are device important light configuration file, factory default configuration file, and device initial boot up data. Press it once to turn on the device. Press it for a long time to turn off the device.
Page 41 User's Manual 4KS3/NVR21-P-4KS3/NVR21-8P-4KS3/NVR41-EI/NVR41-8P- EI/NVR41-P-EI/NVR41-4KS3/NVR41-P-4KS3/NVR41-8P-4KS3 Series The NVR21-4KS2/NVR21-4KS3/NVR41-EI//NVR41-4KS3 is shown as below. Figure 2-33 Rear panel The NVR41-P-EI/NVR21-P-4KS2/NVR21-P-4KS3/NVR41-P-4KS3 is shown as below. Figure 2-34 Rear panel The NVR21-8P-4KS2/NVR21-8P-4KS3/NVR41-8P-EI/NVR41-8P-4KS3 is shown as below. Figure 2-35 Rear panel...
Page 42 User's Manual Table 2-16 Ports Port Name Connection Function Power socket. ● For NVR21-S2/21-4KS2/NVR21-4KS3/NVR41- EI/NVR41-4KS3, input 12 VDC/2 A. ● For NVR21-P-S2/21-P-4KS2, input 48 VDC/1.25 ● For NVR21-8P-S2/21-8P-4KS2, input 48 VDC/2 Power input port ● For NVR21-4KS3, input 12 VDC/1.5 A. ●...
Page 43: Ei/Nvr41Hs-8P-Ei/Nvr41Hs-4Ks3/Nvr41Hs-P-4Ks3/Nvr41Hs-8P-4Ks3 Series
User's Manual Port Name Connection Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ●...
Page 44 User's Manual Figure 2-38 Rear panel Table 2-17 Ports Port Name Connection Function Power socket. ● For NVR11HS-P-S3H/NVR21HS-4KS2/NVR41HS- 4KS2/NVR41HS-EI/NVR41HS-4KS3 series, input 12 VDC/2 A. ● For NVR11HS-P-S3H/NVR21HS-P-4KS2/NVR41HS- 4KS2 series, input 48 VDC/1.25 A. ● For NVR11HS-8P-4KS2/NVR21HS-8P- Power input port 4KS2/NVR41HS-4KS2 series, input 48 VDC/2 A. ●...
Page 45: Nvr22-4Ks2/Nvr22-P-4Ks2/Nvr22-8P-4Ks2//Nvr22-4Ks3/Nvr22-P-4Ks3/Nvr22-8P- 4Ks3/Nvr22-16P-4Ks3 Series
User's Manual Port Name Connection Function Bidirectional talk input port. It is to receive the analog MIC IN Audio input port audio signal output from the devices such as microphone, pickup. Audio output port. It is to output the analog audio signal to the devices such as the sound box.
Page 46 User's Manual The NVR22-P-4KS3 series rear panel is shown as below. Figure 2-43 Rear panel The NVR22-8P-4KS3 series rear panel is shown as below. Figure 2-44 Rear panel The NVR22-16P-4KS3 series rear panel is shown as below. Figure 2-45 Rear panel Table 2-18 Rear panel description Port Name Connection...
Page 47: 52-16P-Xi Series
User's Manual Port Name Connection Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ●...
Page 48 User's Manual The NVR52-8P-4KS2E/52-16P-4KS2E series rear panel is shown as below. The following figure takes NVR52-16P-4KS2E series as an example. NVR52-8P-4KS2E has 8 PoE ports only. Figure 2-50 Rear panel The NVR52-EI series rear panel is shown as below. Figure 2-51 Rear panel The NVR52-8P-EI series rear panel is shown as below.
Page 49 User's Manual Figure 2-56 Rear panel Table 2-19 Ports Icon Port Name Function 10/100/1000 Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and HDMI Media Page multiple-channel data to the HDMI port of the...
Page 50: Nvr54-4Ks2/Nvr58-4Ks2/Nvr54-16P-4Ks2/Nvr58-16P-4Ks2/Nvr54-24P-4Ks2/Nvr58- 16P-4Ks2E Series
User's Manual Icon Port Name Function RS485_A port. It is the cable A. You can connect to RS-485 the control devices such as speed dome PTZ. communication RS485_B. It is the cable B. You can connect to the port control devices such as speed dome PTZ. Power input port Input 12 VDC/4 A.
Page 51 User's Manual Figure 2-60 Rear panel The NVR58-16P-4KS2E series rear panel is shown as below. Figure 2-61 Rear panel Table 2-20 Rear panel description Name Function Power switch Power on-off button. Power input port Input 100–240 VAC. 10/100/1000 Mbps self-adaptive Ethernet port. Connect Network port to the network cable.
Page 52: Nvr41-4Ks2/Nvr41-P-4Ks2/Nvr41-8P-4Ks2/Nvr41-4Ks2/L/Nvr41-P-4Ks2/L/Nvr41-8P- 4Ks2/L/Nvr21-S3/Nvr21-P-S3/Nvr21-8P-S3 Series
User's Manual Name Function ● There are four groups. The first group is from port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16.
Page 53 User's Manual 4KS2/L/NVR41-P-4KS2/L/NVR41-8P-4KS2/L/NVR21-S3/NVR21-P- S3/NVR21-8P-S3 Series The NVR41-4KS2/NVR41-4KS2/L/NVR21-S3 series rear panel is shown as below. Figure 2-62 Rear panel The NVR41-P-4KS2/NVR41-P-4KS2/L series rear panel is shown as below. Figure 2-63 Rear panel The NVR41-8P-4KS2/NVR41-8P-4KS2/L series rear panel is shown as below. Figure 2-64 Table 2-21 Ports Port Name...
Page 54: Nvr42-4Ks2/Nvr42-P-4Ks2/Nvr42-8P-4Ks2/Nvr42-16P-4Ks2/Nvr42-4Ks2/L/Nvr42-P- 4Ks2/L/Nvr42-8P-4Ks2/L/Nvr42-16P-4Ks2/L/Nvr42-Ei/Nvr42-P-Ei/Nvr42-8P-Ei/Nvr42
User's Manual Port Name Connection Function VGA video output port. Output analog video VGA video output signal. It can connect to the monitor to view port analog video. Ground end. Power socket. ● For NVR41-4KS2: 12 VDC/2 A power. Power input port ●...
Page 55 User's Manual Figure 2-67 Rear panel The NVR42-16P-4KS2/NVR42-16P-4KS2/L/NVR42-16P-4KS3 series rear panel is shown as below. Figure 2-68 Rear panel Table 2-22 Rear panel description Name Function Power switch Power on/off button. Power socket. ● For NVR42-4KS2/NVR42-EI/NVR42-4KS3 series, input 12 VDC/4 A. ●...
Page 56: Nvr44-4Ks2/Nvr44-16P-4Ks2/Nvr44-4Ks2/L/Nvr44-16P-4Ks2/L/Nvr44-4Ks2/I/Nvr44- 16P-4Ks2/I/Nvr48-Ei/Nvr44-Ei/Nvr48-16P-Ei/Nvr44-16P-Ei/Nvr44-4Ks3/Nvr48-4Ks3 Series
User's Manual Name Function ● 2 groups of alarm output ports. (Group 1: port 1–2 NO1–C1, Group 2: port NO2–C2). Output alarm signal to the alarm device. Please make sure C1, C2 there is power to the external alarm device. ●...
Page 57 User's Manual Figure 2-70 Rear panel The NVR48-16P-EI/NVR44-16P-EI series rear panel is shown as below. Figure 2-71 Rear panel Table 2-23 Ports Name Function Power switch — Power on-off button. Power input — 90~264-12 VAC 12.5 A/-53 V 2.83 A. port Bidirectional talk input port.
Page 58: Nvr48-4Ks2/Nvr48-16P-4Ks2/Nvr48-4Ks2/L/Nvr48-16P-4Ks2/L/Nvr48-4Ks2/I/Nvr48- 16P-4Ks2/I Series
User's Manual Name Function port 1–3 ● 3 groups of alarm output ports. (Group 1: port NO1–C1; Group 2: port NO2–C2; Group 3: port NO3–C3). Output alarm signal to the alarm device. Please make sure C1–C3 there is power to the external alarm device. ●...
Page 59 User's Manual Figure 2-72 Rear panel The NVR48-16P-4KS2/NVR48-16P-4KS2/L/NVR48-16P-4KS2/I series rear panel is shown as below. Figure 2-73 Rear panel The NVR48-16P-EI series rear panel is shown as below. Figure 2-74 Rear panel Table 2-24 Ports Name Function Power switch — Power on-off button.
Page 60 User's Manual Name Function ● There are four groups. The first group is from port 1 to port 4, the second group is from port 5 to port 8, the third group is from 9 to 12, and the fourth group is from 13 to 16.
Page 61: Nvr21-W-4Ks2 Series
User's Manual Name Function VGA video VGA video output port. Output analog video signal. It can output port connect to the monitor to view analog video. Built-in Switch. Support PoE. PoE PORTS PoE port For PoE series product, you can use this port to provide power to the network camera.
Page 62: Nvr21Hs-W-4Ks2
User's Manual Port Name Connection Function High definition audio and video signal output port. It transmits uncompressed high High Definition Media HDMI definition video and multiple-channel data Page to the HDMI port of the display device. HDMI version is 1.4. VGA video output port.
Page 63: Nvr21-I/Nvr21-I2 Series
User's Manual Table 2-26 Ports Icon Name Function Power input socket Power socket. Input 12 VDC/2 A. 10/100 Mbps self-adaptive Ethernet port. Connect Network port to the network cable. USB 2.0 port. Connect to mouse, USB storage USB 2.0 port device, and more.
Page 64: Nvr22-I/Nvr22-I2 Series
User's Manual Port Name Connection Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ●...
Page 65 User's Manual Port Name Connection Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ●...
Page 66: Nvr21-P-I/Nvr21-P-I2 Series
User's Manual 2.2.14 NVR21-P-I/NVR21-P-I2 Series The figure is for reference only. Figure 2-80 Rear panel Table 2-29 Ports Port Name Connection Function USB port. Connect to mouse, USB storage device USB port and more. High definition audio and video signal output High Definition port.
Page 67 User's Manual The figure is for reference only. Figure 2-81 Rear panel Figure 2-82 Rear panel Table 2-30 Ports Port Name Connection Function Ground end. USB port. Connect to mouse, USB storage device USB port and more. High definition audio and video signal output High Definition port.
Page 68: Nvr21-8P-I/Nvr21-8P-I2 Series
User's Manual Port Name Connection Function Power input port Power socket. Power switch Power on/off button. 2.2.16 NVR21-8P-I/NVR21-8P-I2 Series The figure is for reference only. Figure 2-83 Rear panel Table 2-31 Ports Port Name Connection Function USB port. Connect to mouse, USB storage device USB port and more.
Page 69: Nvr22-8P-I/Nvr22-8P-I2 Series
User's Manual Port Name Connection Function Built-in switch. Support PoE function. PoE PORTS PoE port For PoE series product, you can use this port to provide power to the network camera. Power input port Power socket. Ground end. 2.2.17 NVR22-8P-I/NVR22-8P-I2 Series The figure is for reference only.
Page 70 User's Manual Port Name Connection Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ●...
Page 71: Nvr22-16P-I/Nvr22-8P-I2 Series
User's Manual 2.2.18 NVR22-16P-I/NVR22-8P-I2 Series The figure is for reference only. Figure 2-87 Rear panel Table 2-33 Ports Port Name Connection Function Ground end. Bidirectional talk input port. It is to receive the analog MIC IN Audio input port audio signal output from the devices such as microphone, pickup.
Page 72: Nvr21Hs-I/Nvr21Hs-I2 Series
User's Manual Port Name Connection Function The two ports Power output port. It can provide serve as power to some peripheral devices such — as camera and alarm device. Make sure another group the power supply of peripheral device of alarm shall be below 1 A.
Page 73: Nvr21Hs-P-I/Nvr21Hs-P-I2 Series
User's Manual Port Name Connection Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ●...
Page 74: Nvr21Hs-8P-I/Nvr21Hs-8P-I2 Series
User's Manual Port Name Connection Function Bidirectional talk input port. It is to receive the MIC IN Audio input port analog audio signal output from the devices such as microphone, pickup. Audio output port. It is to output the analog audio signal to the devices such as the sound box.
Page 75: Nvr4208-8P-I Series
User's Manual Port Name Connection Function VGA video output port. Output analog video VGA video output signal. It can connect to the monitor to view port analog video. 10/100 Mbps self-adaptive Ethernet port. Connect Network port to the network cable. Built-in switch.
Page 76: Nvr4216-I Series
User's Manual Port Name Function Audio output port. It is to output analog audio signal to devices such as sound box. ● Bidirectional talk output. MIC OUT ● Audio output on 1-window video monitor. ● Audio output on 1-window video playback. VGA video output port.
Page 77 User's Manual Table 2-38 Ports Port Name Function 10/100/1000 Mbps self-adaptive Ethernet port. Connect to the Network port network cable. Audio output port. It is to output analog audio signal to devices such as sound box. ● Bidirectional talk output. MIC OUT ●...
Page 78: Nvr58-I/Nvr58-I/L/Nvr48-I Series
User's Manual 2.2.24 NVR58-I/NVR58-I/L/NVR48-I Series ● The figure takes NVR58-I/NVR58-I/L/NVR4832-I series as examples. ● The figure is for reference only. Figure 2-93 Rear panel Figure 2-94 Rear panel Table 2-39 Ports Port Name Function Power button Turns on/off the NVR. External SATA port.
Page 79 User's Manual Port Name Function ● Five groups of alarm output ports (Group 1: NO1-C1, Group 2: NO2-C2, Group 3: NO3-C3, Group 4: NO4-C4, Group 5: NO5, C5, NC5). Output alarm signal to the external alarm device. Make sure power supply is Alarm output port (NO1-NO5, C1-C5, NC5) available for the external alarm device.
Page 80: Nvr54-I/Nvr54-I/L/Nvr44-I Series
User's Manual Port Name Function 10/100/1000 Mbps self-adaptive Ethernet port. Connect to Network port the network cable. Power input port Input power of 100-240 V and 50-60 Hz. GND. 2.2.25 NVR54-I/NVR54-I/L/NVR44-I Series ● The following figure takes NVR5432-16P-I and NVR5432-16P-I/L series as examples. ●...
Page 81 User's Manual Port Name Function High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel HDMI port audio data to displays with HDMI port. The two HDMI ports support 2-channel high definition HDMI output of different sources.
Page 82: Nvr52-16P-I/Nvr52-16P-I/L/Nvr52-8P-I/Nvr52-8P-I/L/Nvr42-16P-I Series
User's Manual Port Name Function ports serve +12 V power output port. It can provide power to anot some peripheral devices such as camera and alarm device. Make sure the power supply of peripheral grou device shall be below 1 A. p of alarm outp...
Page 83 User's Manual Figure 2-97 Rear panel The NVR52-8P-I/NVR52-8P-I/L series rear panel is shown as below. Figure 2-98 Rear panel The NVR4216-16P-I series rear panel is shown as below. Figure 2-99 Rear panel Table 2-40 Rear panel description Port Name Function Power input port Input power of 100-240 V and 50-60 Hz.
Page 84 User's Manual Port Name Function ● Two groups of alarm output ports (Group 1: NO1-C1, Group 2: NO2-C2). Output alarm Alarm signal to the external alarm device. Make output port sure power supply is available for the (NO1-NO2, external alarm device. C1-C2) ●...
Page 85: Nvr608-4Ks2/Nvr608H-Xi/Nvr608Rh-Xi Series
User's Manual Port Name Function ports serve +12 V power output port. It can anoth provide power to some peripheral devices such as camera and alarm device. Make sure the power supply of group peripheral device shall be below 1 A. alarm outpu ports.
Page 86 User's Manual Figure 2-100 Rear panel (1) The NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32-XI/NVR608H-64-XI/NVR608H-128-XI series rear panel is shown as below. Figure 2-101 Rear panel (2) Figure 2-102 Rear panel (3) The NVR608RH-32-XI/NVR608RH-64-XI/NVR608RH-128-XI front panel is shown as below. Figure 2-103 Rear panel (4)
Page 87: Nvr616-4Ks2/Nvr616-Xi Series
User's Manual Table 2-41 Ports description Function Function Alarm input/alarm output/RS-485 Power socket. port RS-232 port Audio output Audio input VGA port Network port HDMI port ● NVR608-4K: USB 2.0 port USB 3.0 port ● NVR608-4KS2: USB 3.0 port eSATA port Ground 2.2.28 NVR616-4KS2/NVR616-XI Series The general series rear panel of NVR616-4KS2 series is shown as below.
Page 88 User's Manual Table 2-42 Ports Name Name Power on-off button Power socket 1000M fiber port Network port HDMI port RS-232 port Video VGA output Audio output Audio input USB 3.0 port USB 3.0 port eSATA port SAS extension port Alarm input/output/RS-485 port HDMI port High-definition decoding card is not —...
Page 89: Nvr624-Xi Series
User's Manual Figure 2-107 Rear panel Table 2-43 Ports Name Name Ground RS-232 Port Network Port USB Port HDMI Port High-definition decoding card is not eSATA Port installed in standard hardware configuration, you can purchase as needed. VGA Port AUDIO IN, RCA Connector AUDIO OUT, RCA Connector Alarm In/Out Power Input...
Page 90 User's Manual Figure 2-108 Rear panel Table 2-44 Ports Name Name Power Input Alarm In/Out Network Port USB Port HDMI Port High-definition decoding card is not eSATA Port installed in standard hardware configuration, you can purchase as needed. VGA Port AUDIO IN, RCA Connector AUDIO OUT, RCA Connector RS-232 Port...
Page 91: Nvr11Hs-W-S2-Ce/Nvr11Hs-W-S2-Fcc Series
User's Manual 2.2.30 NVR11HS-W-S2-CE/NVR11HS-W-S2-FCC Series Figure 2-109 Rear panel Table 2-45 Ports Icon Name Function USB 2.0 port. Connect to mouse, USB storage USB 2.0 port device, USB burner and more. 10/100 Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port.
Page 92: Nvr54-Ei/Nvr54-16P-Ei/Nvr58-Ei/Nvr58-16P-Ei/Nvr54-Xi/Nvr-58-Xi Series
User's Manual Icon Name Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. ● Bidirectional talk output. MIC OUT Audio output port ● Audio output on 1-window video monitor. ●...
Page 93 User's Manual Figure 2-113 Rear panel The NVR54-XI series rear panel is shown as below. Figure 2-114 Rear panel The NVR58-XI series rear panel is shown as below. Figure 2-115 Rear panel Table 2-46 Rear panel description Icon Name Function Power switch Power on-off button Power input port...
Page 94 User's Manual Icon Name Function Audio output port. It is to output the analog audio signal to the devices such as the sound box. MIC OUT Audio output port ● Bidirectional talk output. ● Audio output on 1-window video monitor. ●...
Page 95: Nvr50-Ei Series
User's Manual Icon Name Function VGA video output port. Output analog video VGA video output port signal. It can connect to the monitor to view analog video. Built-in Switch. Support PoE or ePoE function. For ePoE series product, port 1 to port 8 are the ePoE ports.
Page 96: Alarm Connection
User's Manual 2.3 Alarm Connection 2.3.1 Alarm Port The alarm port is shown as below. The following figure is for reference only. Figure 2-117 Alarm port Table 2-48 Alarm port description Icon Function 1–16 ALARM1–ALARM16. The alarm becomes activated in the low level. NO1 C1, NO2 C2, NO3 Four NO activation output groups.
Page 97 User's Manual Figure 2-118 Alarm input port (1)
Page 98: Alarm Output Port
User's Manual Figure 2-119 Alarm input port (2) ● There are two alarm input types: NO/NC. ● When connect the ground port of the alarm device to the NVR, you can use any of the GND ports ● Connect the NC port of the alarm device to the alarm input port (ALARM) of the NVR. ●...
Page 99: Alarm Relay Specifications
User's Manual 2.3.4 Alarm Relay Specifications Table 2-49 Alarm relay specifications Model: JRC-27F Material of the touch Silver Rated switch capacity 30 VDC 2 A, 125 VAC 1 A Maximum switch power 125 VAC, 160 W Rating (Resistance Load) Maximum switch voltage 250 VAC, 220 VDC Maximum switch currency Between touches with same...
Page 100: Pc-End To The Device-End
User's Manual Figure 2-120 Enable two-way talk Step 5 At the device end, speak by the speaker or the pickup, and then you can get the audio from the earphone or sound box at the PC end. Figure 2-121 Device to PC 2.4.2 PC-end to the Device-end Device Connection 1.
Page 101: Device Installation
User's Manual 3 Device Installation All the installation and operations here should conform to your local electric safety rules. 3.1 Device Installation Diagram Please see the following diagram to install the NVR. Figure 3-1 Installation flowchart...
Page 102: Checking Unpacked Nvr
User's Manual 3.2 Checking Unpacked NVR When you receive the NVR, check against the following checklist. If any of the items are missing or damaged, contact the local retailer or after-sales service immediately. Table 3-1 Checklist Sequence Item Description Appearance No obvious damage.
Page 103 User's Manual S3/NVR21-8P-S3/NVR41-EI/NVR41-P-EI/NVR41-8P-EI Background Information Connect cable and then secure the HDD on the NVR if it is not convenient to connect the HDD data cable and power cable at first. Procedure Step 1 Loosen the screws of the bottom of the chassis. Figure 3-2 Lossen screws Step 2 Place the HDD in accordance with the four holes in the bottom.
Page 104 User's Manual Figure 3-4 Secure screws Step 4 Connect the HDD cable and power cable to the HDD and the mainboard respectively. Figure 3-5 Connect cables Step 5 Put the cover back and then fix the screws of the rear panel. The installation is complete.
Page 105: Ei/Nvr41Hs-8P-Ei2
User's Manual Figure 3-6 Put back the cover 3.3.2 NVR41HS-4KS2/NVR41HS-P-4KS2/NVR41HS-8P- 4KS2/NVR41HS-4KS2/L/NVR41HS-P-4KS2/L/NVR41HS-8P- 4KS2/L/NVR21HS-4KS2/NVR21HS-P-4KS2/NVR21HS-8P- 4KS2/NVR21HS-W-4KS2/NVR11HS-S3H/NVR11HS-P-S3H/NVR11HS- 8P-S3H/NVR21HS-I/NVR21HS-I2/NVR21HS-P-I/NVR21HS-P- I2/NVR21HS-8P-I/NVR21HS-8P-I2/NVR21HS-S3/NVR21HS-P- S3/NVR21HS-8P-S3/NVR11HS-W-S2-CE/NVR11HS-W-S2- FCC/NVR41HS-EI/NVR41HS-P-EI/NVR41HS-8P-EI2 Procedure Step 1 Loosen the screws of the upper cover and side panel.
Page 106 User's Manual Figure 3-7 Loosen screws Step 2 Remove the cover in the direction of the arrow as shown in the figure below. Figure 3-8 Remove cover Step 3 Turn over the device, and align the HDD to the four holes of bottom panel, and then fix the HDD with screws.
Page 107: I/L/Nvr52-8P-I/Nvr52-8P-I/L/Nvr42-Ei/Nvr42-P-Ei/Nvr42-8P-Ei/Nvr42-16P-Ei
User's Manual Figure 3-10 Connect cables Step 5 Put the cover in accordance with the clip and then fix the screws on the rear panel and side panel. Figure 3-11 Put cover back 3.3.3 NVR22-8P-S2/NVR42-4KS2/NVR42-P-4KS2/NVR42-8P- 4KS2/NVR42-16P-4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P- 4KS2/L/NVR42-16P-4KS2/L/NVR52-4KS2/NVR52-8P-4KS2/NVR52- 16P-4KS2/ NVR52-24P-4KS2/NVR22-4KS2/NVR22-P-4KS2/NVR22- 8P-4KS2/NVR52-8P-4KS2E/NVR22-I/NVR22-I2/NVR22-P-I/NVR22-P- I2/NVR22-8P-I/NVR22-8P-I2/NVR22-16P-I/NVR22-16P-I2/NVR42- I/NVR42-8P-I/NVR42-16P-I/NVR52-16P-I/NVR52-16P-I/L/NVR52-8P- I/NVR52-8P-I/L/NVR42-EI/NVR42-P-EI/NVR42-8P-EI/NVR42-16P-EI...
Page 108 User's Manual Figure 3-12 Remove screws Step 2 Remove the case cover along the direction shown in the following arrow. Figure 3-13 Remove cover Step 3 Match the four holes on the baseboard to place the HDD.
Page 109 User's Manual Figure 3-14 Align HDD Step 4 Turn the device upside down, match the screws with the holes on the HDD and then fasten them. The HDD is fixed to the baseboard. Figure 3-15 Fasten screws Step 5 Connect the HDD data cable and power cable to the device.
Page 110 User's Manual Figure 3-16 Connect cables Step 6 Put back the cover and fasten the four screws on the rear panel to complete the installation. Figure 3-17 Put back cover 3.3.4 NVR54-4KS2/NVR54-16P-4KS2/NVR44-4KS2/NVR44-16P- 4KS2/NVR44-4KS2/L/NVR44-16P-4KS2/L/NVR54-24P-4KS2/NVR54-...
Page 111 User's Manual 16P-4KS2E/NVR58-I/NVR58-I/L/NVR54-I/NVR54-I/L/NVR52-I/NVR52- I/L/NVR42-I/NVR42-8P-I/NVR44-I/NVR48-I/NVR608-32-4KS2/NVR44- 4KS2/I/NVR44-16P-4KS2/I/NVR48-4KS2/I/NVR48-16P- 4KS2/I/NVR48-EI/NVR48-16P-EI/NVR44-EI/NVR44-16P-EI Background Information Different models have different number of HDDs. Procedure Step 1 Remove the fixing screws on the rear panel of the device. Figure 3-18 Remove screws Step 2 Remove the case cover along the direction shown in the following arrow. Figure 3-19 Remove cover Step 3 Remove the screws on the sides of HDD bracket to take out the bracket.
Page 112 User's Manual Figure 3-20 Remove screws (1.5U) Figure 3-21 Remove screws (2U) Step 4 Match the four screw holes on the HDD with the four holes on the bracket and then fasten the screws. The HDD is fixed to the bracket. Figure 3-22 Fasten screws Step 5 see Step 4 to install other HDDs.
Page 113 User's Manual Figure 3-23 Install more HDDs Step 6 Lock the two HDD brackets. This step is required for 2U devices only. Figure 3-24 Lock brackets Step 7 Place the bracket to the device and then fasten the screws on the sides of the bracket. Figure 3-25 Fasten screws Step 8 Connect the HDD data cable and power cable to the device.
Page 114: Series
User's Manual The following figure is for reference only. Figure 3-26 Connect cables Step 9 Put back the cover and fasten the screws on the rear panel to complete the installation. Figure 3-27 Fasten screws 3.3.5 NVR608-64-4KS2/NVR608-128-4KS2/NVR608H-32- XI/NVR608H-64-XI/NVR608H-128-XI Series Procedure Step 1 Unlock the lock on the front panel.
Page 115 User's Manual Figure 3-28 Unlock front panel Step 2 Press the button on the 2 sides to open the front panel. Figure 3-29 Open front panel Step 3 Match the 4 screw holes on the HDD with the 4 holes on the bracket and then fasten the screws.
Page 116: Nvr616-4Ks2 Series
User's Manual Figure 3-31 Unlock front panel Step 5 Close the front panel and then tighten the lock on the front panel. Figure 3-32 Lock front panel 3.3.6 NVR616-4KS2 Series Background Information The following figures are for reference only. Procedure Step 1 Press the red button on the HDD box, open the handle and then pull out the HDD box.
Page 117 User's Manual Figure 3-33 Take out HDD box Step 2 Put the HDD into the HDD box along the direction shown in the following arrow. Figure 3-34 Put HDD into box Step 3 Fasten the screws on the sides of the HDD box. Figure 3-35 Fasten screws Step 4 Insert the HDD box into the HDD slot, press it to the bottom, and then close the box...
Page 118: Cd-Rom Installation
User's Manual If you have not pushed the HDD box to the bottom, do not close the handle to avoid any damage to the HDD slot Figure 3-36 Close the handle 3.4 CD-ROM Installation Procedure Step 1 Open the top cover and then remove the HDD bracket. Figure 3-37 Open the top cover Step 2 Take off the bottom of the HDD bracket and CD-ROM bracket.
Page 119 User's Manual Figure 3-39 Take out CD-ROM bracket Step 3 Fix the CD-ROM bracket at the HDD bracket. Figure 3-40 Fix bracket Step 4 Install a pair of the CD-ROM bracket. Please make sure that the reverse side is secure too. Figure 3-41 Install bracket Figure 3-42 Install bracket (reverse side) Step 5...
Page 120 User's Manual Figure 3-43 Install SATA burner Step 6 Use screw driver to fix the screws. Figure 3-44 Fasten screws Step 7 Put the bracket back. Please adjust the CD-ROM to the proper position so that the button of the front panel is directly facing the pop-up button of the CD-ROM.
Page 121 User's Manual Figure 3-45 Put bracket back Step 8 Connect the SATA cable and power wire. Figure 3-46 Connect cables Step 9 Secure the HDD bracket and put the top cover back.
Page 122: Connection Sample
User's Manual Figure 3-47 Put cover back 3.5 Connection Sample The following figures are for reference only and might differ from the actual product. 3.5.1 NVR41-4KS2/NVR41-P-4KS2/NVR41-8P-4KS2/NVR41- 4KS2/L/NVR41-P-4KS2/L/NVR41-8P-4KS2/L/NVR21-4KS2/NVR21-P- 4KS2/NVR21-8P-4KS2/NVR21-I/NVR21-I2/NVR21-P-I/NVR21-P- I2/NVR21-8P-I/NVR21-8P-I2/NVR21-S3/NVR21-P-S3/NVR21-8P-...
Page 123 User's Manual S3/NVR41-EI/NVR41-P-EI/NVR41-8P-EI Figure 3-48 Typical connection...
Page 124: Nvr21-W-4Ks2/Nvr21Hs-W-4Ks22
User's Manual 3.5.2 NVR21-W-4KS2/NVR21HS-W-4KS22 Figure 3-49 Typical connection 3.5.3 NVR11HS-S3H/NVR11HS-P-S3H/NVR11HS-8P-S3H/NVR41HS- 4KS2/NVR41HS-P-4KS2/NVR41HS-8P-4KS2/NVR41HS- 4KS2/L/NVR41HS-P-4KS2/L/NVR41HS-8P-4KS2/L/NVR21HS- 4KS2/NVR21HS-P-4KS2/NVR21HS-8P-4KS2/NVR21HS-I/NVR21HS- I2/NVR21HS-P-I/NVR21HS-P-I2/NVR21HS-8P-I/NVR21HS-8P- I2/NVR21HS-S3/NVR21HS-P-S3/NVR21HS-8P-S3/NVR41HS-...
Page 125: Nvr22-4Ks2/Nvr22-P-4Ks2/Nvr22-8P-4Ks2/Nvr22-I/Nvr22-I2/Nvr22-P-I/Nvr22-P- I2/Nvr22-8P-I/Nvr22-8P-I2/Nvr22-16P-I/Nvr22-16P-I2 Series
User's Manual EI/NVR41HS-P-EI/NVR41HS-8P-EI Figure 3-50 Typical connection 3.5.4 NVR22-4KS2/NVR22-P-4KS2/NVR22-8P-4KS2/NVR22-I/NVR22- I2/NVR22-P-I/NVR22-P-I2/NVR22-8P-I/NVR22-8P-I2/NVR22-16P- I/NVR22-16P-I2 Series Figure 3-51 Typical connection...
Page 126: Nvr52-4Ks2/Nvr52-8P-4Ks2/Nvr52-16P-4Ks2/Nvr52-24P-4Ks2/Nvr52-8P-4Ks2E/Nvr52- 16P-4Ks2E Series
User's Manual 3.5.5 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR52-24P- 4KS2/NVR52-8P-4KS2E/NVR52-16P-4KS2E Series Figure 3-52 Typical connection 3.5.6 NVR42-4KS2/NVR42-P-4KS2/NVR42-8P-4KS2/NVR42-16P- 4KS2/NVR42-4KS2/L/NVR42-P-4KS2/L/NVR42-8P-4KS2/L/NVR42-...
Page 127: Nvr54-4Ks2/Nvr54-16P-4Ks2/Nvr58-4Ks2/Nvr58-16P-4Ks2/Nvr54-24P-4Ks2/Nvr54- 16P-4Ks2E/Nvr58-16P-4Ks2E Series
User's Manual 16P-4KS2/L/NVR42-EI/NVR42-P-EI/NVR42-8P-EI/NVR42-16P-EI Figure 3-53 Typical connection 3.5.7 NVR54-4KS2/NVR54-16P-4KS2/NVR58-4KS2/NVR58-16P- 4KS2/NVR54-24P-4KS2/NVR54-16P-4KS2E/NVR58-16P-4KS2E Series Figure 3-54 Typical connection...
Page 128: Nvr44-4Ks2/Nvr44-16P-4Ks2/Nvr44-4Ks2/L/Nvr44-16P-4Ks2/L/Nvr44-4Ks2/I/Nvr44- 16P-4Ks2/I/Nvr44-Ei/Nvr44-16P-Ei Series
User's Manual 3.5.8 NVR44-4KS2/NVR44-16P-4KS2/NVR44-4KS2/L/NVR44-16P- 4KS2/L/NVR44-4KS2/I/NVR44-16P-4KS2/I/NVR44-EI/NVR44-16P-EI Series Figure 3-55 Typical connection 3.5.9 NVR48-4KS2/NVR48-16P-4KS2/NVR48-4KS2/L/NVR48-16P- 4KS2/L/NVR48-4KS2/I/NVR48-16P-4KS2/I/NVR48-EI/NVR48-16P-EI...
Page 129 User's Manual Series Figure 3-56 Typical connection...
Page 130: Nvr58-I/Nvr58-I/L/Nvr48-I Series
User's Manual 3.5.10 NVR58-I/NVR58-I/L/NVR48-I Series Figure 3-57 Typical connection 3.5.11 NVR54-I/NVR54-I/L/NVR44-I Figure 3-58 Typical connection 3.5.12 NVR52-16P-I/NVR52-16P-I/L/NVR52-8P-I/NVR52-8P-...
Page 131: Nvr4216-I Series
User's Manual I/L/NVR42-8P-I/NVR42-16P-I Series Figure 3-59 Typical connection 3.5.13 NVR4216-I Series Figure 3-60 Typical connection...
Page 132: Nvr608-4Ks2/Nvr608H-Xi/Nvr608Rh-Xi Series
User's Manual 3.5.14 NVR608-4KS2/NVR608H-XI/NVR608RH-XI Series The following figure is for reference only and might differ from the actual product. Figure 3-61 Typical connection 3.5.15 NVR616-4KS2 Series Figure 3-62 Typical connection...
Page 133: Starting The Device
User's Manual 4 Starting the Device Background Information ● For device security, connect the NVR to the power adapter first and then connect the device to the power socket. ● The rated input voltage matches the device power button. Make sure the power wire connection is OK.
Page 134: Local Operations
User's Manual 5 Local Operations The following figures are for reference only. Slight difference might be found on the actual page. 5.1 Initialization Background Information ● For first-time use, set a login password for the admin account (default user). ● We recommend setting password protection so that you can reset password in case you forgot. ●...
Page 135 User's Manual Parameter Description Password Enter the password for admin and then confirm the password. Confirm Password Enter the information that can remind you of the password. Password Hint On the login window, click to display the password hint. Step 4 Set unlock pattern.
Page 136: Startup Wizard
User's Manual Figure 5-3 Set password protection Table 5-2 Security question parameters Password Protection Description Mode Enter the linked email address. Enter an email address for password reset. If you forgot the Email Address password, enter the security code that you will get from this linked email address to reset the password of admin.
Page 137 User's Manual Figure 5-4 Startup wizard Step 2 Configure IP address, and then click Next. The number of network adapters might vary with models. Configure the IP address of the network adapter according to the actual connection situation. 1) Click Figure 5-5 Edit network adapter 2) Configure parameters.
Page 138 User's Manual Parameter Description ● Single NIC: Two network adapters work separately. If one of the two network adapters is disconnected, the system network status is regarded as offline. ● Fault Tolerance: Two network adapters share one IP address. Normally only one network adapter is working. When this adapter fails, the other network adapter will start working automatically to ensure the network connection.
Page 139 User's Manual ● Automatically get DNS server address: When there is a DHCP server in the network, you can enable DHCP, and then the Device gets a dynamic IP address. ● Enter DNS server address: Select IP Version, and then configure the preferred DNS server and alternate DNS server.
Page 140 User's Manual Figure 5-7 Search device ● To view the live image of a camera, click LIVE and then enter the username and password. You can only view live images of cameras accessed through private protocol. ● To filter the remote devices, select device name from the Filter drop-down list. ●...
Page 141: Login
User's Manual ● To configure read/write property, select an option from the Properties drop-down list. ● To format an HDD, select the HDD, and then click Format. Figure 5-8 Manage HDD Step 6 Click OK. When the Device prompts whether to restart, click OK. The configurations through startup wizard take effect after the Device restarts.
Page 142 User's Manual Figure 5-9 Unlock pattern login...
Page 143: Main Menu
User's Manual Figure 5-10 Password login Draw unlock pattern, or enter password and then click OK. Step 2 5.4 Main Menu After login, right-click the live page, and then click Main Menu.
Page 144: Quick Operation Bar
User's Manual Figure 5-11 Main menu Table 5-4 Main menu description Description Click each tile to open the corresponding configuration page. Go back to live view. Point to the icon to view the current username. Log out of, restart, or shut down the Device. Click the icon to get the QR codes of mobile client and device SN.
Page 145 User's Manual you can go to other function tiles or setting item through the quick operation bar. This section uses ALARM and CAMERA as examples to show how to quickly access other modules. Shortcut Icons on Function Titles Click ALARM to go to the ALARM page. Figure 5-12 Quick operation bar (1) Table 5-5 Quick operation bar description (1) Icon...
Page 146: Live View
User's Manual Figure 5-13 Quick operation bar (2) Table 5-6 Quick operation bar description (2) Icon Description Go to the CAMERA page. Go to the NETWORK page. Go to the STORAGE page. Go to the SYSTEM page. Go to the SECURITY page. Go to the ACCOUNT page.
Page 147: Navigation Bar
User's Manual Table 5-7 Icon description Icon Description The current channel is recording. Motion detection alarm occurs. Video loss alarm occurs. The current channel is in monitor lock status. The Device connects to the network camera remotely. This function is available on select models. 5.6.2 Navigation bar Background Information You can quickly perform operations through the icons on the navigation bar.
Page 148: Live View Control Bar
User's Manual Icon Function Open the PTZ control panel. For details, see "5.6.7.2 PTZ Control". Configure image settings. For details, see "5.7.4 Configuring Image Settings". This function is supported only in single-channel layout. Search for records. For detail, see "5.8.2.1 Search Page". Open the Voice Broadcast page.
Page 149: Instant Playback
User's Manual ● Disable the navigation bar before using this function. ● The live view control bar is different depending on the model. Figure 5-15 Live view control bar Table 5-9 Live view control bar description Name Name Instant playback. Two-way talk.
Page 150: Digital Zoom
User's Manual ● You can start, pause and close playback. ● The information such as channel name and recording status icon are shielded during instant playback and will not display until you exit playback. ● During playback, screen split layout switch is not allowed. ●...
Page 151: Two-Way Talk
User's Manual To change the quantity of snapshots, select Main Menu > CAMERA > Encode > Snapshot, in the Manual Snapshot list, select the snapshot quantity. 5.6.3.5 Two-way Talk You can perform the voice interaction between the NVR and the remote device to improve efficiency of emergency.
Page 152 User's Manual You can adjust the searching area. Make sure that there are less than 30 faces in the selected range. Figure 5-18 Draw a searching range Step 3 Select the target face that you want to search for. You can select maximum 8 target faces. Step 4 Click Search.
Page 153: Quick Pick
User's Manual ◇ Click to pause. ◇ Click to stop. ◇ Click to display or hide the intelligent rules. ● Add tag. Select the picture and then click Add Tag to add a tag to the recorded video to find the target recorded video more fast.
Page 154 User's Manual Figure 5-21 Search results Step 4 (Optional) Click Search Condition, change the search conditions, and then click Search. You can only select up to 8 targets for search. Figure 5-22 Search conditions Step 5 Hover over a search result to view the basic information including channel, start time, end time and target type.
Page 155: Acupick
User's Manual You can select one or more search results and then click Backup to back up the results. 5.6.3.9 AcuPick Search the human bodies and motor vehicles in the live videos. Both single image live and multi image live support AcuPick. Prerequisites The channel supports AcuPick, and the function has been enabled.
Page 156 User's Manual Figure 5-24 AcuPick (human detection)
Page 157 User's Manual Figure 5-25 AcuPick (motor vehicle detection) Step 5 Configure the search conditions as needed.
Page 158 User's Manual Figure 5-26 Search conditions and results Table 5-10 Descriptions of search conditions and results Name Description Configure the channel and period. When choose Search Condition Custom, you can set the start time and end time as needed. Up to 7 days can be set. Channel Displays the channels with search result.
Page 159: Shortcut Menu
User's Manual Figure 5-27 Check the search video ● Under 4K resolution, the video does not support full screen play on this page. ● Click , you can enable the AcuPick function again, freeze the image and search for the new target. 5.6.4 Shortcut Menu Right-click the live view page to bring up the shortcut menu.
Page 160 User's Manual The shortcut menu is different for different models. Figure 5-28 Shortcut menu (1)
Page 161 User's Manual Figure 5-29 Shortcut menu (2) Figure 5-30 Shortcut menu (3) Table 5-11 Shortcut menu description Function Description Main Menu Go to main menu. Search Search and play back videos or images. PTZ Control Open the PTZ control panel. For details, see "5.6.7 PTZ".
Page 162: Ai Live View Mode
User's Manual Function Description View Configure the live view screen as a single-channel layout or multi-channel 1/4/8/9/16/25/36 layout. Set customized screen split mode and channels. For details, see "5.6.9 Sequence Sequence". Add Camera Add cameras to the Device. Wireless Pairing Quickly add IPCs.
Page 163 User's Manual Figure 5-31 AI live view Step 2 (Optional) Double-click the image on the right to play the corresponding video. Step 3 Click , and then select the face attributes that you want to display. You can select up to 4 attributes.
Page 164 User's Manual On the right side of the playback page, click Add to Face Database for the detected face to add the image to the face database. Figure 5-33 AI live view and playback Step 5 Click to freeze the image, and then perform AcuPick on the target. Step 6 On the search results page, double-click one search result, and then the corresponding recording before and after the event being reported will be automatically played on the...
Page 165: Split Tracking
User's Manual The system can display four attributes at most. 5.6.6 Split Tracking You can track window split for a certain channel. Background Information This function is for select models only. Procedure Right-click the live page, and then select Split Track. Step 1 Figure 5-35 Split track Step 2...
Page 166: Ptz
User's Manual Figure 5-36 Split mode Split mode includes full screen, 1 main screen + 3 split screens and 1 main screen + 5 split screens. ● You can move the rectangles with color to adjust the videos displayed on split screens. ●...
Page 167: Ptz Settings
User's Manual Before you control the PTZ, make sure the PTZ decoder and the NVR network connection is OK. 5.6.7.1 PTZ Settings Background Information You can set different PTZ parameters for local type and remote type. Before you use local PTZ, make sure you have set PTZ protocol;...
Page 168: Ptz Control
User's Manual Figure 5-39 PTZ (remote) Step 2 Configure parameters. Table 5-12 PTZ parameters Parameter Description Channel Select the channel that you want to connect the PTZ camera to. ● Local: Connect through RS-485 port. Type ● Remote: Connect through network by adding IP address of PTZ camera to the Device.
Page 169 User's Manual Basic PTZ Control Panel Right-click the live page, and then select PTZ Control. Figure 5-40 Basic PTZ control panel ● The gray button means system does not support current function. ● For some model, the PTZ function is available only in one-window mode. Table 5-13 PTZ control parameters Parameter Description...
Page 170: Configuring Ptz Functions
User's Manual Expanded PTZ Control Panel On the basic PTZ control panel, click to open the expanded PTZ control panel to find more options. See Figure 5-41. Figure 5-41 Expanded PTZ control bar ● The functions with buttons in gray are not supported by the system. ●...
Page 171: Configuring Tours
User's Manual Figure 5-42 Preset Step 2 Click the direction arrows to the required position. Step 3 In the Preset box, enter the value to represent the required position. Step 4 Click Setting to complete the preset settings. 5.6.7.3.2 Configuring Tours Procedure Step 1 On the expanded PTZ control panel, click...
Page 172: Configuring Patterns
User's Manual A preset will be added for this tour. ● You can repeat adding more presets. ● Click Delete Preset to delete the preset for this tour. This operation can be repeated to delete more presets. Some protocols do not support deleting. 5.6.7.3.3 Configuring Patterns Procedure Step 1...
Page 173: Using Ptz Functions
User's Manual Figure 5-45 Scan Step 3 Click the direction arrows to position the left and right limits. 5.6.7.4 Using PTZ Functions After you have configured the PTZ settings, you can use the PTZ functions from the expanded PTZ control panel. Figure 5-46 Expanded PTZ control panel 5.6.7.4.1 Presets Procedure...
Page 174: Patterns
User's Manual 5.6.7.4.3 Patterns Procedure Step 1 On the expanded PTZ control panel, in the No. box, enter the value of the pattern. Step 2 Click to call the pattern. The PTZ camera moves according to the configured pattern repeatedly. Step 3 Click again to stop calling the pattern.
Page 175: Eptz
User's Manual 5.6.7.5 EPTZ 5.6.7.5.1 Configuring EPTZ Linkage Turn on the EPTZ linkage function on the live page. This function can simultaneously zoom in and track multiple humans and vehicles that trigger alarms. It provides rich details and a panoramic view at the same time.
Page 176: Eptz Live View
User's Manual Click Apply. Step 4 Related Operations When an intelligent event is triggered, the live page will display the linkage track effect. Check the EPTZ linkage in the live page. Right-click the live page, and then select EPTZ. Enable EPTZ, and then you can view local EPTZ live videos.
Page 177: Wireless Pairing
User's Manual When switching to splitting, live view layout or channel order, the device automatically exits the EPTZ live view mode. When switching to main menu or playback page, the device exits that page, and then returns to EPTZ live view mode. Figure 5-50 EPTZ live view 5.6.8 Wireless Pairing You can use the wireless pairing to quickly add IPCs to the NVR.
Page 178: Sequence
User's Manual Figure 5-51 Wireless pairing 5.6.9 Sequence You can configure the sequence of the channels displayed on the live page. Procedure Step 1 Right-click the live page, and then select Sequence.
Page 179 User's Manual ● After you select Sequence, the system automatically switches to the max split amount mode. ● The channel list on the Sequence panel displays the added camera channel number and channel name. means camera is online. means camera is offline. Figure 5-52 Sequence Step 2 On the Sequence panel, drag the channel to the desired window, or drag on the live...
Page 180 User's Manual Figure 5-53 Channel number Click Apply. Step 3 After you change the channel sequence, click Cancel or right-click the live view page, the system prompts you whether to save the sequence change. ● Click OK to save current settings. ●...
Page 181: Fisheye
User's Manual 5.6.10 Fisheye This function is for some models only. 5.6.10.1 Fisheye De-warp on Live View Page The fisheye camera (panoramic camera) has wide video of angle but its video is seriously distorted. The de-warp function can present the proper and vivid video suitable for human eyes. On the live page, right-click the fisheye channel, and then select Fisheye.
Page 182 User's Manual ● The different installations modes have different de-warp modes. ● Some models support de-warp of 180° fisheye camera. 180° fisheye camera supports de-warp in wall mount mode only. Figure 5-56 Fisheye settings Table 5-16 Installation mode Installation mode Icon Description 360°...
Page 183: Fisheye De-Warp During Playback
User's Manual Figure 5-57 De-warp You can adjust the color pane on the left pane or use your mouse to change the position of the small images on the right pane to realize fish eye de-warp. Operation: Use mouse to zoom in, zoom out, move, and rotate the image (Not for wall mount mode.) 5.6.10.2 Fisheye De-warp During Playback When playing back the fisheye record file, you can use de-warp function to adjust video.
Page 184: Shortcut Menu To Add Camera
User's Manual Figure 5-58 Temperature display 5.6.12 Shortcut Menu to Add Camera You can add cameras on the live page. Procedure Step 1 On the live page, point to a channel window. There is an icon + on the channel window. Figure 5-59 Add icon Step 2 Click "+", and then configure the parameters to add the remote device.
Page 185: Smart Tracking
User's Manual 5.6.13 Smart Tracking Track targets manually or automatically. This function is only available on the multi-sensor panoramic camera + PTZ camera. Background Information Make sure that the linked tracking function has been enabled. Procedure Step 1 Right-click the live video, and then select Smart Tracking. Step 2 Select the tracking method.
Page 186 User's Manual Figure 5-60 Enter password Step 5 Set password and email information for the remote device. If you select Using current device password and email info, the remote device automatically uses NVR admin account information (login password and email). You can skip this step.
Page 187 User's Manual Figure 5-61 Password 2) Enter the password and then confirm it. For your device security, we recommend you create a strong password according to the password strength indication and change your password regularly. 3) Click Next.
Page 188 User's Manual Figure 5-62 Password protection 4) Enter your email address, and then click Next. The email address is used to receive the security code for password resetting. If you do not want to enter email information, cancel the selection of the checkbox and then click Next or Skip.
Page 189 User's Manual ● When you are changing IP addresses of several devices at the same time, enter incremental value. The system can add the fourth decimal digit of the IP address one by one to automatically allocate the IP addresses. ●...
Page 190: Adding Remote Devices
User's Manual Figure 5-64 Device initialization Step 8 Click Finished. 5.7.2 Adding Remote Devices Add remote devices to the NVR to receive, store, and manage the video streams of the remote device. Before adding the remote devices, make sure that the devices have been initialized. 5.7.2.1 Adding Cameras from Search Background Information Search for the remote devices that are on the same network with the NVR, and then add the remote...
Page 191 User's Manual Figure 5-65 Search device ● For cameras accessed through private protocol, you can click LIVE and then enter the username and password to play live video. ● To filter the remote devices, you can enter all or part of device name in the Filter box. ●...
Page 192: Adding Cameras Manually
User's Manual When H.265 Auto Switch is enabled, the video compression standard of added remote devices is switched to H.265 automatically. Step 5 Double-click a remote device, or select a remote device and then click Add to register it to the Added Device list.
Page 193 User's Manual Figure 5-66 Manual add Step 4 Configure the parameters. The parameters might vary depending on the manufacturer that you select. Table 5-17 Remote channel parameters Parameter Description Select the channel that you want use on the Device to connect the Channel remote device.
Page 194: Importing Cameras
User's Manual Parameter Description Click Connect to get the total number of channels of the remote Total Channels device. Remote CH No. Enter the remote channel number of the remote device. Select Default, Realtime, or Fluent. Decode Strategy ● If the remote device is added through private protocol, the default type is TCP.
Page 195: Changing Ip Address Of Remote Device
User's Manual Figure 5-67 Backup encryption 2) Cancel the selection of the On checkbox to disable backup encryption, and then click ● If Backup Encryption is enabled, the file format is .backup. ● If Backup Encryption is disabled, the file format is .csv. Keep unencrypted files well to avoid data leakage.
Page 196: Changing Ip Address Of Unconnected Cameras
User's Manual Click OK. Step 4 5.7.3.2 Changing IP Address of Unconnected Cameras Procedure Select Main Menu > CAMERA > Camera List > Camera List. Step 1 Click Search Device. Step 2 The remote devices found are displayed at the upper pane. Step 3 Click , or select one or more remote devices and then click Modify IP.
Page 197 User's Manual Figure 5-68 Image Step 2 Select a channel and then configure parameters. The parameters might vary depending on the camera model. Table 5-18 Image parameters Parameter Description There are three configuration files. The system has configured the Profile corresponding parameters for each file.
Page 198 User's Manual Parameter Description Switch the left and right sides of the video image. It is disabled by default. Mirror This function is available on select models. Flip Set video display direction. It includes normal, 180°, 90°, and 270°. After you enable AI SSA (AI Scene Self-adaptation), the camera can detect environmental conditions, such as rain, fog, backlight, low light and flicker, to adjust the parameters of the image to suit the conditions, ensuring that clear images are always produced.
Page 199 User's Manual Parameter Description You can set camera backlight mode. ● SSA: In the backlight environment, the system can automatically adjust image brightness to clearly display the object. ● BLC: ◇ Default: The device performs automatic exposures according to the environment situation to make the darkest area of the video clear.
Page 200 User's Manual Parameter Description When the camera comes with an illuminator, you can configure the illuminator solution. 1. Click Settings next to Illuminator to configure the illuminator. 2. Select an illuminator solution from the Fill Light drop-down list. ● IR Mode: Enable the IR illuminator, and the white light is disabled.
Page 201: Configuring Overlay Settings
User's Manual Figure 5-69 Set the time plan Step 3 Click Apply. 5.7.5 Configuring Overlay Settings You can set parameters for overlay and private masking. 5.7.5.1 Overlay You can add the information of time and channel in the live view page. Procedure Select Main Menu >...
Page 202: Privacy Masking
User's Manual Click Apply. Step 3 5.7.5.2 Privacy Masking You can mask certain areas of the video image for privacy protection. Procedure Step 1 Select Main Menu > CAMERA > Overlay > Privacy Masking. Figure 5-70 Privacy masking Step 2 Select a channel.
Page 203 User's Manual resolution. Procedure Select Main Menu > CAMERA > Encode > Audio/Video. Step 1 Figure 5-71 Audio/video Step 2 Select a channel and then configure parameters. The parameters for main stream and sub stream are different. Some models support three streams: main stream, sub stream 1, sub stream 2.
Page 204 User's Manual Parameter Description Select resolution for the video. Resolution The maximum video resolution might be different depending on your device model. Configure the frames per second for the video. The higher the value is, the clearer and smoother the image will become. Frame rate changes along with the resolution.
Page 205: Snapshot
User's Manual Figure 5-72 More settings Step 4 Configure audio compression parameters. Table 5-21 Audio compression parameters Parameter Description This function is enabled by default for main stream. You need to manually Audio enable it for sub stream. Once this function is enabled, the recorded video file is composite audio and video stream.
Page 206: Modifying Channel Name
User's Manual Figure 5-73 Snapshot Step 2 Configure parameters. Table 5-22 Snapshot parameters Parameter Description Manual Snapshot Select the number of snapshots that you want to take each time. Channel Select the channel that you want to configure the settings for. ●...
Page 207: Checking The Poe Status
User's Manual Figure 5-74 Camera name Step 2 Modify a channel name. ● You can only change the name of the camera connected via the private protocol. ● You can enter up to 63 English characters for a channel name. ●...
Page 208: Updating Remote Devices
User's Manual Figure 5-75 PoE Step 2 (Optional) Set Enhancement Mode to On or Off. When enhancement mode is enabled, the transmission distance of the PoE port will be extended. 5.7.9 Updating Remote Devices You can update the firmware of the connected network camera through online update or file update.
Page 209: Viewing Remote Device Information
User's Manual Figure 5-76 Update Step 2 Update the firmware of the connected remote device. ● Online update. 1. Select a remote device and then click Manual Check .The system checks for available updates. 2. Select a remote device that has an update available for it, and then click Online Update.
Page 210: Firmware
User's Manual Figure 5-77 Device status Table 5-23 Parameters of device status Icon Description Icon Description IPC works properly. IPC is not supported. Alarm. Video loss. 5.7.10.2 Firmware You can view the IP address, manufacturer, type, and system version of the connected remote device.
Page 211: Recording Management
User's Manual Figure 5-78 Firmware 5.8 Recording Management 5.8.1 Recording Schedule After you set the recording schedule for videos and snapshots, the Device can automatically record videos and snapshots at the scheduled time. 5.8.1.1 Configuring Video Recording Schedule After you set the schedule for videos, the Device will record videos according to the period you set. For example, if the alarm recording period is from 6:00–18:00 on Monday, the Device will make a recording on Mondays from 6:00-18:00.
Page 212 User's Manual Figure 5-79 Video schedule Step 2 Configure the parameters. Table 5-24 Video schedule parameters Parameter Description Channel Select a channel to record a video. Enter the amount of time that you want the pre-recording to last. A Pre-record recording will be made prior to the event.
Page 213 User's Manual Parameter Description If there are several HDDs installed to the Device, you can set one of the HDDs as the redundant HDD to save the recorded files into different HDDs. If one of the HDDs becomes damaged, you can find the backup on the other HDD.
Page 214 User's Manual Figure 5-80 Period Set one or more recording types from General, Motion (motion detection), Alarm, M&A Step 3 (motion detection and alarm), Intelligent and Alarm. Figure 5-81 Recording type Step 4 Set recording period. If you have added a holiday, you can set the recording period for the holiday. Figure 5-82 Set record period ●...
Page 215 User's Manual ◇ Define for several days of a week: Click before each day one by one. The icon switches to . You can define the period for the selected days simultaneously. 2. On the timeline, drag to define a period. ◇...
Page 216: Configuring Snapshot Schedule
User's Manual Figure 5-84 Set period by editing 2. Set the recording type for each period. ◇ There are six periods for you to set for each day. ◇ Under Copy to, select All to apply the settings to all the days of the week, or select specific days that you want to apply the settings to.
Page 217: Configuring Recording Mode
User's Manual Figure 5-85 Snapshot Step 2 Select a channel to set schedule snapshot. Step 3 Set a recording type. Figure 5-86 Recording type Step 4 Set snapshot period. For details, see Step4 in "5.8.1.1 Configuring Video Recording Schedule". Step 5 Click Apply.
Page 218: Search And Playback
User's Manual Figure 5-87 Recording mode Step 2 Configure parameters. Table 5-25 Recording mode parameters Parameter Description Displays all the connected channels. You can select a single channel or Channel select All. ● Auto: Automatically make recordings according to the schedule. ●...
Page 219 User's Manual The following figure is for reference only. Figure 5-88 Search Table 5-26 Search page description Function Description Display the searched recorded video or picture. The system supports playing in single-channel, 4-channel, 9-channel, and 16-channel simultaneously. When playing back in the single-channel mode, hold down Display window the left mouse button to select the area that you want to enlarge.
Page 220 User's Manual Function Description Display the type and time period of the current recorded video. ● In the 4-channel layout, 4 time bars are displayed. In other view layouts, only 1 time bar is displayed. ● Click the colored area to start playback from a certain time.
Page 221: Playback
User's Manual Function Description ● In the Camera Name list, select one or more channels that you want to play back. ● The window split is decided by how you select the channels. For example, if you select 1 channel, the View layout and playback is displayed in the single-channel view.
Page 222 User's Manual Figure 5-90 Search from I/O device Step 3 Select Record as the search type. Step 4 Select the date, and channel. Step 5 Click or any position on the time bar. The system starts playback. You can use the playback controls to control the playback process.
Page 223: Smart Search Playback
User's Manual Icon Function Smart motion detection. You can click the icon to select a human or motor vehicle, and the system plays detected videos of the person or motor vehicle. Human and motor vehicle can be selected at the same time. Click the snapshot button in the full-screen mode to take one snapshot.
Page 224: Acupick
User's Manual Make sure that motion detection has been enabled in Main Menu > ALARM > Video Detection > Motion Detection. Procedure Step 1 Select a channel to playback video and then click . You can view the grids on the playback video.
Page 225 User's Manual Figure 5-92 AcuPick (human detection)
Page 226 User's Manual Figure 5-93 AcuPick (motor vehicle detection) Step 5 Configure the search conditions as needed.
Page 227 User's Manual Figure 5-94 Search conditions and results Table 5-28 Descriptions of search conditions and results Name Description Configure the channel and period. When choose Custom, Search Condition you can set the start time and end time as needed. Up to 7 days can be set.
Page 228: Custom Search
User's Manual ● Under 4K resolution, the video does not support full screen play on this page. ● Click , you can enable the AcuPick function again, freeze the image and search for the new target. Related Operations Hover over a search result, and then you can: ●...
Page 229 User's Manual Figure 5-96 Custom search 1 Step 5 When you want to search the target in the image, click to freeze the page. The image automatically shows the targets. Step 6 Point to the time bar, the NVR displays the thumbnails in recent times.
Page 230 User's Manual Figure 5-97 Thumbnails Step 7 Point to the target you want, and then click to check the details. Figure 5-98 Custom search 2...
Page 231 User's Manual Figure 5-99 Custom search 3 Step 8 Configure the search conditions as needed. Figure 5-100 Search conditions and results Table 5-29 Descriptions of search conditions and results Name Description Configure the channel and period. When choose Custom, Search Condition you can set the start time and end time as needed.
Page 232: Eptz Linkage
User's Manual Name Description Channel Displays the channels with search result. Select from All, Favorite Items and Hidden Items. When Target Filter you select the target items, the device will only search in this item. Configure the search similarity according to the actual Similarity conditions.
Page 233 User's Manual Figure 5-101 EPTZ linkage for playback Step 3 Turn on the EPTZ linkage function, and then configure parameters. If a certain channel has turned on the EPTZ linkage function, the configuration will still take effect after exiting playback. When replaying the recording of this channel again, the EPTZ linkage effect is still displayed.
Page 234: Clipping Videos
User's Manual Parameter Description ● Custom: Select the tracking duration time manually. For example, if you set from 30 s to 60 s, after tracking object A for 30 s, if object B appears, the camera will start tracking object B; if no other object Tracking Duration appears in the process of tracking A, the camera will stop tracking object A after 60 s.
Page 235: File List
User's Manual Figure 5-104 Backup Step 3 Select the storage device, and then click Backup. ● You can cancel the selection of the files that you do not want to back up. ● Select Combine Video to merge several videos into one. 5.8.2.8 File List On the search page, select a channel, and then click to view the file list.
Page 236 User's Manual video. After playback, you can use time or the tag keywords to search for the corresponding video and then play. Adding Tag When the system is playing back, click , and then configure the tag name. Playing back Tag During single-channel playback, click , and then on the tag list, double-click a file to play back.
Page 237: Recording Information
User's Manual 5.8.3 Recording Information Select Main Menu > Maintenance Center > System Info to view the recording information. Figure 5-106 Recording information 5.9 AI AI detection is to process and analyze the image and extract the key information, and then compare the key information with the preset detection rule.
Page 238: Ai Search
User's Manual ● Some models support AI by camera only. ● The AI functions might vary with models. ● Different AI functions might conflict with each other. You cannot enable two conflicting AI functions for the same channel. 5.9.2 AI Search Supports accurately searching for the target (person or motor vehicle) through locally uploaded images, viewing event playback videos, and then accurately searching for the target again.
Page 239: Smart Plan
User's Manual Figure 5-108 View the recording of the search results Step 5 Click to search the target again. In addition to AcuPick, the recording supports pause, playback, display rules, and display areas. 5.9.3 Smart Plan 5.9.3.1 Configuring Smart Plan To use AI by camera for face detection, face recognition and other detection functions, you need to enable the corresponding smart plan first.
Page 240 User's Manual The page might differ depending on which smart plans that the remote device supports. Figure 5-109 Smart plan Step 3 Click the icon that represents the smart plan to enable it. The icon becomes highlighted.
Page 241: Configuring Acupick Mode
User's Manual If the channel is connected to a PTZ camera, you can set smart plans separately for each preset point. Figure 5-110 Smart plan (PTZ) Step 4 Click Apply. 5.9.3.2 Configuring AcuPick Mode Use cameras and NVRs with intelligent analysis capability to achieve accurate and quick search about human bodies and motor vehicles.
Page 242: Face Detection
User's Manual Figure 5-111 Camera 2. Click Apply. Select Main Menu > AI > Parameters > Smart Plan > Local. Step 2 1. Select the mode. AcuPick is enabled by default. After changing the mode, the NVR will automatically restart. ●...
Page 243: Enabling Smart Plan
User's Manual 5.9.4.1 Enabling Smart Plan To use AI by camera, you need to enable the smart plan first. For details, see "5.9.3 Smart Plan". 5.9.4.2 Configuring Face Detection Configure alarm rules for face detection. Procedure Step 1 Select Main Menu > AI > Parameters > Face Detection. Figure 5-113 Face detection Step 2 Select a channel, and then select AI by Reorder or AI by Camera as Type.
Page 244: Ai Search (Face Detection)
User's Manual The system triggers corresponding alarm actions only during the arming period. ● On the time line, drag to set the period. ● You can also click to set the period. Step 6 Configure alarm linkage actions. For details, see Step7. Step 7 Click Apply.
Page 245 User's Manual For privacy reason, the human faces in the image are intentionally blurred. The actual image is clear. Figure 5-115 Search results Related Operations ● Play related video. Click a face and then click . The system plays back the video around the snapshot time. ●...
Page 246: Face & Body Detection
User's Manual Figure 5-116 Add face image to database 5.9.5 Face & Body Detection After enabling face & body detection, you can view the face and body snapshots and related attributes on the live page. 5.9.5.1 Enabling Smart Plan To use AI by camera, you need to enable the smart plan first. For details, see "5.9.3 Smart Plan". 5.9.5.2 Configuring Face &...
Page 247: Ai Search (Face & Body Detection)
User's Manual Figure 5-117 Face and body detection Step 2 Select a channel, and then click to enable the function. Enable Face & Body Image Enhancement to improve detection efficiency. Step 3 Step 4 Configure target filters. You can configure two target filters (maximum size and minimum size). The system triggers an alarm when the size of detected target is between the maximum size and the minimum size.
Page 248: Enabling Smart Plan
User's Manual 5.9.6.1 Enabling Smart Plan To use AI by camera, you need to enable the smart plan first. For details, see "5.9.3 Smart Plan". 5.9.6.2 Creating Face Database Create face databases to manage face images for face recognition. 5.9.6.2.1 Creating Local Face Databases You can create face databases on the Device to manage face images for face recognition by Device.
Page 249: Creating Remote Face Databases
User's Manual Figure 5-119 Add database Step 3 Select Normal Database from the Type list, and then enter database name. Step 4 Click OK. 5.9.6.2.2 Creating Remote Face Databases The Device can get face databases from the remote devices, and also allows creating face databases for remote devices.
Page 250: Adding Images To Face Database
User's Manual You can create only one passerby database. Figure 5-120 Add database Step 3 Select Passerby Database from the Type list, and then configure other parameters. Table 5-31 Passerby database parameters Parameter Description Name Enter a name for the passerby database. Configure the number of images that the database can Number of Images contain.
Page 251 User's Manual Figure 5-121 Databases details Step 3 Click Register. Figure 5-122 Register Step 4 Click to add a face image.
Page 252 User's Manual Figure 5-123 Browse Step 5 Select a face image and then enter the registration information. Step 6 Click OK. The system prompts the registration is successful. On the Details page, click Search. Step 7 The system prompts modeling is successful. If the system prompts modeling is in process, wait a while and then click Search again.
Page 253: Adding Face Images In Batches
User's Manual 5.9.6.3.2 Adding Face Images in Batches The system supports batch add if you want to import several human face images at the same time. Procedure Step 1 Give a name to the face picture by referring to the following table. Table 5-32 Naming rule Naming format Description...
Page 254: Configuring Face Recognition
User's Manual ◇ On the Database Config page, select a database, and then click Modeling to model all the face images in the database. ◇ On the Details page, select one or more face images, and then click Modeling to model the selected images.
Page 255: Configuring Ai By Camera
User's Manual 2. Click Setting next to Target Face Database. 3. Select the face database that you want to arm, and then click OK. 4. Click to modify similarity. 5. Click to configure alarm linkages. ● Stranger Alarm: The alarm is triggered when the similarity of detected faces does not reach the defined value.
Page 256: Ai Search (Face Recognition)
User's Manual Figure 5-127 AI by camera Enable Face Enhancement to make the faces displayed more clear. Step 3 Click Rule to draw areas to filter the target. Step 4 You can configure two target filters (maximum size and minimum size). When the target is smaller than the minimum size or larger than the maximum size, no alarms will be activated.
Page 257 User's Manual Figure 5-128 Search by attributes Step 2 Select the channel and set the parameters including start time, end time, gender, age, glasses, beard, mask, name and similarity. Click Search. Step 3 The faces in the image are intentionally blurred for privacy protection. The actual images are clear.
Page 258: Search By Image
User's Manual ◇ Click to stop. ◇ Click to display AI rule. The icon changes to ● Add tags. Select one or more images, and then click Add Tag. ● Lock. Select one or more images, and then click Lock. The locked files will not be overwritten. ●...
Page 259: Report Query
User's Manual During playback, you can: ◇ Click to pause. ◇ Click to stop. ◇ Click to display AI rule. The icon changes to ● Add tags. Select one or more images, and then click Add Tag. ● Lock. Select one or more images, and then click Lock. The locked files will not be overwritten. ●...
Page 260: Ivs
User's Manual Related Operations ● Switch chart type. Click Bart Chart or Line Chart to switch the chart type. ● Export. Select file type, and then click Export to export the report in picture or csv format. 5.9.7 IVS The IVS function processes and analyzes the images to extract the key information to match the specified rules.
Page 261 User's Manual Figure 5-132 IVS Step 2 Select the channel and AI type. Step 3 Click Add to add a rule. Step 4 On the Type list, select Tripwire. Step 5 Draw the detection rule. 1) Click to draw a straight line or a curve on the surveillance video image. Right-click the image to stop drawing.
Page 262 User's Manual Figure 5-133 Tripwire (AI by camera) Figure 5-134 Tripwire (AI by recorder) 2) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size.
Page 263: Intrusion
User's Manual Table 5-33 Tripwire parameters Parameter Description Name Customize the rule name. Direction Set the tripwire direction, including A → B, B → A and A↔B. Click and then select effective target. With Human and Motor Target Filter Vehicle selected by default, the system automatically identifies the person and motor vehicle appeared within the monitoring range.
Page 264 User's Manual Figure 5-136 IVS Step 2 Select the channel and AI type. Step 3 Click Add to add a rule. Step 4 On the Type list, select Intrusion. Step 5 Draw the detection rule. 1) Click to draw the rule on the surveillance video image. Right-click the image to stop drawing.
Page 265 User's Manual Figure 5-137 Intrusion (AI by camera) Figure 5-138 Intrusion (AI by recorder) 2) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size.
Page 266: Abandoned Object Detection
User's Manual Table 5-34 Intrusion parameters Parameter Description Name Customize the rule name. Action Set the intrusion action, including appear and crossing area. Direction Set the direction to cross the area, including enter, exit and both. and then select effective target. With Human and Motor Click Target Filter Vehicle selected by default, the system automatically identifies the...
Page 267 User's Manual Figure 5-140 IVS Step 2 Select channel and AI type. Step 3 Click Add to add a rule. Step 4 On the Type list, select Abandoned Object. Step 5 Draw the detection rule. 1) Click to draw a rectangle on the surveillance video image. Right-click the image to stop drawing.
Page 268 User's Manual Figure 5-141 Abandoned object rule 2) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size. 3) Configure parameters.
Page 269: Fast Moving
User's Manual Figure 5-142 Schedule and alarm linkage 1) Click 2) Click Setting next to Schedule to configure the alarm period. The system performs linkage actions only for alarms during the arming period. ● On the time line, drag to set the period. ●...
Page 270 User's Manual Figure 5-143 IVS Step 2 Select channel and AI type. Step 3 Click Add to add a rule. Step 4 On the Type list, select Fast Moving. Step 5 Draw the detection rule. 1) Click to draw a rectangle on the surveillance video image. Right-click the image to stop drawing.
Page 271 User's Manual Figure 5-144 Fast moving 2) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size. 3) Configure parameters.
Page 272: Parking
User's Manual Figure 5-145 Schedule and alarm linkage 1) Click 2) Click Setting next to Schedule to configure the alarm period. The system performs linkage actions only for alarms during the arming period. ● On the time line, drag to set the period. ●...
Page 273 User's Manual Figure 5-146 IVS Step 2 Select channel and AI type. Step 3 Click Add to add a rule. Step 4 On the Type list, select Parking. Step 5 Draw the detection rule. 1) Click to draw a rectangle on the surveillance video image. Right-click the image to stop drawing.
Page 274 User's Manual Figure 5-147 Parking 2) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size. 3) Configure parameters.
Page 275: Crowd Gathering
User's Manual Figure 5-148 Schedule and alarm linkage 1) Click 2) Click Setting next to Schedule to configure the alarm period. The system performs linkage actions only for alarms during the arming period. ● On the time line, drag to set the period. ●...
Page 276 User's Manual Figure 5-149 IVS Step 2 Select channel and AI type. Step 3 Click Add to add a rule. Step 4 On the Type list, select Crowd Gathering Estimation. Step 5 Draw the detection rule. 1) Click to draw a rectangle on the surveillance video image. Right-click the image to stop drawing.
Page 277 User's Manual Figure 5-150 Crowd gathering 2) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size. 3) Set parameters.
Page 278: Missing Object Detection
User's Manual Figure 5-151 Schedule and alarm linkage 1) Click 2) Click Setting next to Schedule to configure the alarm period. The system performs linkage actions only for alarms during the arming period. ● On the time line, drag to set the period. ●...
Page 279 User's Manual Figure 5-152 IVS Step 2 Select channel and AI type. Step 3 Click Add to add a rule. Step 4 On the Type list, select Missing. Step 5 Draw the detection rule. 1) Click to draw a rectangle on the surveillance video image. Right-click the image to stop drawing.
Page 280 User's Manual Figure 5-153 Missing object 2) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size. 3) Configure parameters.
Page 281: Loitering Detection
User's Manual Figure 5-154 Schedule and alarm linkage 1) Click 2) Click Setting next to Schedule to configure the alarm period. The system performs linkage actions only for alarms during the arming period. ● On the time line, drag to set the period. ●...
Page 282 User's Manual Figure 5-155 IVS Step 2 Select channel and AI type. Step 3 Click Add to add a rule. Step 4 On the Type list, select Loitering Detection. Step 5 Draw the detection rule. 1) Click to draw a rectangle on the surveillance video image. Right-click the image to stop drawing.
Page 283 User's Manual Figure 5-156 Loitering detection 2) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size. 3) Configure parameters.
Page 284: Ai Search (Ivs)
User's Manual Figure 5-157 Schedule and alarm linkage 1) Click 2) Click Setting next to Schedule to configure the alarm period. The system performs linkage actions only for alarms during the arming period. ● On the time line, drag to set the period. ●...
Page 285: Stereo Analysis
User's Manual Related Operations ● Play back video. Click an image, and then click to play back the related video. During playback, you can: ◇ Click to pause. ◇ Click to stop. ◇ Click to display AI rule. The icon changes to ●...
Page 286: Fall Detection
User's Manual 1) Click , and then draw a detection area on the video image. Right-click the image to stop drawing. 2) Configure parameters. Table 5-41 Parameters of people approach detection Parameter Description Name Customize the rule name. Sensitivity Set alarm sensitivity. Set how long two people stay in the same detection area until an Duration alarm is triggered.
Page 287: Violence Detection
User's Manual Select Enable and then set Type to Fall Detection. Step 3 Step 4 Draw detection rule. 1) Click , and then draw a detection area on the video image. Right-click the image to stop drawing. 2) Configure parameters. Table 5-42 Parameters of fall detection Parameter Description...
Page 288: People No. Exception Detection
User's Manual Step 4 Draw detection rule. 1) Click , and then draw a detection area on the video image. Right-click the image to stop drawing. 2) Configure parameters. Table 5-43 Parameters of violence detection Parameter Description Name Customize the rule name. Sensitivity Set alarm sensitivity.
Page 289: People Stay Detection
User's Manual Table 5-44 Parameters of people No. exception detection Parameter Description Name Customize the rule name. Sensitivity Set alarm sensitivity. Set the minimum time to trigger an alarm after the system detects an Duration abnormal number of people. Set repeat alarm time. If the alarm-triggering event continues, an Repeat Alarm Time alarm will be triggered again when repeat alarm time passed.
Page 290: Ai Search (Stereo Analysis)
User's Manual 2) Configure parameters. Table 5-45 Parameters of people stay detection Parameter Description Name Customize the rule name. Sensitivity Set alarm sensitivity. Set low long people stay in the detection area until an alarm is Duration triggered. Set repeat alarm time. If the alarm-triggering event continues, an Repeat Alarm Time alarm will be triggered again when repeat alarm time passed.
Page 291: Video Metadata
User's Manual Figure 5-164 Stereo analysis search Step 2 Select a channel, start time, end time, event type, and then click Search. The search results are displayed. Related Operations ● Play back video. Click an image, and then click to play back the related video. During playback, you can: ◇...
Page 292: Configuring Video Metadata
User's Manual 5.9.9.2 Configuring Video Metadata When a metadata alarm is triggered, the system links the corresponding camera to record videos and logs and take snapshots. Other alarm linkage actions are not supported for video metadata. Procedure Step 1 Select Main Menu > AI > Parameters > Video Metadata. Figure 5-165 Video metadata Step 2 Select a channel and AI type.
Page 293: Ai Search (Video Metadata)
User's Manual Figure 5-166 People detection 2) Enter the rule name. 3) Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size.
Page 294 User's Manual Figure 5-167 Human detection Step 2 Select a channel, start time, end time, and set corresponding parameters. Step 3 Click Search. For privacy protection, the faces are intentionally blurred. Figure 5-168 Search results Related Operations ● Play back video.
Page 295: Motor Vehicle Detection
User's Manual Click an image, and then click to play back the related video. During playback, you can: ◇ Click to pause. ◇ Click to stop. ◇ Click to display AI rule. The icon changes to ● Add tags. Select one or more images, and then click Add Tag. ●...
Page 296 User's Manual Figure 5-169 Motor vehicle detection Step 2 Select a channel and then set parameters. ● The system supports fuzzy search of plate numbers. ● The system searches all plate numbers by default if you have not set a plate number. Step 3 Click Search.
Page 297: Non-Motor Vehicle Detection
User's Manual Start to export files to external storage device. 5.9.9.3.3 Non-motor Vehicle Detection Background Information You can search for non-motor vehicle detection results according to the non-motor vehicle parameters. This function is available on select models. Procedure Step 1 Select Main Menu >...
Page 298: Report Query
User's Manual Figure 5-171 Search results Related Operations ● Play back video. Click an image, and then click to play back the related video. During playback, you can: ◇ Click to pause. ◇ Click to stop. ◇ Click to display AI rule. The icon changes to ●...
Page 299: Anpr
User's Manual Figure 5-172 Metadata statistics Step 2 Select channel, report type, start time and end time, direction and then click Search. Related Operations ● Switch chart type. Click Bart Chart or Line Chart to switch the chart type. ● Export. Select file type, and then click Export to export the report in picture or csv format.
Page 300 User's Manual ● The added blocklist and allowlist will be synchronized to the connected ITC camera. Procedure Select Main Menu > AI > Database > Vehicle Blocklist/Allowlist. Step 1 Figure 5-173 Vehicle blocklist/allowlist Step 2 Click Add. Step 3 Set plate information such as plate number, car owner name, select Block List or Allow List, and then set validity period.
Page 301: Configuring Anpr
User's Manual 5.9.10.2 Configuring ANPR Configure the ANPR alarm rules. Procedure Step 1 Select Main Menu > AI > Parameters > ANPR. Figure 5-174 ANPR Step 2 Select a channel and then select the Enable checkbox to enable ANPR. Step 3 (Optional) Enable Sync Vehicle Blocklist/Allowlist to synchronize the blocklist and allowlist on the NVR to the connected camera.
Page 302: Ai Search (Anpr)
User's Manual ● You can also click to set the period. Step 6 Configure alarm linkage actions. For details, see Step7. Step 7 Click Apply. 5.9.10.3 AI Search (ANPR) You can search for the ANPR detection results. For details, see "5.9.9.3.2 Motor Vehicle Detection". 5.9.11 Crowd Distribution The system detects the crowd distribution.
Page 303: Report Query
User's Manual Figure 5-175 Crowd distribution Step 2 Select a channel and then click next to Enable. Step 3 Configure parameters. Table 5-46 Crowd distribution parameters Parameter Description Crowd Density (Global) Click and then configure the density threshold. Crowd Density Alarm Tracking After an alarm occurs, the system tracks the target automatically.
Page 304: People Counting
User's Manual ● The statistics might be overwritten when the storage space runs out. Back up in time. ● When you restore the Device to factory settings, all the data except data in the external storage device will be cleared. You can clear the data in the external storage device through formatting or other methods.
Page 305 User's Manual Figure 5-176 People counting Select a channel, and then click Add. Step 2 Select the Enable checkbox, and then set Type to People Counting. Step 3 Step 4 Draw people counting rule. 1) Click to draw the people counting rule. Right-click the image to stop drawing. ●...
Page 306: Configuring In Area No
User's Manual Figure 5-177 People counting (target filtering) ● Press and hold the 4 vertices of the area to adjust the size of the filtering area. ● Click to delete the drawn filtering area. 3) Customize the rule name and then select direction. 4) Click OK.
Page 307: Configuring Queuing
User's Manual when the staying period exceeds the defined duration, an alarm is triggered. Procedure Select Main Menu > AI > Parameters > People Counting > People Counting. Step 1 Figure 5-178 People counting Step 2 Select a channel, and then click Add. Step 3 Select the Enable checkbox, and then set Type to In Area No.
Page 308: Configuring Abnormal Detection
User's Manual Figure 5-179 Queuing Step 2 Select a channel, and then click Add. Step 3 Select the Enable checkbox. Step 4 Click to draw queuing rule and area. under Parameters, and then enable Queue People No. Alarm or Queue Time Step 5 Click Alarm.
Page 309 User's Manual Figure 5-180 Abnormal Detection Step 2 Select a channel, and then click Add. Step 3 Select the Enable checkbox. Step 4 Click to draw abnormal detection rule and area. under Parameters, and then select Self-adaptive or Custom. Step 5 Click 1.
Page 310: Report Query
User's Manual Figure 5-182 Custom 2. Configure parameters. Table 5-49 Parameters description Parameters Description The default is 5. The higher the sensitivity, the more sensitive the detection will be. Sensitivity Although there are more targets captured in the same scene, false detections occur. Set the minimum time for the crowding in the Min Duration detection area until an alarm is triggered.
Page 311: Heat Map
User's Manual ● The statistics might be overwritten when the storage space runs out. Back up in time. ● When you restore the Device to factory settings, all the data except data in the external storage device will be cleared. You can clear the data in the external storage device through formatting or other methods.
Page 312: Configuring Heat Map
User's Manual 5.9.13.2 Configuring Heat map Heat map technology can monitor the active objects distribution status on the specified zone during a period of time, and use different colors to display on the heat map. Procedure Step 1 Select Main Menu > AI > Parameters > Heat Map. Figure 5-184 Heat map Step 2 Select a channel and then click...
Page 313: Report Query
User's Manual 5.9.13.3 Report Query You can search for and export the heat map report of general and fisheye cameras. 5.9.13.3.1 General Procedure Step 1 Select Main Menu > AI > Report Query > Heat Map > General. Figure 5-186 General Step 2 Select the channel, start time, and end time.
Page 314: Smd
User's Manual Figure 5-187 Fisheye Step 2 Set channel, type and period, and then click Search. Step 3 Click Export to export the heat map. 5.9.14 SMD You can use SMD (Smart Motion Detection) to detect humans and vehicles in the video, and store the detection results in structured storage for fast retrieval.
Page 315 User's Manual Figure 5-188 SMD Step 2 Select a channel and AI type. Step 3 Click to enable the function. Step 4 Configure the sensitivity. The higher the value, the easier it is to trigger an alarm. But meanwhile, the false alarm might occur.
Page 316 User's Manual Parameter Description Show Message Enable on-screen prompt when an alarm occurs. Enable the system to report the alarm to the alarm center. Report Alarm Make sure that alarm center has been configured in Main Menu > NETWORK > Alarm Center. Enable the system to send an email to notify you when an alarm occurs.
Page 317: Ai Search (Smd)
User's Manual Parameter Description Buzzer The system activates the buzzer when an alarm occurs. When an alarm occurs, the system records the event in the logs. When an alarm occurs, the system plays the selected audio file. Alarm Tone Make sure that the audio files have been uploaded to the system. For details, see "5.18.1 File Management".
Page 318: Report Query
User's Manual Figure 5-189 Vehicle density Step 2 Select a channel and then click Add. Step 3 Select the Enable checkbox and then select a detection type. Step 4 Click to draw the detection rule. under Parameters and then configure the parameters. Step 5 Click under Trigger to configure alarm schedule and linkage.
Page 319: Main-Sub Tracking
User's Manual Figure 5-190 Vehicle density Step 2 Select channel, report type, start and end time, and then click Search. Related Operations ● Switch chart type. Click Bart Chart or Line Chart to switch the chart type. ● Export. Select file type, and then click Export to export the report in picture or csv format. 5.9.16 Main-sub Tracking Main-sub tracking refers to fisheye camera and speed dome linkage system.
Page 320 User's Manual 1) Click Add. 2) Configure parameters. Table 5-51 Main-sub tracking parameters Parameter Description Select a type according to the number of fisheye and PTZ cameras: ● 1 Fisheye + 1 PTZ. Type ● 1 Fisheye + 2 PTZ. ●...
Page 321: Video Quality Analytics
User's Manual Icon Description Electronic mouse. You can use this icon to move the mouse to control PTZ direction. Quick positioning key. Click this icon to select a place, and the screen will be focused and centered on the selected place. 4) Click Add.
Page 322 User's Manual Click Setting next to Rule. Step 3 Step 4 Select items and set thresholds as needed. Figure 5-192 Video quality analytics settings The value range of threshold is 0–100, and the default value is 30. When the value exceeds the set threshold, an alarm will be triggered.
Page 323: Analytics List
User's Manual ● You can also click to set the period. Step 7 Configure alarm linkage actions. For details, see Step7. Step 8 Click Apply. 5.9.17.2 Analytics List Search for the results of video quality analytics. Procedure Step 1 Select Main Menu > AI > AI Search > Analytics List. Step 2 Select the start time and end time.
Page 324 User's Manual an alarm is triggered. Procedure Select Main Menu > AI > Parameters > Face Recognition > Entries Frequency. Step 1 Figure 5-194 Entries frequency Step 2 Click Setting to select a database and then click OK. Step 3 Click and then configure the parameters.
Page 325: Smart Object Detection
User's Manual Figure 5-195 Configure entries frequency Table 5-54 Entries frequency parameters Parameter Description Statistical Cycle Set the cycle for counting the entries frequency. Set the threshold of entries frequency. When the entries detected Entries Detected reaches or exceeds the threshold, an alarm is triggered. The name is Entries Frequency by default.
Page 326 User's Manual The target type includes luggage, bag, box, and non-motor vehicle. Step 3 Draw the detection rule. 1. Click to draw a rectangle on the surveillance video image. Right-click the image to stop drawing. 2. Click to draw the minimum size or maximum size to filter the target. The system triggers an alarm only when the size of detected target is between the maximum size and the minimum size.
Page 327: Searching For Smart Object Detection
User's Manual 5.9.19.3 Searching for Smart Object Detection Query the detection result within a specified time period, and play back the related video. Procedure Step 1 Select AI > AI Search > Smart Object Detection. Step 2 Select the channel, period, event type, and target, and then click Search. Related Operations ●...
Page 328: Searching For Smart Sound Detection
User's Manual Figure 5-197 Configuring smart sound detection Step 2 Select channel, and then enable Smart Sound. Step 3 Select sound type, sensitivity, and threshold as needed. Step 4 Click Setting next to Schedule to configure the arming period. The system triggers corresponding alarm actions only during the arming period. Step 5 Configure alarm linkage.
Page 329 User's Manual Figure 5-198 PPE detection Step 4 Click to draw a detection zone on the live page. After drawing the rule, supports the following operations. ● Modify the name of the rule. ● Click to delete the drawn rule. ●...
Page 330 User's Manual Figure 5-200 Parameters (Registration mode) Table 5-55 Parameters description Parameter Description Receive an alarm event according to the set rule and display it on the live page. ● Match attributes alarm: When the detected workwear Alarm Trigger Condition matches the set attributes, an alarm is triggered.
Page 331 User's Manual Parameter Description Apron Gloves Shoe Covers Select Detect for Attributes. Boots Seatbelt Safety Vest Step 6 Configure alarm schedule and linkage. Figure 5-201 Schedule and alarm linkage 1) Click 2) Click Setting next to Schedule to configure the alarm period. The system performs linkage actions only for alarms during the arming period.
Page 332: Alarm Settings
User's Manual ● Mismatch attributes alarm. For example, when setting parameters for the PPE detection, select Apron > Detect for Attributes > Yes, a mismatch attributes alarm is triggered when it is detected that a person is not wearing an apron. Figure 5-203 Match attributes alarm 5.10 Alarm Settings 5.10.1 Alarm Information...
Page 333: Alarm Status
User's Manual Figure 5-204 Alarm information Step 2 Select the event type, and then set the search period. Step 3 Click Search. The search results are displayed. Related Operations ● Play back alarm videos. Select an alarm event log, click to play the recorded video of alarm event.
Page 334: Alarm Input
User's Manual Figure 5-205 Alarm status 5.10.3 Alarm Input Procedure Step 1 Select Main menu > ALARM > Alarm-in Port. Step 2 Click each tab to configure alarm input settings. ● Local alarm: After connect the alarm device to the NVR alarm input port, the system performs alarm linkage actions when there is an alarm signal from the alarm input port to the NVR.
Page 335 User's Manual Figure 5-206 Local alarm Click Setting next to Schedule to configure the alarm schedule. Step 3 Step 4 Configure the anti-dither period. If multiple alarms occur during the anti-dither period, the system only record the event once. Step 5 Configure alarm linkage.
Page 336 User's Manual Figure 5-207 Set the camera audio 2. Select the channel to add the camera audio, and then click OK. If the camera audio configuration of multiple channels has been configured, when an alarm event is triggered, the multiple channels can link to the corresponding camera audio.
Page 337: Alarm Output
User's Manual Figure 5-208 Set the remote warning light 2. Select the channel to add the remote warning light, and then click OK. If the remote warning light configuration of multiple channels has been configured, when an alarm event is triggered, the multiple channels can link the corresponding remote warning light.
Page 338: Video Detection
User's Manual Figure 5-209 Alarm-out port Step 2 Select the alarm mode of the alarm output channel. Click Apply. Step 3 ● Click OK next to Alarm Reset to clear all alarm output statuses. ● View the alarm output status on the Status column. 5.10.5 Video Detection The system can analyze the video and check whether there is considerable change or not.
Page 339: Video Loss
User's Manual 3) Select one region, for example, click 4) Drag on the screen to select the region that you want to detect. 5) Configure the parameters. Table 5-56 Detection region parameters Parameter Description Name Enter a name for the region. Every region has an individual sensitivity value.
Page 340: Video Tampering
User's Manual Figure 5-210 Video Loss Step 2 Select a channel and then click to enable the function. Step 3 Click Setting next to Schedule to configure the alarm schedule. Step 4 Configure alarm linkage. For details, see Table 5-50. Step 5 Click Apply.
Page 341: Scene Change
User's Manual Figure 5-211 Video tampering Step 2 Select a channel and then click to enable the function. Step 3 Click Setting next to Schedule to configure the alarm schedule. Step 4 Configure alarm linkage. For details, see Table 5-50. Click Apply.
Page 342: Pir Alarm
User's Manual Figure 5-212 Scene changing Step 2 Select a channel and then click to enable the function. Step 3 Click Setting next to Schedule to configure the alarm schedule. Step 4 Configure alarm linkage. For details, see Table 5-50. Click Apply.
Page 343 User's Manual Figure 5-213 PIR Step 2 Select a channel and then click to enable the function. Step 3 Configure the detection region. 1) Click Setting next to Region. 2) Point to the middle top of the page. 3) Select one region, for example, click 4) Drag on the screen to select the region that you want to detect.
Page 344: Audio Detection
User's Manual You can configure up to four detection regions. When any one of the four regions activates an alarm, the channel where this region belongs to will activate an alarm. 6) Right-click to exit the page. Step 4 Click Setting next to Schedule to configure the alarm schedule. Step 5 Configure the anti-dither period.
Page 345: Exception
User's Manual ● Make sure that the connected camera supports temperature monitoring function. ● This function is available on select models. ● The thermal detection functions might vary depending on the connected camera. This section uses heat alarm as an example. Procedure Step 1 Select Main Menu >...
Page 346: Disarming
User's Manual Figure 5-215 Disk exception Step 2 Click each tab and then select an event type. ● Disk: The system detects HDD error, no HDD, no space, and other HDD events. ● Network: The system detects network errors such as disconnection, IP conflict, and MAC conflict.
Page 347 User's Manual Figure 5-216 Disarming (Optional) To enable scheduled disarming, click Setting next to Duration of Disarm by Step 3 Period, and then set periods. Scheduled disarming is only effective when Disarming is Off. Figure 5-217 Scheduled disarming ● Drag your mouse to select time blocks. ●...
Page 348: Network
User's Manual This function is only effective when the connected camera supports one-click disarming. Step 6 Click Apply. 5.11 Network Configure the network settings to ensure the Device can communicate with other devices on the same LAN. 5.11.1 TCP/IP You can configure the settings for the Device such as IP address, DNS according to the networking plan.
Page 349 User's Manual Step 2 Click to configure the NIC card, and then click OK. Figure 5-219 TCP/IP Table 5-58 TCP/IP parameters Parameter Description ● Single NIC: The current NIC card works independently. If the current NIC card is disconnected, the Device becomes offline. ●...
Page 350 User's Manual Parameter Description When the network mode is Fault Tolerance or Load Balance, you need to select the checkbox to bind NIC cards. ● Make sure that at least two NIC cards are installed. NIC Member ● NIC cards using different ports such as optical port and electrical port cannot be bound together.
Page 351: Routing Table
User's Manual 5.11.2 Routing Table You can configure the routing table so that the system can automatically calculate the best path for data transmission. Procedure Step 1 Select Main Menu > NETWORK > TCP/IP > Routing Table. Figure 5-220 Routing table Step 2 Add the routing table.
Page 352 User's Manual Figure 5-221 Port Step 2 Configure the parameters. The parameters except Max Connection take effect after the Device restarts. Table 5-59 Port parameters Parameter Description The allowable maximum clients accessing the Device at the same time, Max Connection such as web client, platform, and mobile client.
Page 353: External Wi-Fi
User's Manual 5.11.4 External Wi-Fi The Device can be connected to wireless network with an external Wi-Fi module. Prerequisites Make sure that external Wi-Fi module is installed on the Device. Background Information This function is available on select models. Procedure Step 1 Select Main Menu >...
Page 354: Wi-Fi Ap
User's Manual Parameter Description Select an available site and then click Connect. Connect Step 3 Click Apply. ● After the connection is successful, a Wi-Fi connection signal flag appears in the upper- right corner of the live view page. ● The Wi-Fi module models currently supported are D-LINK, dongle and EW-7811UTC wireless cards.
Page 355: Advanced Settings
User's Manual Figure 5-223 General settings Select Wi-Fi to enable Wi-Fi. Step 2 Step 3 Configure parameters. Table 5-61 Parameters of general settings Parameter Description SSID Wi-Fi name for the device. Hide SSID Hide the Wi-Fi name. Encryption Type Select an encryption mode from WPA2 PSK and WPA PSK. Password Set the Wi-Fi password for the Device.
Page 356 User's Manual Procedure Select Main Menu > NETWORK > Wi-Fi AP > Advanced. Step 1 Figure 5-224 Advanced settings Step 2 Configure parameters. Table 5-62 Parameters of advanced settings Parameter Description IP Address Set IP address, subnet mask and default gateway for the Wi-Fi of NVR. Subnet Mask IP address and default gateway must be on the same network segment.
Page 357 User's Manual 5.11.6 3G/4G Prerequisites Make sure that 3G/4G module is installed on the device. Background Information This function is available on select models. Procedure Select Main Menu > NETWORK > 3G/4G. Step 1 Figure 5-225 3G/4G The page is divided into three main areas: ●...
Page 358: Cellular Network
User's Manual Parameter Description Select a 3G/4G network type to distinguish between 3G/4G modules Network Type. from different vendors. APN, Dial-up No. Main parameters of PPP dial. Select PAP, CHAP or NO_AUTH. NO_AUTH represents no Authentication Type authentication for 3G/4G. Step 3 Click Apply.
Page 359 User's Manual Parameter Description APN, Dial-up No. The two main parameters of PPP dial-up connection. Authentication Type Select PAP, CHAP or NO-AUTH. Username The username for dial-up connection. Password The password for dial-up connection. Step 3 Click Apply. Related Operations ●...
Page 360: Repeater
User's Manual Figure 5-228 Cellular data usage 5.11.8 Repeater The Device supports settings for the wireless repeater IPC to extend video transmission distance and range. Prerequisites ● The Device has the built-in Wi-Fi module. ● The IPC has wireless repeater module. Background Information This function is available on select models.
Page 361 User's Manual ● Green connection line represents the successful connection between channel and wireless IPC. ● Auto cascade: After selecting auto cascade, the IPC can cascade to NVR automatically. Figure 5-229 Repeater Step 3 Select Manual Cascade.
Page 362 User's Manual You can use manual cascade when there are at least two IPCs on the network. Figure 5-230 Manual cascade Step 4 Click and select the channel to be added. Figure 5-231 Added channel Step 5 Click Apply.
Page 363: Pppoe
User's Manual 5.11.9 PPPoE PPPoE is another way for the Device to access the network. You can establish network connection by configuring PPPoE settings to give the Device a dynamic IP address on the WAN. Prerequisites To use this function, firstly you need to obtain the username and password from the Internet Service Provider.
Page 364 User's Manual After registration, you can log in to the DDNS website to view the information of all the connected devices under the registered account. Procedure Step 1 Select Main Menu > NETWORK > DDNS. Figure 5-233 DDNS Step 2 Enable DDNS and then configure the parameters.
Page 365: Upnp
User's Manual 5.11.11 UPnP You can map the relationship between the LAN and the WAN to access the Device on the LAN through the IP address on the WAN. 5.11.11.1 Configuring Router Procedure Step 1 Log in to the router to set the WAN port to enable the IP address to connect into the WAN. Step 2 Enable the UPnP function on the router.
Page 366: Email
User's Manual Parameter Description Indicates the status of UPnP function. Status ● Offline: Failed. ● Online: Succeeded. Enter IP address of router on the LAN. LAN IP After mapping succeeded, the system obtains IP address automatically. Enter IP address of router on the WAN. WAN IP After mapping succeeded, the system obtains IP address automatically.
Page 367 User's Manual Figure 5-235 Email Step 2 Click to enable the function. Step 3 Configure the email parameters. Table 5-67 Email parameters Parameter Description SMTP Server Enter the address of SMTP server of sender’s email account. Port Enter the port of SMTP server. The default value is 25. Username Enter the username and password of sender’s email account.
Page 368: Snmp
User's Manual Parameter Description Select the encryption type from NONE, SSL, or TLS. Encryption Type For SMTP server, the default encryption type is TLS. Set the interval at which the system sends an email for the same type of alarm event to avoid excessive pileup of emails caused by frequent Interval (Sec.) alarm events.
Page 369 User's Manual Figure 5-236 SNMP Step 2 Click to enable the function. Step 3 Configure the parameters. Table 5-68 SNMP parameters Parameter Description Select the checkbox of SNMP version that you are using. Version The default version is V3. There is a risk if you use V1 or V2. SNMP Port Enter the monitoring port on the agent program.
Page 370: Multicast
User's Manual Parameter Description Authentication Type Select MD5 or SHA. The system recognizes the type automatically. Authentication Enter the password for authentication. The password should be no less Password than eight characters. Encryption Type Select an encryption type. The default setting is CBC-DES. Encryption Password Enter the encryption password.
Page 371: Alarm Center
User's Manual Table 5-69 Multicast parameters Parameter Description Enable Enable the multicast function. Enter the IP address that you want to use as the multicast IP. IP Address The IP address ranges from 224.0.0.0 through 239.255.255.255. Enter the port for the multicast. The port ranges from 1025 through Port 65000.
Page 372: Register
User's Manual Table 5-70 Alarm center parameters Parameter Description Protocol Type Select a protocol type. Server Address The IP address and communication port of the PC installed with alarm client. Port Auto Report Plan Select time cycle and specific time for uploading alarm. Click Apply.
Page 373: Switch
User's Manual Table 5-71 Register parameters Function Description Enter the IP address or domain name of the server that you want to Server Address register to. Port Enter the port of the server. Sub-Device ID Enter the ID allocated by the server. Step 4 Click Apply.
Page 374: P2P
User's Manual Do not set the IP address to the same network segment with the NVR. We recommend you use the default setting. Step 3 Click Apply. Related Operations When connecting IP camera to PoE port, if all the channels are occupied, the system prompts you whether to take place of one channel.
Page 375: Storage
User's Manual Figure 5-241 P2P Step 2 Enable the P2P function. After you enable the P2P function and connect to the Internet, the system will collect the information such as email address and MAC address for remote access. Click Apply. Step 3 The P2P function is enabled.
Page 376: Disk Manager
User's Manual Figure 5-242 Basic storage Step 2 Set parameters. Table 5-73 Basic storage parameters Parameter Description Configure the storage strategy to be used when no more storage space is available Disk Full ● Stop: Stop recording. ● Overwrite: The newest files overwrite the oldest ones. Create Video Files Configure the time length and file length for each recorded video.
Page 377: Raid
User's Manual Figure 5-243 Disk manager View HDD Information You can view the physical position, properties, status and storage capacity of each HDD. Configure HDD Properties In the Properties column, you can set read and wire, read-only and redundant HDD. When there are two or more HDDs installed on the Device, you can set one HDD as redundant disk to back up recorded files.
Page 378: Creating Raid
User's Manual RAID function is available on select models. Table 5-74 Disk quantity for different RAID types RAID type Required disk quantity RAID 0 At least 2. RAID 1 Only 2. RAID 5 At least 3. We recommend using 4 disks to 6 disks. RAID 6 At least 4.
Page 379 User's Manual Figure 5-244 RAID Step 2 Select RAID type and working mode. The working mode determines how the system allocate resources. ● Self-Adaptive: Automatically adjust the RAID synchronization speed according to the business status. ◇ When there is no business running, synchronization is performed at a high speed. ◇...
Page 380: Viewing Raid Information
User's Manual Related Operations ● Change working mode. Click to change the working mode of the RAID group. ● Delete RAID. Click to delete the RAID group. When you delete a RAID group, the disks in the RAID group will be formatted. 5.12.3.2 Viewing RAID Information Select Main Menu >...
Page 381: Disk Group
User's Manual Figure 5-246 Local hotspare Figure 5-247 Global hotspare Step 3 You can select Local Hotspare or Global Hotspare. ● Local Hotspare: Select the target disk, and the current disk will serve as the hot spare disk for the selected target disk. ●...
Page 382: Disk Quota
User's Manual Figure 5-248 Disk group Step 2 (Optional) If Disk Quota is selected is shown on the page, click Switch to Disk Group Mode and then follow the on-screen instructions to format disks. Step 3 Select the group for each HDD, and then click Apply. After configuring HDD group, under the Main Stream tab, Sub Stream tab and Snapshot tab, configure settings to save the main stream, sub stream and snapshot to different disk groups.
Page 383: Disk Check
User's Manual Figure 5-249 Disk Quota Step 2 (Optional) If Disk group mode selected is shown on the page, click Switch to Quota Mode and then follow the on-screen instructions to format disks. Step 3 Select a channel and set the record duration, bit rate and storage capacity of picture. Step 4 Click Apply.
Page 384: Detection Report
User's Manual Figure 5-250 Manual check Step 2 Select the detection type. ● Key area detect: The system detects the used space of the HDD through the built-in file system. This type of detection is efficient. ● Global detection: The system detects the entire HDD through Window. This type of detection takes time and might affect the HDD that is recording.
Page 385 User's Manual Figure 5-251 Check report Step 2 Click to view detection results and S.M.A.R.T report. Figure 5-252 Results...
Page 386: Disk Health Monitoring
User's Manual Figure 5-253 S.M.A.R.T 5.12.6.3 Disk Health Monitoring Monitor health status of disks, and repair if any exceptions are found so as to avoid data loss. Select Main Menu > STORAGE > Disk Check > Health Monitoring. to show disk details page. Then select Check Type, set time period, and then click Search. Click The system shows the details of disk monitoring status.
Page 387: Record Estimate
User's Manual Figure 5-254 Disk details 5.12.7 Record Estimate Record estimate function can calculate how long you can record video according to the HDD capacity, and calculate the required HDD capacity according to the record period. Procedure Select Main Menu > STORAGE > Rec Estimate. Step 1...
Page 388 User's Manual Figure 5-255 Record estimation Step 2 Click You can configure the Resolution, Frame Rate, Bit Rate and Record Time for the selected channel. Figure 5-256 Modify channel settings Click Apply. Step 3 Then the system will calculate the time period that can be used for storage according to the channels settings and HDD capacity.
Page 389: Calculating Recording Time
User's Manual Click Copy to to copy the settings to other channels. 5.12.7.1 Calculating Recording Time Procedure Step 1 On the Rec Estimate page, click the By Space tab. Figure 5-257 By space Step 2 Click Select. Step 3 Select the checkbox of the HDD that you want to calculate. Figure 5-258 Recording time 5.12.7.2 Calculating HDD Capacity for Storage Procedure...
Page 390: Ftp
User's Manual 5.12.8 FTP You can store and view the recorded videos and snapshots on the FTP server. Prerequisites Purchase or download a FTP (File Transfer Protocol) server and install it on your PC. For the created FTP user, you need to set the write permission; otherwise the upload of recorded videos and snapshots will be failed.
Page 391 User's Manual Parameter Description Select FTP type. FTP type ● FTP: Plaintext transmission. ● SFTP: Encrypted transmission (recommended). Server Address IP address of FTP server. Enter the port of the FTP server. Port ● FTP: The default is 21. ● SFTP: The default is 22. Username Enter the username and password to log in to the FTP server.
Page 392: Iscsi
User's Manual 5.12.9 iSCSI Background Information Internet Small Computer Systems Page (iSCSI) is a transport layer protocol that works on top of the Transport Control Protocol (TCP), and enables block-level SCSI data transport between the iSCSI initiator and the storage target over TCP/IP networks. After the network disk is mapped to the NVR device through iSCSI, the data can be stored on the network disk.
Page 393: Account
User's Manual Parameter Description Click Storage Path to select a remote storage path. Storage Path Each path represents an iSCSI shared disk and these paths are generated when created on the server. Enter the username and password of iSCSI server. Username, If anonymous login is supported by iSCSI server, you can enable Password...
Page 394 User's Manual Figure 5-262 Group Step 2 Click Add. Step 3 Enter group name and then enter some remarks if necessary. Figure 5-263 Add group Step 4 Select the checkboxes to select permissions. Click OK. Step 5...
Page 395: User
User's Manual Click to modify the corresponding group information, click to delete the group. 5.13.2 User 5.13.2.1 Adding User Procedure Select Main Menu > ACCOUNT > User. Step 1 Figure 5-264 User Click Add. Step 2...
Page 396 User's Manual Figure 5-265 Add user Step 3 Configure the parameters. Table 5-77 Parameters of adding user Parameter Description Username Enter a username and password for the account. Password Confirm Password Enter the password again to confirm it. Optional. Remarks Enter a description of the account.
Page 397: Changing Password
User's Manual Click to modify the corresponding user information, click to delete the user. 5.13.2.2 Changing Password Background Information We recommend you change the password regularly to enhance device security. Users with account permissions can change the password of other users. Procedure Step 1 Select Main Menu >...
Page 398: Resetting Password
User's Manual 5.13.3 Resetting Password You can reset the password when you forget the password. 5.13.3.1 Enabling Password Reset Enable the password reset function and configure the linked email address and security questions that are used to reset the password. Procedure Step 1 Select Main Menu >...
Page 399 User's Manual Figure 5-268 Pattern login...
Page 400 User's Manual Figure 5-269 Password login Step 2 Click ● If you have set the linked email address, the system will notify you of data collection required for resetting password. Click OK. ● If you did not set the linked email address, the system prompts you to enter an email address.
Page 401 User's Manual After clicking Next, the system will collect your information for password reset, purpose and the information includes but not limited to email address, MAC address, and device serial number. Read the prompt carefully before clicking Next. Step 5 Reset the password.
Page 402 User's Manual Figure 5-272 Reset mode (app) ● Security question. Select Security Question as reset mode and then answer the security questions. If you did not configure the security questions in advance , Security Question is not available on the Reset Mode list. Step 6 Click Next.
Page 403: Onvif User
User's Manual The password is reset. Step 9 (Optional) When the system prompts whether to synchronize the password with the remote devices accessed through the private protocol, click OK to synchronize the password. 5.13.4 ONVIF User Background Information To connect the camera from the third party to the NVR via the ONVIF protocol, you need to use a verified ONVIF account.
Page 404: Security
User's Manual Figure 5-275 Add ONVIF user Step 3 Configure username, password and user group. Step 4 Click OK. Click to modify the corresponding user information, click to delete current user. 5.14 Security 5.14.1 Security Status Security scanning helps get a whole picture of device security status. You can scan user, service and security module status for detailed information on the security status of the device.
Page 405 User's Manual Figure 5-276 Security status Figure 5-277 Details (1) ● Configuration Security: When there’s a risk in the device configuration, the icon will be in orange to warn risk. You can click Details to see the detailed risk description.
Page 406: System Service
User's Manual Figure 5-278 Details (2) Scanning Security Modules This area shows the running status of security modules. For details about the security modules, point to the icon to see the on-screen instructions. Re-scanning Security Status You can click Rescan to scan security status. 5.14.2 System Service You can set NVR basic information such as basic services, 802.1x and HTTPS.
Page 407 User's Manual Figure 5-279 Basic services Step 2 Enable the system services. There might be safety risk when Mobile Push Notifications, CGI, ONVIF, SSH and NTP Server is enabled. Disable these functions when they are not needed. Table 5-78 Basic service parameters Parameter Description After enabling this function, the alarm triggered by the NVR can be...
Page 408: 388
User's Manual Parameter Description ● Security Mode (Recommended): Uses Digest access Private Protocol authentication when connecting to NVR. Authentication Mode ● Compatible Mode: Select this mode when the client does not support Digest access authentication. Enable the LLDP service. The Link Layer Discovery Protocol (LLDP) allows two different LLDP devices to collect hardware and protocol information about neighboring devices, which is useful in troubleshooting the...
Page 409: Https
User's Manual Table 5-79 802.1x parameters Parameter Description ● PEAP: protected EAP protocol. Authentication ● TLS: Transport Layer Security. Provide privacy and data integrity between two communications application programs. Enable it and click Browse to import CA certificate from flash drive. For CA Certificate details about importing and creating a certificate, see "5.14.4 CA Certificate".
Page 410: Attack Defense
User's Manual 5.14.3 Attack Defense 5.14.3.1 Firewall You can configure the hosts that are allowed or prohibited to access the Device. Procedure Step 1 Select Main Menu > SECURITY > Attack Defense > Firewall . Figure 5-282 Firewall Step 2 Click to enable the firewall.
Page 411: Account Lockout
User's Manual Enter the IP address, start port and end port, and then click OK. ● IP segment. Enter the start address and end address, starting port and ending port, and then click ● MAC address. Enter the MAC address, and then click OK. Step 5 Click Apply.
Page 412: Sync Time-Allowlist
User's Manual Figure 5-284 Anti-Dos Attack 5.14.3.4 Sync Time-Allowlist You can configure which hosts are allowed to synchronize time with the Device. Procedure Select Main Menu > SECURITY > Attack Defense > Sync Time-Allowlist. Step 1...
Page 413 User's Manual Figure 5-285 Sync Time-Allowlist Step 2 Click to enable the function. Step 3 Click Add to add trusted hosts for time synchronization. ● If you set Type to IP Address, enter the IP address, and then click OK. ●...
Page 414: Ca Certificate
User's Manual 5.14.4 CA Certificate 5.14.4.1 Device Certificate Create Certificate Select Main Menu > SECURITY > CA Certificate > Device Certificate.Figure 5-286 Device certificate 2. Click Create Certificate.
Page 415 User's Manual Figure 5-287 Create certificate 3. Configure the parameters. 4. Click Create. CA Application and Import Click CA Application and Import and then follow the on-screen instructions to finish CA application and import.
Page 416: Trusted Ca Certificate
User's Manual Figure 5-288 CA application and import Import Third-Party Certificate 1. Click Import Third-Party Certificate 2. Configure the parameters. Table 5-81 Parameters for importing third-party certificate Parameter Description Path Click Browse to find the third-party certificate path on the USB drive. Click Browse to find the third-party certificate private key on the USB Private Key drive.
Page 417: Audio/Video Encryption
User's Manual Figure 5-289 Create certificate Step 3 Click Browse to select the certificate that you want to install. Step 4 Click Import. 5.14.5 Audio/Video Encryption The Device supports audio and video encryption during data transmission. Procedure Step 1 Select Main Menu > SECURITY > AUDIO/VIDEO ENCRYPTION > Audio/Video Transmission.
Page 418 User's Manual Figure 5-290 Audio and video transmission Step 2 Configure parameters. Table 5-82 Audio and video transmission parameters Area Parameter Description Enables stream frame encryption by using private protocol. Enable There might be safety risk if this service is disabled. Private Encryption Use the default setting.
Page 419: Security Warning
User's Manual 5.14.6 Security Warning 5.14.6.1 Security Exception The Device gives warnings to the user when a security exception occurs. Procedure Step 1 Select Main Menu > SECURITY > Security Warning > Security Exception. Figure 5-291 Security exception Step 2 Click to enable the function.
Page 420: System
User's Manual Figure 5-292 Illegal login Step 2 Click to enable the function. Step 3 Configure alarm linkage actions. For details, see Step7. Click Apply. Step 4 5.15 System 5.15.1 General Settings You can set NVR basic information such as system date and holiday. 5.15.1.1 General You can set device basic information such as device name, and serial number.
Page 421 User's Manual Figure 5-293 Basic settings Step 2 Set parameters. Table 5-83 Basic parameters Parameter Description Device Name Enter the Device name. Device No. Enter a number for the Device. Language Select a language for the Device system. Select PAL or NTSC as needed. Video Standard Enable this function;...
Page 422: Date And Time
User's Manual Parameter Description Enable the navigation bar. When you click on the live view screen, the Navigation Bar navigation bar is displayed. Adjust the speed of double-click by moving the slider. Mouse Sensitivity The bigger the value is, the faster the speed is. Step 3 Click Apply button to save settings.
Page 423: Holiday
User's Manual Table 5-84 Data and time parameters Parameter Description In the System Time box, enter time for the system. Click the time zone list, you can select a time zone for the system, and the time in adjust automatically. System Time Do not change the system time randomly;...
Page 424 User's Manual Figure 5-295 Holiday Step 2 Click Add Holidays. Figure 5-296 Add holidays Step 3 Set holiday name, repeat mode and holiday mode. Click Add more to add new holiday information. Step 4 Click Add, you can add current holiday to the list.
Page 425: Serial Port
User's Manual ● Click the drop-down list of the state; you can enable/disable holiday date. ● Click to change the holiday information. Click to delete current date. Step 5 Click Next to save settings. 5.15.2 Serial Port After setting RS-232 parameters, the NVR can use the COM port to connect to other device to debug and operate.
Page 426: Output And Display
User's Manual Parameter Description Data Bits It ranges from 5 to 8, which is 8 by default. Stop Bits It includes 1 and 2. Parity It includes none, odd, even, mark and null. Step 3 Click Apply. 5.16 Output and Display 5.16.1 Display You can configure the display effect such as displaying time title and channel title, adjusting image transparency, and selecting the resolution.
Page 427: Tour
User's Manual Table 5-86 Display parameters Parameter Description Configure the output port format of both screens. ● When sub screen is disabled, the format of main screen is HDMI/VGA simultaneous output. ● When sub screen is enabled, the format of main screen and sub Main Screen/Sub screen are non-simultaneous outputs.
Page 428 User's Manual Figure 5-299 Tour ● On the top right of the live view screen, use the left mouse button or press Shift to switch between (image switching is allowed) and (image switching is not allowed) to turn on/off the tour function. ●...
Page 429: Custom Layout
User's Manual Parameter Description Display all channel groups under the current Window Split setting. ● Add a channel group: Click Add, in the pop-up Add Group channel, select the channels to form a group, and then click Save. ● Delete a channel group: Select the checkbox of any channel group, and then click Delete.
Page 430 User's Manual Figure 5-300 Custom split Step 2 Click and then click to select basic mode. System adopts the basic window mode as the new window name. For example, if you select the 8 display mode, the default name is Split8. In regular mode, drag the mouse in the preview frame;...
Page 431: Pos
User's Manual ● After merge the window, system adopts the remaining window amount as the new name such as Split6. ● Select the window you want to merge (red highlighted), click to cancel the merge to restore the basic mode. ●...
Page 432: Settings
User's Manual 5.17.1 Settings Procedure Step 1 Select Main Menu > POS > POS Setting. Figure 5-302 POS setting Step 2 Configure the POS parameters. Table 5-88 POS parameters Parameter Description In the POS Name list, select the POS machine that you want to configures settings for.
Page 433: Privacy Setup
User's Manual Parameter Description Character Encode Select a character encoding mode. In the Overlay Mode list, Select Turn or ROLL. ● Turn: Once the information is at 16 lines, system displays the next page. ● ROLL: Once the information is at 16 lines, system rolls one line after another to delete the first line.
Page 434: Connection Mode
User's Manual Figure 5-303 Privacy Step 2 Set privacy information. Step 3 Click OK. 5.17.1.2 Connection Mode Connection type is UDP or TCP. Procedure Step 1 Select Connection Mode as UDP, TCP_CLINET or TCP. Step 2 Click Figure 5-304 IP address For Source IP and Port, enter the POS IP address and port.
Page 435: Audio
User's Manual Figure 5-305 POS search Step 2 In the POS Search box, enter the information such as transaction number on your receipt, amount, or product name. In the Start Time box and End Time box, enter the time period that you want to search Step 3 the POS transaction information.
Page 436 User's Manual Figure 5-306 File management Step 2 Click Add. Figure 5-307 Add file...
Page 437: Audio Play
User's Manual Step 3 Select the audio file and then click Import. System supports MP3 and PCM audio format. Step 4 Click OK to start importing audio files from the USB storage device. If the importing is successful, the audio files will display in the File Management page. 5.18.2 Audio Play You can configure the settings to play the audio files during the defined time period.
Page 438: Broadcast
User's Manual ● The finish time for audio playing depends on audio file size and the configured interval. ● Playing priority: Alarm event > Audio talk > Trial listening > Schedule audio file. Step 3 Click Apply. 5.18.3 Broadcast System can broadcast to the camera, or broadcast to a channel group. Procedure Step 1 Select Mani Menu >...
Page 439 User's Manual Figure 5-310 Add group (1) Step 3 Input group name and select one or more channels. Click Save to complete broadcast group setup. Step 4...
Page 440: Operation And Maintenance
User's Manual ● On the broadcast page, click to change group setup, click to delete group. ● After complete broadcast setup, on the preview page and then click on the navigation bar, device pops up broadcast dialogue box. Select a group name and then click to begin broadcast.
Page 441: System
User's Manual Figure 5-312 Log Step 2 In the Type list, select the log type that you want to view (System, Config, Storage, Record, Account, Clear Log, Playback, and Connection) or select All to view all logs. Step 3 Enter the time period to search, and then click Search. The search results are displayed.
Page 442: Hdd Info
User's Manual You can view version information for AI functions such as face detection, face recognition, IVS, and video metadata. Figure 5-313 Intellifgent Algorithm 5.19.2.3 HDD Info You can view the HDD quantity, HDD type, total space, free space, status, and S.M.A.R.T information. Select Main Menu >...
Page 443: Bps
User's Manual Parameter Description Health Status Indicates the health status of the HDD. S.M.A.R.T View the S.M.A.R.T reports from HDD detecting. Status Indicates the status of the HDD to show if it is working normally. 5.19.2.4 BPS You can view current video bit rate (kb/s) and resolution. Select Main Menu >...
Page 444: Network
User's Manual Figure 5-316 Device status 5.19.3 Network 5.19.3.1 Online User You can view the online user information or block any user for a period of time. To block an online user, click and then enter the time that you want to block this user. The maximum value you can set is 65535.
Page 445: Network Load
User's Manual Figure 5-317 Online user 5.19.3.2 Network Load Network load means the data flow which measures the transmission capability. You can view the information such as data receiving speed and sending speed. Procedure Select Main Menu > Maintenance Center > Network > Network Load. Step 1...
Page 446: Network Test
User's Manual Figure 5-318 Network load Step 2 Click the LAN name that you want to view, for example, LAN1. The system displays the information of data sending speed and receiving speed. ● System displays LAN1 load by default. ● Only one LAN load can be displayed at one time. 5.19.3.3 Network Test You can test the network connection status between the Device and other devices.
Page 447: Maintenance And Management
User's Manual Figure 5-319 Test Step 2 In the Destination IP box, enter the IP address. Click Test. Step 3 After testing is completed, the test result is displayed. You can check the evaluation for average delay, packet loss, and network status. 5.19.4 Maintenance and Management 5.19.4.1 Device Maintenance When the Device has been running for a long time, you can enable the Device to restart...
Page 448: Exporting System Settings
User's Manual Figure 5-320 Maintenance Step 2 Configure the parameters. ● Auto Reboot: Enable the Device to restart at the idle time. ● Emergency Maintenance: When the Device has an update power outage, running error and other problems, and you cannot log in, then you can use the emergency maintenance function to restart the Device, clear configuration, update the system, and more.
Page 449 User's Manual Figure 5-321 Import and export Step 2 Insert a USB storage device into one of the USB ports on the Device. Step 3 Click Refresh to refresh the page. The connected USB storage device is displayed.
Page 450: Restoring Defaults
User's Manual Figure 5-322 Connected USB device Step 4 Click Export. There is a folder under the name style of "Config_xxxx". Double-click this folder to view the backup files. 5.19.4.3 Restoring Defaults 5.19.4.3.1 Restoring Defaults on the Local Page Background Information This function is for admin account only.
Page 451: Resetting Device Through The Reset Button
User's Manual Figure 5-323 Default Step 2 Restore the settings. ● Default: Restore all the configurations except network settings and user management to the default. ● Factory Default: Restore all the configurations to the factory default settings. 5.19.4.3.2 Resetting Device through the Reset Button Background Information You can use the reset button on the mainboard to reset the Device to the factory default settings.
Page 452: System Update
User's Manual Figure 5-324 Reset button Step 4 Restart the Device. After the Device restarts, the settings have been restored to the factory default. 5.19.4.4 System Update 5.19.4.4.1 Upgrading File Procedure Step 1 Insert a USB storage device containing the upgrade files into the USB port of the Device. Step 2 Select Main Menu >...
Page 453: Online Upgrade
User's Manual Figure 5-326 Browse Step 4 Click the file that you want to upgrade. The selected file is displayed in the Update File box. Step 5 Click Start. Step 6 5.19.4.4.2 Online Upgrade Background Information When the Device is connected to Internet, you can use online upgrade function to upgrade the system.
Page 454: Uboot Upgrading
User's Manual 5.19.4.4.3 Uboot Upgrading ● Under the root directory in the USB storage device, there must be "u-boot.bin.img" file and "update.img" file saved, and the USB storage device must be in FAT32 format. ● Make sure the USB storage device is inserted; otherwise the upgrading cannot be performed. When starting the Device, the system automatically checks whether there is a USB storage device connected and any upgrade file, and if yes and the check result of the upgrade file is correct, the system will upgrade automatically.
Page 455: Shutdown
User's Manual 5.21 Shutdown ● When you see corresponding dialogue box "System is shutting down…" Do not click power on- off button directly. ● Do not unplug the power cable or click power on-off button to shutdown device directly when device is running (especially when it is recording.) ●...
Page 456 User's Manual Figure 5-330 Shutdown (2)
Page 457 User's Manual Figure 5-331 Shutdown (3) ● Remote Control Press the power button on the remote for at least 3 seconds. ● Press the power button at the rear panel of the device. Auto Resume after Power Failure The system can automatically backup video file and resume previous working status after power failure.
Page 458: Web Operation
User's Manual 6 Web Operation ● The figures in the Manual are used for introducing the operations and only for reference. The actual page might be different dependent on the model you purchased. ● The Manual is a general document for introducing the product, so there might be some functions described for the Device in the Manual not apply to the model you purchased.
Page 459: Web Main Menu
User's Manual Figure 6-1 Login Step 2 Enter the username and password. ● The default administrator account is admin. The password is the one that was configured during initial settings. To ensure your account security, we recommend you keep the password properly and change it regularly. ●...
Page 460 User's Manual Figure 6-2 Main menu Table 6-1 Main menu symbols Icon Description Includes configuration menu through which you can configure camera settings, network settings, storage settings, system settings, account settings, and view information. None Displays system date and time. When you point to , the current user account is displayed.
Page 461: Cluster Service
User's Manual Icon Description Includes eight function tiles: LIVE, PLAYBACK, AI, ALARM, POS, OPERATION, BACKUP, DISPLAY, and AUDIO. Click each tile to open the configuration page of the tile. ● LIVE: You can perform the operations such as viewing real- time video, configuring channel layout, setting PTZ controls, and using smart talk and instant record functions if needed.
Page 462: Main Device
User's Manual virtual IP address to replace the work (monitor or record) accordingly. When you use the virtual IP to access the device, you can still view the real-time video and there is no risk of record loss. Procedure Step 1 Log in to the web as the admin user.
Page 463: Sub Device
User's Manual Parameter Description Set the TCP port number of the server. The default value is 37777. Port You can view the current TCP port number in SETTING > Network > Port. Username/Password Enter the username and password of the NVR. Step 4 Click OK.
Page 464: Configuring Cluster Control
User's Manual 6.4.5 Configuring Cluster Control 6.4.5.1 Cluster Control Background Information From SETTING > Cluster Service > Cluster Control, you can enable or disable cluster. Figure 6-4 Start cluster You can see the corresponding prompt if you successfully enabled cluster service. 6.4.5.2 Arbitrage IP When there are only 2 devices in the cluster, a third-party device is required to determine whether the main device is faulty, so arbitration IP must be set for the cluster to perform a normal...
Page 465: Cluster Log
User's Manual 6.4.6 Cluster Log You can search for and view cluster logs. Procedure Step 1 Select SETTING > Cluster Service > Cluster Log. Figure 6-6 Cluster log Step 2 Enter the start time and end time. Click Search. Step 3...
Page 466: Glossary
User's Manual 7 Glossary ● DHCP: DHCP (Dynamic Host Configuration Protocol) is one of the TCP/IP protocol cluster. It is mainly used to assign temporary IP addresses to computers on a network. ● DDNS: DDNS (Dynamic Domain Name Server) is a service that maps Internet domain names to IP addresses.
Page 467: Faq
User's Manual 8 FAQ Questions Reasons ● Incorrect input power. ● Incorrect connection of the power cord. ● Damaged power switch. The Device failed to start properly. ● Wrong program. ● Damaged HDD. ● Damaged mainboard. ● Unstable or insufficient input voltage. ●...
Page 468 User's Manual Questions Reasons ● Front panel PTZ error. ● PTZ decoder setup, connection or installation is not correct. ● Cable connection is not correct. ● PTZ setup is not correct. ● PTZ decoder and NVR protocol is not compatible. NVR cannot control PTZ.
Page 469 User's Manual Questions Reasons ● Alarm setup is not correct. ● Alarm output has been open manually. Alarm signal cannot be ● Input device error or connection is not correct. disarmed. ● Some program versions might have this problem. Upgrade your system.
Page 470 User's Manual Questions Reasons ● Make sure that the IPC has booted up. ● IPC network connection is right and it is online ● IPC IP is in the blocklist. ● The device has connected to the too many IPC. It cannot I cannot connect to the IPC transmit the video.
Page 471: Appendix 1 Hdd Capacity Calculation
User's Manual Appendix 1 HDD Capacity Calculation Calculate the total capacity needed by each device according to video recording (video recording type and video file storage time). According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.
Page 472: Appendix 2 Mouse Operation
User's Manual Appendix 2 Mouse Operation Appendix Table 2-1 Mouse operation Operation Description When you have selected one menu item, left click mouse to view menu content. Modify checkbox or motion detection status. Click combo box to pop up drop-down list In input box, you can select input methods.
Page 473: Appendix 3 Remote Control
User's Manual Appendix 3 Remote Control Remote control is not our standard accessory and it is not included in the accessory package. Appendix Figure 3-1 Remote control Name Function Power button Press this button to boot up or shut down the device. Press this button to input device serial number, so that Address you can control the Device.
Page 474 User's Manual Name Function In playback state, press this button to play back the Previous record previous video. ● In normal playback state, press this button to pause playback. ● In pause state, press this button to resume to Play/Pause normal playback.
Page 475 User's Manual Name Function ● Input password, numbers. ● Switch channel. Alphanumeric keys ● Press Shift to switch the input method.
Page 476: Appendix 4 Compatible Network Camera List
User's Manual Appendix 4 Compatible Network Camera List Please note all the models in the following list for reference only. For those products not included in the list, please contact your local retailer or technical supporting engineer for detailed information. Appendix Table 4-1 Compatible network camera list Video Audio/Vi...
Page 477 User's Manual Video Audio/Vi Manufacturer Model Version Protocol Encode NBN-832 66500500 H264 √ ONVIF VEZ-211- H264 √ ONVIF － IWTEIVA NBC-255-P 15500152 H264 √ ONVIF VIP-X1XF H264 √ ONVIF － B0100 H264 √ ONVIF － D100 H264 √ ONVIF － Brikcom GE-100-CB H264...
Page 478 User's Manual Video Audio/Vi Manufacturer Model Version Protocol Encode CP-RNP- cp20120828 H264 √ Private CP-RNC- cp20120821 H264 √ Private DV10 CP-RNC- cp20120821 H264 √ Private DP20FL2C d20120214N ICS-13 H264 √ ONVIF/Private vt20111123N ICS-20W H264 √ ONVIF/Private Dynacolor NA222 H264 √ ONVIF －...
Page 479 User's Manual Video Audio/Vi Manufacturer Model Version Protocol Encode H264, 1.41 √ ONVIF/Private SP302H MPEG4 H264, √ ONVIF/Private SP306H MPEG4 H264, √ ONVIF/Private － SP508H MPEG4 H264, √ ONVIF/Private － SP509H MPEG4 H264, WV-SF332H 1.41 √ ONVIF/Private MPEG4 H264, 1.41 √...
Page 480 User's Manual Video Audio/Vi Manufacturer Model Version Protocol Encode H264, WV-SP539 1.66 √ ONVIF MPEG4 H264, DG-SC385 1.66 √ ONVIF MPEG4 1.8.1- 20110912- IXSOLW H264 √ Private 1.9082- A1.6617 1.7.41.9111- IDE20DN H264 √ Private O3.6725 1.7.8.9310- D5118 H264 √ Private A1.5288 PELCO 1.6.13.9261-...
Page 481 User's Manual Video Audio/Vi Manufacturer Model Version Protocol Encode SNC-D 1.73.00 H264 √ ONVIF/Private H210 SNC-D 1.50.00 H264 √ ONVIF/Private H240 SNC-D 1.73.01 H264 √ ONVIF/Private H240-T SNC-CH260 1.74.01 H264 √ ONVIF/Private SNC-CH280 1.73.01 H264 √ ONVIF/Private SNC-RH- 1.73.00 H264 √...
Page 482: Appendix 5 Cybersecurity Recommendations
IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks. Below are some tips and recommendations from Dahua on how to create a more secured security system.
Page 483 User's Manual 1024–65535, reducing the risk of outsiders being able to guess which ports you are using. 6. Enable HTTPS We suggest you to enable HTTPS, so that you visit Web service through a secure communication channel. 7. MAC Address Binding We recommend you to bind the IP and MAC address of the gateway to the device, thus reducing the risk of ARP spoofing.
Page 484 User's Manual device. More information Please visit Dahua official website security emergency response center for security announcements and the latest security recommendations.
Page 485 User's Manual...
