Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per

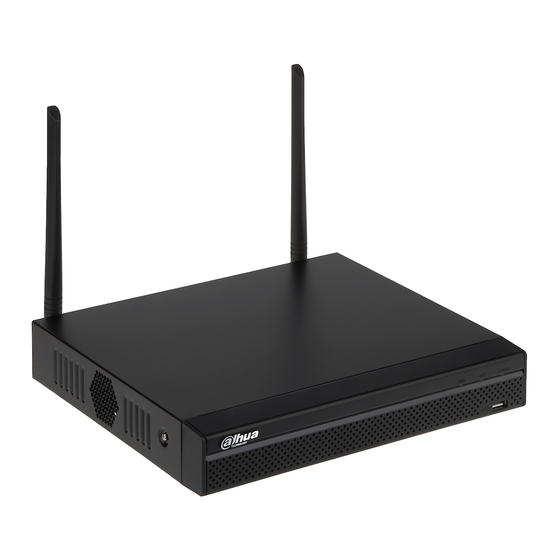

Dahua NVR4108-
P-4KS2
o cerca il tuo prodotto tra le
migliori offerte di Videosorveglianza
Network Video Recorder
User's Manual
V4.4.6
ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NVR21-4 KS2 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dahua NVR21-4 KS2 Series

Summary of Contents for Dahua NVR21-4 KS2 Series

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Dahua NVR4108- P-4KS2 o cerca il tuo prodotto tra le migliori offerte di Videosorveglianza Network Video Recorder User’s Manual V4.4.6 ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD.

  • Page 2: Foreword

    Foreword General This manual introduces the functions and operations of the XXX device (hereinafter referred to as "the Device"). Safety Instructions The following categorized signal words with defined meaning might appear in the Manual. Signal Words Meaning Indicates a high potential hazard which, if not avoided, will result DANGER in death or serious injury.
  • Page 3 Version Revision Content Release Time  New UI interfaces and menu tree. V4.4.6 July 2019 New AI functions.  V4.4.5 Deletes specifications June 2019 Add models: Cooper 1U (S3), Cooper  V4.4.4 1U (S3) with 4 PoE Ports, Compact 1U August 2018 (S3) with 8 PoE Ports Series.
  • Page 4 As the device user or data controller, you might collect personal data of others such as face, fingerprints, car plate number, Email address, phone number, GPS and so on. You need to be in compliance with the local privacy protection laws and regulations to protect the legitimate rights and interests of other people by implementing measures include but not limited to: Providing clear and visible identification to inform data subject the existence of surveillance area and providing related contact.

  • Page 5: Important Safeguards And Warnings

    Important Safeguards and Warnings The following description is the correct application method of the device. Read the manual carefully before use to prevent danger and property loss. Strictly conform to the manual during application and keep it properly after reading. Operating Requirement ...
  • Page 6 Use power supply that meets SELV (safety extra low voltage) requirements, and supply  power with rated voltage that conforms to Limited Power Source in IEC60950-1. For specific power supply requirements, please refer to device labels.  Products with category I structure shall be connected to grid power output socket, which is equipped with protective grounding.

  • Page 7: Table Of Contents

    Table of Contents Foreword .................................. I Important Safeguards and Warnings ........................IV Table of Contents ...............................VI Features ................................1 Overview ..............................1 Features ..............................1 Front Panel and Rear Panel ..........................3 Front Panel ..............................3 2.1.1 NVR41/41-P/41-W/21-S2/21-P-S2/21-8P-S2/41-4KS2/41-P-4KS2/41-8P-4KS2/21-4KS2/21 -P-4KS2/21-8P-4KS2 Series ........................... 3 NVR41H/41H-P/41H-8P Series .......................
  • Page 8 2.2.9 NVR44/44-8P/44-16P Series ......................29 NVR54-4KS2/58-4KS2/54-16P-4KS2/58-16P-4KS2/5424-24P-4KS2/5816P-4KS2E Series 2.2.10 2.2.11 NVR48/48-16P Series ........................34 NVR42V-8P Series ........................... 36 2.2.12 NVR41-4KS2/41-P-4KS2/41-8P-4KS2 ..................37 2.2.13 2.2.14 NVR41HS-4KS2/41HS-P-4KS2/41HS-8P-4KS2 ................. 39 NVR42-4KS2/42-P-4KS2/42-8P-4KS2/42-16P-4KS2 ..............40 2.2.15 NVR44-4KS2/44-16P-4KS2 ......................43 2.2.16 2.2.17 NVR48-4KS2/48-16P-4KS2 Series ....................45 NVR21-W-4KS2 Series ........................46 2.2.18 NVR21HS-W-4KS2 Series ......................
  • Page 9 KS2/21-P-4KS2/21-8P-4KS2 Series ......................61 NVR41H/41H-P/41H-8P Series ..................... 62 3.6.2 NVR41HS-W-S2/21-W-4KS2/21HS-W-4KS2 Series ..............63 3.6.3 3.6.4 NVR21HS-S2/21HS-P-S2/21HS-8P-S2/41HS-4KS2/41HS-P-4KS2/41HS-8P-4KS2/21HS-4 KS2/21HS-P-4KS2/21HS-8P-4KS2 Series ....................64 3.6.5 NVR22-S2/22-P-S2/22-8P-S2/22-4KS2/22-P-4KS2/22-8P-4KS2 Series ........ 65 NVR42N Series ..........................66 3.6.6 3.6.7 NVR42/42-P/42-8P/42-16P/52-4KS2/52-8P-4KS2/52-16P-4KS2/5224-24P-4KS2/52-8P-4K S2E/52-16P-4KS2E Series ..........................66 NVR42-8P-4K/42-4KS2/42-P-4KS2/42-8P-4KS2/42-16P-4KS2 Series ........67 3.6.8 3.6.9 NVR54-4KS2/54-16P-4KS2/58-4KS2/58-16P-4KS2/5424-24P-4KS2/54-16P-4KS2E/5816P...
  • Page 10 Record File ............................. 151 Playback and Search ..........................151 Instant Playback ..........................151 4.6.1 4.6.2 Search Interface ..........................151 Smart Search Playback ......................... 157 4.6.3 Mark Playback ..........................158 4.6.4 4.6.5 Playback Image ..........................159 Splice Playback ..........................159 4.6.6 File List .............................
  • Page 11 4.13.1 Basic ..............................288 Schedule ............................289 4.13.2 HDD ..............................289 4.13.3 4.13.4 Record Control ..........................289 Advance (HDD Group)........................290 4.13.5 HDD Detect ............................. 290 4.13.6 4.13.7 RAID ..............................293 Record Estimate ..........................298 4.13.8 FTP ..............................300 4.13.9 4.14 System ..............................

  • Page 12: Features

    1 Features 1.1 Overview This series NVR is a high performance network video recorder. This series product support local preview, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function. This series product supports center storage, front-end storage and client-end storage. The monitor zone in the front-end can be set in anywhere.
  • Page 13 correctly and prompt user by screen and voice (support pre-recorded audio).  Support central alarm server setup, so that alarm information can remotely notify user automatically. Alarm input can be derived from various connected peripheral devices.  Alert you via email/sms. ...

  • Page 14: Front Panel And Rear Panel

    2 Front Panel and Rear Panel NOTE The following front panel and rear panel figures are for reference only. The actual product shall prevail. 2.1 Front Panel 2.1.1 NVR41/41-P/41-W/21-S2/21-P-S2/21-8P-S2/41-4KS2/41-P-4KS2/41-8P-4KS2/21-4 KS2/21-P-4KS2/21-8P-4KS2 Series The front panel is shown as in Figure 2-1. Figure 2-1 Table 2-1 Name...

  • Page 15: Nvr41Hs-W-S2 Series

    Figure 2-2 Table 2-2 Icon Name Function Network status The red light becomes on when the indicator light network connection is abnormal. Power indicator The red light becomes on when the power light connection is OK. status The red light becomes on when HDD is indictor light abnormal.

  • Page 16: Nvr41-8P Series

    Table 2-3 Icon Name Function HDD status indicator The blue light is on when the HDD is malfunction. light Network status indicator The blue light is on when the network connection is light abnormal. POWER Power status indicator light The blue light is on when the power connection is USB2.0 port Connect to peripheral USB 2.0 storage device, mouse, burner and etc.
  • Page 17 Table 2-5 Icon Name Function Power button Power button, press this button for three seconds to boot up or shut down NVR. Shift Shift In textbox, click this button to switch between numeral, English(Small/Capitalized),donation and etc. \ Up/1 Activate current control, modify setup, and then Down/4 move up and down.

  • Page 18: Nvr21Hs-S2/21Hs-P-S2/21Hs-8P-S2/41Hs-4Ks2/41Hs-P-4Ks2/41Hs-8P-4Ks2/21Hs-4

    Icon Name Function Play previous/0 | In playback mode, playback the previous video. In text mode, input number 0. Reverse/Pause/6 || In normal playback or pause mode, click this button to reverse playback. In reverse playback, click this button to pause playback.

  • Page 19: S2/52-8P-4Ks2E/52-16P-4Ks2E/54-16P-4Ks2E/58-16P-4Ks2E Series

    Icon Name Function Network status indicator The blue light is on when the network connection is light abnormal. POWER Power status indicator light The blue light is on when the power connection is USB port Connect to peripheral USB storage device, mouse and etc.

  • Page 20: Nvr44/44-8P/44-16P Series

    Table 2-7 Icon Name Function STATUS Status indicator light The blue light is on when the device is malfunction. HDD status indicator The blue light is on when the HDD is malfunction. light Network status indicator The blue light is on when the network connection is light abnormal.
  • Page 21 Icon Name Function When playback, click it to restore real-time monitor mode. Enter ENTER Confirm current operation. Go to default button. Go to menu. Record Manually stop/start recording, working with direction keys. or numeral keys to select the recording channel. Slow play/8 Multiple slow play speeds or normal playback.

  • Page 22: Nvr48/48-16P Series

    Icon Name Function Network Network error occurs or there is no network abnormal connection, the light becomes red to alert you. indicator light abnormal HDD error occurs or HDD capacity is below indicator light specified threshold value, the light becomes red to alert you.
  • Page 23 Icon Name Function Go to default button. Go to menu. Manually stop/start recording, working with Record direction keys or numeral keys to select the recording channel. Slow play Multiple slow play speeds or normal playback. One-window monitor mode, click this button to display assistant function: PTZ control and image color.

  • Page 24: Nvr42V-8P Series

    Icon Name Function USB port To connect USB storage device, USB mouse. Remote control Remote control indicator light. indicator light Status indicator If there is Fn indicator light, current status indicator Status light light is null. Power indicator Power indicator light. light For 4/8/16-channel series product.

  • Page 25: Nvr21-W-4Ks2 Series

    Table 2-10 Name Icon Function Power button Power button, press this button for three seconds to boot up or shut down NVR.  One-window monitor mode, click this button to display assistant function: PTZ control and image color.  Backspace function: in numeral control or text control, press it for 1.5 seconds to delete the previous character before the cursor.

  • Page 26: Nvr21Hs-W-4Ks2 Series

    Figure 2-13 Table 2-11 Icon Name Function HDD status indicator The blue light is on when the HDD is malfunction. light Network status indicator The blue light is on when the network connection is light abnormal. Power status indicator light The blue light is on when the power connection is 2.1.12 NVR21HS-W-4KS2 Series The front panel is shown as below.

  • Page 27: Rear Panel

    Table 2-12 Icon Name Function HDD status indicator The blue light is on when the HDD is malfunction. light Network status indicator The blue light is on when the network connection is light abnormal. POWER Power status indicator light The blue light is on when the power connection is USB2.0 port Connect to peripheral USB 2.0 storage device, mouse and etc.
  • Page 28 Figure 2-18 Table 2-13 Port Name Connection Function USB2.0 port. Connect to mouse, USB storage USB2.0 port device, USB burner and etc. 10M/100Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port. High Definition It transmits uncompressed high definition video...

  • Page 29: Nvr21-S2/21-P-S2/21-8P-S2/21-4Ks2/21-P-4Ks2/21-8P-4Ks2 Series

    Port Name Connection Function Built-in switch. Support PoE function. PoE PORT PoE port For PoE series product, you can use this port to provide power to the network camera. Wireless AP Support wireless hotspot function. Use Wi-Fi to connect to the network camera when there is a hotspot.

  • Page 30: Nvr41H/41H-P/41H-8P Series

    Port Name Connection Function 10M/100Mbps self-adaptive Ethernet port. Connect to the Network port network cable. USB port. Connect to mouse, USB storage device and USB port etc. High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and HDMI Media Interface multiple-channel data to the HDMI port of the display...

  • Page 31: Nvr21Hs-S2/21Hs-P-S2/21Hs-8P-S2/21Hs-4Ks2/21Hs-P-4Ks2/21Hs-8P-4Ks2 Series

    Figure 2-24 Table 2-15 Port Name Connection Function USB2.0 port. Connect to mouse, USB storage USB2.0 port device, USB burner and etc. 10M/100Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port. High Definition It transmits uncompressed high definition video...
  • Page 32 Figure 2-25 The NVR21HS-P-S2/21HS-P-4KS2 series rear panel is shown as below. See Figure 2-26. Figure 2-26 The NVR21HS-8P-S2/21HS-8P-4KS2 series rear panel is shown as below. See Figure 2-27. Figure 2-27 Table 2-16 Port Name Connection Function Power socket.  For NVR21HS-S2/21HS-4KS2, input DC 12V/2A. ...

  • Page 33: Nvr41Hs-W-S2 Series

    Port Name Connection Function MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup. MIC OUT Audio output port. It is to output the analog audio signal to Audio output port the devices such as the sound box.

  • Page 34: Nvr22-S2/22-P-S2/22-8P-S2/22-4Ks2/22-P-4Ks2/22-8P-4Ks2 Series

    Icon Name Function High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and HDMI Media Interface multiple-channel data to the HDMI port of the display device. HDMI version is 1.4. VGA video output VGA video output port.

  • Page 35: Nvr42/42N/42-P/42-8P/42-16P Series

    Port Name Connection Function 10M/100Mbps self-adaptive Ethernet port. Connect to the Network port network cable. USB port. Connect to mouse, USB storage device and USB port etc. High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and HDMI Media Interface multiple-channel data to the HDMI port of the display...
  • Page 36 Figure 2-34 The NVR42-8P series rear panel is shown as below. See Figure 2-35. Figure 2-35 The NVR42-16P series rear panel is shown as below. See Figure 2-36. Figure 2-36 Table 2-19 Name Function Power switch Power on/off button. Power input port Input DC 12V/5A.
  • Page 37 Name Function Audio output port. It is to output the analog audio signal MIC OUT Audio output port to the devices such as the sound box.  Bidirectional talk output.  Audio output on 1-window video monitor.  Audio output on 1-window video playback. ...

  • Page 38: Series

    2.2.8 NVR52-4KS2/52-8P-4KS2/52-16P-4KS2/5224-24P-4KS2/52-8P-4KS2E/52-16P-4K S2E Series The NVR52-4KS2 series rear panel is shown as below. See Figure 2-37. Figure 2-37 The NVR52-8P-4KS2 series rear panel is shown as below. See Figure 2-38. Figure 2-38 The NVR52-16P-4KS2 series rear panel is shown as below. See Figure 2-39. Figure 2-39 The NVR5224-24P-4KS2 series rear panel is shown as below.
  • Page 39 Table 2-20 Icon Port Name Function 10M/100M/1000Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and HDMI Media Interface multiple-channel data to the HDMI port of the display device.

  • Page 40: Nvr44/44-8P/44-16P Series

    Icon Port Name Function port RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ. Power input port Input DC 12V/4A. Power Power on/off button. switch Bult-in Switch. Support PoE or ePoE function. ...
  • Page 41 Name Function Power input Input AC 100~240V. port MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup. Audio output port. It is to output the analog audio MIC OUT Audio output port signal to the devices such as the sound box.
  • Page 42 Name Function +12V power output port. It can provide the power to +12V some peripheral devices such as the camera or the alarm device. Please note the supplying power shall be below 1A. Network port 10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable. eSATA eSATA port External SATA port.
  • Page 43 Figure 2-46 The NVR5424-24P-4KS2 series rear panel is shown as below. See Figure 2-47. Figure 2-47 The NVR54-16P-4KS2E series rear panel is shown as below. See Figure 2-48. Figure 2-48 The NVR58-16P-4KS2E series rear panel is shown as below. See Figure 2-49. Figure 2-49 Table 2-22 Name...
  • Page 44 Name Function eSATA eSATA port External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD. USB3.0 port USB3.0 port. Connect to mouse, USB storage device, USB burner and etc. High definition audio and video signal output port.

  • Page 45: Nvr48/48-16P Series

    Name Function CTRL 12V Controller 12V power output. It is to control the on-off alarm relay output. It can be used to control the device alarm output. At the same time, it can also be used as the power input source of some devices such as the alarm detector.
  • Page 46 Name Function Power input Input AC 100~240V. port MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup. Audio output port. It is to output the analog audio MIC OUT Audio output port signal to the devices such as the sound box.

  • Page 47: Nvr42V-8P Series

    Name Function Network port One 10M/100M/1000Mbps self-adaptive Ethernet port. Connect to the network cable. eSATA eSATA port External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD. USB2.0 port USB2.0 port.

  • Page 48: Nvr41-4Ks2/41-P-4Ks2/41-8P-4Ks2

    Table 2-24 Name Function Power Power on/off button. switch Power input port Input DC 53V--2.3A MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup. Audio output port.
  • Page 49 Figure 2-53 The NVR41-P-4KS2 series rear panel is shown as below. See Figure 2-54. Figure 2-54 The NVR41-8P-4KS2 series rear panel is shown as below. See Figure 2-55. Figure 2-55 Table 2-25 Port Name Connection Function USB port. Connect to mouse, USB storage device, USB port USB burner and etc.

  • Page 50: Nvr41Hs-4Ks2/41Hs-P-4Ks2/41Hs-8P-4Ks2

    Port Name Connection Function Power socket. For NVR41-4KS2: DC 12V/2A power. Power input port For NVR41-P-4KS2: DC 48V/72W power. For NVR41-8P-4KS2: DC 48V/96W power. MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.

  • Page 51: Nvr42-4Ks2/42-P-4Ks2/42-8P-4Ks2/42-16P-4Ks2

    Figure 2-58 Table 2-26 Port Name Connection Function USB port. Connect to mouse, USB storage device, USB USB port burner and etc. Power socket. For NVR41HS-4KS2: DC 12V/2A power. Power input port For NVR41HS-P-4KS2: DC 48V/72W power. For NVR41HS-8P-4KS2: DC 48V/96W power. 10M/100Mbps self-adaptive Ethernet port.
  • Page 52 Figure 2-59 The NVR42-P-4KS2 series rear panel is shown as below. See Figure 2-60. Figure 2-60 The NVR42-8P-4KS2 series rear panel is shown as below. See Figure 2-61. Figure 2-61 The NVR42-16P-4KS2 series rear panel is shown as below. See Figure 2-62. Figure 2-62 Table 2-27 Name...
  • Page 53 Name Function MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup. Audio output port. It is to output the analog audio signal MIC OUT Audio output port to the devices such as the sound box.

  • Page 54: Nvr44-4Ks2/44-16P-4Ks2

    2.2.16 NVR44-4KS2/44-16P-4KS2 The NVR44-4KS2 series rear panel is shown as below. See Figure 2-63. Figure 2-63 The NVR44-16P-4KS2 series rear panel is shown as below. See Figure 2-64. Figure 2-64 Table 2-28 Name Function Power switch Power on-off button Power input AC90V~264V-12V12.5A/-53V2.83A port...
  • Page 55 Name Function Video output port CVBS output  5 groups of alarm output ports. (Group 1:port NO1～NO5 Alarm output port NO1～C1,Group 2:port NO2～C2,Group 3:port 1～5 C1～C5 NO3～C3, Group 4:port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the alarm device.

  • Page 56: Nvr48-4Ks2/48-16P-4Ks2 Series

    2.2.17 NVR48-4KS2/48-16P-4KS2 Series The NVR48-4KS2 series rear panel is shown as below. See Figure 2-65. Figure 2-65 The NVR48-16P-4KS2 series rear panel is shown as below. See Figure 2-66. Figure 2-66 Table 2-29 Name Function Power switch Power on-off button Power input AC90V~264V-12V12.5A/-53V2.83A...

  • Page 57: Nvr21-W-4Ks2 Series

    Name Function Alarm input ground port.  5 groups of alarm output ports. (Group 1:port NO1～NO5 Alarm output port NO1～C1,Group 2:port NO2～C2,Group 3:port 1～5 C1～C5 NO3～C3, Group 4:port NO4～C4, Group 5: port NO5, C5, NC5).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.

  • Page 58: Nvr21Hs-W-4Ks2 Series

    Figure 2-67 Table 2-30 Port Name Connection Function USB2.0 port. Connect to mouse, USB storage USB2.0 port device, USB burner and etc. 10M/100Mbps self-adaptive Ethernet port. Network port Connect to the network cable. High definition audio and video signal output port. High Definition It transmits uncompressed high definition video...

  • Page 59: Alarm Connection

    Figure 2-68 Table 2-31 Icon Name Function Power input Power socket. Input DC12V/2A. socket. 10M/100Mbps self-adaptive Ethernet port. Connect to Network port the network cable. USB2.0 port. Connect to mouse, USB storage device, USB2.0 port and etc. High definition audio and video signal output port. It High Definition transmits uncompressed high definition video and...

  • Page 60: Alarm Input Port

    Figure 2-69 Table 2-32 Icon Function 1～16 ALARM1～ALARM16. The alarm becomes activated in the low level. NO1 C1, NO2 C2, NO3 C3, NO4 Four NO activation output groups. (On-off button). NO5 C5 NC5 One NO/NC activation output group. (On-off button). CTRL 12V Control power output.

  • Page 61: Alarm Input And Output Port

    Figure 2-70  There are two alarm input types: NO/NC.  When connect the ground port of the alarm device to the NVR, you can use any of the GND ports  Connect the NC port of the alarm device to the alarm input port (ALARM) of the NVR. ...

  • Page 62: Bidirectional Talk

    Between touches with different 1000VAC 1minute polarity Between touch and winding 1000VAC 1minute Surge voltage Between touches with same 1500V (10×160us) polarity Length of open 3ms max time Length of close 3ms max time Longevity Mechanical 50×106 (3Hz) Electrical 200×103 (0.5Hz) Temperature -40℃...

  • Page 63: Mouse Operation

    Please refer to the above interface (Figure 2-71) to enable bidirectional talk. Listening Operation At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the device-end. See Figure 2-73. Figure 2-73 2.5 Mouse Operation Refer to the following sheet for mouse operation instruction.

  • Page 64: Remote Control

    In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode. Right click In real-time monitor mode, pops up shortcut menu. mouse Exit current menu without saving the modification. Press middle In numeral input box: Increase or decrease numeral value.
  • Page 65 Name Function Next record In playback state, press this button to play back the next video. In playback state, press this button to play back the previous Previous record video. In normal playback state, press this button to pause playback. ...

  • Page 66: Device Installation

    3 Device Installation Note: All the installation and operations here should conform to your local electric safety rules. 3.1 Device Installation Diagrams Please refer to the following diagrams to install the NVR. 3.2 Check Unpacked NVR When you receive the NVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the NVR can protect most accidental clashes during transportation.

  • Page 67: About Front Panel And Rear Panel

    Please check the items in accordance with the list. Finally you can remove the protective film of the NVR. 3.3 About Front Panel and Rear Panel The model number in the stick on the bottom of NVR is very important; please check according to your purchase order.

  • Page 68: P-4Ks2/41Hs-8P-4Ks2/21Hs-4Ks2/21Hs-P-4Ks2/21Hs-8P-4Ks2/21Hs-W-4Ks2 Series

    is complete. 3.4.2 NVR41H/41H-P/41H-8P/21HS-S2/21HS-P-S2/21HS-8P-S2/41HS-W-S2/41HS-4KS 2/41HS-P-4KS2/41HS-8P-4KS2/21HS-4KS2/21HS-P-4KS2/21HS-8P-4KS2/21HS- W-4KS2 Series ① ② ③ Loosen the screws of the upper Connect the one end of the Connect the other end of the cover and side panel. HDD data cable and the HDD data cable and the power cable power cable to the HDD.

  • Page 69: Nvr44/44-8P/44-16P/54-4Ks2/54-16P-4Ks2/44-4Ks2/44-16P-4Ks2/5424-24P-4Ks2/54-1

    ④ ⑤ Connect the HDD cable and power Put the cover in accordance with cable. the clip and then fix the screws on the rear panel and side panel. 3.4.4 NVR44/44-8P/44-16P/54-4KS2/54-16P-4KS2/44-4KS2/44-16P-4KS2/5424-24P-4K S2/54-16P-4KS2E Series ① ② Use the screwdriver to loose the screws of the rear Put the HDD to the HDD bracket in the chassis panel and then remove the front cover.

  • Page 70: Nvr42V-8P Series

    ① Use the screwdriver to loose the screws of ② Put the HDD to the HDD bracket in the the rear panel and then remove the front chassis and then line up the four cover. screws to the four holes in the HDD. Use the screwdriver to fix the screws firmly to secure HDD on the HDD bracket...

  • Page 71: Cd-Rom Installation

    ③ Pull the HDD knob up when you put the HDD ④ Put the knob back after you insert the HDD into the box in case the knob buckle may strike to the SATA board. the front panel. 3.5 CD-ROM Installation Please follow the steps listed below.

  • Page 72: Connection Sample

    ⑤ Install SATA burner. Line up the SATA ⑥ User screwdriver to fix the screws. burner to the hole positions. ⑦ Put the bracket back. Please adjust the ⑧ Connect the SATA cable and power wire. CD-ROM to the proper position so that the button of the front panel is directly facing the pop-up button of the CD-ROM.

  • Page 73: Nvr41H/41H-P/41H-8P Series

    Figure 3-1 3.6.2 NVR41H/41H-P/41H-8P Series Please refer to Figure 3-2 for connection sample. The following figure for reference only. Device Installation 62...

  • Page 74: Nvr41Hs-W-S2/21-W-4Ks2/21Hs-W-4Ks2 Series

    Figure 3-2 3.6.3 NVR41HS-W-S2/21-W-4KS2/21HS-W-4KS2 Series Please refer to Figure 3-3 for connection sample. The following figure for reference only. Device Installation 63...

  • Page 75: Nvr21Hs-S2/21Hs-P-S2/21Hs-8P-S2/41Hs-4Ks2/41Hs-P-4Ks2/41Hs-8P-4Ks2/21Hs-4

    Figure 3-3 3.6.4 NVR21HS-S2/21HS-P-S2/21HS-8P-S2/41HS-4KS2/41HS-P-4KS2/41HS-8P-4KS2/ 21HS-4KS2/21HS-P-4KS2/21HS-8P-4KS2 Series Please refer to Figure 3-4 for connection sample. The following figure for reference only. Device Installation 64...

  • Page 76: Nvr22-S2/22-P-S2/22-8P-S2/22-4Ks2/22-P-4Ks2/22-8P-4Ks2 Series

    Figure 3-4 3.6.5 NVR22-S2/22-P-S2/22-8P-S2/22-4KS2/22-P-4KS2/22-8P-4KS2 Series Please refer to Figure 3-5 for connection sample. The following figure for reference only. Device Installation 65...

  • Page 77: Nvr42N Series

    Figure 3-5 3.6.6 NVR42N Series Please refer to Figure 3-6 for connection sample. Figure 3-6 3.6.7 NVR42/42-P/42-8P/42-16P/52-4KS2/52-8P-4KS2/52-16P-4KS2/5224-24P-4KS2/52 -8P-4KS2E/52-16P-4KS2E Series Please refer to Figure 3-7 for connection sample. Device Installation 66...

  • Page 78: Nvr42-8P-4K/42-4Ks2/42-P-4Ks2/42-8P-4Ks2/42-16P-4Ks2 Series

    The following figure for reference only. Figure 3-7 3.6.8 NVR42-8P-4K/42-4KS2/42-P-4KS2/42-8P-4KS2/42-16P-4KS2 Series Please refer to Figure 3-8 for connection sample. The following figure for reference only. Device Installation 67...

  • Page 79: 4Ks2E Series

    Figure 3-8 3.6.9 NVR54-4KS2/54-16P-4KS2/58-4KS2/58-16P-4KS2/5424-24P-4KS2/54-16P-4KS2E /5816P-4KS2E Series Please refer to Figure 3-8 for connection sample. The following figure for reference only. Figure 3-9 3.6.10 NVR44/44-8P/44-16P/44-4KS2/44-16P-4KS2 Series Please refer to Figure 3-10 for connection sample. Device Installation 68...

  • Page 80: Nvr48/48-16P/48-4Ks2/48-16P-4Ks2 Series

    The following figure for reference only. Figure 3-10 3.6.11 NVR48/48-16P/48-4KS2/48-16P-4KS2 Series Please refer to Figure 3-11 for connection sample. The following figure for reference only. Figure 3-11 Device Installation 69...

  • Page 81: Nvr42V-8P Series

    3.6.12 NVR42V-8P Series Please refer to Figure 3-12 for connection sample. Figure 3-12 Device Installation 70...

  • Page 82: Local Basic Operation

    4 Local Basic Operation Slight difference may be found on the user interface. The following figures for reference only. 4.1 Getting Started This chapter introduces device initial settings such as boot up, device initialization, reset password, and quick settings. 4.1.1 Boot up ...
  • Page 83 Figure 4-1 Step 2 Set system time zone according to the actual environment. Refer to Table 4-4 in "4.1.4.1.2 Date and Time" for detailed information. Click to shut down the device. It is suitable for the system integrator or the user to shut down directly after setting the time zone.
  • Page 84 Step 4 Set login password of admin. See Table 4-1. Table 4-1 Parameter Description User By default, the user is admin. In the Password box, enter the password for admin. Password The new password can be set from 8 characters through 32 characters and contains at least two types from number, letter and Confirm Password special characters (excluding"'", """, ";", ":"...
  • Page 85  The pattern that you want to set must cross at least four grids.  If you do not want to configure the unlock pattern, click Skip.  Once you have configured the unlock pattern, the system will require the unlock pattern as the default login method.

  • Page 86: Reset Password

    Step 9 Device goes to startup wizard interface. Refer to "4.1.4 Quick Settings" for detailed information. Reset Password 4.1.3 You can reset the password by the following methods when you forgot the password for admin account. If the password reset function is enabled, you can use mobile phone to scan the QR code to ...
  • Page 87 Step 2 Check the box to enable reset function. This function is enabled by default. Step 3 Click Apply to set settings. If the password reset function is disabled, you can follow the ways listed below to reset password. Device supports Reset button on the main board: You can answer the security ...
  • Page 88 Figure 4-7 Step 2 Click  If you have set the reserved email address, the Prompt interface is displayed. See Figure 4-8.  If you did not set the reserved email address, the email entering interface is displayed. See Figure 4-9. ...
  • Page 89 Figure 4-9 Step 3 Click Next. The Reset Password interface is displayed. See Figure 4-10. After clicking Next, the system will collect your information for password reset, purpose and the information includes but not limited to email address, MAC address, and device serial number.
  • Page 90 Step 4 Reset the password.  QR code Follow the onscreen instructions to get the security code in your reserved email address. In the Security code box, enter the security code.  You can get the security code twice by scanning the same QR code. If you need to get the security code once again, refresh the interface.
  • Page 91 Figure 4-12 Step 6 In the New Password box, enter the new password and enter it again in the Confirm Password box. Step 7 Click Save. The password resetting is complete. A pop-up message is displayed asking if you want to sync the password with the remote devices.

  • Page 92: Quick Settings

    You can always use the reset button on the mainboard to reset the Device to the factory default settings. Reset button is for some series products only. Step 1 Disconnect the Device from power source, and then remove the cover panel. For details about removing the cover panel, see "3.4 HDD Installation."...
  • Page 93 Figure 4-15  If you select the Auto-check for updates check box, the system will notify you automatically when updates are available.  After the auto-check function is enabled, to notify you to update timely, the system will collect the information such as IP address, device name, firmware version, and device serial number.
  • Page 94 Figure 4-16 Step 2 Set parameters. See Table 4-3. Table 4-3 Parameter Description Device Name In the Device Name box, enter the Device name. Device No. In the Device No. box, enter a number for the Device. Language In the Language list, select a language for the Device system. In the Video Standard list, select PAL or NTSC according to your actual Video Standard situation.
  • Page 95 Parameter Description IPC Time Sync In the IPC Time Sync Period box, enter the interval for time sync. Period (hour) You can set auto logout interval once login user remains inactive for a Auto logout specified time. Value ranges from 0 to 60 minutes. Enable the navigation bar.
  • Page 96 Table 4-4 Parameter Description In the System Time box, enter time for the system. Click the time zone list, you can select a time zone for the system, and the time in adjust automatically. System Time Do not change the system time randomly; otherwise the recorded video cannot be searched.
  • Page 97 Figure 4-18 Step 2 Click Add Holidays button, the Add Holidays interface is displayed. See Figure 4-19. Figure 4-19 Step 3 Set holiday name, repeat mode and holiday mode. Click Add more to add new holiday information. Step 4 Click Add button, you can add current holiday to the list. ...
  • Page 98 You can set device IP address, DNS (Domain Name System) information. You can also configure basic network settings by selecting Main Menu > NETWORK > TCP/IP. Preparation Make sure the device has properly connected to the network. Step 1 Click Next. The TCP/IP interface is displayed.
  • Page 99 Figure 4-21 Step 3 Set parameters. See Table 4-5. Table 4-5 Parameter Description Multi-address: Two Ethernet ports work separately through either  of which you can request the Device to provide the services such as HTTP and RTSP. You need to configure a default Ethernet port (usually the Ethernet port 1 by default) to request the services from the device end such as DHCP, Email and FTP.
  • Page 100 Parameter Description In the IP Version list, you can select IPv4 or IPv6. Both versions are IP Version supported for access. MAC Address Displays the MAC address of the Device. Enable the DHCP function. The IP address, subnet mask and default gateway are not available for configuration once DHCP is enabled.
  • Page 101 Parameter Description Enable the DHCP function. The IP address, subnet mask and default gateway are not available for configuration once DHCP is enabled. DHCP If DHCP is effective, the obtained information will display in the IP  Address box, Subnet Mask box and Default Gateway box. If not, all values show 0.0.0.0.
  • Page 102 Figure 4-22 Step 2 Check the box to enable P2P function. After the P2P function is enabled and connected to the Internet, the system will collects your information for remote access, and the information includes but not limited to email address, MAC address, and device serial number.
  • Page 103 Figure 4-23 on the top right corner. The interface requiring device initialization is displayed. A pop-up message reminding you to make sure the Device is initialized is displayed. Tap OK.  If the Device has not been initialized, Tap Device Initialization to perform initializing by following the onscreen instructions.
  • Page 104 Tap P2P. The P2P interface is displayed. See Figure 4-25. Figure 4-25 Enter a name for the NVR, the username and password, scan the QR code under Device SN. Tap Start Live Preview. The Device is added and displayed on the live view interface of the cell phone. See Figure 4-26.
  • Page 105 After adding remote device, the device can receive, store, and manage the video streams of the remote device. You can view, browse, play back and manage several remote devices at the same time. Step 1 On the P2P interface, click Next button. The REGISTRATION interface is displayed.
  • Page 106 Figure 4-28 Table 4-7 Parameter Description Enable the Uninitialized function, the uninitialized devices out of the Uninitialized searched devices are displayed in the searched device list. Select the uninitialized device from the uninitialized device list, and Initialize the click Initialize to start initializing device. In the Show Filter list, select the remote device type that you want to display in the searched device list.
  • Page 107 Parameter Description Add the device by manually configuring settings such as IP address, Manual Add channel selection. Added Device Displays the added devices. You can edit and delete the device, and List view the device information. Select the check box of the added device, and then click Delete to Delete delete the added device.
  • Page 108 Parameter Description The default is 192.168.0.0 which the system cannot connect to. The default value setting is 554. You can enter the value according to RTSP Port your actual situation. The default value setting is 80. You can enter the value according to your actual situation.
  • Page 109 Figure 4-30 4.1.4.5 RAID Manager RAID (redundant array of independent disks) is a data storage virtualization technology that combines multiple physical HDD components into a single logical unit for the purposes of data redundancy, performance improvement, or both. RAID function is for some series product only. Slight difference may be found on the user interface. Step 1 Select Main Menu >...
  • Page 110 Figure 4-31 Step 2 You can click Create RAID or Create Manually, and all the disks involved will be formatted. Click Create RAID, the system will create RAID automatically.   If there is no existing RAID and no hot spare disk, the system will create RAID5 and a hot spare disk automatically.
  • Page 111 4.1.4.6.1 Recording Schedule After set schedule record, device can record video file according to the period you set here. For example, the alarm record period is from 6:00–18:00 Monday, device can record alarm video files during the 6:00–18:00. All channels are record continuously by default. You can set customized record period and record type.
  • Page 112 Parameter Description box or not.  If the selected channel is recording, the current recorded files will be packed, and then start recording according to the new schedule. This function is for some series products only.   The redundant HDD only back up the recorded videos but not snapshots.
  • Page 113 When the record type is MD (motion detect), alarm, MD&Alarm, IVS and POS,  enable the channel record function when corresponding alarm occurs. For example, when the alarm type is MD, select Main Menu > ALARM > VIDEO DETECTION > Motion Detect, select the record channel and enable record function.
  • Page 114 Figure 4-36  Define the period by drawing. Select a corresponding date to set.  Define for the whole week: Click next to All, all the icon switches to you can define the period for all the days simultaneously.  Define for several days of a week: Click before each day one by one, the icon switches to .
  • Page 115 Figure 4-37 The MD record and alarm record function are both null if you enabled MD&Alarm function. Define the period by editing.  Select a date and then click The Period interface is displayed. See Figure 4-38. Figure 4-38 Set record type for each period. ...
  • Page 116  Under Copy, select All to apply the settings to all the days of a week, or select specific day(s) that you want to apply the settings to. Click Apply to save the settings. Step 5 Click Apply to complete the settings. Enable auto record function so that the record plan can become activated.
  • Page 117 type is MD, select Main Menu > ALARM > VIDEO DETECTION > Motion Detect, select the record channel and enable record function. See Figure 4-35.  When the record type is MD (motion detect), alarm, MD&Alarm, IVS and POS, refer to "4.8.5 Video detect ", "4.8.3 Alarm ", "...
  • Page 118 You need to have storage authorities to implement the Manual record operation. Make sure the HDD has been properly installed. Step 1 Right click mouse and then select Manual > Record or select Main Menu > STORAGE > RECORD. See Figure 4-42. For some series products, after you logged in, you can click the Rec button at the front panel to go to the Record interface.

  • Page 119: Camera

    4.2 Camera 4.2.1 Connection Select Main menu > REGISTRATION > Camera Registration, you can register the remote device. See Figure 4-43. After register the remote device to the NVR, you can view the video on the NVR, and manage and storage the video file.
  • Page 120 Figure 4-44 Step 2 Select IP mode.  Check DHCP, there is no need to input IP address, subnet mask, and default gateway. Device automatically allocates the IP address to the camera. Check Static, and then input IP address, subnet mask, default gateway and ...
  • Page 121 Figure 4-45 4.2.1.2 IP Export Device can export the Added device list to your local USB device. Step 1 Insert the USB device and then click the Export button. The Browse interface is displayed. See Figure 4-46. Local Basic Operation 110...
  • Page 122 Figure 4-46 Step 2 Select Address to save export file. Step 3 Click the OK button. Device pops up a dialogue box to remind you successfully exported. When exporting IP address, the File Backup Encryption check box is checked by default.

  • Page 123: Remote Device Initialization

    Figure 4-47 Step 2 Go to Address to select the import file and then click the OK button. System pops up a dialogue box to remind you successfully imported. If the imported IP has conflicted with current added device, system pops up a dialogue box to remind you.
  • Page 124 Figure 4-48 Step 4 Set remote device password and email information. If you want to use current device password and email information, the remote device automatically uses NVR admin account information (login password and email). There is no need to set password and email. Go to step 6. Cancel Using current device password and email info, The Enter Password interface is displayed.
  • Page 125 Configure parameters. See Table 4-10. Table 4-10 Parameter Description User The default is admin. The new password can be set from 8 characters through 32 Password characters and contains at least two types from number, letter and special characters (excluding"'", """, ";", ":" and "&"). Enter a strong password according to the password strength bar Confirm Password indication.
  • Page 126 Figure 4-51 Step 8 Set camera IP address. Check DHCP, there is no need to input IP address, subnet mask, and default  gateway. Device automatically allocates the IP address to the camera.  Check Static, and then input IP address, subnet mask, default gateway and incremental value.

  • Page 127: Short-Cut Menu To Register Camera

    Figure 4-52 Step 10 Click Finished to complete the setup. 4.2.3 Short-Cut Menu to Register Camera If you have not registered a remote device to a channel, go to the preview interface to add. Step 1 On the Preview interface, Move your mouse to window. There is an icon "+ "...
  • Page 128 Step 1 Select Main Menu> CAMERA> IMAGE. The IMAGE interface is displayed. See Figure 4-54. Figure 4-54 Step 2 Configure parameters. See Table 4-11. Different series network camera displays different parameters. The actual product shall prevail. Table 4-11 Parameter Description In the Channel list, select the channel that you want to configure.
  • Page 129 Parameter Description Adjusts the image contrast. The bigger the value is, the more obvious Contrast the contrast between the light area and dark area will become. Adjusts the contrast according to actual environment. Adjusts the color shades. The bigger the value, the lighter the color Saturation will become.

  • Page 130: Encode

    Parameter Description You can set camera BLC mode. Self-adaptive: In the backlight environment, the system can  automatically adjust image brightness to clearly display the object. BLC:  Default: The device auto exposures according to the ◇ environments situation so that the darkest area of the video is cleared Customize: After select the specified zone, the system can ◇...
  • Page 131 Figure 4-55 Step 2 Configure parameters. See Table 4-12. Table 4-12 Parameter Description In the Channel list, select the channel that you want to configure the Channel settings for. Enable the smart codec function. This function can reduce the video bit stream for non-important recorded video to maximize the storage space.
  • Page 132 Parameter Description H.264: Main profile encoding.  H.264B: Baseline profile encoding. This setting requires higher bit  stream compared with other settings for the same definition. In the Resolution list, select resolution for the video. Resolution The maximum video resolution might be different dependent on your device model.
  • Page 133 Parameter Description Audio Sampling In the Audio Sampling list, you can select audio sampling rate.  Step 5 Click OK. Back to Encode interface. Step 6 Click Apply. 4.2.5.2 Snapshot You can set snapshot mode, image size, quality and interval. Step 1 Select Main menu >...

  • Page 134: Channel Name

    Parameter Description  Timing: The snapshot is taken during the scheduled period. Trigger: The snapshot is taken when there is an alarm event  occurs, such as motion detection event, video loss, and local alarms. In the Image Size list, select a value for the image. The bigger ...

  • Page 135: Remote Upgrade

     You can only change the camera connected via the private protocol.  The channel name supports 63 English characters. Step 3 Click Apply. 4.2.7 Remote Upgrade You can upgrade the connected network camera firmware. It includes online upgrade and file upgrade.

  • Page 136: Remote Device Info

    Select upgrade file on the pop-up interface. Select the upgrade file and then click OK button. After successful operation, system pops up upgrade successful dialogue box. If there are too much remote devices, select Device Type from the drop-down list to search the remote device you desire.

  • Page 137: Live View

    4.2.8.2 Firmware You can view IP address, manufacturer, type, system version of the connected remote device. Select Main Menu > CAMERA > REGISTRATION > Firmware, the Firmware interface is displayed. See Figure 4-61. Figure 4-61 4.3 Live View After you logged in, the system goes to multiple-channel live view mode by default. You can view the monitor video of each channel.

  • Page 138: Navigation Bar

    Table 4-16 Icon Description When current channel is recording, system displays this icon. When motion detection alarm occurs, system displays this icon. When video loss alarm occurs, system displays this icon. When current channel is in monitor lock status, system displays this icon.
  • Page 139 Icon Function Go to the next screen. Enable tour function. The icon switches to Close the tour or the triggered tour operation has cancelled, device restores the previous preview video. Open the PTZ control panel. For details, see "4.4.2 PTZ Control". Open the Color Setting interface.
  • Page 140 Figure 4-63 4.3.2.2 USB Manager After connecting the USB device, you can copy log, config file to USB device or update NVR system. Click , system goes to HDD Manager interface. You can view and manage HDD information. See Figure 4-64. Here you can view USB information, backup file, and update system.

  • Page 141: Preview Control Interface

    Figure 4-64 4.3.3 Preview Control Interface Move your mouse to the top center of the video of current channel; you can see system pops up the preview control interface. See Figure 4-65. If your mouse stays in this area for more than 6 seconds and has no operation, the control bar automatically hides.
  • Page 142 4.3.3.1 Instant Replay You can playback the previous 5-60 minutes record of current channel. Click to go to the instant replay interface. See Figure 4-66. Figure 4-66 Instant replay is to playback the previous 5 minutes to 60 minutes record of current channel. ...
  • Page 143 Figure 4-67 4.3.3.2 Digital zoom You can zoom in specified zone of current channel so that you can view the details. It supports zoom in function of multiple-channel. It includes the following two ways: Click , the icon switches to .
  • Page 144 By clicking , the recording is started. To stop recording, click this icon again. The clip is automatically saved into the connected USB storage device. You can record the video of any channel and save the clip into a USB storage device. 4.3.3.4 Manual Snapshot You can take one to five snapshots of the video and save into a USB storage device.
  • Page 145 The right-click menu is different for different models. The actual interface shall prevail. Figure 4-69 Table 4-18 Function Description Main Menu Open Main Menu interface. Open the PLAYBACK interface where you can search and play Search back record files. For details, see "4.6 Playback and Search." Open the PTZ interface.

  • Page 146: Sequence

    Function Description Crowd Distribution Select enable/disable to start/stop crowd distribution function. Click to realize auto focus function. Make sure the connected Auto focus camera supports auto focus function. Click to modify the camera properties. For details, see "4.2.4 Image Image". Sub Port Click Sub Port, you can go to control the sub screen.
  • Page 147 Figure 4-70 Step 2 On the edit view interface, drag the channel to the desired window, or drag on the preview window to switch the position. Check the channel number at the right bottom corner to view the current channel sequence.

  • Page 148: Fisheye (Optional)

    Figure 4-71 Step 3 Click Apply to save current channel sequence. After you change the channel sequence, click Cancel button or right click mouse, device pops up the dialogue box. See Figure 4-72.  Click OK to save current settings. ...
  • Page 149 distorted. The de-warp function can present the proper and vivid video suitable for human eyes. On the preview interface, select fisheye channel and then right click mouse, you can select fish eye. See Figure 4-73. You can set fisheye installation mode and display mode. ...
  • Page 150 Figure 4-74 Refer to the following sheet for detailed information. See Table 4-19. Table 4-19 Installation modes Icon Note 360° panorama original view （Ceiling mount） 1 de-warp window+1 panorama stretching （Ground mount） 2 panorama stretching view 1 360° panorama view+3 de-warp windows 1 360°...

  • Page 151: Test Temperature

    1 panorama unfolding view +4 de warp windows 1 panorama unfolding view +8 de warp windows Figure 4-75 In Figure 4-75, you can adjust the color pane on the left pane or use your mouse to change the position of the small images on the right pane to realize fish eye de-warp. Operation: Use mouse to zoom in/zoom out, move, and rotate the image (Not for wall mount mode.) 4.3.5.2 Fish eye de-warp during playback...

  • Page 152: Ai Preview Mode

    Figure 4-76 4.3.7 AI Preview Mode When you select AI mode, the system displays information of human face, personnel, vehicle and non-motor vehicle on the right side of the preview interface, and it supports to play back records and display feature attributes. You need to enable face detection, body detection, vehicle detection and non-motor vehicle detection to support this function.
  • Page 153 Step 3 Click The Properties interface is displayed. See Figure 4-78. Figure 4-78 Step 4 (Optional) Click Show Face List and select attributes to display, including age, gender, expression, glasses, beard and mask. Step 5 (Optional) Click Human Body Detection and select attributes to display, including top, pants, hat, bag, bag style, umbrella, age and gender.

  • Page 154: Ptz

    Figure 4-80 Step 7 (Optional) Click Non-Motor and select attributes to display, including color, type and people number. See Figure 4-81. Figure 4-81 Step 8 Click OK to complete the setting. The system can display four attributes at most. 4.4 PTZ PTZ is a mechanical platform that carries a camera and a protective cover and performs overall control remotely.

  • Page 155: Ptz Settings

    Before you control the PTZ, make sure the PTZ decoder and the NVR network connection is 4.4.1 PTZ Settings You can set different PTZ parameters for local type and remote type. Before you use local PTZ, make sure you have set PTZ protocol; otherwise you cannot control the local PTZ. ...

  • Page 156: Ptz Control

    Figure 4-83 Step 2 Configure parameters. See Table 4-20. Table 4-20 Parameter Description In the Channel list, select the channel that you want to connect the PTZ Channel camera to. Local: Connect through RS-485 port.  PTZ Type Remote: Connect through network by adding IP address of PTZ ...
  • Page 157 adjusting zoom, focus and iris settings, and quick positioning. Basic PTZ Control Panel Right-click on the live view screen and then select PTZ. The PTZ control panel is displayed. See Figure 4-84. Figure 4-84  The gray button means system does not support current function. ...
  • Page 158 Parameter Description the view. The square supports zooming. Dragging upward is to zoom out, and dragging downward is to  zoom in. The smaller the square, the larger the zoom effect.  This function is for some series products only and can only be controlled through mouse operations.

  • Page 159: Configuring Ptz Functions

    Click the Enter Menu icon to open AUX Switch the MENU OPERATION interface. 4.4.3 Configuring PTZ Functions 4.4.3.1 Configuring Presets Step 1 On the Expanded PTZ Control Panel, click The Preset interface is displayed. See Figure 4-86. Figure 4-86 Step 4 Click the direction arrows to the required position. Step 5 In the Preset box, enter the value to represent the required position.
  • Page 160 A preset will be added for this tour.  You can repeat adding more presets.  Click Del Preset to delete the preset for this tour. This operation can be repeated to delete more presets. Some protocols do not support deleting. 4.4.3.3 Configuring Patterns Step 1 On the Expanded PTZ Control Panel, click The PTZ interface is displayed.

  • Page 161: Calling Ptz Functions

    Figure 4-89 Step 3 Click the direction arrows to position the left and right borders. 4.4.4 Calling PTZ Functions After you have configured the PTZ settings, you can call the PTZ functions for monitoring from the Expanded PTZ Control Panel. See Figure 4-90. Figure 4-90 4.4.4.1 Calling Presets Step 1 On the Expanded PTZ Control Panel, in the No.

  • Page 162: Record File

    The PTZ camera moves according to the configured pattern repeatedly. Step 3 Click again to stop calling the pattern. 4.4.4.4 Calling AutoScan Step 1 On the Expanded PTZ Control Panel, in the No. box, enter the value of the border that you want to call.
  • Page 163 Select Main Menu > PLAYBACK, or on the preview interface right click mouse and then select Search, you can go to the following interface. See Figure 4-92. The following figure for reference only. Figure 4-92 Table 4-23 Function Description Display the searched recorded video or picture. It supports playing single-channel, 4-channel, 9-channel,...
  • Page 164 Function Description Display the type and time period of the current recorded video. In the 4-channel layout, there are four time bars are displayed;  in the other view layouts, only one time bar is displayed. Click on the colored area to start playback from a certain time. ...
  • Page 165 Function Description  : Click the File List button, the searched recorded video list is displayed. You can lock/unlock the files. Refer to "4.6.7 File List " for detailed information. Fisheye dewarp. It is to display the dewarp fisheye  video.
  • Page 166 Icon Function Fast forward In playback mode, click to realize various fast play modes such as fast play 1,fast play 2 and etc. Adjust the volume of the playback. Smart search . Refer to "4.6.3 Smart Search Playback" for detailed information. Click the snapshot button in the full-screen mode, the system can snapshot 1 picture.
  • Page 167 Figure 4-95 4.6.2.3 Clip This function allows you to clip some footages to a new file and then save it to the USB device. See Figure 4-96. Follow the steps listed below. Step 1 Select a record first and then click to playback.

  • Page 168: Smart Search Playback

    Figure 4-97 Step 3 Click Backup to begin the process. 4.6.3 Smart Search Playback This function is for some series product only. During playback process, it can analyze the motion detect zone in the scene and give the analysis result. This function is for channel that already enabled motion detect function (Main Menu >...

  • Page 169: Mark Playback

     The motion detect region cannot be the full screen zone.  The motion detect region adopts the current whole play pane by default.  Selects the other file on the list, system begins playing the motion detect footages of other file. ...

  • Page 170: Playback Image

    Figure 4-99  Modify Double-click one mark information item, you can see system pops up a dialogue box for you to change mark information. You can only change mark name here.  Delete Here you can check the mark information item you want to delete and then click Delete button, you can remove one mark item.

  • Page 171: File List

    Step 1 Select Main Menu > PLAYBACK, the PLAYBACK interface is displayed. Step 2 In the Search Type list, select Splice Playback; In the Split Mode list, select 4, 9, or 16. See Figure 4-100. Figure 4-100 Step 3 In the Calendar area, select a date. Step 4 In the CAM NAME list, select a channel.
  • Page 172 Figure 4-102  Check a file name, double-click the file or click to play.  Input accurate time at the top column, you can search records of current day.  System max displays 128 record files in one list.  Click to go back to the calendar/channel selection interface.

  • Page 173: Other Aux Functions

    Figure 4-103 4.6.8 Other Aux Functions 4.6.8.1 Digital Zoom In 1-window playback mode, left click mouse to select any zone on the screen, you can zoom in current zone. Right click mouse to exit. 4.6.8.2 Switch Channel  During playback mode, select from the dropdown list to switch playback channel. The smart search channel does not support this function either.
  • Page 174 Figure 4-104 Step 2 Select the channel, enter the start time and end time, and set for the gender, age, glasses, beard, and mask. Click Smart Search. The results are displayed. See Figure 4-105. For privacy reason, the human face in the image is pixelated. The actual image is clear. Figure 4-105 Step 3 Select the face that you want to play back.
  • Page 175 You can also do the following operations to the recorded files. To back up the recorded files to the external storage device, select files, click  Backup, select the save path and file type, and then click Start. See Figure 4-106. Figure 4-106 ...
  • Page 176 Figure 4-107 Step 2 Select the channel and set the parameters such as start time, end time, gender, age, glasses, beard, mask, and similarity according to your requirement. Step 3 Click Smart Search. The search result is displayed. See Figure 4-108. The human face in the image is pixelated.
  • Page 177 Figure 4-108 Step 4 Click the picture that you want to play back. The picture with registered information is displayed. You can also do the following operations to the recorded files. To back up the recorded files to the external storage device, select files, click ...
  • Page 178 Figure 4-109 Step 2 Select the channel and set the parameters such as start time, end time, gender, age, glasses, beard, mask, and similarity according to your requirement. Step 3 Click Smart Search. The search result is displayed. See Figure 4-110. The human face in the image is pixelated.
  • Page 179 Figure 4-110 Step 4 Click the picture that you want to play back. The picture with registered information is displayed. You can also do the following operations to the recorded files. To back up the recorded files to the external storage device, select files, click ...
  • Page 180 Figure 4-111 Step 2 Select a channel, start time, end time, event type, and then click Smart search, The search result is displayed. Step 3 Click the picture that you want to play back. You can also do the following operations to the recorded files. To back up the recorded files to the external storage device, select files, click ...
  • Page 181 Figure 4-112 Step 2 Select a channel, start time, end time, and set corresponding parameters. Step 3 Click Smart search. The search result is displayed. See Figure 4-113. For privacy reason, the human face in the image is pixelated. Local Basic Operation 170...
  • Page 182 Figure 4-113 Step 4 Select one or multiple results, and then you can To back up the recorded files to the external storage device, select files, click  Backup, select the save path and file type, and then click Start. To lock the files to make it unable to be overwritten, select the files, and then click ...
  • Page 183 Figure 4-114 Step 2 Select a channel and set parameters.  System supports plate fuzzy search.  System searches all plate numbers by default if you have not set a plate number. Step 3 Click Smart search. The search result is displayed. Step 4 Select one or multiple results, and then you can: To back up the recorded files to the external storage device, select files, click ...
  • Page 184 Figure 4-115 Step 2 Select the channel and the time, and then select one or multiple features from Type, Vehicle Color, People Number, or Helmet. Step 3 Click Smart Search. The search result is displayed. See Figure 4-116. Figure 4-116 Step 4 Select one or multiple results, and then you can Local Basic Operation 173...
  • Page 185  To back up the recorded files to the external storage device, select files, click Backup, select the save path and file type, and then click Start. To lock the files to make it unable to be overwritten, select the files, and then click ...
  • Page 186 Parameter Description Type Select from the dropdown list. 4.7.1.8 Heat map You can detect the active objects distribution in the monitor zone during the specified period, and use different colors to display on the heat map report. 4.7.1.8.1 Normal Step 1 Select Main Menu > AI > SMART SEARCH > HEAT MAP > NORMAL. The Normal interface is displayed.

  • Page 187: Parameters

    Figure 4-119 Step 2 Set Channel, Type, Start Time, End time. Step 3 Click Search. Step 4 System displays heat map report. Click Export and then select saved path, click Save to save the heat map report to the USB device. 4.7.2 Parameters 4.7.2.1 Smart Plan The smart plan is for the smart network camera.
  • Page 188 Figure 4-120 Step 2 Select a channel number. System displays different smart plan interfaces since the remote device may supports different functions.  The interface is shown as Figure 4-121 if the remote device supports preset function. Figure 4-121 Select a channel. Select a preset.
  • Page 189  Click to delete the preset.  Click Add to add a preset.  Once the remote device does not support preset function, the interface is shown as in Figure 4-122. Figure 4-122 Select a channel. Click the smart plan icon. The icon becomes blue highlighted. Click Apply.
  • Page 190 Figure 4-123 Step 2 In the Channel list, select a channel that you want to configure face detection function, and then enable it. Step 3 Configure the parameters. See Table 4-26. Table 4-26 Parameter Description This series NVR products support AI by Camera only. AI by Camera means the Type connected camera does all the AI analytics, and then gives the results to the NVR.
  • Page 191 Parameter Description The alarm device (such as lights, sirens, etc.) is connected to the alarm output Alarm Out port. When an alarm occurs, the NVR device transmits the alarm information to the alarm device. When the alarm ends, the alarm extended for a period of time. The time range is Latch from 0 seconds to 300 seconds.
  • Page 192 Parameter Description Check the box and then select the corresponding audio file from the dropdown Voice list. System plays the audio file when the alarm occurs. Prompts Refer to "4.17.1 File Manage" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs. Step 4 Click Apply to complete the settings.
  • Page 193 Table 4-27 Parameter Description Check the box to enable RoI function, system displays human face at the enhanced way. Click Setting to draw areas to filter the target. You can configure two filtering targets (maximum size and minimum size). Rule When the target is smaller than the minimum size or larger than the maximum size, no alarms will be activated.
  • Page 194 Parameter Description The alarm device (such as lights, sirens, etc.) is connected to the alarm output Alarm Out port. When an alarm occurs, the NVR device transmits the alarm information to the alarm device. When the alarm ends, the alarm extended for a period of time. The time range is Latch from 0 seconds to 300 seconds.
  • Page 195 Parameter Description Check the box and then select the corresponding audio file from the dropdown Voice list. System plays the audio file when the alarm occurs. Prompts Refer to "4.17.1 File Manage" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs. Step 9 Click OK, system goes back to human face recognition interface.
  • Page 196  The surveillance environment shall not be too complicated. The IVS function is not suitable for the environment of too many objects or the changing light.  The surveillance environment shall not contain glasses, reflection light from the ground, and water.
  • Page 197 Figure 4-128 Step 3 Set corresponding parameters. Step 4 Click Apply. 4.7.2.4.1 Tripwire When the detection target crosses the warning line along the set direction, the system performs an alarm linkage action. Step 1 Select Main Menu > AI > PARAMETERS > IVS. In the Type drop-down list, select Tripwire.
  • Page 198 Figure 4-129 Step 2 Draw the detection rule. Click to draw the rule on the surveillance video, the system displays as Figure 4-130. Local Basic Operation 187...
  • Page 199 Figure 4-130 Configure the parameters. See Table 4-29. Table 4-29 Parameter Description Name Customize the rule name. Set the tripwire direction, including A→B, B→A and A↔B. Direction Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse.
  • Page 200 Figure 4-131 Step 4 Configure the parameters. See Table 4-30. Table 4-30 Parameter Description Configure the period and in the set time range, the corresponding configuration Period item will be linked to start the alarm. The alarm device (such as lights, sirens, etc.) is connected to the alarm output Alarm Out port.
  • Page 201 Parameter Description Select the check box and select the needed recording channel (support multiple choices). When an alarm occurs, the NVR device activates the channel for recording. Record Channel You need to enable intelligent recording and auto recording first. For details, see "4.1.4.6 Schedule."...
  • Page 202 Figure 4-132 Step 2 Draw the detection rule. Click to draw the rule on the surveillance video, the system displays as Figure 4-133. Figure 4-133 Local Basic Operation 191...
  • Page 203 Configure the parameters. See Table 4-31. Table 4-31 Parameter Description Name Customize the rule name. Action Set the intrusion action, including appear and crossing area. Direction Set the direction to cross the area, including enter, exit and both. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse.
  • Page 204 Figure 4-134 Step 2 Draw the detection rule. Click to draw the rule on the surveillance video. See Figure 4-135. Figure 4-135 Set parameters. See Table 4-32. Local Basic Operation 193...
  • Page 205 Table 4-32 Parameter Description Preset Select a preset you want to use IVS Name Input customized rule name System can generate an alarm once the object is in the zone for the specified Duration period. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse.
  • Page 206 Figure 4-136 Step 2 Draw the detection rule. Click to draw the rule on the surveillance video. See Figure 4-137. Local Basic Operation 195...
  • Page 207 Figure 4-137 Set parameters. See Table 4-33. Table 4-33 Parameter Description Preset Select a preset you want to use IVS Name Input customized rule name You can set alarm sensitivity. The value ranges from 1 to 10.The default setup Sensitivity is 5.
  • Page 208 Step 1 In the Type drop-down list, select Crowd Gathering Estimation. The interface is shown as below. See Figure 4-138. Figure 4-138 Step 2 Draw the detection rule. Click to draw the rule on the surveillance video. See Figure 4-139. Local Basic Operation 197...
  • Page 209 Figure 4-139 Set parameters. See Table 4-34. Table 4-34 Parameter Description Preset Select a preset you want to use IVS. Name Input customized rule name Duration Set the minimum time that the object stays until the alarm is triggered. Click to filter the target.
  • Page 210 Step 1 In the Type drop-down list, select Parking. The interface is shown as below. See Figure 4-140. Figure 4-140 Step 2 Draw the detection rule. Click to draw the rule on the surveillance video. See Figure 4-141. Figure 4-141 Local Basic Operation 199...
  • Page 211 Set parameters. See Table 4-35. Table 4-35 Parameter Description Preset Set the preset point for IVS detection according to the actual needs. Name Customize the rule name. Duration Set the minimum time that the object stays until the alarm is triggered. Click to filter the target.
  • Page 212 Figure 4-142 Step 2 Draw the detection rule. Click to draw the rule on the surveillance video. See Figure 4-143. Figure 4-143 Set parameters. See Table 4-36. Local Basic Operation 201...
  • Page 213 Table 4-36 Parameter Description Preset Set the preset point for IVS detection according to the actual needs. Name Customize the rule name. Duration Set the minimum time that the object stays until the alarm is triggered. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse.
  • Page 214 Figure 4-144 Step 2 Draw the detection rule. Click to draw the rule on the surveillance video. See Figure 4-145. Figure 4-145 Set parameters. See Table 4-37. Local Basic Operation 203...
  • Page 215 Table 4-37 Parameter Description Preset Set the preset point for IVS detection according to the actual needs. Name Customize the rule name. Duration Set the minimum time that the object stays until the alarm is triggered. Click to filter the target. Check the blue wireframe and adjust the size of the area with the mouse.
  • Page 216 Figure 4-146 Step 2 In the Channel list, select a channel that you want to configure video structuring function, and then enable it. See Table 4-38. Table 4-38 Parameter Description Human Select Human detection and then check the box to enable this function. Detection Face Detect Select Face Detect and then check the box to enable this function.
  • Page 217 corresponding actions. Step 1 Select Main Menu > AI > PARAMETERS > CROWD DISTRIBUTION. The CROWD DISTRIBUTION interface is displayed. See Figure 4-147. Figure 4-147 Step 2 Configure parameters. See Table 4-39. Table 4-39 Parameter Description Channel Select a channel from the dropdown list. Enable Check the box to enable the function.
  • Page 218 Parameter Description When the alarm ends, the alarm extended for a period of time. The time range is Latch from 0 seconds to 300 seconds. Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). Alarm Upload This function is for some series products only.
  • Page 219 Step 3 Click Apply to complete the setup. 4.7.2.7 People Counting System adopts video image and graphics analysis technology. System can calculate the entry/exit people amount in the specified zone on the video. It can generate an alarm when the amount has exceeded the threshold.
  • Page 220 Parameter Description Rule Click RULE to set statistics region, name, direction. Click Setting to set alarm parameters.  OSD Overlay: Check the box here; you can view the people amount on the surveillance video.  Entry No.: You can set people entry amount. System can generate an Alarm alarm once the amount has exceeded the threshold.
  • Page 221 Parameter Description At the end of the alarm, the recording extends for a period of time. The time Delay range is from 10 seconds to 300 seconds. Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen.
  • Page 222 Figure 4-149 Step 2 Configure parameters. See Table 4-41. Table 4-41 Parameter Description Channel Select a channel from the dropdown list. Region Set queue detection region. Alarm Type Select Queue People No. Alarm or Queue Time Alarm. Configure the period and in the set time range, the corresponding configuration Period item will be linked to start the alarm.
  • Page 223 Parameter Description Select the check box. When an alarm occurs, the NVR device sends an email to the set mailbox to notify the user. Send Email You need to set the email first. For details, see "4.12.6 Email." Select the check box and select the needed recording channel (support multiple choices).
  • Page 224 Figure 4-150 Step 2 Select a channel number and then check the box to enable the function. Step 3 Click Setting button. The Setting interface is displayed. See Figure 4-151. Figure 4-151 Step 4 Set arm/disarm period. There are two modes for you to set the period so that the system can detect the specified zone.
  • Page 225  Define for several days of a week: Click before each day one by one, the icon switches to . You can define the period for the selected days simultaneously. Define the period by editing.  Click the of the corresponding date, and then set the period on the pop-up interface.
  • Page 226 Step 2 Select the Enable check box to enable ANPR. Step 3 Click Regular (default), Blacklist or Whitelist tab to configure it. Before activate blacklist alarm or whitelist alarm, you need to add the corresponding plate information. Refer to "4.7.3.2 B/W List" for detailed information. ...

  • Page 227: Database

    Parameter Description At the end of the alarm, the recording extends for a period of time. The time Delay range is from 10 seconds to 300 seconds. Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen.
  • Page 228 Figure 4-153 Step 2 Select a channel and then click Add. System displays Add interface. See Figure 4-154. Figure 4-154 Step 3 Input human face library name and then click Save. System successfully saves the face library. Local Basic Operation 217...
  • Page 229 Adding Face Pictures You can add face pictures to the existing libraries one by one or by batch, or add from the detected faces. To add face pictures one by one or by batch, you need to get the pictures from the USB storage device.
  • Page 230 Figure 4-156 Step 4 Click to add a face picture. The Browse interface is displayed. See Figure 4-157. Figure 4-157 Step 5 Select a face picture and enter the registration information. See Figure 4-158. Local Basic Operation 219...
  • Page 231 Figure 4-158 Step 6 Click OK. The system prompts the registration is successful. Step 7 On the Details interface, click Search. The system prompts modeling is successful. See Figure 4-159. If the system prompts the message indicating modeling is in process, wait a while and then click Search again.
  • Page 232 Adding Face Pictures in Batch System supports batch add if you want to import several human face image at the same time. Step 1 Give a name to the face picture by referring to the following table. See Table 4-43. Table 4-43 Naming format Description...
  • Page 233 blacklist/whitelist and then trigger the corresponding alarm linkage. After enable black/whitelist, on the preview interface, the plate in the blacklist is displayed as red on the plate list, the plate in the whitelist is displayed as green on the plate list. For the plate not in the black/whitelist, the plate is displayed as white.

  • Page 234: Event Manager

    Figure 4-162 Import/Export Black/whitelist System supports export black/whitelist to the USB device, or import black/whitelist from the USB device. System supports .csv or .xlsx file. The export file format is .csv.  Import black/whitelist: Click Import and then select the corresponding file, click Browse to import the file.

  • Page 235: Alarm Status

    Figure 4-163 Step 4 In the Type list, select the event type; In the Start Time box and End Time box, enter the specific time. Step 5 Click Search. The search results are displayed. Step 6 Click Backup to back up the search results into the external storage device. ...

  • Page 236: Alarm Input

    Figure 4-164 4.8.3 Alarm Input Step 1 Select Main menu > ALARM > ALARM INPUT, The ALARM INPUT interface is displayed. See Figure 4-165. Step 2 There are four alarm types.  Local alarm: After connect the alarm device to the NVR alarm input port, system can trigger the corresponding alarm operations when there is alarm signal from the alarm input port to the NVR.
  • Page 237 Figure 4-165 Step 3 Set Alarm In channel number and then select the Enable check box to enable the function. Step 4 Configure parameters. See Table 4-44. Table 4-44 Parameter Description Alarm in Select a channel to set alarm. Enable Check the box to enable the function.
  • Page 238 Parameter Description Show Check box to enable a pop-up message in your local host PC. Message Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). Alarm Upload This function is for some series products only.

  • Page 239: Alarm Control

    Parameter Description Check the box and then select the corresponding audio file from the dropdown Voice list. System plays the audio file when the alarm occurs. Prompts Refer to "4.17.1 File Manage" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs. Step 5 Click Apply.

  • Page 240: Video Detection

    Step 3 Click Apply. 4.8.5 Video Detection The video detection adopts the computer image and graphics process technology. It can analyze the video and check there is considerable changing or not. Once video has changed considerably (such as there is any moving object, video is distorted), system can trigger the corresponding alarm activation operations.
  • Page 241 Table 4-45 Parameter Description Channel In the Channel list, select a channel to set the motion detection. Region Click Setting to define the motion detection region. Enable or disable the motion detection function. Check the box Enable MD enable the function. Period Define a period during which the motion detection is active.
  • Page 242 Parameter Description At the end of the alarm, the recording extends for a period of time. The time Delay range is from 10 seconds to 300 seconds. Tour Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen.
  • Page 243 Drag on the screen to select the region that you want to detect. The selected area shows the color that represents the region. Configure the parameters. See Table 4-46. Table 4-46 Parameter Description Name Enter a name for the region. Every region of every channel has an individual sensitivity value.
  • Page 244  Define for several days of a week: Click before each day, the icon switches to . On the timeline of any selected day, click the half-hour blocks to select the active periods, all the days with will take the same settings. ...
  • Page 245 Figure 4-171 Step 2 To configure the settings for the tampering detection parameters, see "4.8.5.1 Motion Detect. " The Tampering function does not have region and sensitivity items. Step 3 Click Apply to complete the settings. Click Default to restore the default setting. ...
  • Page 246 Figure 4-172 Step 2 To configure the settings for the video loss detection parameters, see "4.8.5.1 Motion Detect." The video loss function does not have region and sensitivity items. Step 3 Click Apply to complete the settings. Click Default to restore the default setting. ...
  • Page 247 Figure 4-173 Step 2 To configure the settings for the scene change parameters, see "4.8.5.1 Motion Detect." The scene change function does not have region and sensitivity items. Step 3 Click Apply to complete the settings. Click Default to restore the default setting. ...

  • Page 248: Audio Detect

    Figure 4-174 Step 2 To configure the settings for the PIR alarm parameters, see "4.8.5.1 Motion Detect." Step 3 Click Apply to complete the settings.  Click Default to restore the default setting. Click Copy, in the Copy dialog box, select the additional channel(s) that you want ...
  • Page 249 Figure 4-175 Step 2 Configure parameters. See Table 4-47. Table 4-47 Parameter Description Channel In the Channel list, select a channel to set. Input Check the box here, system can generate an alarm once the audio input is abnormal abnormal. Intensity Check the box here, system can generate an alarm once the audio volume change...
  • Page 250 Parameter Description Show Check box to enable a pop-up message in your local host PC. Message Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). Alarm Upload This function is for some series products only.

  • Page 251: Thermal Alarm

    Parameter Description Check the box and then select the corresponding audio file from the dropdown Voice list. System plays the audio file when the alarm occurs. Prompts Refer to "4.17.1 File Manage" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs. Step 3 Click Apply to complete the settings.
  • Page 252 Figure 4-176 Step 2 Select a channel and alarm type, enable the thermal alarm function. Step 3 Select fire mode and then enable this function (If the alarm type is Fire Alarm). System supports preset mode and zone excluded mode. ...
  • Page 253 Parameter Description Select the check box. When an alarm occurs, the NVR device uploads an alarm signal to the network (including the alarm center). Alarm Upload  This function is for some series products only. You need to set the alarm center first. For details, see "4.12.9 Alarm ...

  • Page 254: Abnormality

    Parameter Description Check the box and then select the corresponding audio file from the dropdown Voice list. System plays the audio file when the alarm occurs. Prompts Refer to "4.17.1 File Manage" to add audio file first. Buzzer Select the check box to activate the buzzer when an alarm occurs. Step 5 Click Apply.
  • Page 255 Figure 4-178 Local Basic Operation 244...
  • Page 256 Figure 4-179 Local Basic Operation 245...
  • Page 257 Figure 4-180 Step 2 Configure parameters. See Table 4-49. Table 4-49 Parameter Description Click the corresponding tab to set different abnormality events.  HDD: Sets process method when there is a HDD event such as HDD error, no HDD, no space. See Figure 4-177. ...
  • Page 258 Parameter Description Set the maximum number of allowable wrong password entries. The account will be locked after your entries exceed the maximum number Attempts For Illegal Login type only. Set how long the account is locked for. The value ranges from 1 minute to 60 minutes.

  • Page 259: Pos

    Parameter Description Tour Select the check box and select the channel for tour. When an alarm occurs, the local interface of the NVR device displays the selected channel screen.  You need to set the time interval and mode for tour first, see "4.16.2 Tour." After the tour is over, the preview interface is restored to the screen split ...

  • Page 260: Settings

    Figure 4-181 Step 2 In the POS SEARCH box, enter the information such as transaction number on your receipt, amount, or product name. Step 4 In the Start Time box and End Time box, enter the time period that you want to search the POS transaction information.
  • Page 261 Figure 4-182 Step 2 Configure the settings for the POS parameters. See Table 4-50. Table 4-50 Parameter Description In the POS Name list, select the POS machine that you want to configures settings for. Click to modify the POS name. POS Name ...
  • Page 262 Parameter Description In the Connect Type list, select the connection protocol type. Click , the IP Address interface is displayed. Connect Type In the Source IP box, enter the IP address (the machine that is connected to the Device) that sends messages. Convert Select a character encoding mode.

  • Page 263: Operation And Maintenance

    Figure 4-183 Step 2 Set privacy information. Step 3 Click OK button. 4.9.2.2 Connection type  Connection type is UDP or TCP. Step 1 Select Connect Type as UDP, TCP_CLINET or TCP. Step 2 Click The IP Address interface is displayed. See Figure 4-184. Figure 4-184 Step 3 Source IP and Port.
  • Page 264 Figure 4-185 Step 5 In the Type list, select the log type that you want to view (System, Config, Storage, Record, Account, Clear, Playback, and Connection) or select All to view all logs. Step 6 In the Start Time box and End Time box, enter the time period to search, and then click Search.

  • Page 265: System

     Click Backup to back up the logs into the USB storage device.  Click Clear to remove all logs. 4.10.2 System 4.10.2.1 Version Select Main Menu > SYSTEM > VERSION, you can go to VERSION interface. You can view NVR version information. Slight different may be found on the user interface. 4.10.2.2 HDD Info You can view the HDD quantity, HDD type, total space, free space, status, and S.M.A.R.T information.
  • Page 266 Here is for you to view current video bit rate (kb/s) and resolution. Select Main Menu > OPERATION > INFOMATION > BPS, the BPS interface is displayed. See Figure 4-188. Figure 4-188 4.10.2.4 Device Status You can view fan running status such as speed, CPU temperature, and memory. Select Main Menu >...
  • Page 267 Figure 4-189 4.10.2.5 HDD Health Detection You can view HDD health status. System supports Seagate SKYHAWK series 4T and higher HDD. It displays HDD name, space, manufacturer, Serial No., and health status. Step 1 Select Main Menu > OPERATION > INFOMATION > HDD Health Detection. The HDD Health Detection interface is displayed.

  • Page 268: Network

    Figure 4-190 Step 2 Double-click the HDD in the list, system displays the detection report. Step 3 Select an item in the list, system displays the corresponding report. System displays the curve report of the recent week by default. 4.10.3 Network 4.10.3.1 Online User You can view the online user information or block any user for a period of time.
  • Page 269 Figure 4-191 4.10.3.2 Network Load Network load means the data flow which measures the transmission capability. You can view the information such as data receiving speed and sending speed. Step 1 Select Main Menu > INFO > NETWORK > LOAD The LOAD interface is displayed.
  • Page 270 Figure 4-192 Step 2 Click the LAN name that you want to view, for example, LAN1. The system displays the information of data sending speed and receiving speed.  System displays LAN1 load by default.  Only one LAN load can be displayed at one time. 4.10.3.3 Network Test You can test the network connection status between the Device and other devices.

  • Page 271: Maintenance And Management

    Figure 4-193 Step 2 In the Destination IP box, enter the IP address. Step 3 Click Test. After testing is completed, the test result is displayed. You can check the evaluation for average delay, packet loss, and network status. 4.10.4 Maintenance and Management 4.10.4.1 Device Maintenance When the Device has been running for a long time, you can configure the auto reboot when the Device is not working.
  • Page 272 Figure 4-194 Step 4 Configure the settings for the system maintenance parameters. See Table 4-52. Table 4-52 Parameter Description Auto Reboot In the Auto Reboot list, select the reboot time. In the Case Fan Mode list, you can select Always run or Auto. If you select Auto, the case fan will stop or start according to the external conditions such as the Device temperature.
  • Page 273  When you open the IMP/EXP interface, the system refreshes the devices and sets the current directory as the first root directory. Click Format to format the USB storage device.  Exporting System Settings Step 1 Select Main Menu > OPERATION > SYSTEM MAITAIN > IMP/EXP. The IMP/EXP interface is displayed.
  • Page 274 Figure 4-196 Step 4 Click Export. There is a folder under the name style of "Config_[YYYYMMDDhhmmss]". Double-click this folder to view the backup files. 4.10.4.3 Default This function is for admin account only. You can select the settings that you want to restore to the factory default. Step 1 Select Main Menu >...
  • Page 275 Figure 4-197 Step 2 Restore the settings. Select the settings that you want to restore, and then click Apply. The system starts  restoring the selected settings.  Click Factory Default, and then click OK. The system starts restoring the whole settings.
  • Page 276 Figure 4-198 Step 3 Click System Upgrade. The System Upgrade interface is displayed. See Figure 4-199. Figure 4-199 Local Basic Operation 265...
  • Page 277 Step 4 Click the file that you want to upgrade. The selected file is displayed in the Update File box. Step 5 Click Start. 4.10.4.4.2 Online Upgrade When the Device is connected to Internet, you can use online upgrade function to upgrade the system.

  • Page 278: File Backup

     Manual check: Click Manual Check. The system starts checking the new versions. After checking is completed, the check result is displayed.  If the "It is the latest version" text is displayed, you do not need to upgrade. If the text indicating there is a new version, go to the step 3. . ...

  • Page 279: Network

    Step 3 Select backup device and then set channel, file start time and end time. Step 4 Click Search button, system begins search. All matched files are listed below. System automatically calculates the capacity needed and remained. Step 5 System only backup files with a √ before channel name. You can use Fn or cancel button to delete √...
  • Page 280 Figure 4-202 Table 4-53 Parameter Description  Multi-address: Two Ethernet ports work separately through either of which you can request the Device to provide the services such as HTTP and RTSP. You need to configure a default Ethernet port (usually the Ethernet port 1 by default) to request the services from the device end such as DHCP, Email and FTP.

  • Page 281: Port

    Parameter Description This setting is available only when the Multi-address is selected in the Net Mode list. In the IP Version list, you can select IPv4 or IPv6. Both versions are IP Version supported for access. MAC Address Displays the MAC address of the Device. Enable the DHCP function.
  • Page 282 Figure 4-203 Step 2 Configure the settings for the connection parameters. See Table 4-54. The connection parameters except Max Connection cannot take effects until the Device has been restarted. Table 4-54 Parameter Description The allowable maximum clients accessing the Device at the same Max Connection time, such as WEB, Platform, and Mobile Phone.

  • Page 283: Pppoe

    The default value setting is 554. You can enter the value according RTSP Port to your actual situation. Data transmission. The value range is from 1 through 65535. The POS Port default value is 38800. HTTPS Enable Enable HTTPS. HTTPS communication port. The default value setting is 443. You HTTPS Port can enter the value according to your actual situation.

  • Page 284: Ddns

    The system pops up a message to indicate the successfully saved. The IP address appears on the PPPoE interface. You can use this IP address to access the Device. When the PPPoE function is enabled, the IP address on the TCP/IP interface cannot be modified.
  • Page 285 Figure 4-205 Step 2 Configure the settings for the DDNS parameters. See Table 4-55. Table 4-55 Parameter Description Enable the DDNS function. Enable After enabling DDNS function, the third-party might collect your Device information. DDNS Type Type and address of DDNS service provider. ...

  • Page 286: Upnp

    If the web interface of the Device is displayed, the configuration is successful. If not, the configuration is failed. 4.12.5 UPnP You can map the relationship between the LAN and the WAN to access the Device on the LAN through the IP address on the WAN. Preparations Login the router to set the WAN port to enable the IP address to connect into the WAN.
  • Page 287 Figure 4-207 Step 2 Configure the settings for the UPnP parameters. See Table 4-56. Table 4-56 Parameter Description Enable the UPnP function. Indicates the status of UPnP function. Status Offline: Failed.   Online: Succeeded. Enter IP address of router on the LAN. LAN IP After mapping succeeded, the system obtains IP address automatically without performing any configurations.

  • Page 288: Email

    Parameter Description mapping ports are not occupied or limited. The internal and external ports of TCP and UDP must be the  same and cannot be modified. Click to modify the external port.  Step 3 Click Apply to complete the settings. In the browser, enter http://WAN IP: External IP port.

  • Page 289: Snmp

    Table 4-57 Parameter Description Enable Enable the email function. Enter the address of SMTP server of sender’s email account. SMTP Server Enter the port value of SMTP server. The default value setting is Port 25. You can enter the value according to your actual situation. User Name Enter the user name and password of sender’s email account.
  • Page 290 Browser to manage and control the Device from the software. Preparations Install the software that can manage and control the SNMP, such as MIB Builder and  MG-SOFT MIB Browser  Obtain the MIB files that correspond to the current version from the technical support. Configuration Steps Step 1 Select Main Menu >...

  • Page 291: Multicast

    Parameter Description Select the check box of SNMP version(s) that you are using. Version The default version is V3. There is a risk of select V1 or V2. SNMP Port Indicates the monitoring port on the agent program. Read Community Indicates the read/write strings supported by the agent program.

  • Page 292: Alarm Centre

    Figure 4-210 Step 2 Configure the settings for the multicast parameters. See Table 4-59. Table 4-59 Parameter Description Enable Enable the multicast function. Enter the IP address that you want to use as the multicast IP. IP Address The IP address ranges from 224.0.0.0 through 239.255.255.255. Enter the port for the multicast.

  • Page 293: Register

    Figure 4-211 Step 2 Configure the settings for the alarm center parameters. See Table 4-60. Table 4-60 Parameter Description Enable Enable the alarm center function. In the Protocol Type list, select protocol type. The default is Protocol Type ALARM CENTER. Host IP The IP address and communication port of the PC installed with alarm client.

  • Page 294: P2P

    Figure 4-212 Step 2 Configure the settings for the register parameters. See Table 4-61. Table 4-61 Function Description Enable Enable the register function. Enter the server IP address or the server domain that you want to Server IP Address register to. Port Enter the port of the server.
  • Page 295 For details, see Introduction of P2P Operations. Connect the NVR device to the Internet, otherwise P2P can not run properly. Step 1 Select Main Menu > NETWORK > P2P. The P2P interface is displayed. See Figure 4-213. Figure 4-213 Step 2 Enable the P2P function. After the P2P function is enabled and connected to the Internet, the system will collects your information for remote access, and the information includes but not limited to email address, MAC address, and device serial number.
  • Page 296 access and manage the device in the WAN. For details, refer to the P2P operation manual. You can also enter the QR code of Cell Phone Client and Device SN by clicking on the top right of the interfaces after you have entered the Main Menu. To use this function, take adding device into Cell Phone Client as an example.

  • Page 297: 286

    Step 4 After device registration on mobile App, click Start Preview and you can see the monitor screen. 4.12.12802.1X Device needs to pass 802.1x certification to enter the LAN. Step 1 Select Main Menu > NETWORK > 802.1x. The 802.1x interface is displayed. See Figure 4-215 or Figure 4-216. Figure 4-215 Local Basic Operation 286...

  • Page 298: Storage

    Figure 4-216 Step 2 Select the Ethernet card you want to certify. Step 3 Select Enable and configure parameters. See Table 4-62. Table 4-62 Parameter Description  PEAP: protected EAP protocol. Authentication TLS: Transport Layer Security. Provide privacy and data integrity ...

  • Page 299: Basic

    4.13.1 Basic You can set basic storage parameters. Step 1 Select Main Menu > STORAGE > BASIC. The Basic interface is displayed. See Figure 4-217. Figure 4-217 Step 2 Set parameters. See Table 4-63. Table 4-63 Parameter Description Configure the settings for the situation all the read/write discs are full, and there is no more free disc.

  • Page 300: Schedule

    Step 3 Click Apply or Save to complete setup. 4.13.2 Schedule You can set schedule record and schedule snapshot. NVR can record or snapshot as you specified. For detailed information, refer to "4.1.4.6.1 Schedule Record" and "4.1.4.6.2 Schedule Snapshot ". 4.13.3 HDD You can view and sett HDD properties and format HDD.

  • Page 301: Advance (Hdd Group)

    After you set schedule record or schedule snapshot function, set auto record/snapshot function so that the NVR can automatically record or snapshot. For detailed information, refer to "4.1.4.6.3 Record Control". 4.13.5 Advance (HDD Group) You can set HDD group, and HDD group setup for main stream, sub stream and snapshot operation.
  • Page 302 This function is for some series product only. The HDD detect function is to detect HDD current status so that you can clearly understand the HDD performance and replace the malfunction HDD. There are two detect types:  Quick detect is to detect via the universal system files. System can quickly complete the HDD scan.
  • Page 303 When system is detecting HDD, click Stop Detect to stop current detection. Click Start Detect to detect again. 4.13.6.2 Detect Report After the detect operation, you can go to the detect report to view corresponding information. Replace the malfunction HDD in case there is data loss. Step 1 Select Main Menu >...

  • Page 304: Raid

    Figure 4-222 Figure 4-223 4.13.7 RAID RAID (redundant array of independent disks) is a data storage virtualization technology that Local Basic Operation 293...
  • Page 305 combines multiple physical HDD components into a single logical unit for the purposes of data redundancy, performance improvement, or both.  RAID function is for some series products only. Slight difference may be found on the user interface. The NVR supports RAID0, RAID1, RAID5, RAID6, and RAID 10. Local hot spare supports ...
  • Page 306 Figure 4-224 Step 2 You can click Create RAID or Create Manually, and all the disks involved will be formatted.  Click Create RAID, the system will create RAID automatically.  If there is no existing RAID and no hot spare disk, the system will create RAID5 and a hot spare disk automatically.
  • Page 307  Business First: Resource priority is assigned to business operations. Balance: Resource is evenly distributed to RAID sync and business operations.  4.13.7.2 Raid Info You can view the existing RAID information, including type, disk space, hot spare, and status. Select Main Menu >...
  • Page 308 Figure 4-226 Step 2 Click the icon behind a disk. Step 3 The New Hotspare interface is displayed. See Figure 4-227 (New hot spare (local) or Figure 4-228 (New hot spare (global). Figure 4-227 Local Basic Operation 297...

  • Page 309: Record Estimate

    Figure 4-228 Step 4 You can select Local Hotspare or Global Hotspare. Local Hotspare: Select the target disk, and the new disk will serve as the hot spare  disk of the selected disk. Global Hotspare: the new disk will serve as the hot spare disk of the entire RAID. ...
  • Page 310 Step 2 Click The Edit dialogue box is displayed. See Figure 4-230. You can configure the Resolution, Frame Rate, Bit Rate and Record Time for the selected channel. Figure 4-230 Step 3 Click Apply to save the settings. Then the system will calculate the time period that can be used for storage according to the channels settings and HDD capacity.

  • Page 311: Ftp

    Figure 4-232 Calculating HDD Capacity for Storage Step 1 On the REC ESTIMATE interface, click the Known Time tab. The Known Time interface is displayed. See Figure 4-233. Figure 4-233 Step 2 In the Time box, enter the time period that you want to record. In the Capacity box, the required HDD capacity is displayed.
  • Page 312 Figure 4-234 Step 2 Configure the settings for the FTP settings parameters. See Table 4-65. Table 4-65 Parameter Description Enable Enable the FTP upload function.   Select FTP type. FTP type FTP: Plaintext transmission.   SFTP: Encrypted transmission (recommended) Server IP address of FTP server.

  • Page 313: System

    Parameter Description Create folder on FTP server. If you do not enter the name of remote directory, system  automatically creates the folders according to the IP and time. Remote Directory If you enter the name of remote directory, the system creates ...
  • Page 314 After setting RS-232 parameters, the NVR can use the COM port to connect to other device to debug and operate. Step 1 Select MAIN MENU > SYSTEM >RS232. The RS232 interface is displayed. See Figure 4-235. Figure 4-235 Step 2 Configure parameters. See Table 4-66. Table 4-66 Parameter Description...

  • Page 315: Security

    Parameter Description The actual product shall prevail. Baud Rate Select Baud rate, which is 115200 by default. Data Bits It ranges from 5 to 8, which is 8 by default. Stop Bits It includes 1 and 2. Parity It includes none, odd, even, mark and null. Step 3 Click Apply.
  • Page 316 Table 4-67 Parameter Description In the Type list, you can select Network Access, Sync Time-Whitelist, Forbid Ping and Semi Join.  Network Access: Configure access right of IP host. Sync Time-Whitelist: Allow designated IP host to synchronize  Type or change Device time. Prevent multiple IP hosts from synchronizing system time with one Device repeatedly.
  • Page 317 Figure 4-237 Step 2 Select Enable to enable function in the Type list. Step 3 Configure the parameters. See Table 4-68. Table 4-68 Parameter Description After enabling this function, the alarm triggered by the NVR Mobile Phone Push can be pushed to the mobile phone. This function is enable by default.

  • Page 318: Account

    Step 4 Click Apply to complete the settings. 4.15 Account You can manage users, user group and ONVIF user, set admin security questions.  For the user name, the string max length is 31-byte, and for the user group, the string max length is 15-byte.
  • Page 319 Figure 4-239 Step 3 Input the user name, password, select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user. See Table 4-69. Table 4-69 Parameter Description User Name Enter a user name and password for the account. Password Confirm Password Re-enter the password.
  • Page 320 Step 1 Select Main Menu > ACCOUNT > User, click of the corresponding user. The Modify User interface is displayed. See Figure 4-240. Figure 4-240 Step 2 Check the box to enable Modify Password function. Enter old password and then enter new password twice.

  • Page 321: Group

    Figure 4-241 Step 4 Click Back. 4.15.2 Group Step 1 Select Main Menu > ACCOUNT > Group. The Group interface is displayed. See Figure 4-242. Figure 4-242 Local Basic Operation 310...

  • Page 322: Reset Password

    Step 2 Click Add Group button in Figure 4-242. The Add Group interface is displayed. See Figure 4-243. Step 3 Enter group name and then input some memo information if necessary. Check the box to select authorities. Figure 4-243 Step 4 Click OK. Click to modify the corresponding group information, click to delete the...

  • Page 323: Onvif User

    Figure 4-244 Step 2 Check the box to enable Reset password function. This function is enabled by default. Step 3 Input proper security questions and answers. Step 4 Click OK. After you successfully set security questions, you can answer the security questions to reset admin password.
  • Page 324 Figure 4-245 Step 2 Click Add User button. The Add User interface is displayed. See Figure 4-246. Figure 4-246 Step 3 Set user name, password and then select group from the dropdown list. Step 4 Click OK to complete setup. Local Basic Operation 313...

  • Page 325: Output And Display

    Click to modify corresponding user information, click to delete current user. 4.16 Output and Display 4.16.1 Display You can configure the display effect such as displaying time title and channel title, adjusting image transparency, and selecting the resolution. Step 1 Select Main Menu > DISPLAY > Display. The Display interface is displayed.

  • Page 326: Tour

    Parameter Description IVS Rule Select the check box to display the IVS rules in the preview interface. This function is for some series products only. Original Scale Click Setting and select the channel to restore the corresponding channel image to the original scale. Main Screen Select VGA+HDMI1 or HDMI2.
  • Page 327 Figure 4-248 On the top right of the live view screen, use the left mouse button or press Shift to switch between (image switching is allowed) and (image switching is not allowed) to turn on/off the tour function. On the navigation bar, click to enable the tour and click to disable it.

  • Page 328: Customized Display

    Parameter Description Display all channel groups under the current Window Split setting. Add a channel group: Click Add, in the pop-up Add Group  channel, select the channels to form a group, and then click Save. Delete a channel group: Select the check box of any channel ...
  • Page 329 System adopts the basic window mode as the new window name. For example, if you select the 8 display mode, the default name is Split8. In regular mode, drag the mouse in the preview frame; you can merge several small windows to one window so that you can get you desired split mode.

  • Page 330: Audio

    Figure 4-251 4.17 Audio The audio function is to manage audio files and set schedule play function. It is to realize audio broadcast activation function. This function is for some series product only. 4.17.1 File Manage You can add audio files, listen to audio files, rename and delete audio files, and configure the audio volume.
  • Page 331 Figure 4-252 Step 2 Click Add. The Add interface is displayed. See Figure 4-253. NVR supports USB port to import audio file only. Figure 4-253 Step 3 Select the audio file and then click Import. Local Basic Operation 320...

  • Page 332: Schedule

    System supports MP3 and PCM audio format. Step 4 Click OK to start importing audio files from the USB storage device. If the importing is successful, the audio files will display in the File Manager interface. 4.17.2 Schedule You can configure the settings to play the audio files during the defined time period. Step 1 Select Main Menu >...

  • Page 333: Broadcast

    Parameter Description defined period. Includes two options: MIC and Audio. It is MIC by default. The MIC function shares the same port with talkback function and the latter has the priority. Output Some series products do not have audio port. The actual product shall prevail.
  • Page 334 The Add Group interface is displayed. See Figure 4-256. Figure 4-256 Step 3 Input group name and select one or more channels. Step 4 Click Save button to complete broadcast group setup.  On the broadcast interface, click to change group setup, click to delete group.

  • Page 335: Usb Device Auto Pop-Up

    Figure 4-257 4.18 USB Device Auto Pop-up After you inserted the USB device, system can auto detect it and pop up the following dialogue box. It allows you to conveniently backup file, log, configuration or update system. See Figure 4-258. Refer to "4.17.1 File Manage", "4.10.1 Log", "4.10.4.2 IMP/EXP", and "4.10.4.4 System Update "...
  • Page 336  When you see corresponding dialogue box "System is shutting down…" Do not click power on-off button directly.  Do not unplug the power cable or click power on-off button to shutdown device directly when device is running (especially when it is recording.) ...
  • Page 337 Figure 4-260 Figure 4-261  Remote Control Press the power button on the remote for at least 3 seconds.  Press the power button at the rear panel of the device. Local Basic Operation 326...
  • Page 338 Auto Resume after Power Failure The system can automatically backup video file and resume previous working status after power failure. Local Basic Operation 327...

  • Page 339: Web Operation

    5 Web Operation The interfaces in the Manual are used for introducing the operations and only for reference.  The actual interface might be different dependent on the model you purchased. If there is inconsistency between the Manual and the actual product, the actual product shall govern. ...

  • Page 340: Reset Password

    Step 2 Enter the user name and password.  The default administrator account is admin. The password is the one that was configured during initial settings. To security your account, it is recommended to keep the password properly and change it regularly. Click to display the password.
  • Page 341 Figure 5-3 Step 3 Click OK. The reset type interface is displayed. See Figure 5-4. Figure 5-4 Step 4 Follow the onscreen instructions to scan the QR code and get the security code. Web Operation 330...

  • Page 342: Web Main Menu

    You can get the security code twice by scanning the same QR code. If you need to  get the security code once again, refresh the interface.  Use the security code received in your email box to reset the password within 24 hours;...
  • Page 343 Figure 5-6 Table 5-1 Icon Description  Includes configuration menu through which you can configure camera settings, network settings, storage settings, system settings, account settings, and view information. None Displays system date and time. When you point to , the current user account is displayed. Click , select Logout, Reboot, or Shutdown according to your ...
  • Page 344 Icon Description Includes eight function tiles: LIVE, PLAYBACK, AI, ALARM, POS, OPERATION, BACKUP, DISPLAY, and AUDIO. Click each tile to open the configuration interface of the tile.  LIVE: You can perform the operations such as viewing real-time video, configuring channel layout, setting PTZ controls, and using smart talk and instant record functions if needed.

  • Page 345: Glossary

    6 Glossary  DHCP: DHCP (Dynamic Host Configuration Protocol) is a network protocol. It is one of the TCP/IP protocol cluster. It is principally used to assign temporary IP addresses to computers on a network.  DDNS: DDNS (Dynamic Domain Name Server) is a service that maps Internet domain names to IP addresses.

  • Page 346: Faq

    7 FAQ Questions Solutions  NVR cannot boot up Input power is not correct.  properly. Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD ribbon. ...
  • Page 347 Questions Solutions  Setup is not correct Time display  Battery contact is not correct or voltage is too low. correct.  Crystal is broken.  Front panel PTZ error  PTZ decoder setup, connection or installation is not correct. ...
  • Page 348 Questions Solutions  Alarm setup is not correct. Alarm signal cannot been  Alarm output has been open manually. disarmed.  Input device error or connection is not correct.  Some program versions may have this problem. Please upgrade your system. ...
  • Page 349 Questions Solutions  Please make sure the IPC has booted up.  IPC network connection is right and it is online  IPC IP is in the blacklist.  I can not connect to the The device has connected to the too many IPC. It cannot transmit the video.
  • Page 350 Otherwise it may result in HDD malfunction.  Please make sure the device is away from the direct sunlight or other heating sources. Please keep the sound ventilation.  Please check and maintain the device regularly. FAQ 339...

  • Page 351: Appendix 1 Cybersecurity Recommendations

    Appendix 1 Cybersecurity Recommendations Cybersecurity is more than just a buzzword: it’s something that pertains to every device that is connected to the internet. IP video surveillance is not immune to cyber risks, but taking basic steps toward protecting and strengthening networks and networked appliances will make them less susceptible to attacks.
  • Page 352 The account lock feature is enabled by default, and we recommend you to keep it on to guarantee the account security. If an attacker attempts to log in with the wrong password several times, the corresponding account and the source IP address will be locked. Change Default HTTP and Other Service Ports We suggest you to change default HTTP and other service ports into any set of numbers between 1024~65535, reducing the risk of outsiders being able to guess which ports you...
  • Page 353 In order to better ensure the safety of equipment and reduce potential cyber risks, we recommend: Disable the port mapping function of the router to avoid direct access to the intranet  devices from external network. The network should be partitioned and isolated according to the actual network needs. ...

  • Page 354: Appendix 2 Hdd Capacity Calculation

    Appendix 2 HDD Capacity Calculation Calculate total capacity needed by each device according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte.

  • Page 355: Appendix 3 Compatible Network Camera List

    Appendix 3 Compatible Network Camera List Please note all the models in the following list for reference only. For those products not included in the list, please contact your local retailer or technical supporting engineer for detailed information. Manufact Model Version Video Encode Audio/Vid...
  • Page 356 Manufact Model Version Video Encode Audio/Vid Protocol √ － D100 H264 ONVIF √ － GE-100-CB H264 ONVIF √ FB-100A v1.0.3.9 H264 ONVIF √ FD-100A v1.0.3.3 H264 ONVIF √ － Cannon VB-M400 H264 Private √ MPix2.0DIR XNETM112011 H264 ONVIF 1229 √ VIPBL1.3MIR XNETM210011 H264...
  • Page 357 Manufact Model Version Video Encode Audio/Vid Protocol √ MPC-IPVD-03 k20111208BNS H264 ONVIF/Private 13AF √ Honeywell HIDC-1100PT h.2.2.1824 H264 ONVIF √ HIDC-1100P h.2.2.1824 H264 ONVIF √ HIDC-0100P h.2.2.1824 H264 ONVIF √ HIDC-1300V 2.0.0.21 H264 ONVIF √ HICC-1300W 2.0.1.7 H264 ONVIF √ HICC-2300 2.0.0.21 H264...
  • Page 358 Manufact Model Version Video Encode Audio/Vid Protocol -1.9082-A1.661 √ IDE20DN 1.7.41.9111-O3 H264 Private .6725 √ D5118 1.7.8.9310-A1. H264 Private 5288 √ IM10C10 1.6.13.9261-O2 H264 Private .4657 √ DD4N-X 01.02.0015 MPEG4 Private √ DD423-X 01.02.0006 MPEG4 Private √ D5220 1.8.3-FC2-2012 H264 Private 0614-1.9320-A 1.8035...
  • Page 359 Manufact Model Version Video Encode Audio/Vid Protocol √ SNC-VM630 1.5.0 H264 Private √ － SANYO VCC-HDN400 H264 ONVIF Compatible Network Camera List 348...
  • Page 360 ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD. Address:No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email:overseas@dahuatech.com Compatible Network Camera List 349...
  • Page 361 Website: www.dahuasecurity.com Compatible Network Camera List 350...
