Figure 84 shows the DRM view during a measurement.

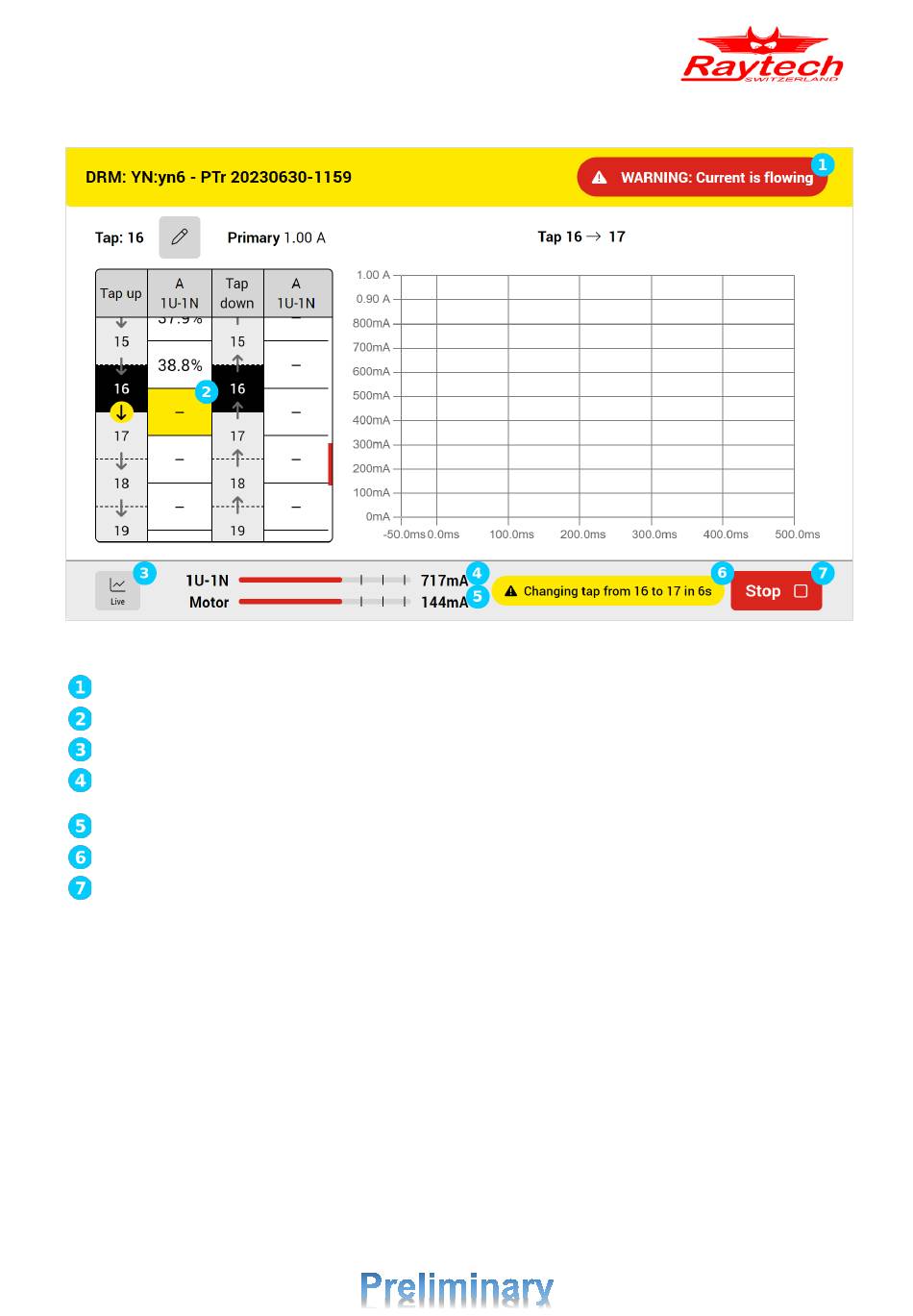

Figure 84: Dynamic resistance measurement view during the measurement
The warning symbol shows that it is not safe to touch the cables and test clamps
The highlighted cell shows the actual transition
To see the tap changer motor live current curve over the time (Figure 85)
The output current bar indicates the actual value of the output current and specify the
terminals used for current injection
The motor current bar indicates the actual value of the tap changer motor current
The system message to inform user or ask user action regarding the next tap position
The stop button can be used to stop the test. Please note that it takes time to discharge and
stop the test
Preliminary
90297-0.24 Instruction Manual mini-ATOS
Page 97 of 125
