8.1.2 Winding Configuration Autodetect
Autodetect feature can detect the winding configuration and vector group of the test object. During
detection, the test cables must be connected to the test object terminals according to 5.1.
By tapping the Detect button in the test object windings tab (Figure 21) a new window will be
opened (Figure 25). To perform the transformer detection, tap the Start and wait until mini-ATOS
find the configuration.

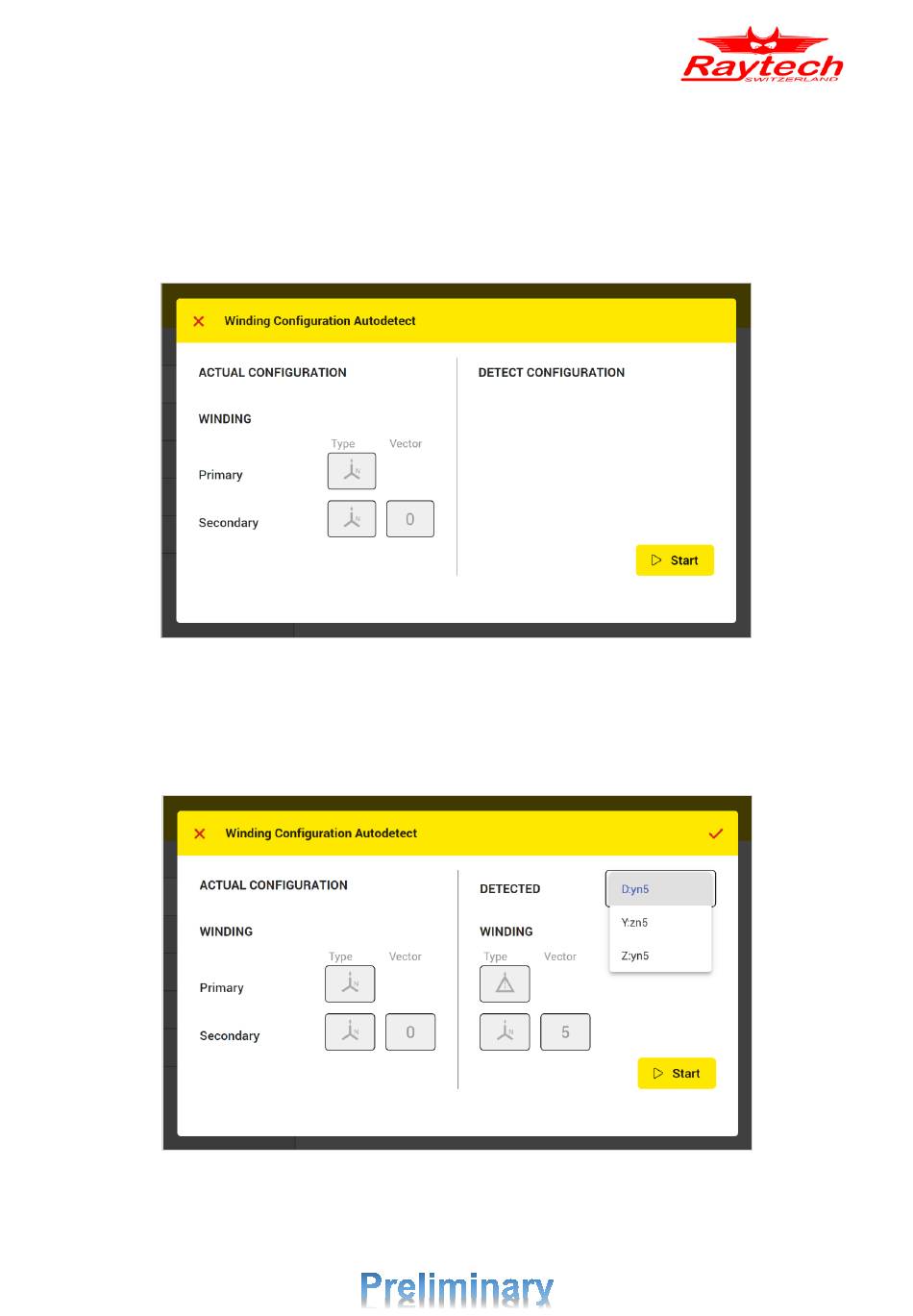

Figure 25: Winding configuration autodetect window
The actual configuration is written on the left side, and the detected configuration will be written on
the right side (See Figure 26). When mini-ATOS find more winding configurations, a list of them will
be provided and you can choose each of them. After detection, you can accept the detected
configuration or you can cancel.
Figure 26: Winding configuration autodetect window after detection
Preliminary
90297-0.24 Instruction Manual mini-ATOS
Page 46 of 125
