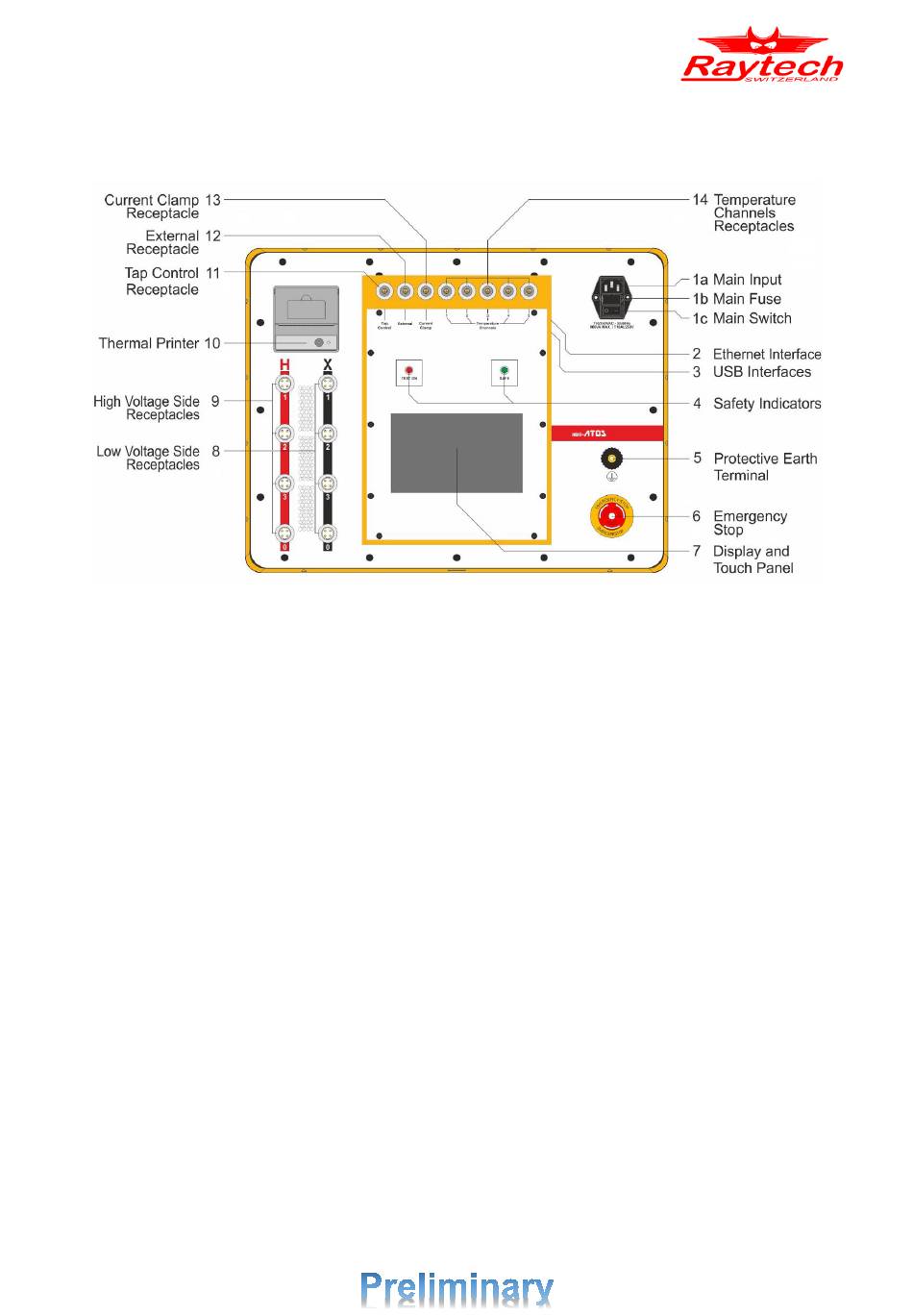

6 Operation Elements

6.1 Mains Input, Fuse and Mains Switch

a- Connect the power cable to the Mains Input. Use only a standard C13 type connector.
The cable must be rated at least 10A.
b- Two 5mm x 20mm T10A slow blow fuses protects the device. Use only the same type for
replacement.
c- Press the Mains Switch to turn the mini-ATOS ON/OFF.

6.2 Ethernet Interface

This port can be used for remote access. Please see chapter 10.7 for more information about
the remote connection.

6.3 USB Interfaces (1x Host, 2x Device)

1x USB Host which can be used for remote access
2x USB Device which can be used to connect USB Stick, or to connect mouse and keyboard

6.4 Safety Indicators

Green Light ON: The system is in safe mode. Ready for handling test leads and connections.
Red Light ON: Unsafe mode! Don't remove any cables, the current is flowing and there is a
hazardous voltage on the test leads!
