For each winding, when there are several taps, the number of taps can be entered by clicking on
the taps column. In the tap count window (Figure 23) the tap numbers can be easily adjusted. You
can also enter the number of taps directly with the virtual keyboard by tapping the taps number
directly.

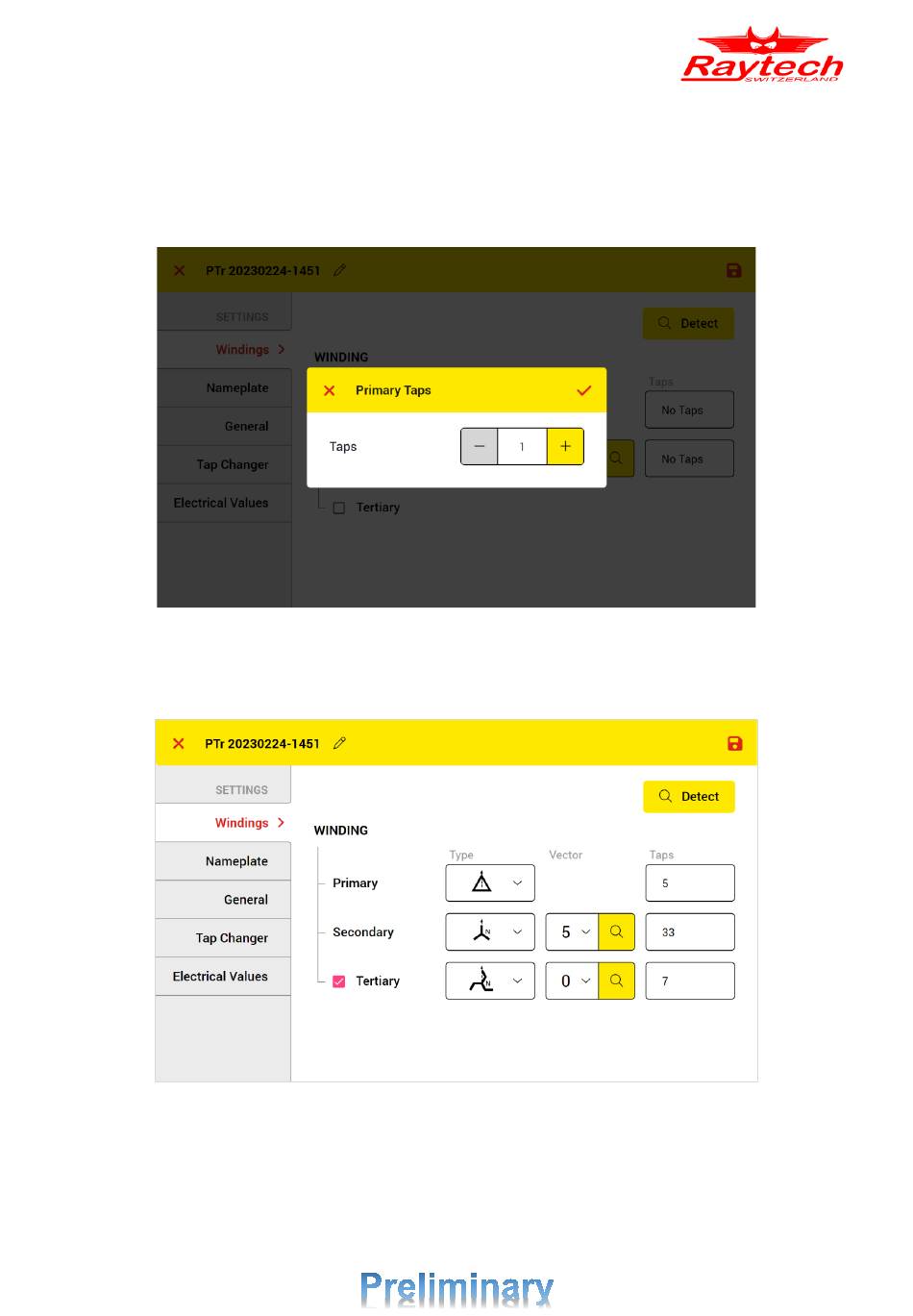

Figure 23: Tap count configuration window
When there is a tertiary winding, the check box can be selected and like the secondary winding,
the required information can be entered (Figure 24).
Figure 24: Defining a transformer with a Tertiary winding
