10.3.2 Winding Resistance Interval Result View
By tapping the Results button in the measurement view, the result view will be opened. Result view

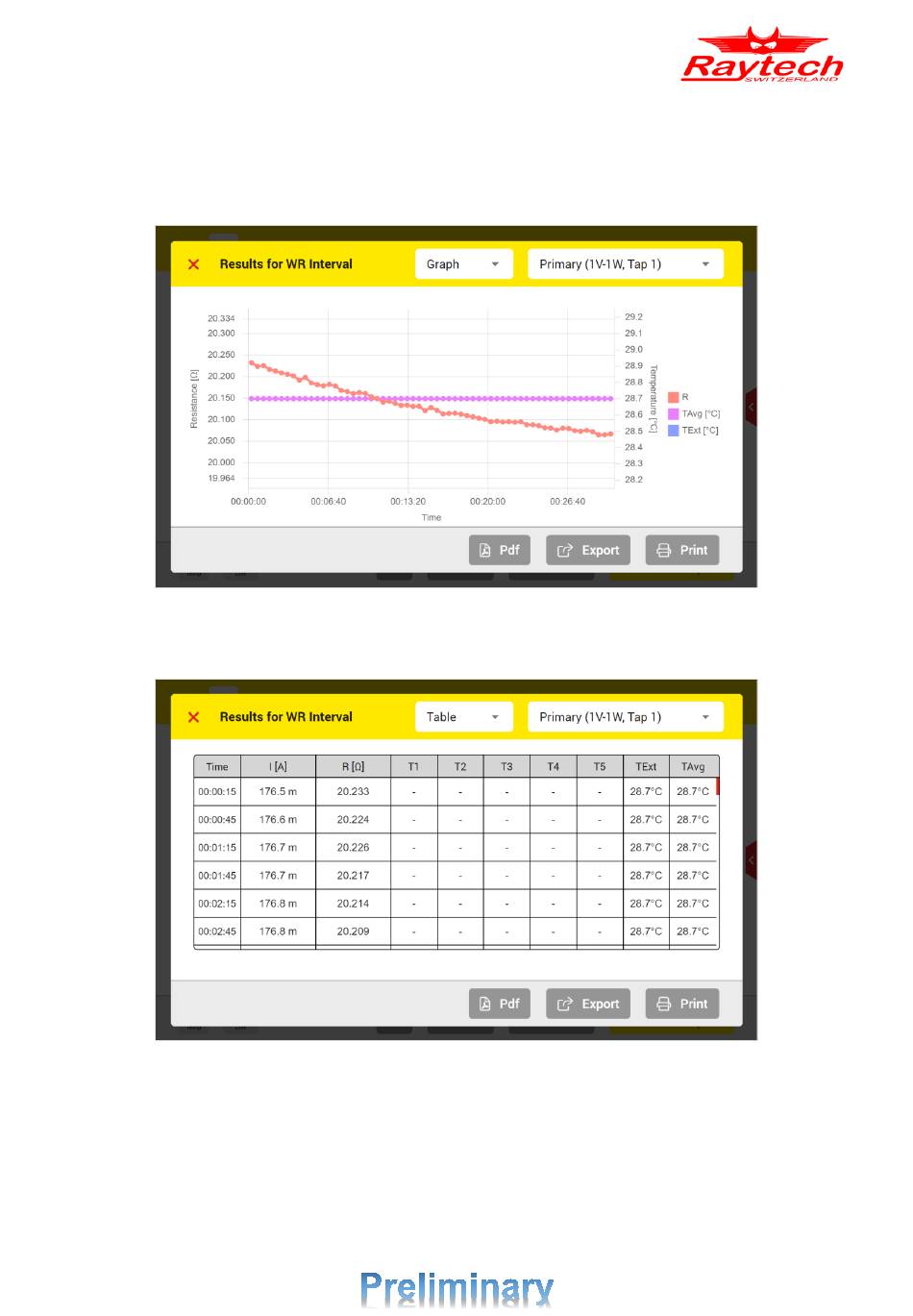

includes graphs and table. Figure 65 shows the Primary winding resistance graph view. From the
drop-down list on top right, it is possible to select also other graphs.
Figure 65: Winding resistance interval graph results view
Figure 66 shows also the Primary table results.
Figure 66: Winding resistance interval table results view
