Figure 67 shows the demagnetization view and Figure 68 shows the demagnetization view during
the test and following each one, the important parts are explained.
Open the main menu
Back to the test plan page
Open test object quick access
Test settings
The demagnetization curve (Zoomable with two fingers)
The adjusted start current that injects into the primary winding
Number of cycles already performed from all cycles
The measured saturation flux
The measured maximum remanence flux
The measured initial remanence flux in % (as the percentage of the measured maximum
remanence flux)
The measured final remanence flux in % (as the percentage of the measured maximum
remanence flux)
Zoom out
Zoom in
Maximize the graph view
Centre the graph view
90297-0.24 Instruction Manual mini-ATOS

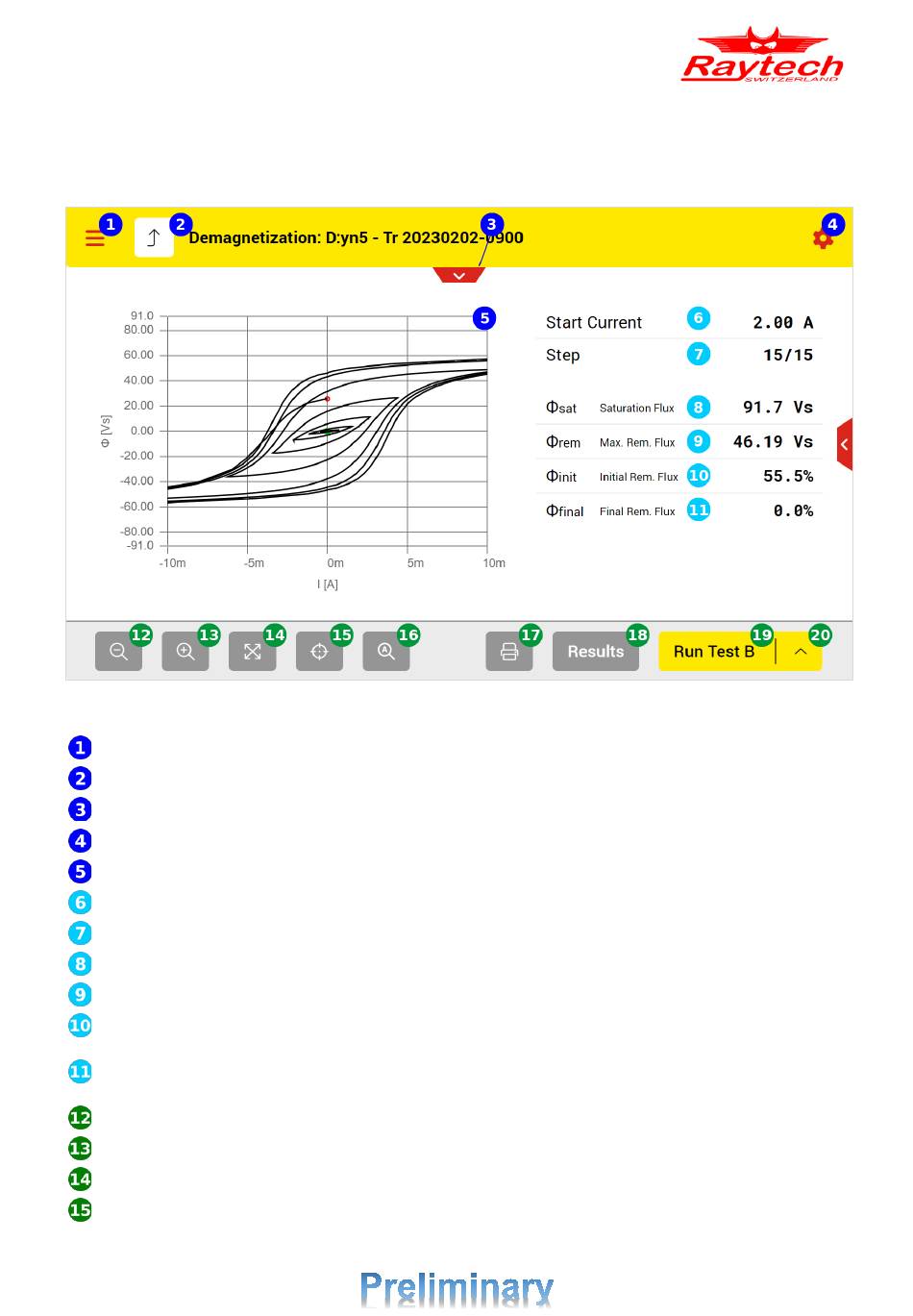

Figure 67: Demagnetization view
