The short circuit impedance average in Ω and %. For more information see 4.5.1
The AC resistance average in Ω and %. For more information see 4.5.1
The leakage reactance average in Ω and %. For more information see 4.5.1
To see the actual measurement value of each temperature measurement channel
Print the results by using the thermal printer
Open the detailed results
Start test button
Test mode to select which phase to test (A, B, C, ABC)

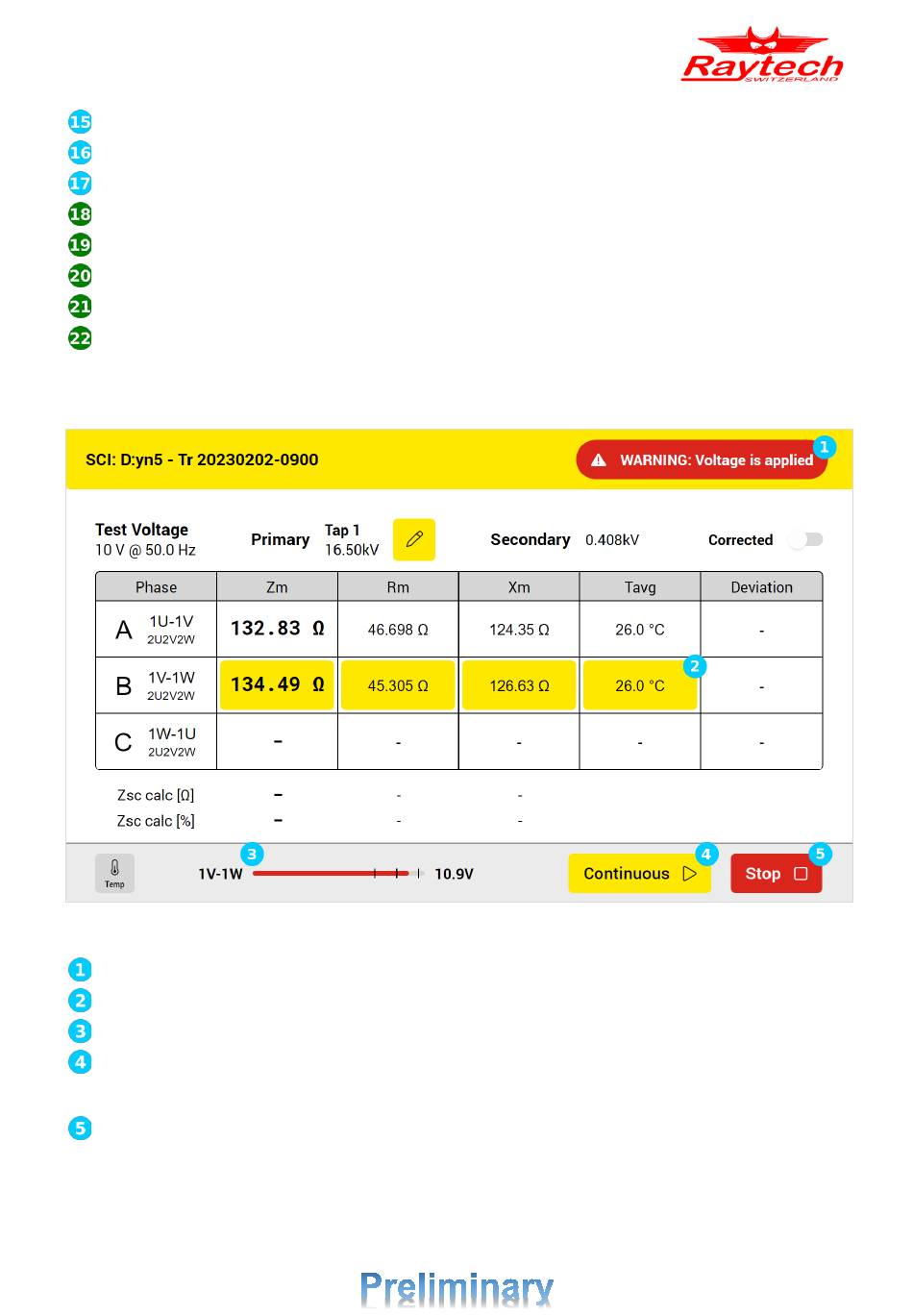

Figure 76 shows the short circuit impedance test during the measurement.
The warning symbol shows that it is not safe to touch the cables and test clamps
The highlighted row shows which phase is currently under the test
The actual test voltage during the measurement
By tapping the continuous button, the test mode changes from single-measurement to
continuous mode and the test will not stop automatically. The instrument keeps performing the
test on the phase under the test until the user action
The stop button can be used to stop the test
90297-0.24 Instruction Manual mini-ATOS
Figure 76: Short circuit impedance test during the measurement
