10.7 Dynamic Resistance Measurement

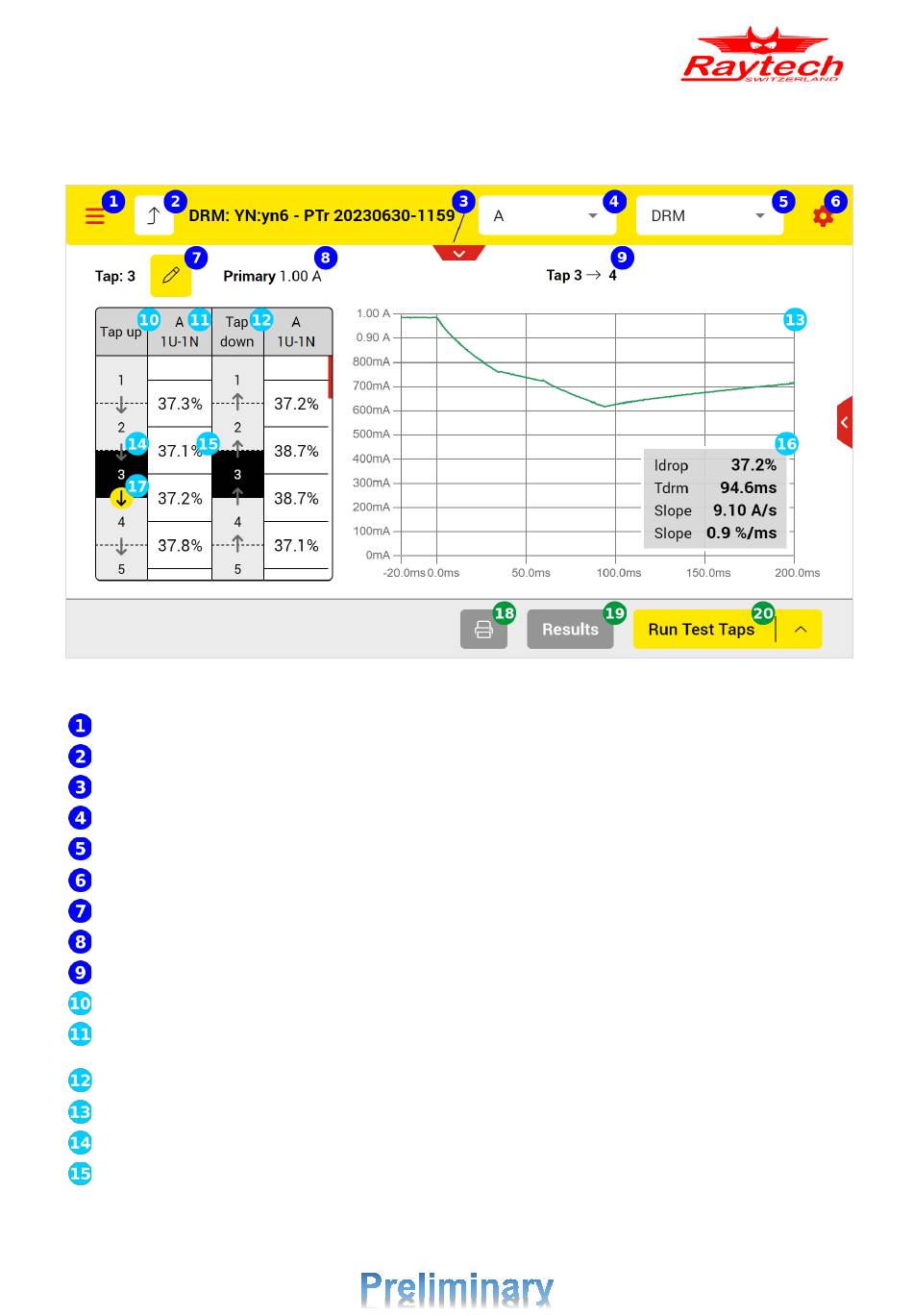

Figure 80 shows the measurement view of DRM test.
Open the main menu
Back to the test plan page
Open test object quick access
Select which phase to test
Select to show DRM graph or motor current graph
Test settings
The actual tap position. It can be changed by tapping on the pencil button
The measuring side and the selected test current.
The tap transition of the showing graph
Tap positions in up direction
The phase and the corresponding connections which be used automatically by the instrument
to test
Tap positions in down direction
The DRM or motor current curve for actual or selected transition
The current tap position, which is indicated by a black background
The current drop in %. You can also select it by clicking on it, and the results will be displayed
upon selection
90297-0.24 Instruction Manual mini-ATOS
Figure 80: Dynamic resistance measurement view
Preliminary
Page 94 of 125
