13.4 External (6pins version)

The 6pins external port consists two additional pins to connect an external safety interlock. The
function of other 4pins is the same as the 4pins version. The external safety interlock can be for
example a safety door or a safety hand switch. The safety interlock must be connected to pin
number 5 and 6.

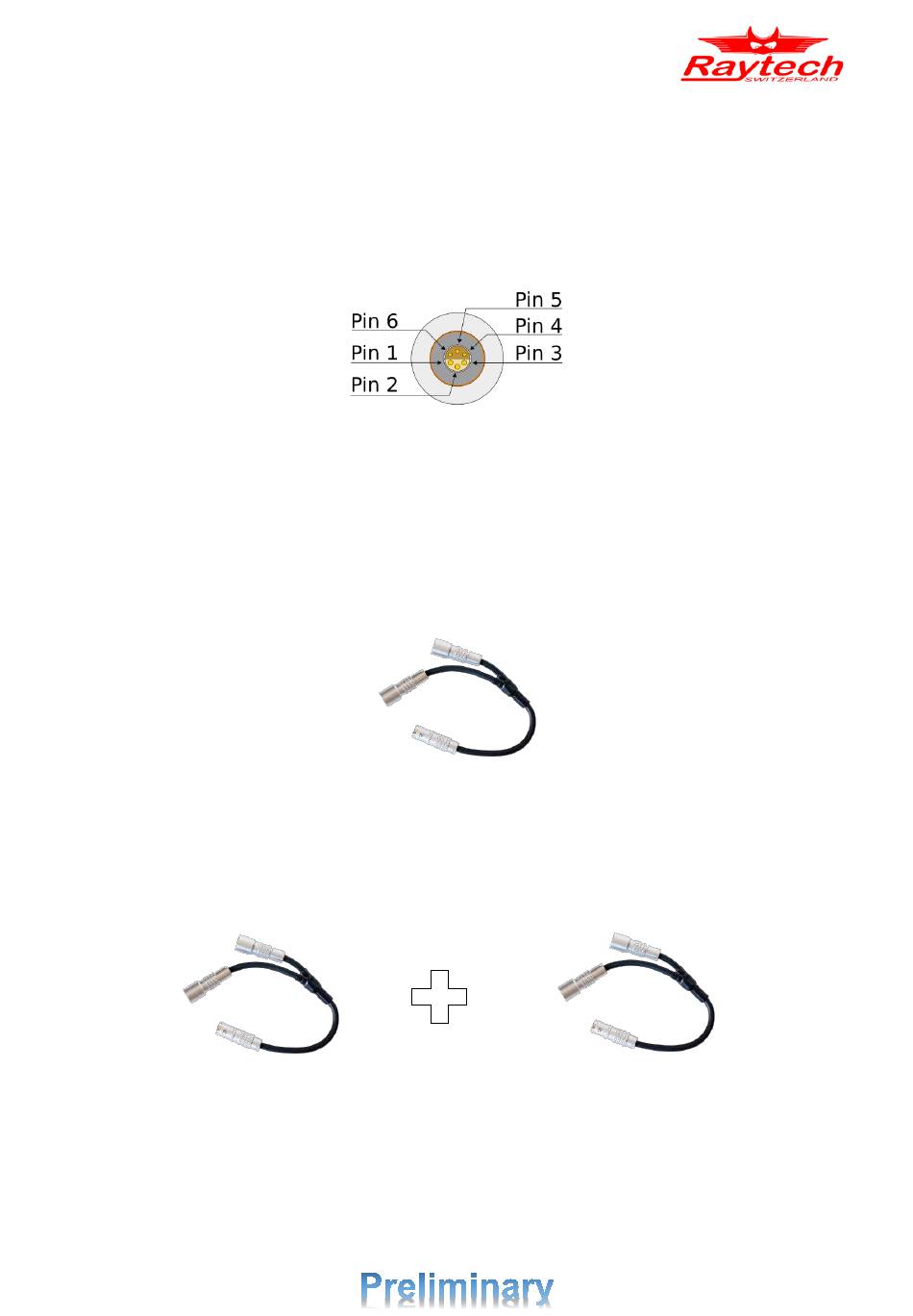

External (6pins version)
When these pins are shorted, it means that it is safe to perform a measurement. If they are not
shorted, it is not possible to start a measurement.
If the connection open during a measurement, measurement will be stopped automatically.
When external safety interlock and either hand switch or warning lamp is required then a splitter
cable is necessary as follows which can be ordered as an optional item:
Cable adapter external
(6pin to 6pin & 4pin)
When external safety interlock and both hand switch and warning lamp is required then two splitter
cables are necessary as follows which can be ordered as an optional item:
Cable adapter external Cable adapter hand switch/ warning lamp
(6pin to 6pin & 4pin) (4pin to 2x 4pin)
