10.5 Magnetic Balance

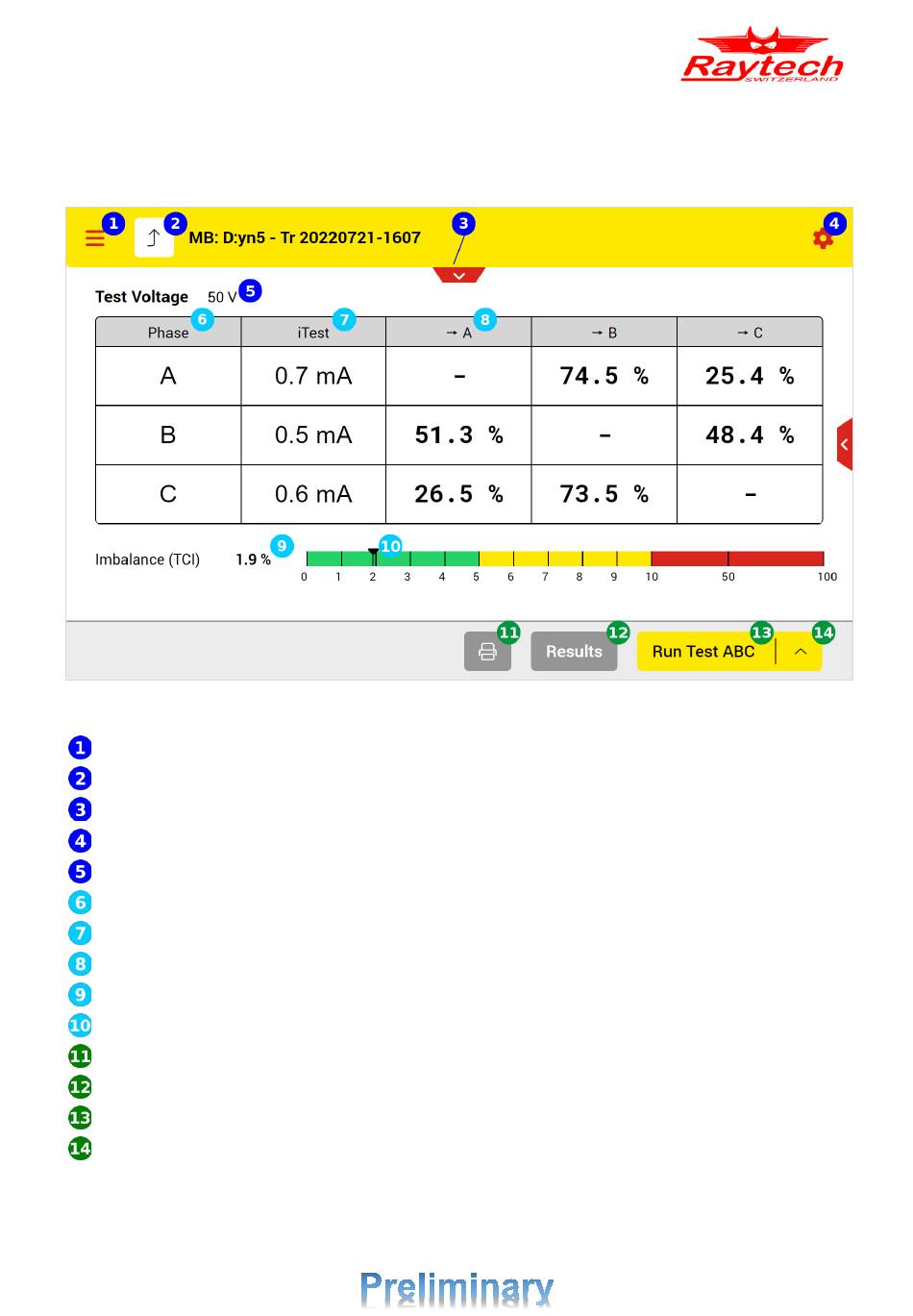

Figure 70 shows the measurement view of the Magnetic Balance test and following that each part
is explained.
Open the main menu
Back to the test plan page
Open test object quick access
Test settings
The selected test voltage
The Phase which the voltage applied to
The output current during the test
The phase which the voltage measured and the values as a percentage of the applied voltage
The transformer core imbalance value (see chapter 4.4 for more information)
Showing the TCI value on a colored bar
Print the results by using the thermal printer
Open the detailed results in table view or graphs
Start test button
Test mode to select which phase to test (A, B, C, ABC)
90297-0.24 Instruction Manual mini-ATOS
Figure 70: Magnetic Balance measurement view
